CAT35C108K-TE13 datasheet, PDF

Datasheet> All Categories > storage> storage> CAT35C108K-TE13

CAT35C108K-TE13: DescriptionEEPROM, 512X16, Serial, CMOS, PDSO8; Categorystorage storage; File Size249KB，7 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric Compare View All

CAT35C108K-TE13 Overview

EEPROM, 512X16, Serial, CMOS, PDSO8

CAT35C108K-TE13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Catalyst
Objectid	101089949
package instruction	SOP, SOP8,.3
Reach Compliance Code	unknown
compound_id	181462431
Spare memory width	8
Data retention time - minimum	100
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
memory density	8192 bit
Memory IC Type	EEPROM
memory width	16
Number of terminals	8
word count	512 words
character code	512
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512X16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
power supply	5 V
Certification status	Not Qualified
Serial bus type	MICROWIRE
Maximum standby current	0.00001 A
Maximum slew rate	0.003 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
write protect	HARDWARE/SOFTWARE

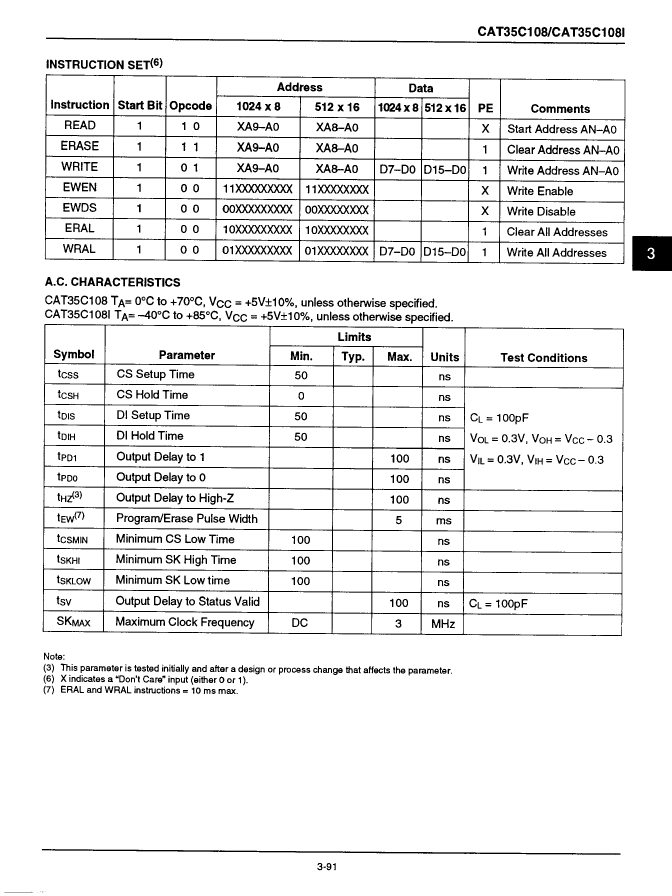

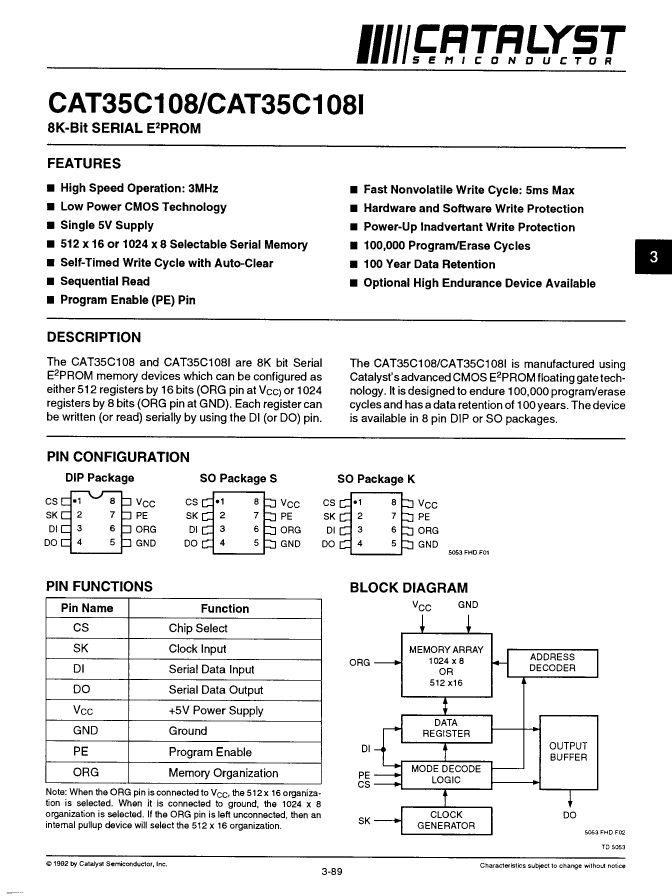

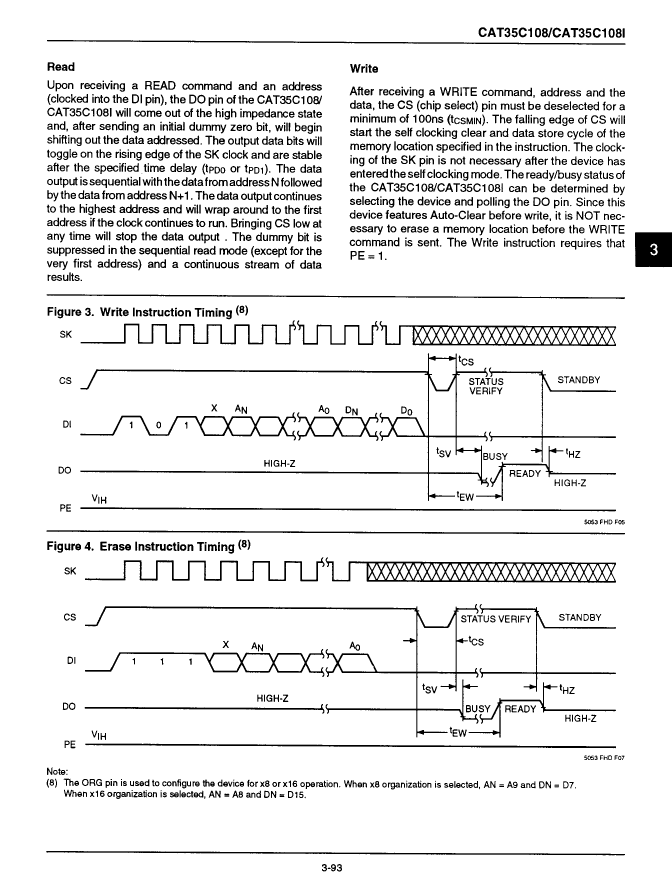

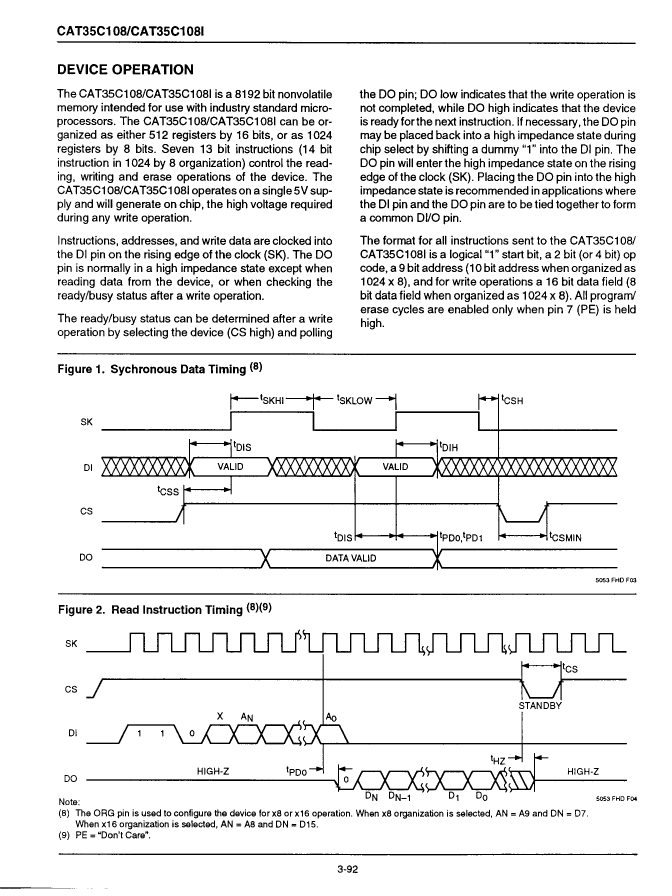

Preview

Download Datasheet

View All

CAT35C108K-TE13 Related Products

	CAT35C108K-TE13	CAT35C108SI-TE7	CAT35C108P	CAT35C108PI	CAT35C108SI-TE13	CAT35C108S-TE13	CAT35C108KI-TE13
Description	EEPROM, 512X16, Serial, CMOS, PDSO8	EEPROM, 512X16, Serial, CMOS, PDSO8	EEPROM, 1KX8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8	EEPROM, 1KX8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8	EEPROM, 512X16, Serial, CMOS, PDSO8	EEPROM, 512X16, Serial, CMOS, PDSO8	EEPROM, 512X16, Serial, CMOS, PDSO8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst
package instruction	SOP, SOP8,.3	SOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP8,.3	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Spare memory width	8	8	16	16	8	8	8
Data retention time - minimum	100	100	100	100	100	100	100
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit	8192 bit	8192 bi
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	8	8	16	16	16
Number of terminals	8	8	8	8	8	8	8
word count	512 words	512 words	1024 words	1024 words	512 words	512 words	512 words
character code	512	512	1000	1000	512	512	512
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-	-40 °C	-	-40 °C	-40 °C	-	-40 °C
organize	512X16	512X16	1KX8	1KX8	512X16	512X16	512X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP	SOP	SOP	SOP
Encapsulate equivalent code	SOP8,.3	SOP8,.25	DIP8,.3	DIP8,.3	SOP8,.25	SOP8,.25	SOP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Serial bus type	MICROWIRE	MICROWIRE	3-WIRE	3-WIRE	MICROWIRE	MICROWIRE	MICROWIRE
Maximum standby current	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A	0.00001 A
Maximum slew rate	0.003 mA	0.004 mA	0.003 mA	0.004 mA	0.004 mA	0.003 mA	0.004 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
write protect	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE
Base Number Matches	-	1	1	1	1	-	-
