VTA2-3D1FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> VTA2-3D1FREQ

VTA2-3D1FREQ: DescriptionTCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz; CategoryPassive components oscillator; File Size166KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric Compare View All

VTA2-3D1FREQ Overview

TCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz

VTA2-3D1FREQ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	3.5%
Manufacturer's serial number	VTA2
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	25 MHz
Minimum operating frequency	8.192 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	18.5mm x 12mm x 5mm
Nominal supply voltage	3 V
surface mount	NO
Terminal surface	NOT SPECIFIED

Preview

Download Datasheet

View All

VTA2 Miniature TCXOs

Featuring

+3.0 or 5.0 Vdc Option

Clipped Sinewave

or HCMOS/TTL Options

Low Profile Option

Voltage Tuned Option

Low Cost

Reflowable

Frequency Range

Package Options

Stability Options

1 to 40 MHz

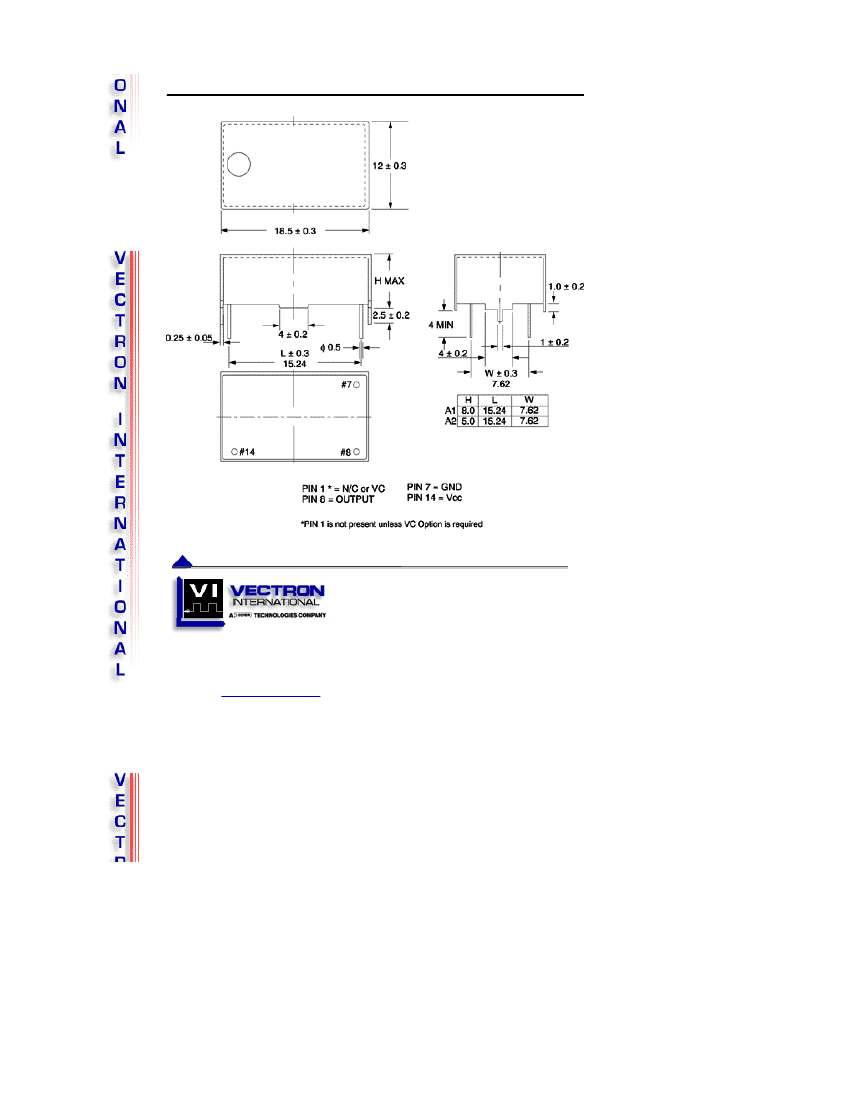

= 18.5 mm x 12 mm x 5 mm Maximum

= ±1.0 PPM 0°C to +50°C

= ±2.5 PPM -30°C to +70°C

= ±3.5 PPM -30°C to +70°C

= ±5.0 PPM -40°C to +85°C

<±0.3 PPM vs B+ ±5%

<1.0 PPM/year at +40°C dynamic

= +5.0 Vdc ±5% <20 mA HCMOS/TTL

= +3.0 Vdc ±5% <20 mA HCMOS/TTL

Output Logic 1 = 90% of VCC Minimum

Logic 0 = 10% of VCC Maximum

Load 2 HCMOS or 2 TTL Minimum

= +5.0 Vdc ±5% <1.0 VP-P Clipped

Sinewave

= +3.0 Vdc ±5% <0.8 VP-P Clipped

Sinewave

Frequency is 8.192 to 25 MHz for Clipped

Sinewave

Load 10 K-Ohm/10pF

Stability vs Supply

Aging (Typical)

Input Voltage &

Current

Mechanical Trim

Trim Options

±3.0 PPM Minimum, located anywhere on

top surface.

= Mechanical Trim

= ±5.0 PPM Minimum Voltage Control

& Mechanical Trimmer

VTA2-2A0 10.0 MHz

= 18.5 mm x 12 mm x 5 mm Maximum

= +2.5 PPM

= + 5.0 Vdc

= Mechanical trim adjust

Typical P/N

We welcome your custom requests and will issue a custom part

number for items that are not listed.

VTA2-3D1FREQ Related Products

	VTA2-3D1FREQ	VTA2-2D1FREQ	VTA2-1C1FREQ	VTA2-1D1FREQ	VTA2-2C1FREQ	VTA2-4D1FREQ
Description	TCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz	TCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz	TCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz	TCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz	TCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz	TCVCXO, CLIPPED SINE OUTPUT, 8.192 MHz - 25 MHz
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES	YES	YES	YES	YES	YES
frequency stability	3.5%	2.5%	1%	1%	2.5%	5%
Manufacturer's serial number	VTA2	VTA2	VTA2	VTA2	VTA2	VTA2
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Minimum operating frequency	8.192 MHz	8.192 MHz	8.192 MHz	8.192 MHz	8.192 MHz	8.192 MHz
Maximum operating temperature	70 °C	70 °C	50 °C	50 °C	70 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-	-	-30 °C	-40 °C
Oscillator type	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE
Output impedance	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	0.8 V	0.8 V	1 V	0.8 V	1 V	0.8 V
physical size	18.5mm x 12mm x 5mm	18.5mm x 12mm x 5mm	18.5mm x 12mm x 5mm	18.5mm x 12mm x 5mm	18.5mm x 12mm x 5mm	18.5mm x 12mm x 5mm
Nominal supply voltage	3 V	3 V	5 V	3 V	5 V	3 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Vectron International, Inc.	-	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.
