D Series Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 100 V
DC
, Narrow Tolerance
D
FEATURES
D
• Low losses
• High stability
• High capacitance in small size
Tangent
line
Tangent
SH
line
DR
• Kinked (preferred) or straight leads
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• Bypassing
• Coupling
F
F
• Resonant circuit
Capacitors with 5 mm (0.20"
)
and 2.5 mm (0.10") lead spacing
QUICK REFERENCE DATA
DESCRIPTION
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
CLASS 1 (NP0, N750)
100
1.5
330
Through hole
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors have inward kinked leads with a spacing of
5 mm (0.20") and 2.5 mm (0.10") and a lead length from
4 mm to 30 mm. Encapsulation is made of phenolic resin.
MARKING
Marking indicates capacitance value and tolerance in
accordance with EIA 198.
CAPACITANCE RANGE
1.5 pF to 330 pF; Class 1, at 1 MHz, 1.2 V
RMS
;
1 kHz, 1 V
RMS
± 0.2 V
RMS
for capacitance values higher than
1000 pF
OPERATING TEMPERATURE RANGE
Class 1, - 55 to + 125 °C
RATED DC VOLTAGE
100 V
TEMPERATURE COEFFICIENTS
Class 1, NP0; N750
DIELECTRIC STRENGTH
250 % of rated voltage
SECTIONAL SPECIFICATIONS
Class 1, IEC 60 384-8,
EIA 198
INSULATION RESISTANCE AT 100 V
DC
≥
10 000 MΩ
CLIMATIC CATEGORY
Class 1, 55/125/56
TOLERANCE ON CAPACITANCE
± 0.25 pF; ± 0.5 pF; ± 2 %
DISSIPATION FACTOR
Class 1, C
≤
30 pF;
≤
20 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF;
≤
0.2 %
Note
• The capacitors meet the essential requirements of EIA 198. Unless stated otherwise all electrical values apply at an ambient temperature of
25 ± 3 °C, at normal atmospheric conditions.
www.vishay.com
34
For technical questions, contact:
CDC@vishay.com
Document Number: 28512
Revision: 07-Jan-10
D Series Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 100 V
DC
, Narrow Tolerance
Vishay BCcomponents
ORDERING INFORMATION, CLASS 1, 100 V
DC
, KINKED AND STRAIGHT
C (PF)
CLASS 1 NP0
1.5
1.8
2.2
± 0.25 pF
3.3
4.7
5.0
6.8
10
15
±2
22
33
47
6.5
68
100
150
220
CLASS 1 N750
6.8
10
15
5.5
22
±2
33
47
68
6.5
± 0.25 pF
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D689C20U2JH6.J5R
D689C20U2JH6.L2R
D100G20U2JH6.J5R
D100G20U2JH6.L2R
D150G20U2JH6.J5R
D150G20U2JH6.L2R
D220G20U2JH6.J5R
D220G20U2JH6.L2R
D330G20U2JH6.J5R
D330G20U2JH6.L2R
D470G20U2JH6.J5R
D470G20U2JH6.L2R
D680G25U2JH6.J5R
D680G25U2JH6.L2R
±2
7.5
8.5
11.0
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D159C20C0KH6.J5R
D159C20C0KH6.L2R
D189C20C0KH6.J5R
D189C20C0KH6.L2R
D229C20C0JH6.J5R
D229C20C0JH6.L2R
D339C20C0JH6.J5R
D339C20C0JH6.L2R
D479C20C0HH6.J5R
D479C20C0HH6.L2R
D689C20C0HH6.J5R
D689C20C0HH6.L2R
D100G20C0GH6.J5R
D100G20C0GH6.L2R
D150G20C0GH6.J5R
D150G20C0GH6.L2R
D220G20C0GH6.J5R
D220G20C0GH6.L2R
D330G20C0GH6.J5R
D330G20C0GH6.L2R
D470G25C0GH6.J5R
D470G25C0GH6.L2R
D680G25C0GH6.J5R
D680G25C0GH6.L2R
D101G29C0GH6.J5R
D101G29C0GH6.L2R
D151G33C0GH6.J5R
D151G33C0GH6.L2R
D221G43C0GH6.J5R
D221G43C0GH6.L2R
TOL. (%)
D
MAX.
(mm)
LEAD SPACING
F
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
Document Number: 28512
Revision: 07-Jan-10
For technical questions, contact:
CDC@vishay.com
www.vishay.com
35
D Series Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 100 V
DC
, Narrow Tolerance
ORDERING INFORMATION, CLASS 1, 100 V
DC
, KINKED AND STRAIGHT
C (PF)
CLASS 1 N 750
100
150
±2
220
330
10
12
7.5
8.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D101G29U2JH6.J5R
D101G29U2JH6.L2R
D151G33U2JH6.J5R
D151G33U2JH6.L2R
D221G39U2JH6.J5R
D221G39U2JH6.L2R
D331G47U2JH6.J5R
D331G47U2JH6.L2R
TOL. (%)
D
MAX.
(mm)
LEAD SPACING
F
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
Note
(1)
SH = seated height; DR = run down
• 1. Maximum thickness 3.5 mm
• Lead style codes refer to inward kinked leads and straight leads

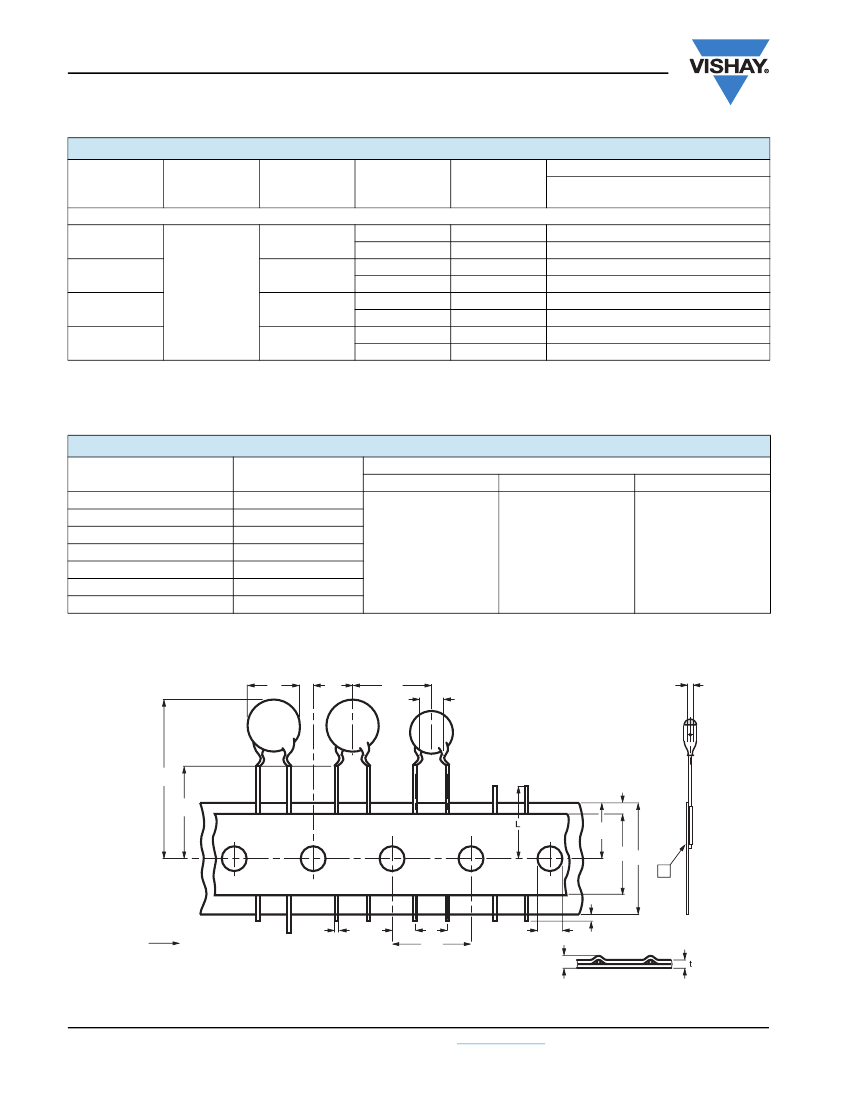

PACKAGING
D
MAX.
(mm)
5.0 (0.20")
6.5 (0.25")
7.5 (0.29")
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
12.0 (0.47")
SIZE CODE
20
25
29
33
39
43
47
1000
2500
2000
PACKAGING QUANTITIES
BULK
REEL
AMMO
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack
D
P
2
P
ΔP
Δh
ΔP
Δh
H
1
W
2
H
0
W
1
W
0
W
A
e
P
1
Direction of unreeling
Ød
F
P
0
D
0
t
1
Kinked capacitors on tape, lead
spacing
5.0 mm (0.2")
detail A
www.vishay.com
36
For technical questions, contact:
CDC@vishay.com
Document Number: 28512
Revision: 07-Jan-10
D Series Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 100 V
DC
, Narrow Tolerance

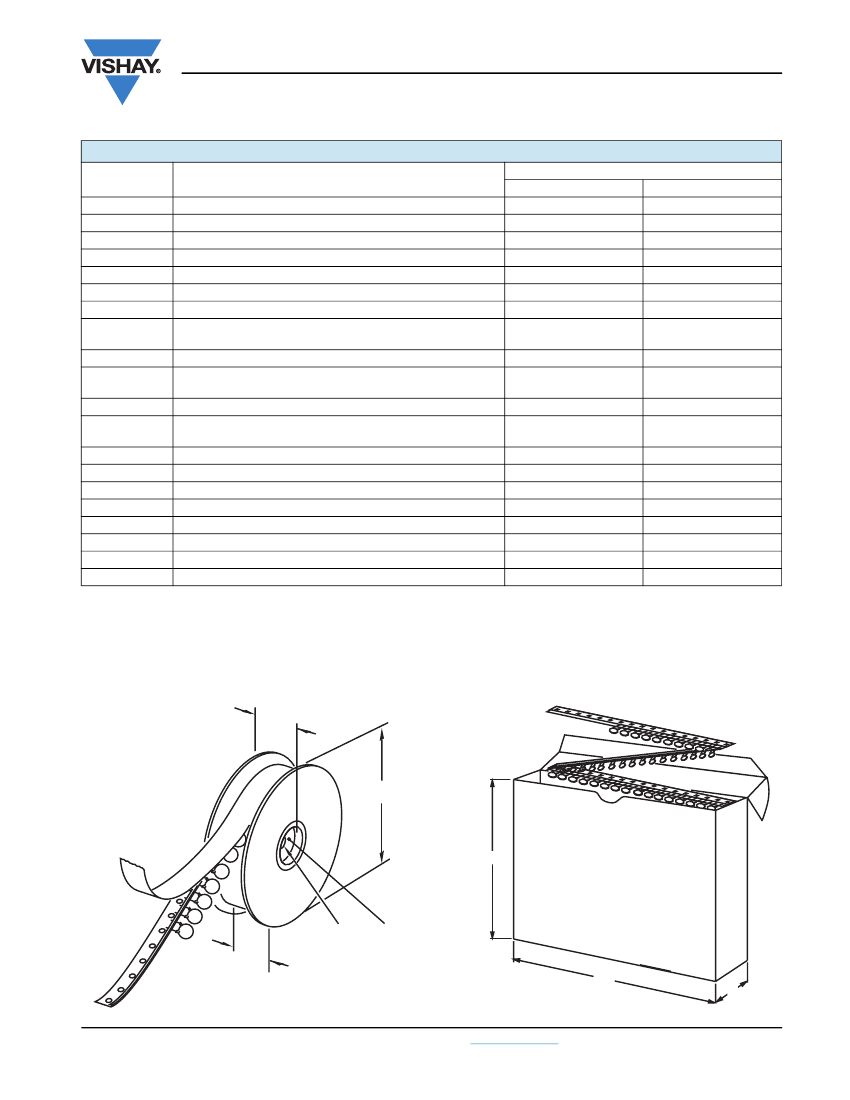

DIMENSION OF TAPE
SYMBOL
D
d
P
P
0 (1)
ΔP
P
1 (2)
P
2
F
Δh
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
(2)
Vishay BCcomponents
PARAMETER
Body diameter
Lead diameter
Pitch between capacitors
Feed-hole pitch
Plane deviation
Feed-hole center to lead center
Feed-hole center to component center
Lead spacing
Component alignment
Tape width
Hold-down tape width
Hole position
Hold-down tape margin
Height to seating plane
Maximum component height
Lead end protrusion
Maximum length of snipped lead
Feed-hole diameter
Total tape thickness
Maximum thickness of tape and wires
DIMENSIONS (mm)
NOMINAL
11.0 maximum
0.6
12.7
12.7
1.0 maximum
3.85
6.35
5.0
0
18.0
5.0 minimum
9.0
3.0 maximum
16.0
32.0
1.0 maximum
11.0
4.0
0.9 maximum
1.5 maximum
TOLERANCE
-
± 0.05
± 1.0
± 0.3
-
± 0.7
± 1.3
0.6
- 0.4
± 1.0
1.0
- 0.5
-
0.75
- 0.5
-
± 0.5
-
-
-
± 0.2
-
-
Notes
(1)
Cumulative pitch error: ±
≤
1 mm/20 pitches
(2)
Obliquity maximum 3°
REEL AND TAPE DATA
in millimeters
51 max.
355.6 ± 2.0
290
28 ± 1.5
45 max.
8.0
335
50
Reel with capacitors on tape
Document Number: 28512
Revision: 07-Jan-10
Ammopack with capacitors on tape
www.vishay.com
37
For technical questions, contact:
CDC@vishay.com
D Series Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 100 V
DC
, Narrow Tolerance
TEMPERATURE COEFFICIENT IN ACCORDANCE WITH RS198
C = 0.0
M = 1.0
P = 1.5
R = 2.2
S = 3.3
T = 4.7
U = 7.5
-
0=-1
1 = - 10
2 = - 100
3 = - 1000
5=+1
6 = + 10
7 = + 100
8 = + 1000
G = ± 30
H = ± 60
J = ± 120
K = ± 250
L = ± 500
M = ± 1000
N = ± 2500
-
DC16
C
(%)
12
8
4
0
-4
N750
-8
- 12
- 16
- 60
NP0
NP0
N750
- 40
- 20
0
20
40
60
80
100
120
Capacitance change as a function of temperature
140
T
(°C)
www.vishay.com
38
For technical questions, contact:
CDC@vishay.com
Document Number: 28512
Revision: 07-Jan-10
