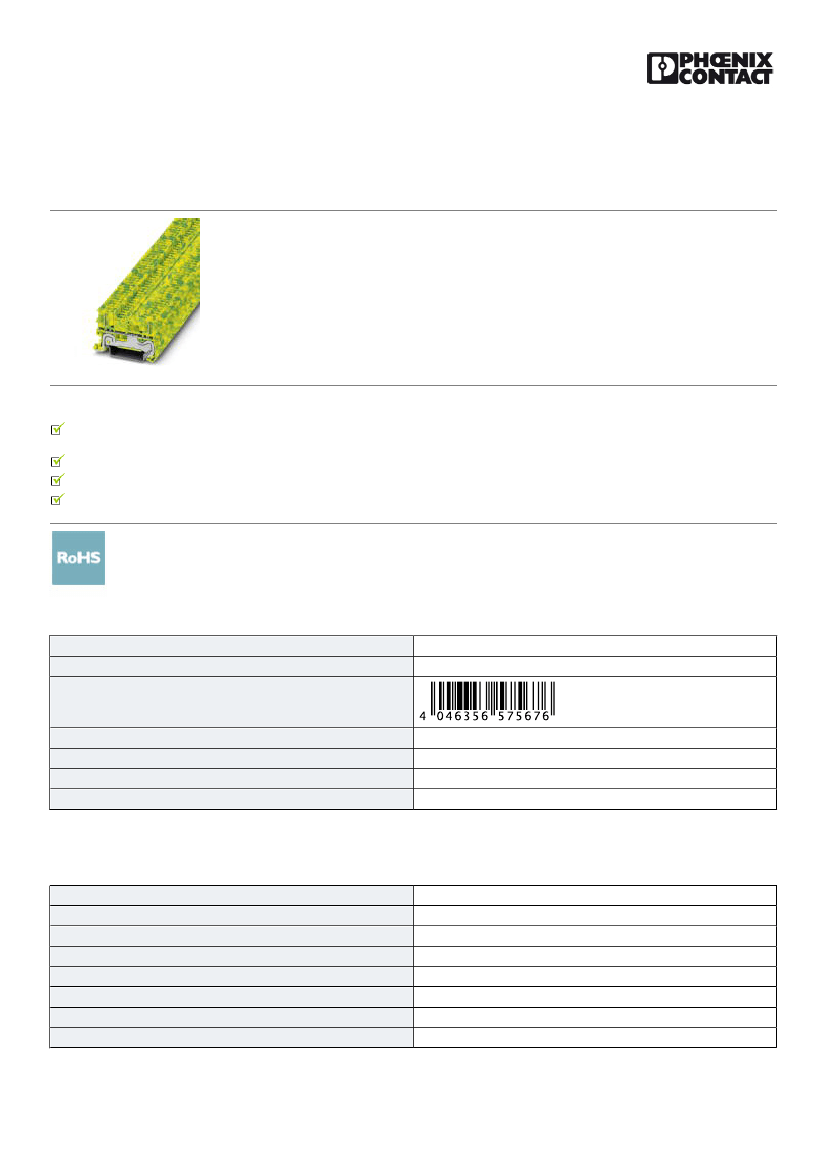

Ground modular terminal block - PT 1,5/S/2P-PE - 3213810
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ground modular terminal block, connection method: Push-in / plug connection, number of connections: 2,
cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, width: 3.5 mm, color: green-yellow, mounting type: NS
35/7,5, NS 35/15
Your advantages
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356575676
4.250 g
85366990
Poland
50 pc
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
2
1.5 mm²
green-yellow
PA
V0
Railway industry
Machine building
12/30/2018 Page 1 / 25
https://www.phoenixcontact.com/in/products/3213810
Ground modular terminal block - PT 1,5/S/2P-PE - 3213810
Technical data
General
Plant engineering
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Open side panel
Insertion/withdrawal cycles mechanical
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
6 kV
3
III
I
Yes
100
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0,8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
12/30/2018 Page 2 / 25
https://www.phoenixcontact.com/in/products/3213810
Ground modular terminal block - PT 1,5/S/2P-PE - 3213810
Technical data
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
3.5 mm
2.2 mm
45.8 mm
32 mm
39.5 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Internal cylindrical gage
Please observe the current carrying capacity of the DIN rails.
Push-in / plug connection
IEC 61984
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
0.14 mm²
1 mm² Using the AI-S 1-8 TQ ferrule, Order No. 1200293, is
recommended
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 61984
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
12/30/2018 Page 3 / 25
https://www.phoenixcontact.com/in/products/3213810
Ground modular terminal block - PT 1,5/S/2P-PE - 3213810
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141118
27141118
27141118
27141100
27141100
27141141
27141141
27141141
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000901
EC000901
EC000901
EC000901
EC000901
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
mm²/AWG/kcmil
D
26-14
http://www.csagroup.org/services-industries/product-listing/
B
26-14
C
26-14
13631
12/30/2018 Page 4 / 25
https://www.phoenixcontact.com/in/products/3213810
Ground modular terminal block - PT 1,5/S/2P-PE - 3213810
Approvals
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 60425
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 60425
IECEE CB Scheme
Nominal voltage UN
http://www.iecee.org/
500 V
DE1-58483_B1
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
500 V
0.14-1.5
40034766
EAC
RU C-
DE.AI30.B.01102
cULus Recognized
Accessories
Accessories
Coding element
Coding star - PC - 3040588
Coding star, length: 3 mm, width: 3 mm, height: 6 mm, color: red
DIN rail
