UTO-546R datasheet, PDF - EEWORLD Datasheet

UTO-546R: DescriptionWide Band Medium Power Amplifier, 20MHz Min, 500MHz Max, 1 Func, Hybrid,; CategoryWireless rf/communication Radio frequency and microwave; File Size89KB，3 Pages; ManufacturerHewlett Packard Co.

Download Datasheet Parametric Compare View All

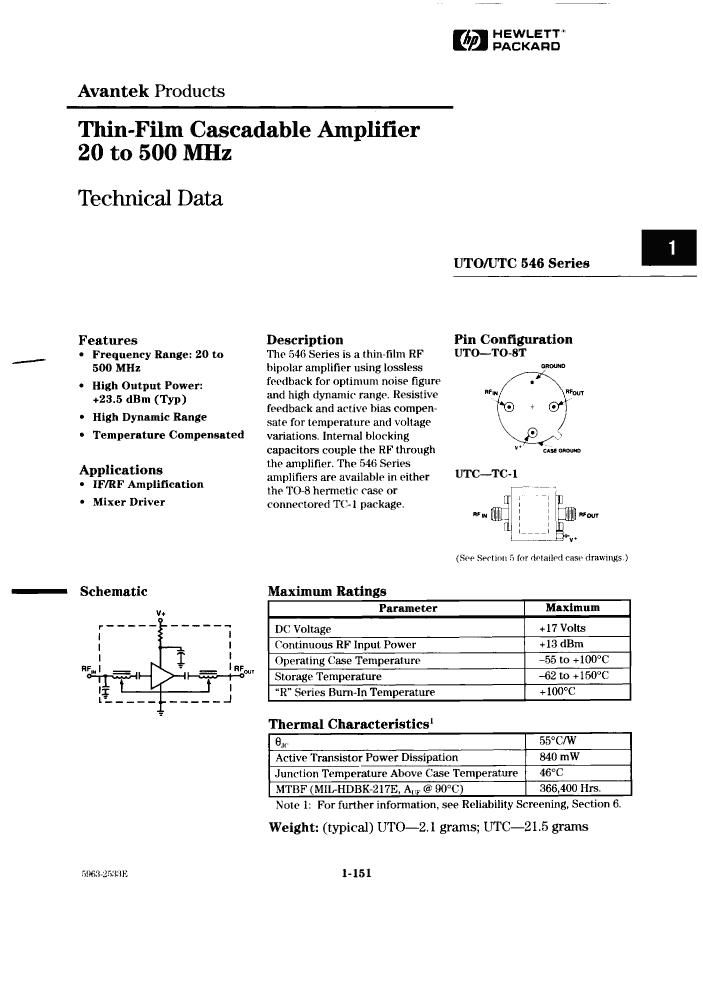

UTO-546R Overview

Wide Band Medium Power Amplifier, 20MHz Min, 500MHz Max, 1 Func, Hybrid,

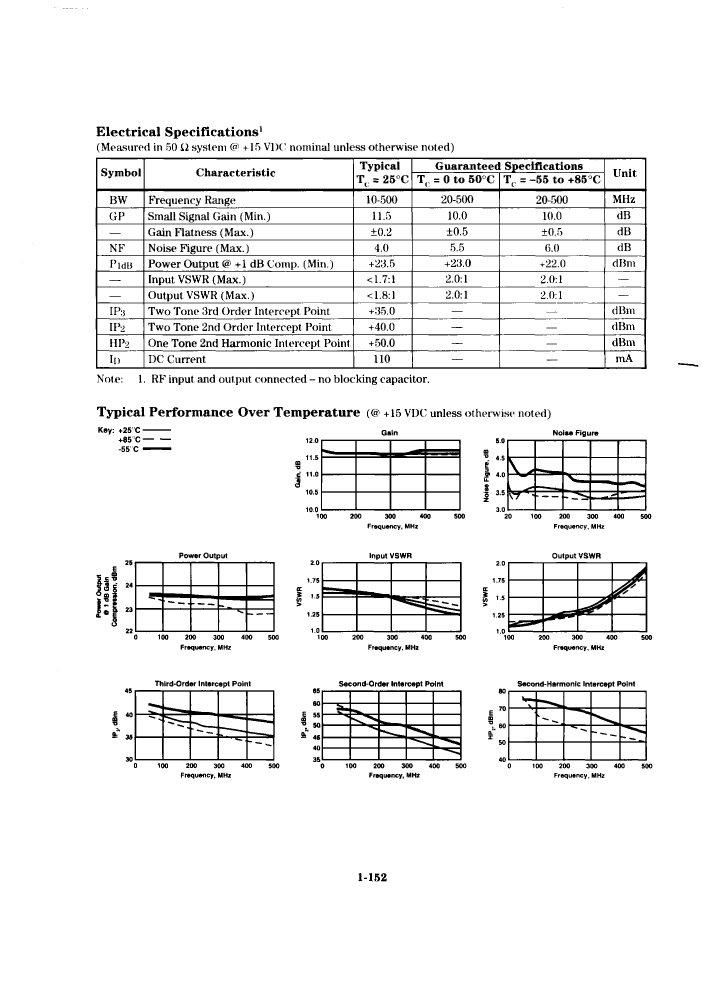

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hewlett Packard Co.
package instruction	CAN4,.3
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	13 dBm
JESD-609 code	e0
Number of functions	1
Number of terminals	4
Maximum operating frequency	500 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN4,.3
power supply	15 V
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
technology	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2

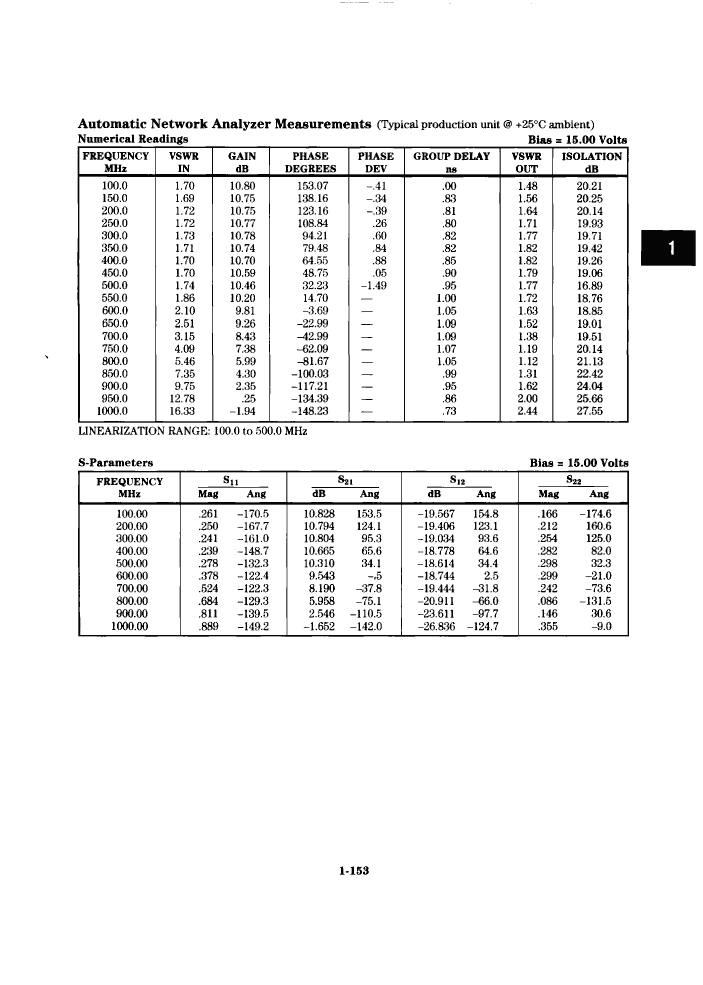

	UTO-546R	UTC-546-1	UTO-546
Description	Wide Band Medium Power Amplifier, 20MHz Min, 500MHz Max, 1 Func, Hybrid,	Wide Band Medium Power Amplifier, 20MHz Min, 500MHz Max,	Wide Band Medium Power Amplifier, 20MHz Min, 500MHz Max,
Maker	Hewlett Packard Co.	Hewlett Packard Co.	Hewlett Packard Co.
Reach Compliance Code	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2
