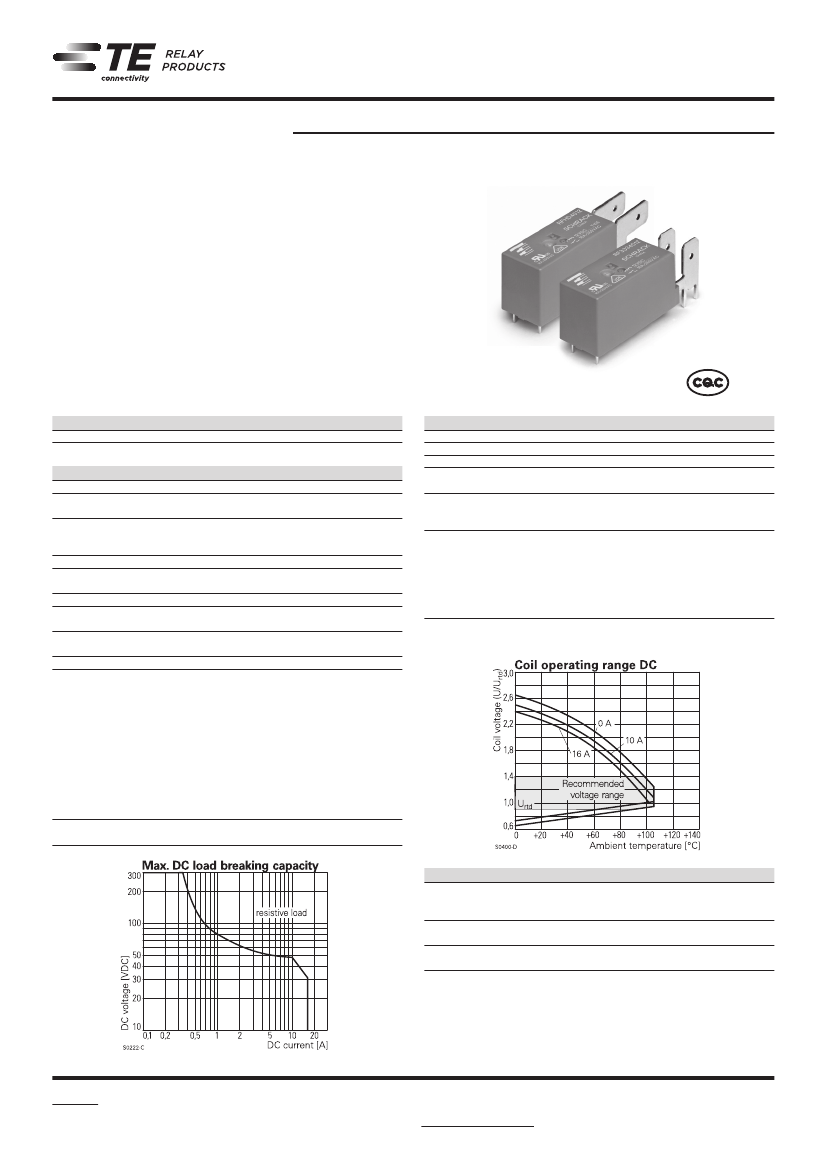

General Purpose Relays
PCB Relays
Power Relay RF
n
n
n
n
n
n
SCHRACK
1 pole 16A, 1 form A (NO) or 1 form B (NC) contact
Coil power 400mW
Reinforced insulation (EN 61810, 60335, 60730)
Ambient temperature up to 105°C
Quick connect terminals for load side
WG version: Materials in accordance to IEC 60335-1
Typical applications
Oven control, electric heating, power supplies, air conditioning, microwave
ovens, hobs
VZ
Coil Data
Coil voltage range
Operative range, IEC 61810
Coil insulation system according UL1446
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
005
5
3.5
006
6
4.2
009
9
6.3
012
12
8.4
024
24
16.8
048
48
33.6
060
60
42.0
Release
voltage
VDC
0.5
0.6
0.9
1.2
2.4
4.8
6.0
5 to 60VDC
2
class F
Coil
resistance
Ω±10%
62
90
203
360
1440
5520
8570
F0273-BI
Approvals
VDE REG.-Nr. A652, UL E214025, CQC 05001014817
Technical data of approved types on request
Contact arrangement
1 form A (NO) or 1 form B (NC)
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
16A
Limiting making current, form A contact,
max. 4s, duty factor 10 %
25A
Breaking capacity max.
4000VA
Contact material
AgNi 90/10
Min. recommended contact load
12VAC at 500mA
Frequency of operation, with/without load
360/72000h
-1
Operate/release time max.
11/7ms
Bounce time max., form A/form B
4/4ms
Contact ratings
Type
IEC 61810
RF334; RFH34
RF334; RFH34
RF334; RFH34
RF334; RFH34
RF354; RFH54
RF354; RFH54
RF354; RFH54
RFH34
RFH34
RFH34
RFH34
Contact Load
A (NO)
A (NO)
A (NO)
A (NO)
B (NC)
B (NC)
B (NC)
A (NO)
A (NO)
A (NO)
A (NO)
16A, 250VAC resistive, 85°C
11A, 250VAC resistive, 85°C
20A, 250VAC resistive, 85°C
25A, 250VAC resistive, 70°C
16A, 250VAC resistive, 85°C
20A, 250VAC resistive, 85°C
25A, 250VAC resistive, 70°C
16A, 250VAC resistive, 105°C
11A, 250VAC resistive, 105°C
18.5A, 250VAC resistive, 105°C
10A, 400VAC resistive, 105°C
>10x10
6
operations
Cycles
100x10
3
250x10
3
25x10
3
15x10
3
100x10
3
50x10
3
20x10
3
100x10
3
250x10
3
20x10
3
150x10
3
Contact Data
Rated coil
power
mW
403
400
399
400
400
417
420
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Mechanical endurance
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
1000V
rms
4000V
rms
≥8/8mm
IIIa
PTI250V
11-2011, Rev. 1111
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
PCB Relays
Power Relay RF
(Continued)
Other Data
PCB layout / terminal assignment
Bottom view on solder pins
SCHRACK
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
WG version
according EN 60335-1, par.30
Ambient temperature
RF3
-40 to 85°C
RFH
-40 to 105°C
Category of environmental protection
IEC 61810
RTII - flux proof
1)
Vibration resistance (functional),
form A/form B, 55 to 500Hz
20/5g
Shock resistance (destructive)
100g
Terminal type
PCB-THT, quick connect for load side
Weight
20g
Resistance to soldering heat THT, IEC 60068-2-20
flux proof version
270°C/10s
wash tight version
260°C/5s
Packaging/unit
tray/30 pcs., box/300 pcs.
1) RTIII - wash tight version on request
S0256-CA
1 form A (NO) contact
S0256-CB
1 form B (NC) contact
S0256-CC
Dimensions
Quick connect terminals vertical
Quick connect terminals horizontal
S0282-CI
S0282-CJ
2
11-2011, Rev. 1111
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
Power Relay RF
(Continued)
Product code structure
Type
Typical product code
SCHRACK
RF
3
3
4
012
WG
RF
Power Relay RF
Version
3
16A, 85°C
H
16A, 105°C
Contact configuration
3
1 form A (NO) contact, quick connect term. vertical
D
1 form A (NO) contact, quick connect term. horizontal
5
1 form B (NC) contact, quick connect term. vertical
F
1 form B (NC) contact, quick connect term. horizontal
Contact material
4
AgNi 90/10
Coil
Coil code: please refer to coil versions table
Version
Blank
Standard version
WG
Product in accordance with IEC 60335-1 (domestic appliances)
Wash tight version on request
RF334012
1 form A (NO)
85°C
12VDC
RFH34009WG
contact
105°C
9VDC
RFH34012WG
12VDC
RFH34024
24VDC
RFH54006WG
1 form B (NC)
6VDC
RFH54024WG
contact
24VDC
RFHD4012WG
1 form A (NO)
12VDC
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request
Product code
Contact arrangement
Version
Coil
Standard
IEC60335-1 compliant
Standard
IEC60335-1 compliant
Version
Part number
8-1415513-1
4-1415520-1
5-1415520-1
1415511-1
1415521-1
3-1415521-1
9-1415521-1
11-2011, Rev. 1111
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
