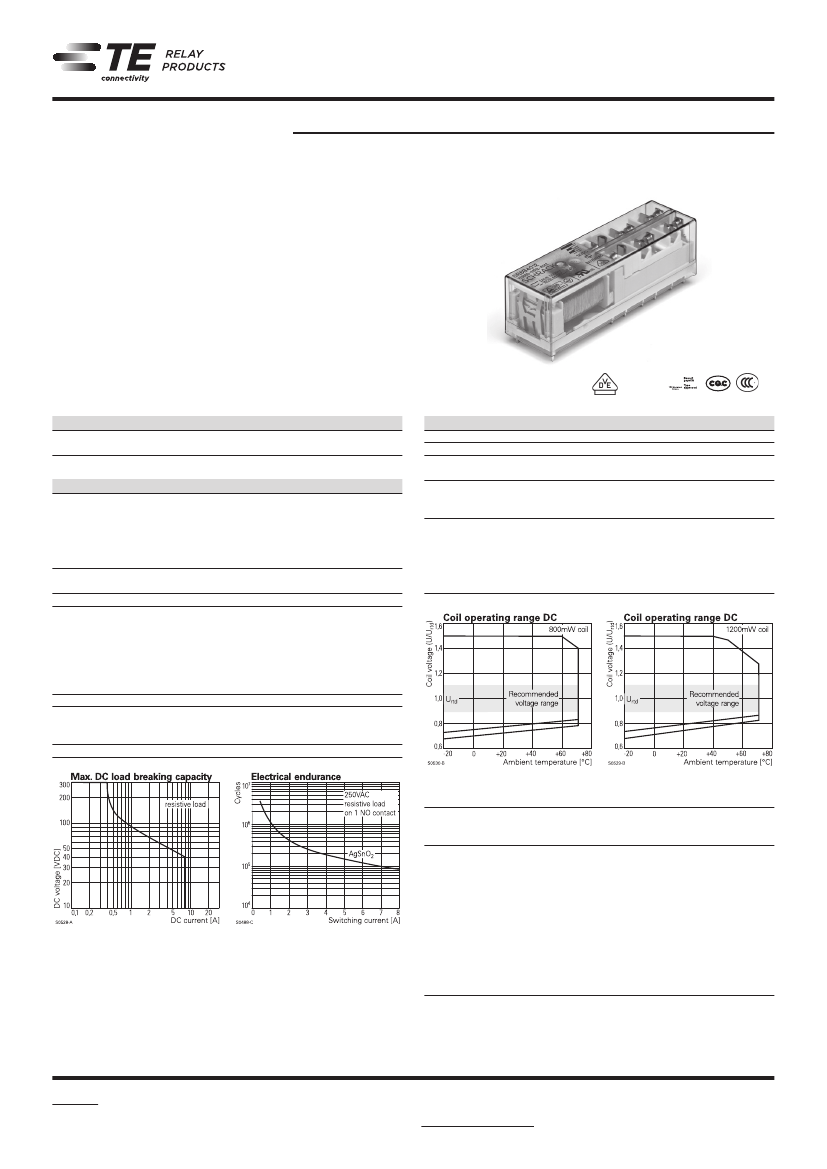

General Purpose Relays
Force Guided Relays
Force Guided Relay SR6 A/B/C/V
n
n
SCHRACK
6 pole relay with force guided contacts according to EN 50205
Reinforced insulation between all contacts
Typical applications
Emergency shut-off, press control, machine control, elevator and escalator
control, safety relays
F0206-EA
ZT
Approvals
VDE 128935, UL E214025, TUV 968/EL 350, CQC06017015576/77,
CCC 2012010304537809
Technical data of approved types on request
Coil Data
Coil voltage range
Max. coil power
Coil versions, DC-coil 800mW
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
K12
12
9
K15
15
11.3
K18
18
13.5
K21
21
16
K24
24
18
K36
36
27
5 to 110VDC
1200mW or 800mW
Release
voltage
VDC
0.9
1.5
1.8
2.1
2.4
3.6
Coil
resistance
Ω±10%
180
281
405
551
720
1620
Rated coil
power
mW
800
801
800
800
800
800
3 form A + 3 form B contacts
3 NO + 3 NC,
4 form A + 2 form B contacts
4 NO + 2 NC,
5 form A + 1 form B contacts
5 NO + 1 NC
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
8A
Contact material
AgSnO
2,
AgSnO
2
+ 0.2μm Au
Contact style
single contact, force guided
type A according to EN 50205
Min. recommended contact load
5V, 10mA
Initial contact resistance
≤100mΩ at 1A, 24VDC
≤20Ω at 10mA, 5VDC
Frequency of operation, with/without load
6/150min
-1
Contact ratings, IEC60947-5-1,
on 2 form A (NO) contact
AC15-5A
DC13-6A
Mechanical endurance
10x10
6
operations
Contact Data
Contact arrangement
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Coil versions, DC-coil 1200mW
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
005
5
3.8
006
6
4.5
009
9
6.8
012
12
9
018
18
13.5
021
21
16
024
24
18
036
36
27
040
40
30
048
48
36
060
60
45
110
110
83
Release
voltage
VDC
0.5
0.6
0.9
1.2
1.8
2.1
2.4
3.6
4.0
4.8
6
11
Coil
resistance
Ω±10%
1)
21
30
68
120
270
368
480
1080
1333
1920
3000
1)
10080
1)
Rated coil
power
mW
1190
1200
1191
1200
1200
1198
1200
1200
1200
1200
1200
1200
1) Coil resistance ±12%.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
11-2012, Rev. 1112
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Force Guided Relays
Force Guided Relay SR6 A/B/C/V
(Continued)
Insulation Data
Other Data
1500V
rms
4000V
rms
3000V
rms
microdisconnection
≥5.5/5.5mm
≥5.5/5.5mm
reinforced
reinforced
SCHRACK
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Clearance/creepage
between open contacts
between contact and coil
between adjacent contacts
Insulation to EN 50178, type of insulation
between contact and coil
between adjacent contacts
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
-25 to 70°C
Category of environmental Protection
IEC 61 810
RTIII
Weight
30g
Resistance to soldering heat THT
IEC 60068-2-20
260°C/5s
Packaging/unit
tube/10 pcs.
For more detailed information see product specification 2158003
Accessories
27E1079
SR6A and SR6B socket (1423991-1)
27E1081
SR6C socket (1423992-1)
24A243
Relay hold down clip (1423994-1)
For details see datasheet 1654787

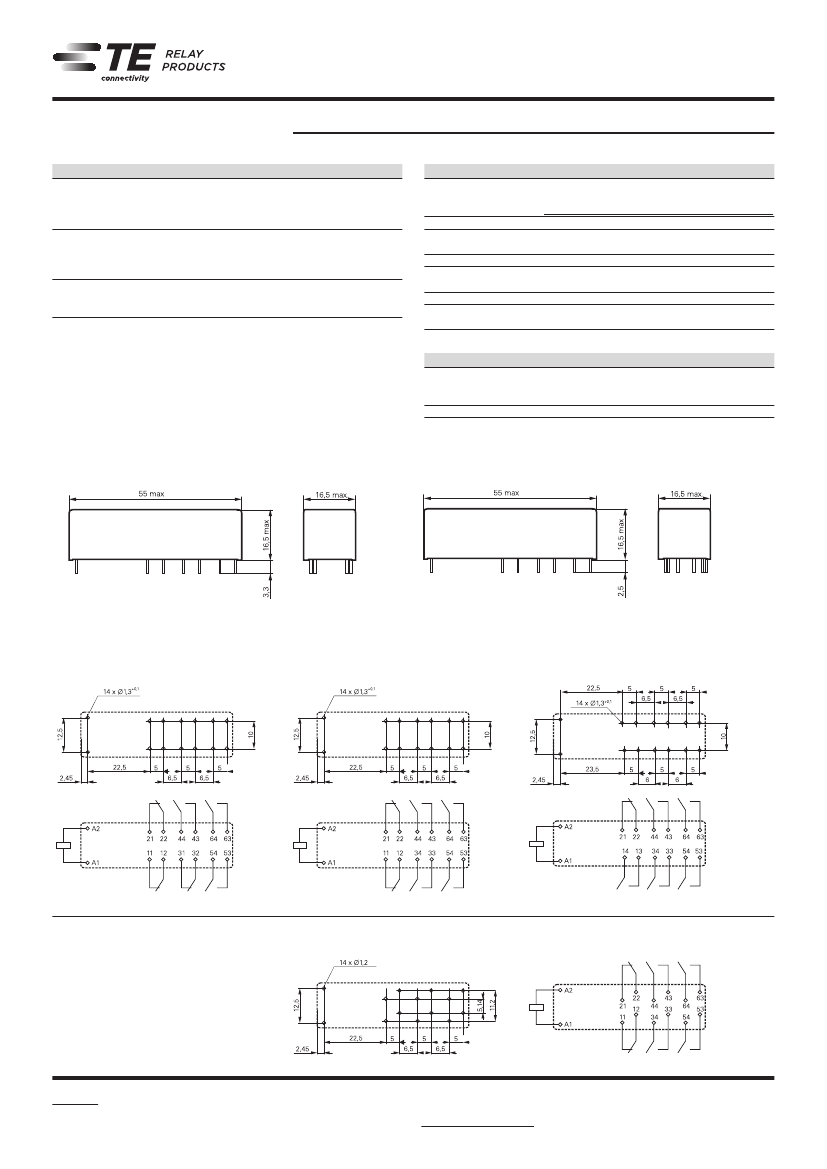

Dimensions
SR6 A/B/C
SR6 V
S0367-DN
S0367-DU
PCB layout / terminal assignment
Bottom view
3 form A + 3 form B, 3 NO + 3 NC versions
SR6 A
4 form A + 2 form B, 4 NO + 2 NC versions
SR6 B
5 form A + 1 form B, 5 NO + 1 NC versions
SR6 C
S0368-CA
S0368-CA
S0368-CE
S0368-CC
S0368-CB
S0368-CD
4 form A + 2 form B, 4 NO + 2 NC versions
SR6 V
The design of the SR6 V allows
clearance/creepage of 5.5 mm
on the PCB.
S0368-CU
S0368-CV
2
11-2012, Rev. 1112
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
Force Guided Relays
Force Guided Relay SR6 A/B/C/V
(Continued)
Product code structure
Type
SR6
Relay with force guided contacts SR6
Contact arrangement
A
3 form A + 3 form B contacts (3 NO + 3 NC)
B
4 form A + 2 form B contacts (4 NO + 2 NC)
V
4 form A + 2 form B contacts (4 NO + 2 NC)
C
5 form A + 1 form B contacts (5 NO + 1 NC)
Contact material
4
AgSnO
2
for 1200mW version
6
AgSnO
2
+ 0.2µm Au for 800mW version
Coil
Coil code: please refer to coil versions table (e.g. 024=24VDC)
Available types please see Part number table
SCHRACK
Typical product code
SR6
A
4
012
Product code
SR6A4005
SR6A4012
SR6A4021
SR6A4024
SR6A4048
SR6A4060
SR6A4110
SR6A6K12
SR6A6K18
SR6A6K24
SR6B4005
SR6B4006
SR6B4012
SR6B4018
SR6B4021
SR6B4024
SR6B4040
SR6B4048
SR6B4060
SR6B4085
SR6B4110
SR6B6K12
SR6B6K15
SR6B6K18
SR6B6K21
SR6B6K24
SR6C4012
SR6C4024
SR6C4048
SR6C4060
SR6C4110
SR6C6K24
SR6V6K12
SR6V6K15
SR6V6K18
SR6V6K21
SR6V6K24
6 pole
relay with
force guided
contacts
Type
3 forrm A + 3 form B,
3 NO + 3 NC
contactts
Arrangement
Cont. material
AgSnO
2
AgSnO
2
+Au
4 form A + 2 form B,
4 NO + 2 NC
contacts
AgSnO
2
AgSnO
2
+Au
5 form A + 1 form B,
5 No + 1 NC
contacts
AgSnO
2
4 form A + 2 form B,
4 NO + 2 NC
contacts
AgSnO
2
+Au
5VDC
12VDC
21VDC
24VDC
48VDC
60VDC
110VDC
12VDC
18VDC
24VDC
5VDC
6VDC
12VDC
18VDC
21VDC
24VDC
40VDC
48VDC
60VDC
85VDC
110VDC
12VDC
15VDC
18VDC
21VDC
24VDC
12VDC
24VDC
48VDC
60VDC
110VDC
24VDC
12VDC
15VDC
18VDC
21VDC
24VDC
Coil
Coil power
1200mW
800mW
1200mW
V23050-A1005-A533
V23050-A1012-A533
V23050-A1021-A533
V23050-A1024-A533
V23050-A1048-A533
V23050-A1060-A533
V23050-A1110-A533
Alt. description
Part number
8-1415017-1
1-1415015-1
3-1415018-1
1415015-1
6-1415018-1
7-1415018-1
9-1415018-1
6-1415537-1
6-1415537-3
6-1415537-5
1393260-1
1393260-2
1393260-4
1393260-5
1393260-6
1393260-7
1393260-9
1-1393260-0
1-1393260-1
1-1393260-2
1-1393260-3
7-1415537-6
7-1415537-7
7-1415537-8
7-1415537-9
8-1415537-0
1-1415017-1
1415017-1
2-1415019-1
3-1415019-1
5-1415019-1
9-1415537-4
3-1415542-5
2-1415543-2
3-1415543-3
4-1415542-4
5-1415539-2
800mW
V23050-A1005-A542
V23050-A1006-A542
V23050-A1012-A542
V23050-A1018-A542
V23050-A1021-A542
V23050-A1024-A542
V23050-A1040-A542
V23050-A1048-A542
V23050-A1060-A542
V23050-A1085-A542
V23050-A1110-A542
1200mW
800mW
V23050-A1012-A551
V23050-A1024-A551
V23050-A1048-A551
V23050-A1060-A551
V23050-A1110-A551
11-2012, Rev. 1112
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
