FEATURES
High Efficiency:
88.5% @ 5.0V/10A
Size: 2.28”×2.40”×0.50”
Standard footprint
Industry standard pin out
Fixed frequency operation
Metal baseplate
Input UVLO, Output OCP, OVP, OTP
Basic insulation
No minimum load required
2:1 Input voltage range
ISO 9001, TL 9000, ISO 14001, QS 9000,
OHSAS 18001 certified manufacturing facility
UL/cUL 60950 (US & Canada) Recognized,
and TUV (EN60950) Certified
CE mark meets 73/23/EEC and 93/68/EEC
directives
Delphi Series H48SV, 150W Half Brick Family
DC/DC Power Modules: 48V in, 5V/10A out
The Delphi Series H48SV Half Brick, 48V input, single output, isolated
DC/DC converters are the latest offering from a world leader in power
systems technology and manufacturing
―
Delta Electronics, Inc. This
product family provides up to 150 watts of power or 40A of output
current (3.3V model) in an industry standard footprint. This product
family comes with standard positive trimming method and utilizes
standard trim value. It also comes with output trimming range between
+10% to –20%. All models are fully protected from abnormal
input/output voltage, current, and temperature conditions. The Delphi
Series converters meet all safety requirements with basic insulation.
OPTIONS
Positive Remote On/Off logic
Short pin lengths available
APPLICATIONS
Telecom/Datacom
Wireless Networks
Optical Network Equipment
Server and Data Storage
Industrial/Testing Equipment
DATASHEET
DS_H48SV05010_08102007
TECHNICAL SPECIFICATIONS
(T
A
=25°C, airflow rate=300 LFM, V
in
=48Vdc, nominal Vout unless otherwise noted.)
PARAMETER
ABSOLUTE MAXIMUM RATINGS
Input Voltage
Continuous
Transient (100ms)
Operating Case Temperature
Storage Temperature
Input/Output Isolation Voltage
INPUT CHARACTERISTICS
Operating Input Voltage
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Lockout Hysteresis Voltage
Maximum Input Current
No-Load Input Current
Off Converter Input Current
Inrush Current(I
2
t)
Input Reflected-Ripple Current
Input Voltage Ripple Rejection
OUTPUT CHARACTERISTICS
Output Voltage Set Point
Output Voltage Regulation
Over Load
Over Line
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
Peak-to-Peak
RMS
Operating Output Current Range
Output DC Current-Limit Inception
DYNAMIC CHARACTERISTICS
Output Voltage Current Transient
Positive Step Change in Output Current
Negative Step Change in Output Current
Settling Time (within 1% Vout nominal)
Turn-On Transient
Start-Up Time, From On/Off Control
Start-Up Time, From Input
Maximum Output Capacitance
EFFICIENCY
100% Load
60% Load
ISOLATION CHARACTERISTICS
Input to Output
Input to Case
Output to Case
Isolation Resistance
Isolation Capacitance
FEATURE CHARACTERISTICS
Switching Frequency
ON/OFF Control, Negative Remote On/Off logic
Logic Low (Module On)
Logic High (Module Off)
ON/OFF Control, Positive Remote On/Off logic
Logic Low (Module Off)
Logic High (Module On)
ON/OFF Current (for both remote on/off logic)
Leakage Current (for both remote on/off logic)
Output Voltage Trim Range
Output Voltage Remote Sense Range
Output Over-Voltage Protection
GENERAL SPECIFICATIONS
MTBF
Weight
Over-Temperature Shutdown
NOTES and CONDITIONS
H48SV05010 (Standard)
Min.
Typ.
Max.
Units
80
100
100
125
Vdc
Vdc
°C
°C
Vdc
Vdc
Vdc
Vdc
Vdc
A
mA
mA
A
2
s
mA
dB
Vdc
mV
mV
mV
V
mV
mV
A
%
100ms
Tc
1 minute
-40
-55
1500
36
33
31
1
48
34
32
2
100
5
0.015
15
65
4.92
5.00
±3
±3
±30
4.85
50
15
0
120
75
35
33
3
1.9
150
10
100% Load, 36Vin
P-P thru 12µH inductor, 5Hz to 20MHz
120 Hz
Vin=48V, Io=Io.max, Tc=25°C
Io=Io,min to Io,max
Vin=36V to 75V
Tc=-40°C to 100°C
over sample load, line and temperature
5Hz to 20MHz bandwidth
Full Load, 1µF ceramic, 10µF tantalum
Full Load, 1µF ceramic, 10µF tantalum
Output Voltage 10% Low
48V, 10µF Tan & 1µF Ceramic load cap, 0.1A/µs
50% Io.max to 75% Io.max
75% Io.max to 50% Io.max
5.08
±10
±10
±100
5.15
100
30
10
175
120
120
200
10
10
20
20
5000
mV
mV
us
ms
ms
µF
%
%
Vdc
Vdc
Vdc
MΩ
pF
kHz
0.8
18
0.8
18
1
50
+10
10
130
V
V
V
V
mA
uA
%
%
%
M hours
grams
°C
Full load; 5% overshoot of Vout at startup
88.5
85.5
1500
1500
500
10
1300
300
Von/off at Ion/off=1.0mA
Von/off at Ion/off=0.0 µA
Von/off at Ion/off=1.0mA
Von/off at Ion/off=0.0 µA
Ion/off at Von/off=0.0V
Logic High, Von/off=18V
Across Pins 9 & 5, Pout
≦
max rated power
Pout
≦
max rated power
Over full temp range; % of nominal Vout
Io=80% of Io, max; Tc=40°C
Average PCB Temperature
0
0
-20
115
122
3
58
110
DS_H48SV05010_08102007
2
ELECTRICAL CHARACTERISTICS CURVES
EFFICIENCY (%)
95
POWER DISSIPATION (W)
12.0
11.0
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
36Vin
48Vin
75Vin
36Vin
48Vin
75Vin
90
85
80
75
70
65
60
2
4
6
8
10
OUT PUT CURRENT (A)
1.0
0.0
2
4
6
8
OUTPUT CURRENT(A)
10
Figure 1:
Efficiency vs. load current for minimum, nominal, and
maximum input voltage at 25
°
C.
Figure 2:
Power dissipation vs. load current for minimum,
nominal, and maximum input voltage at 25
°
C.
Figure 3:
Typical input characteristics at room temperature
(Io=10A)
DS_H48SV05010_08102007
3
ELECTRICAL CHARACTERISTICS CURVES
For Negative Remote On/Off Logic

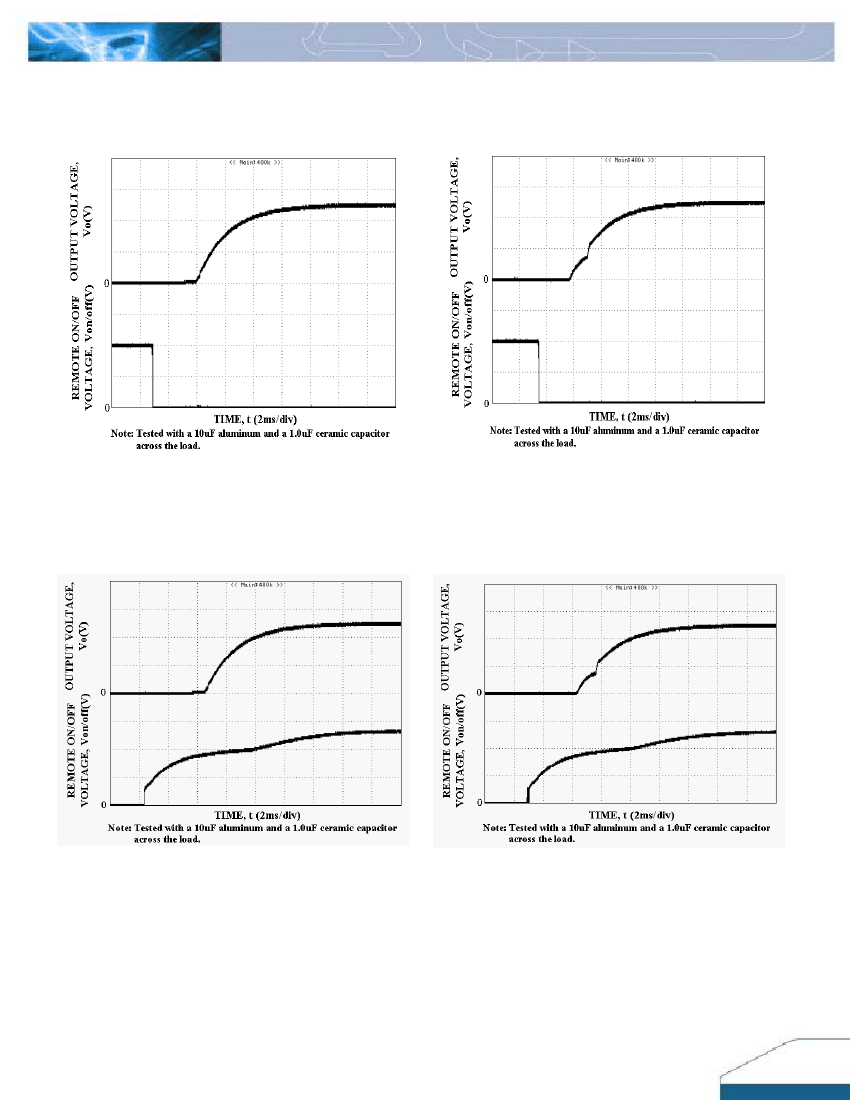

Figure 4:
Turn-on transient at full rated load current (resistive
load) (2 ms/div).Vin=48V. Top Trace: Vout; 2V/div; Bottom
Trace: ON/OFF input: 5V/div
Figure 5:
Turn-on transient at zero load current (2 ms/div).
Vin=48V. Top Trace: Vout: 2V/div; Bottom Trace: ON/OFF input:
5V/div
For Positive Remote On/Off Logic
Figure 6:
Turn-on transient at full rated load current (resistive
load) (2 ms/div).Vin=48V. Top Trace: Vout; 2V/div; Bottom
Trace: ON/OFF input: 5V/div
Figure 7:
Turn-on transient at zero load current (2 ms/div).
Vin=48V. Top Trace: Vout: 2V/div; Bottom Trace: ON/OFF input:
5V/div
DS_H48SV05010_08102007
4
ELECTRICAL CHARACTERISTICS CURVES

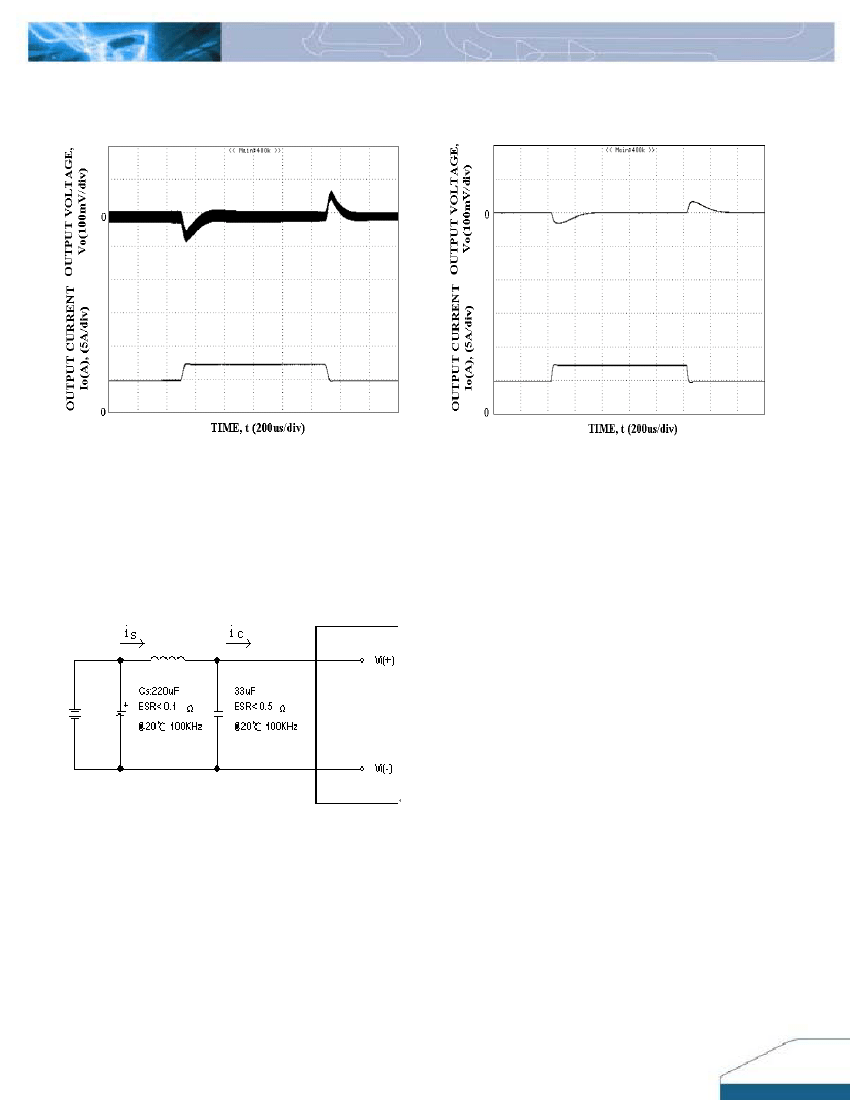

Figure 8:
Output voltage response to step-change in load
current (50%-75%-50% of Imax; dI/dt = 0.1A/µs).Vin=48V. Load
cap: 10µF, tantalum capacitor and 1µF ceramic capacitor. Top
trace: Vout (100mV/div), Bottom trace: Iout (5A/div). Scope
measurement should be made using a BNC
cable (length
shorter than 20 inch).
Position the load between 51 mm and 76
mm (2 inches and 3 inches) from the module.
Figure 9:
Output voltage response to step-change in load
current (75%-50%-75% of Io, max; di/dt = 2.5A/µs). Load cap:
470µF, 35m
Ω
ESR solid electrolytic capacitor and 1µF ceramic
capacitor. Top Trace: Vout (100mV/div), Bottom Trace: Iout
(5A/div). Scope measurement should be made using a BNC
cable (length shorter than 20 inches). Position the load
between 51 mm to 76 mm (2 inches to 3 inches) from the
module.
Figure 10:
Test set-up diagram showing measurement points
for Input Terminal Ripple Current and Input Reflected Ripple
Current.
Note: Measured input reflected-ripple current with a simulated
source Inductance (L
TEST
) of 12µH. Capacitor Cs offset possible
battery impedance. Measure current as shown above.
DS_H48SV05010_08102007
5
