SDA160A thru SDA160F
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
Designer’s Data Sheet
Part Number/Ordering Information
1/
SDA160
__ __ __
│ │
└
Screening
2/
│ │
__
= Not Screened
│ │
TX = TX Level
│ │
TXV = TXV
│ │
S = S Level
│ │
_
= Spade Terminals
│
└
Terminals
T = Turret Terminals
│
│
└
Peak Inverse Voltage
(per leg)
A = 50V, B = 100V, C = 150V,
D = 200V, E = 250V, F = 300V,
40 AMPS 50
─
300 VOLTS
HYPER FAST RECOVERY
THREE PHASE BRIDGE RECTIFIER
•
•
•
•
•
•
•
•
•
•
•
Hyper Fast Reverse Recovery Time 40 ns Max
4/
Average Output Current 40 Amps @ 55
°
C
PIV 50 to 300 Volts Per Leg
Available with Turret or Spade Terminals
High Surge Rating- 250A
Thermally Superior Encapsulant
Hermetically Sealed Diode Cells
Replacement for Unitrode 800 Series
Aluminum Case, Electrically Insulated
Available in Higher Voltages
Available in Hyper Fast Recovery Times
FEATURES:
MAXIMUM RATINGS
3/
RATING
Peak Repetitive Reverse
Voltage
5/
(per leg)
And
DC Blocking Voltage (per leg)
SDA160A
SDA160B
SDA160C
SDA160D
SDA160E
SDA160F
SYMBOL
V
RM (REP)
VR
VALUE
50
100
150
200
250
300
40
150
250
-65 to +150
1.5
UNIT
Volts
Half Wave Rectified Forward Current, Averaged Over Full Cycle
(Resistive Load, 60 Hz, Sine Wave, T
C
= 55°C)
I
O
I
FM (REP)
I
FM (SURGE)
T
OP
and T
STG
R
θJC
Amps
Amps
Amps
°C
°C/W
Peak Repetitive Forward Current (per leg)
(T
C
= 55°C, 8.3 msec Pulse, Allow Junction to Reach Equilibrium Between Pulses)
Peak Surge Current (per assembly)
(T
C
= 55°C, Superimposed on Rated Current at Rated Voltage, 8.3 msec Pulse)
Operating & Storage Temperature
Thermal Resistance, Junction to Case

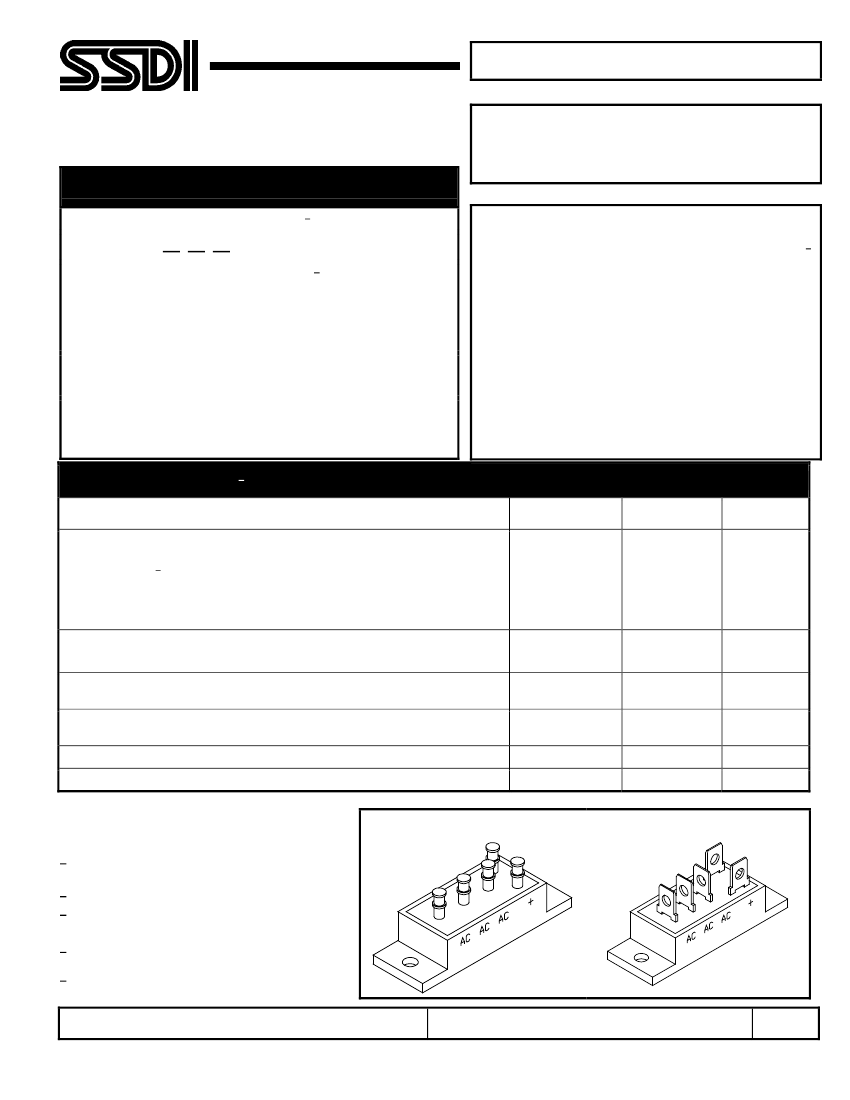

SDA160 Packages:
NOTES:
1/
For Ordering Information, Price, and Availability-
Contact Factory.
2/
Screened to MIL-PRF-19500.
3/
Unless Otherwise Specified,
All Electrical Characteristics @25ºC.
4/
Recovery Conditions:
I
F
= 0.5 Amp, I
R
= 1.0 Amp rec. to .25 Amp.
5/
For RMS Reverse Voltage, multiply V
R
values by .707
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
Turret Terminals:
Spade Terminals:
DATA SHEET #: RA0089A
DOC
SDA160A thru SD160F
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
ELECTRICAL CHARACTERISTICS (per leg)
3/
CHARACTERISTICS
Maximum Instantaneous Forward Voltage Drop
(I
F
= 10A, 60Hz, 300 µs Pulse, T
C
= 25°C)
Maximum Reverse Leakage Current
(Rated V
R
, T
C
= 25°C)
Maximum Reverse Leakage Current
(Rated V
R
, T
C
= 100°C)
Maximum Reverse Recovery Time
(I
F
= 500mA, I
R
= 1A, I
RR
= 250mA)
6/
SYMBOL VALUE
V
F
I
R1
I
R2
t
rr
1.2
20
2
40
UNIT
Volts
µA
mA
ns

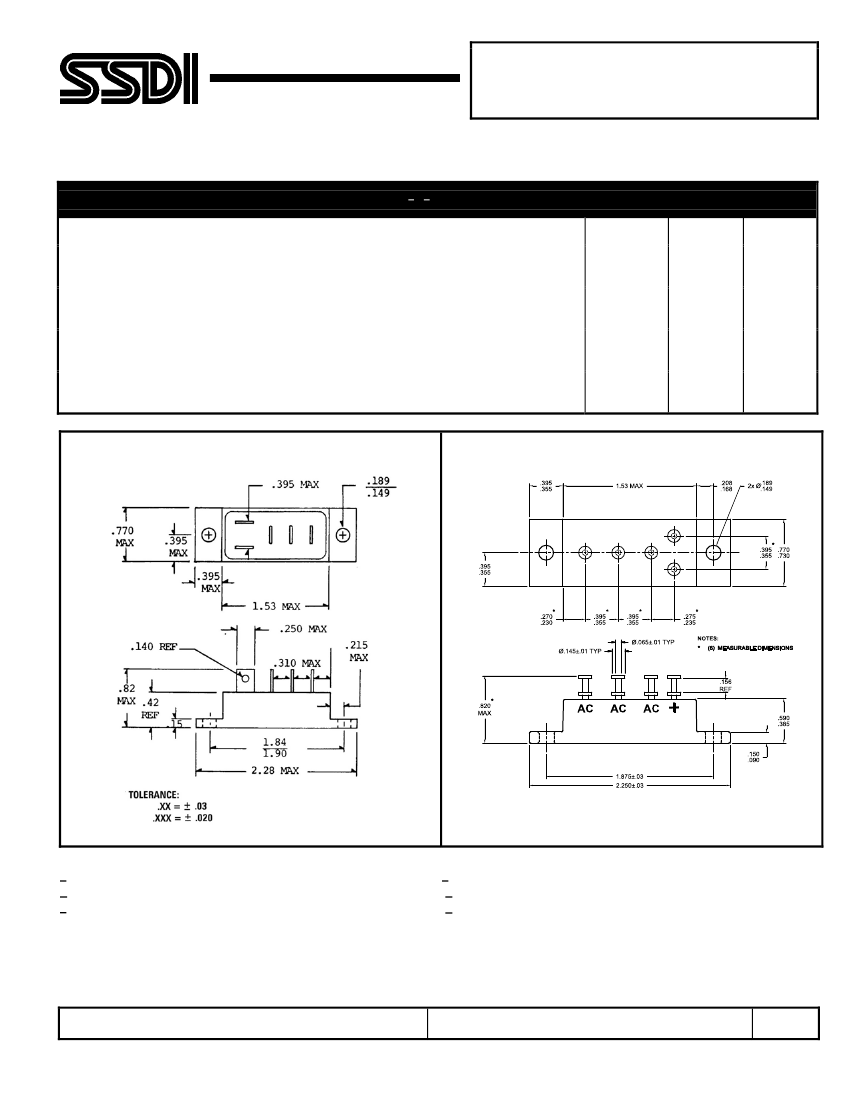

Spade Terminal Package Outline:
Turret Terminal Package Outline:
TOLERANCE:
.XX = ± .03
.XXX = ± .020
NOTES:
1/
For Ordering Information, Price, and Availability- Contact Factory.
2/
Screened to MIL-PRF-19500.
3/
Unless Otherwise Specified, All Electrical Characteristics @25ºC.
4/
Recovery Conditions: I
F
= 0.5 Amp, I
R
= 1.0 Amp rec. to .25 Amp.
5/
For RMS Reverse Voltage, multiply V
R
values by .707
6/
For information on operating curves, contact Factory.
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RA0089A
DOC
