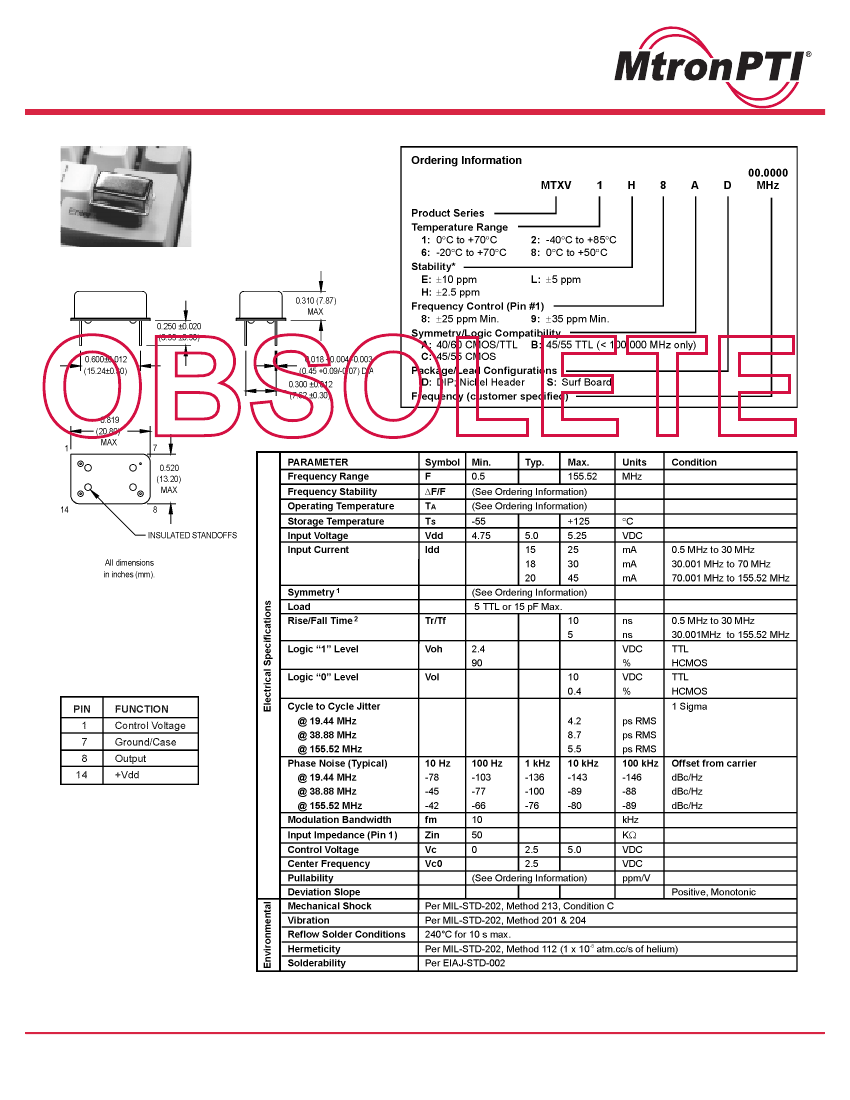

MTXV Series
5.0
MTXV Series 5.0 Volt TCVCXO
Volt, TCVCXO
OBSOLETE
* Referenced to 25°C reading at 2.5 VDC control voltage.
* See page 90 for surf board configuration.
Pin Connections
1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.
2. Rise/fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
27
Revision: 5-14-08
