MVS66V1AJ82.000MHZ datasheet, PDF

MVS66V1AJ82.000MHZ: DescriptionOscillator, 1.544MHz Min, 82MHz Max, 82MHz Nom; CategoryPassive components oscillator; File Size85KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MVS66V1AJ82.000MHZ Overview

Oscillator, 1.544MHz Min, 82MHz Max, 82MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Objectid	102493406
package instruction	SMDIP4,.38,200
Reach Compliance Code	unknown
compound_id	167102352
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	82 MHz
Minimum operating frequency	1.544 MHz
Nominal operating frequency	82 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	CERAMIC
Encapsulate equivalent code	SMDIP4,.38,200
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	YES

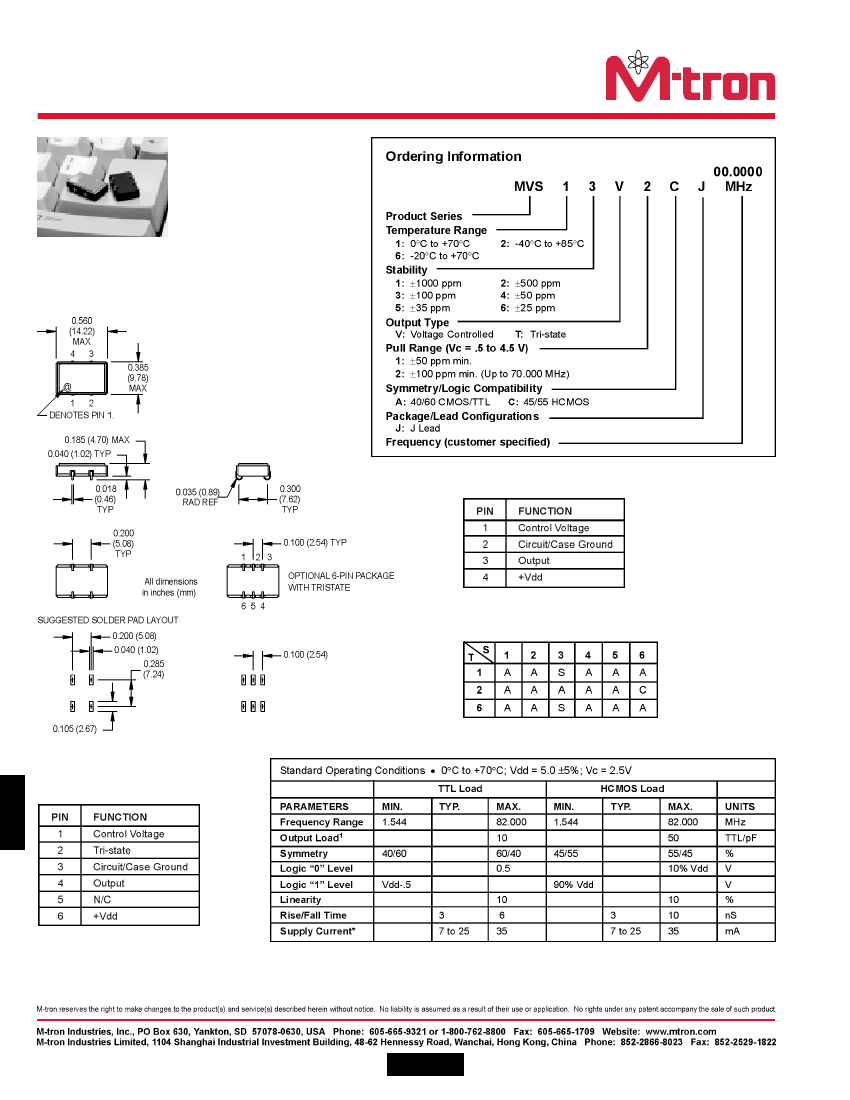

MVS Series Surface Mount Voltage

Controlled Crystal Oscillators (VCXO)

HCMOS/TTL Compatible, Ceramic,

Surface Mount Package

Features grounded lid for reduced EMI.

Pin Connections

Available Stabilities vs. Temperature

A = Available

S = Standard

C = Consult Factory

Electrical Specifications

Tri-state Option

Pin Connections

Tri-state Control Logic

Pin 2 high or floating: clock signal output.

Pin 2 low: output disabled to high impedance.

TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.

* Frequency dependent.

See page 135, Figure 2 for typical phase noise graph.

See page 135, Figure 4 for pull range graph.

See page 136, Figure 2 for suggested solder profile.

120
