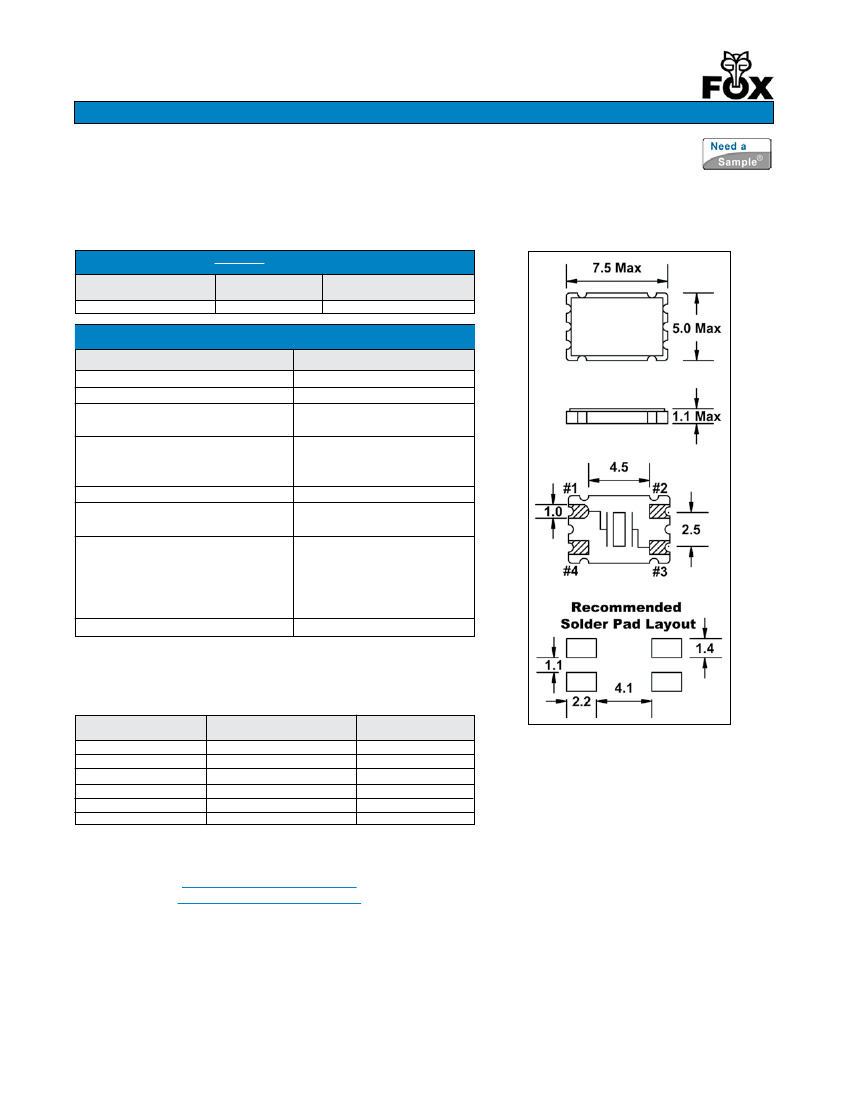

Ceramic Seam Sealed SMD Crystal
Model: FD
RoHS Compliant / Pb Free
FEATURES
•
•
•
•
High Frequency Range
Fundamental to 200 MHz
Inverted Mesa: 50-200 MHz
Tape and Reel (3,000 pcs. STD)
http://www.foxonline.com/need_a_sample.htm
Rev. 1/18/2006
OPTIONS
• Tolerances to 5 PPM
• Stabilities to 3 PPM
• Temperatures to -40ºC ~ +85ºC
• PART NUMBER
Learn More - Internet Required
Part Number
218-Frequency-xxxxx
Model Number
FD
Frequency Range (MHz)
8.000 ~ 200.000
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
Drive Level
8.000 ~ 160.000 MHz
(Fund to 50MHz, 3rd OT, 5th OT)
50.000 ~ 200 MHz
(Fund Inverted Mesa)
Aging per year
1
MAX
(unless otherwise noted)
8.000 ~ 200.000 MHz
±50 PPM
±50 PPM
-10ºC ~ +60ºC
-40ºC ~ +85ºC
7.0 pF
10 pF ~ Series
(Customer Specified)
0.5 mW
0.1 mW
±5 PPM
Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer Service for
specific requirements.
All specifications subject to change without notice.
Frequency Range
(MHz)
8.000 ~ 9.999
10.000 ~ 15.999
16.000 ~ 50.000
50.000 ~ 200.000
28.000 ~ 150.000
84.000 ~ 160.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental (Inv. Mesa)
3rd OT
5th OT
Max ESR
Ω
60
50
40
30
60
80
All dimensions are in millimeters.
Learn more about:
Part Marking Identification
Tape and Reel Specification
Internet required
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239) 693.0099 FAX +1 (239) 693.1554
http://www.foxonline.com
EMEA
United Kingdom Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 FAX +852.2854.4282
© 2006 FOX ELECTRONICS | ISO9001:2000 Certified
