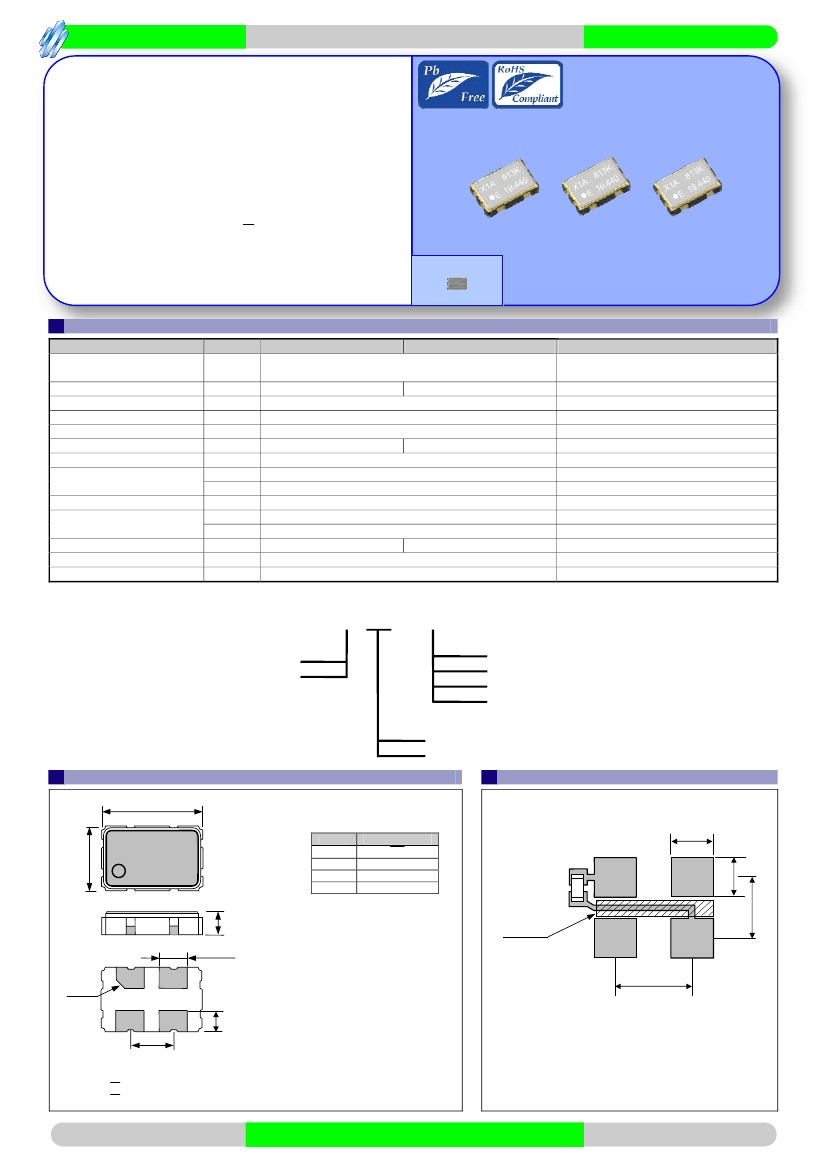

Crystal oscillator
Epson Toyocom
Product Number (please contact us)
CRYSTAL OSCILLATOR
SPXO
X1G00xxx1xxxx00
TCO - 710x
series
•Frequency
range
:
•Supply
voltage
:
•External
dimensions
:
•Function
:
1.5 MHz to 75 MHz
2.5 V / 3.3 V
5.0 × 3.2 × 1.0 mm
Standby (
ST
)
Actual size
Specifications (characteristics)
Item
Output frequency range
Supply voltage
Storage temperature range
Operating temperature range
Frequency tolerance
Current consumption
Symmetry
Symbol
TCO-710*X3A*
TCO-710*X1A*
f
O
1.500 MHz to 75.000 MHz
2.5 V
±0.25
V
3.3 V
±0.33
V
-55
°C
to +125
°C
As per below description
As per below description.
15 mA Max.
20 mA Max.
40 % to 60 %
90 % V
CC
Min.
10 % V
CC
Max.
15 pF Max.
70 % V
CC
Min.
30 % V
CC
Max.
7 ns Max.
6 ns Max.
10 ms Max.
-6
±5 ×
10 / year Max.
Conditions / Remarks
Please contact us for inquiries regarding
the available frequencies.
Store as bare product..
V
CC
T_stg
T_use
f_tol
I
CC
SYM
V
OH
Output voltage
V
OL
Output load condition (CMOS) L_CMOS
V
IH
Input voltage
V
IL
Rise time / Fall time
t
r
/
t
f
Start-up time
t
_
str
Frequency aging
f_aging
No load condition
50 % V
CC
level
V
IH
or OPEN : Enable
V
IL
or GND : Disable
10 % V
CC
to 90 % V
CC
level
Time at minimum supply voltage to be 0 s
+25
°C,
First year
* Part Number
TCO - 7 1 0 _
A_
<Operating temperature range>
BLANK : 0 °C ~ +70 °C
1 : -10 °C ~ +70 °C
2 : -20 °C ~ +70 °C
4 : -40 °C ~ +85 °C
< Supply voltage >
X1 : V
CC
=3.3 V
X3 : V
CC
=2.5 V
<Frequency tolerance / V
CC
tolerance>
±50 × 10
-6
Max. / V
CC
±10 % : 6
±100 × 10
-6
Max. / V
CC
±10 % : 7
External dimensions
5.0±0.2
#4
3.2±0.2
#3
(Unit:mm)
Footprint (Recommended)
(Unit:mm)
Pin map
Pin
1
2
3
4
1.0±0.2
Connection
ST
GND
OUT
Vcc
Resist
C ( ex. 0.01 µF)
#4
C
1.6
#3
1.5
X1A 813K
E 19.440
#1
#2
1.2±0.15
#1
2.54
#2
1.0±0.15
C0.4
2.54±0.15
Note.
ST
pin = HIGH or "open" : Specified frequency output.
ST
pin = LOW : Output is high impedance, oscillation stops.
To maintain stable operation, provide a 0.01uF to
0.1uF by-pass capacitor at a location as near as
possible to the power source terminal of the crystal
product (between Vcc - GND).
http://www.epsontoyocom.co.jp
2.2
“QMEMS” EPSON TOYOCOM
