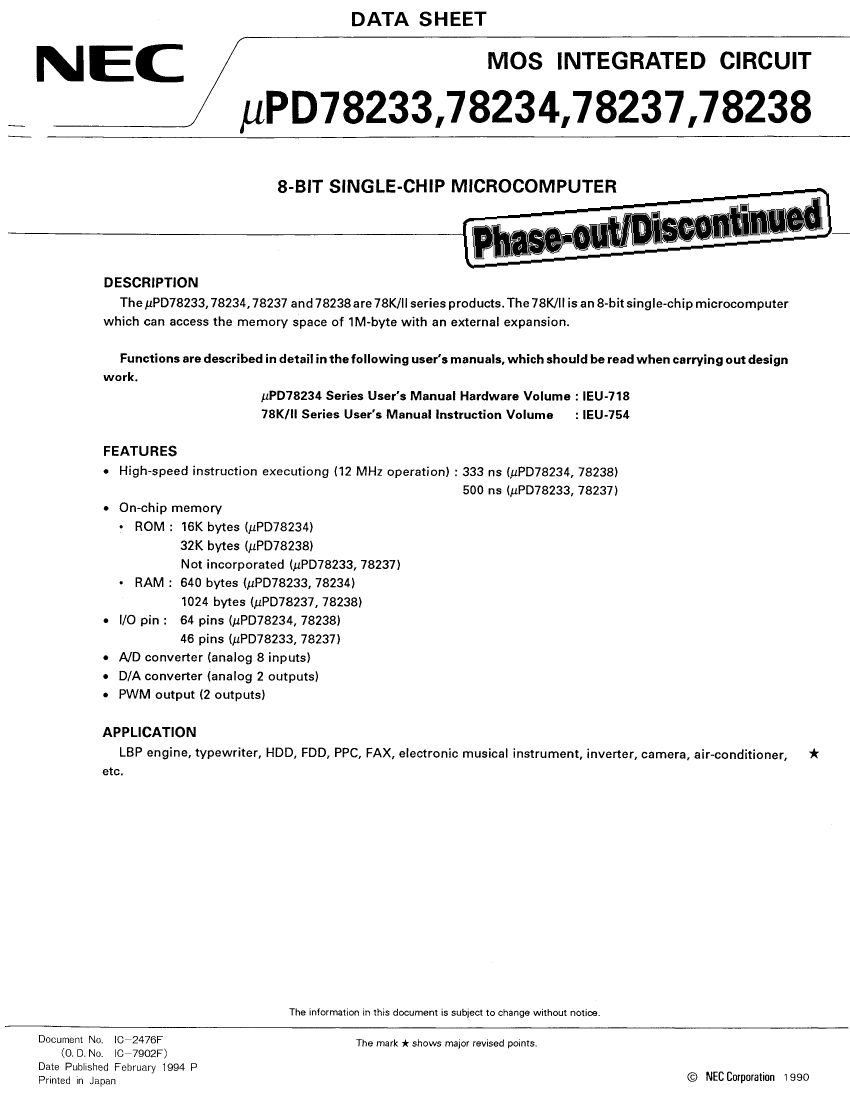

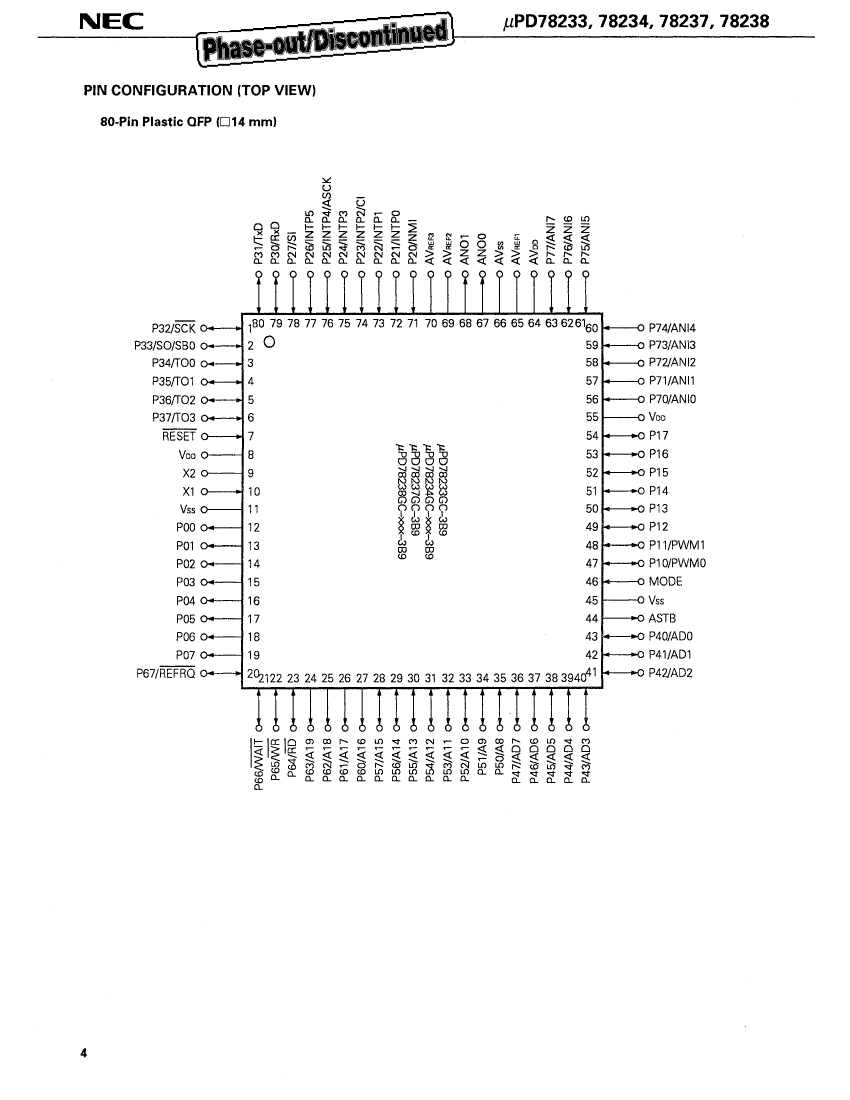

Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQFP80, 14 X 14 MM, PLASTIC, QFP-80
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NEC Electronics |
| Parts packaging code | QFP |
| package instruction | 14 X 14 MM, PLASTIC, QFP-80 |
| Contacts | 80 |
| Reach Compliance Code | compliant |
| Has ADC | YES |
| Address bus width | 20 |
| bit size | 8 |
| maximum clock frequency | 12 MHz |
| DAC channel | YES |
| DMA channel | NO |
| External data bus width | 8 |
| JESD-30 code | S-PQFP-G80 |
| JESD-609 code | e0 |
| length | 14 mm |
| Number of I/O lines | 64 |
| Number of terminals | 80 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PWM channel | YES |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QFP |
| Package shape | SQUARE |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| ROM programmability | MROM |
| Maximum seat height | 3 mm |
| speed | 12 MHz |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | MOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | TIN LEAD |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 14 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |

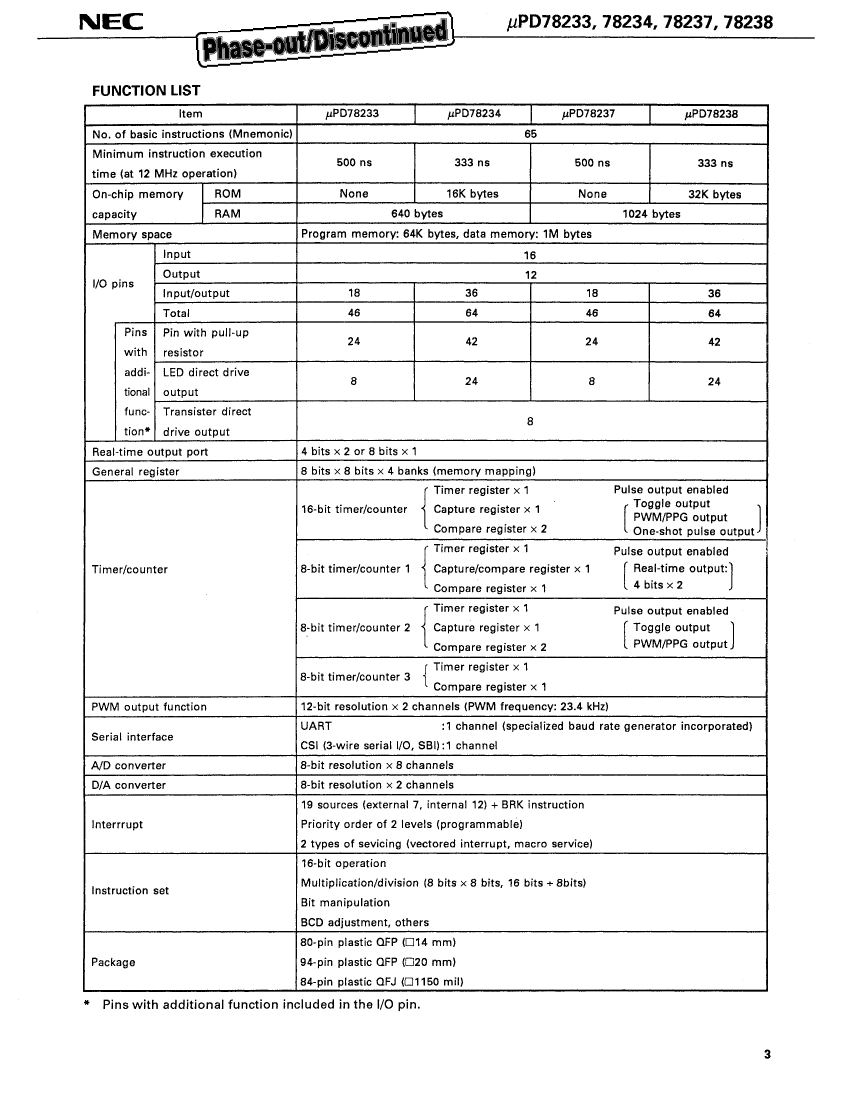

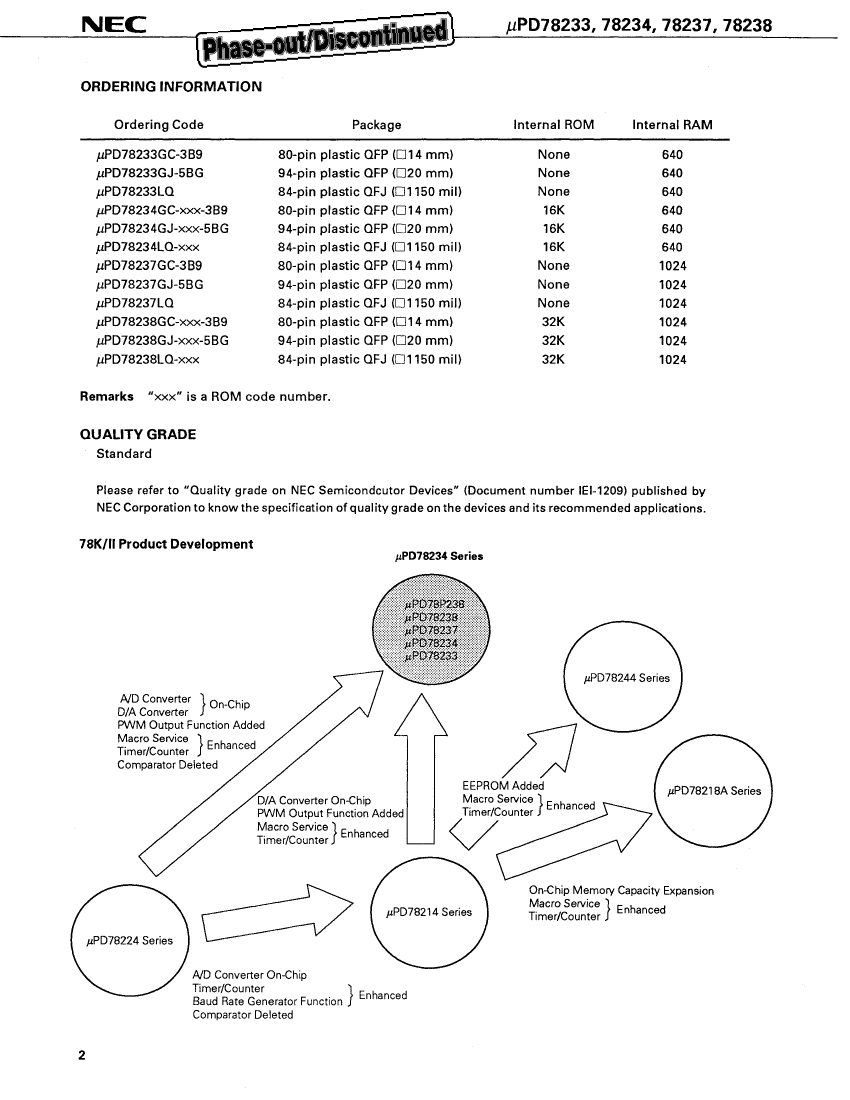

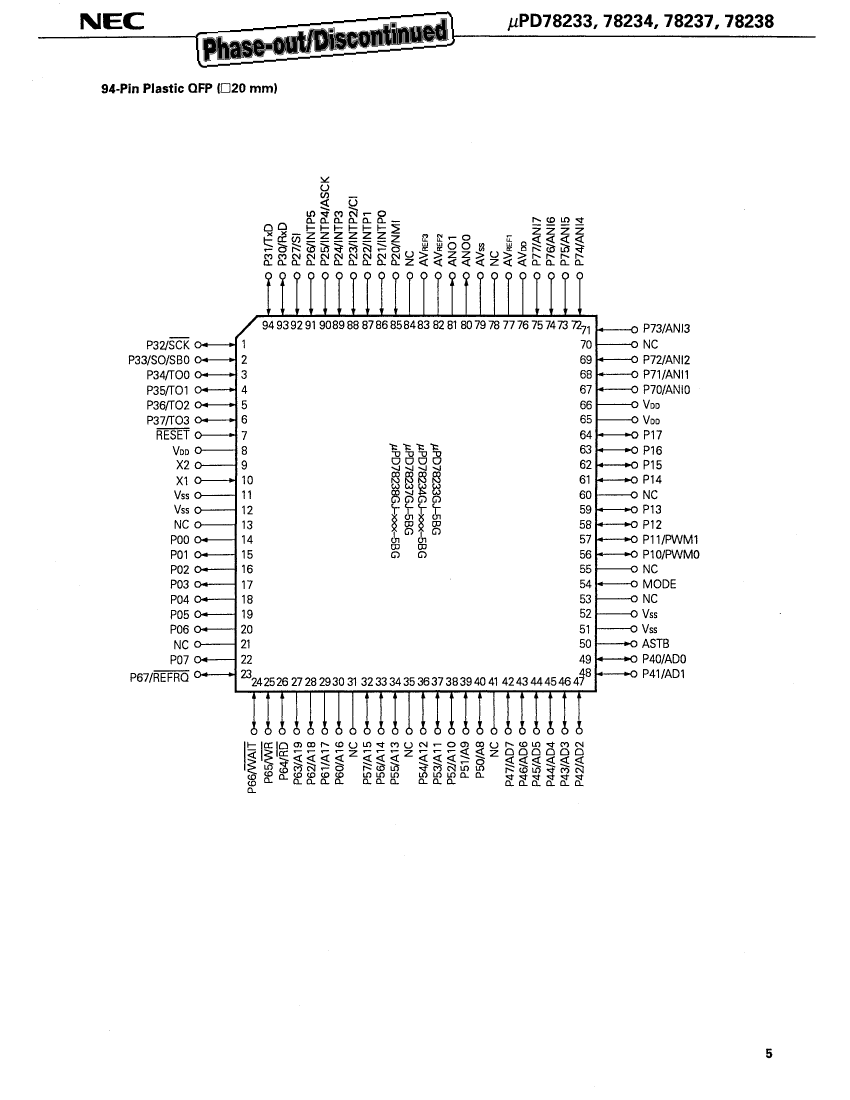

| UPD78238GC-XXX-3B9 | UPD78233GC-3B9 | UPD78238GJ-XXX-5BG | UPD78237GJ-5BG | UPD78234GC-XXX-3B9 | UPD78234LQ-XXX | UPD78238LQ-XXX | UPD78234GJ-XXX-5BG | UPD78237GC-3B9 | UPD78233GJ-5BG | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQFP80, 14 X 14 MM, PLASTIC, QFP-80 | Microcontroller, 8-Bit, 12MHz, MOS, PQFP80, 14 X 14 MM, PLASTIC, QFP-80 | Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQFP94, 20 X 20 MM, PLASTIC, QFP-94 | Microcontroller, 8-Bit, 12MHz, MOS, PQFP94, 20 X 20 MM, PLASTIC, QFP-94 | Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQFP80, 14 X 14 MM, PLASTIC, QFP-80 | Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQCC84, 1.150 X 1.150 INCH, PLASTIC, QFJ-84 | Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQCC84, 1.150 X 1.150 INCH, PLASTIC, QFJ-84 | Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQFP94, 20 X 20 MM, PLASTIC, QFP-94 | Microcontroller, 8-Bit, 12MHz, MOS, PQFP80, 14 X 14 MM, PLASTIC, QFP-80 | Microcontroller, 8-Bit, 12MHz, MOS, PQFP94, 20 X 20 MM, PLASTIC, QFP-94 |
| Parts packaging code | QFP | QFP | QFP | QFP | QFP | QFJ | QFJ | QFP | QFP | QFP |
| package instruction | 14 X 14 MM, PLASTIC, QFP-80 | QFP, | QFP, | QFP, | QFP, | QCCJ, | QCCJ, | 20 X 20 MM, PLASTIC, QFP-94 | 14 X 14 MM, PLASTIC, QFP-80 | 20 X 20 MM, PLASTIC, QFP-94 |
| Contacts | 80 | 80 | 94 | 94 | 80 | 84 | 84 | 94 | 80 | 94 |
| Reach Compliance Code | compliant | unknown | compliant | unknown | compliant | compliant | compliant | compliant | unknown | unknown |
| Has ADC | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Address bus width | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| bit size | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| maximum clock frequency | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz |
| DAC channel | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| DMA channel | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| External data bus width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | S-PQFP-G80 | S-PQFP-G80 | S-PQFP-G94 | S-PQFP-G94 | S-PQFP-G80 | S-PQCC-J84 | S-PQCC-J84 | S-PQFP-G94 | S-PQFP-G80 | S-PQFP-G94 |
| length | 14 mm | 14 mm | 20 mm | 20 mm | 14 mm | 29.28 mm | 29.28 mm | 20 mm | 14 mm | 20 mm |
| Number of I/O lines | 64 | 46 | 64 | 46 | 64 | 64 | 64 | 64 | 46 | 46 |
| Number of terminals | 80 | 80 | 94 | 94 | 80 | 84 | 84 | 94 | 80 | 94 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| PWM channel | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QFP | QFP | QFP | QFP | QFP | QCCJ | QCCJ | QFP | QFP | QFP |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLATPACK | FLATPACK | FLATPACK | FLATPACK | FLATPACK | CHIP CARRIER | CHIP CARRIER | FLATPACK | FLATPACK | FLATPACK |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 3 mm | 3 mm | 4 mm | 4 mm | 3 mm | 4.6 mm | 4.6 mm | 4 mm | 3 mm | 4 mm |
| speed | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | MOS | MOS | MOS | MOS | MOS | MOS | MOS | MOS | MOS | MOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | J BEND | J BEND | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.65 mm | 0.65 mm | 0.8 mm | 0.8 mm | 0.65 mm | 1.27 mm | 1.27 mm | 0.8 mm | 0.65 mm | 0.8 mm |
| Terminal location | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD |
| width | 14 mm | 14 mm | 20 mm | 20 mm | 14 mm | 29.28 mm | 29.28 mm | 20 mm | 14 mm | 20 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Is it Rohs certified? | incompatible | - | incompatible | - | incompatible | incompatible | incompatible | incompatible | - | - |
| Maker | NEC Electronics | NEC Electronics | - | - | - | - | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics |
| JESD-609 code | e0 | - | e0 | - | e0 | e0 | e0 | e0 | - | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - |
| ROM programmability | MROM | - | MROM | - | MROM | MROM | MROM | MROM | - | - |
| Terminal surface | TIN LEAD | - | TIN LEAD | - | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | - | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - |
