APT50M85LVR

Description
Power Field-Effect Transistor, 56A I(D), 500V, 0.085ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-264AA, TO-264, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size135KB,4 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

APT50M85LVR Overview

Power Field-Effect Transistor, 56A I(D), 500V, 0.085ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-264AA, TO-264, 3 PIN

APT50M85LVR Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMicrosemi
Parts packaging codeTO-264AA
package instructionTO-264, 3 PIN
Contacts3
Reach Compliance Codeunknown
Other featuresFAST SWITCHING, AVALANCHE RATED, HIGH VOLTAGE
Avalanche Energy Efficiency Rating (Eas)3000 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage500 V
Maximum drain current (Abs) (ID)56 A
Maximum drain current (ID)56 A
Maximum drain-source on-resistance0.085 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-264AA
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)625 W
Maximum pulsed drain current (IDM)224 A
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON

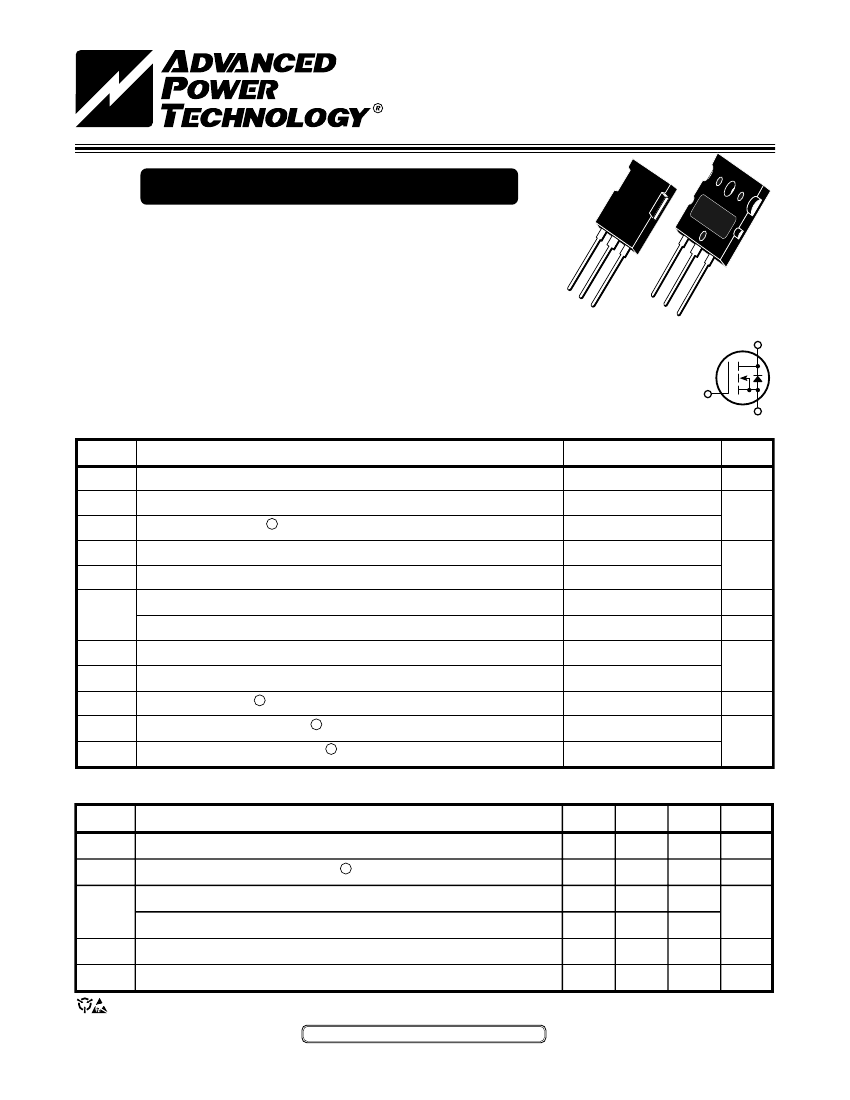

APT50M85B2VR
APT50M85LVR
500V 56A
0.085
POWER MOS V
®
MOSFET
B2VR
Power MOS V
®
is a new generation of high voltage N-Channel enhancement
mode power MOSFETs. This new technology minimizes the JFET effect,
increases packing density and reduces the on-resistance. Power MOS V
®
also achieves faster switching speeds through optimized gate layout.
T-MAX™
TO-264
LVR
• TO-264
MAX
Package
• Faster Switching
• Lower Leakage
MAXIMUM RATINGS
Symbol
V
DSS
I
D
I
DM
V
GS
V
GSM
P
D
T
J
,T
STG
T
L
I
AR
E
AR
E
AS
Parameter
Drain-Source Voltage
• Avalanche Energy Rated
D
G
S
All Ratings: T
C
= 25°C unless otherwise specified.
APT50M85B2VR_LVR
UNIT
Volts
Amps
500
56
224
±30
±40
625
5.00
-55 to 150
300
56
50
4
1
Continuous Drain Current @ T
C
= 25°C
Pulsed Drain Current
Gate-Source Voltage Continuous
Gate-Source Voltage Transient
Total Power Dissipation @ T
C
= 25°C
Linear Derating Factor
Operating and Storage Junction Temperature Range
Lead Temperature: 0.063" from Case for 10 Sec.
Avalanche Current
1
Volts
Watts
W/°C
°C
Amps
mJ
(Repetitive and Non-Repetitive)
1
Repetitive Avalanche Energy
Single Pulse Avalanche Energy
3000
STATIC ELECTRICAL CHARACTERISTICS
Symbol
BV
DSS
R
DS(on)
I
DSS
I
GSS
V
GS(th)
Characteristic / Test Conditions
Drain-Source Breakdown Voltage (V
GS
= 0V, I
D
= 250µA)
Drain-Source On-State Resistance
2
MIN
TYP
MAX
UNIT
Volts
500
0.085
25
250
±100
2
4
(V
GS
= 10V, I
D
= 28A)
Ohms
µA
nA
Volts
5-2004
050-5913 Rev A
Zero Gate Voltage Drain Current (V
DS
= 500V, V
GS
= 0V)
Zero Gate Voltage Drain Current (V
DS
= 400V, V
GS
= 0V, T
C
= 125°C)
Gate-Source Leakage Current (V
GS
= ±30V, V
DS
= 0V)
Gate Threshold Voltage (V
DS
= V
GS
, I
D
= 2.5mA)
CAUTION:
These Devices are Sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed.
APT Website - http://www.advancedpower.com

APT50M85LVR Related Products

APT50M85LVR APT50M85B2VR
Description Power Field-Effect Transistor, 56A I(D), 500V, 0.085ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-264AA, TO-264, 3 PIN Power Field-Effect Transistor, 56A I(D), 500V, 0.085ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TMAX-3
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Maker Microsemi Microsemi
package instruction TO-264, 3 PIN TMAX-3
Contacts 3 3
Reach Compliance Code unknown unknown
Other features FAST SWITCHING, AVALANCHE RATED, HIGH VOLTAGE FAST SWITCHING, AVALANCHE RATED, HIGH VOLTAGE
Avalanche Energy Efficiency Rating (Eas) 3000 mJ 3000 mJ
Shell connection DRAIN DRAIN
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 500 V 500 V
Maximum drain current (Abs) (ID) 56 A 56 A
Maximum drain current (ID) 56 A 56 A
Maximum drain-source on-resistance 0.085 Ω 0.085 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JESD-30 code R-PSFM-T3 R-PSIP-T3
Number of components 1 1
Number of terminals 3 3
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Polarity/channel type N-CHANNEL N-CHANNEL
Maximum power dissipation(Abs) 625 W 625 W
Maximum pulsed drain current (IDM) 224 A 224 A
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
