51705-10002403C0 datasheet, PDF

51705-10002403C0: DescriptionBoard Connector, 27 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size250KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

51705-10002403C0 Overview

Board Connector, 27 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Objectid	2042986439
Reach Compliance Code	compliant
compound_id	63682064
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51705
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	27
UL Flammability Code	94V-0

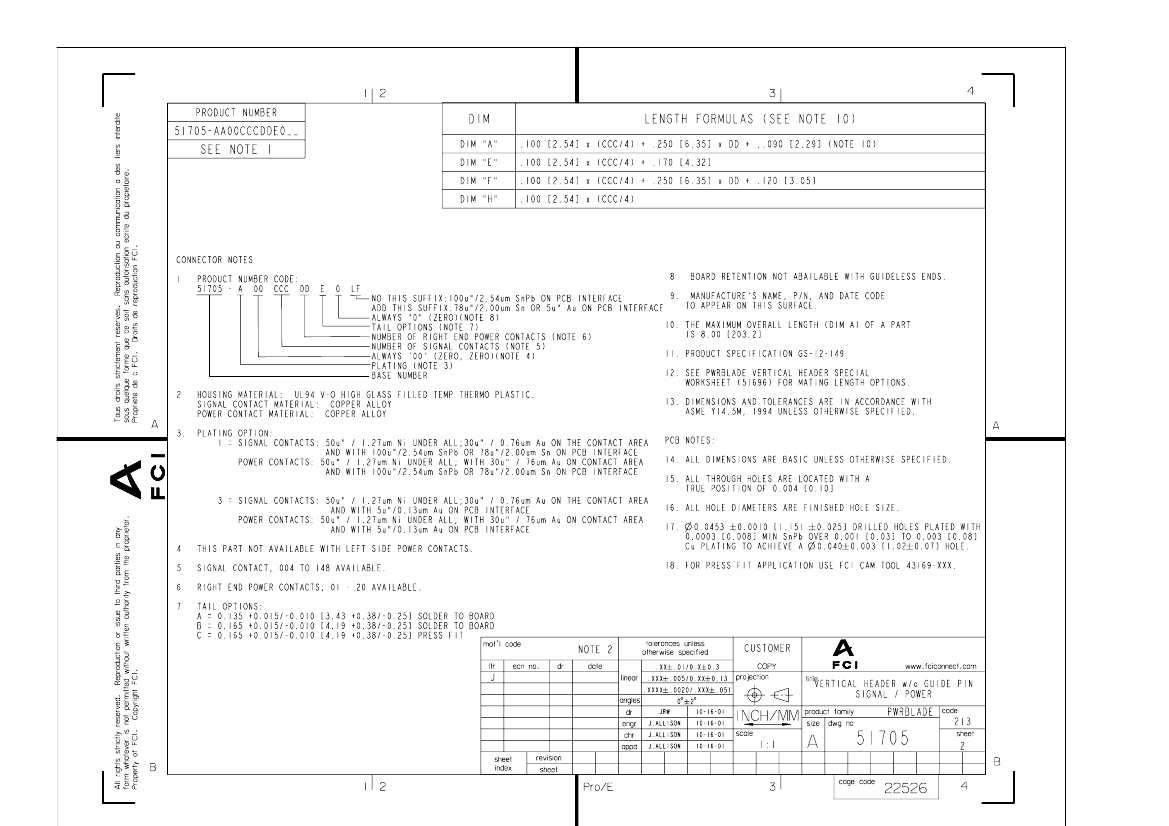

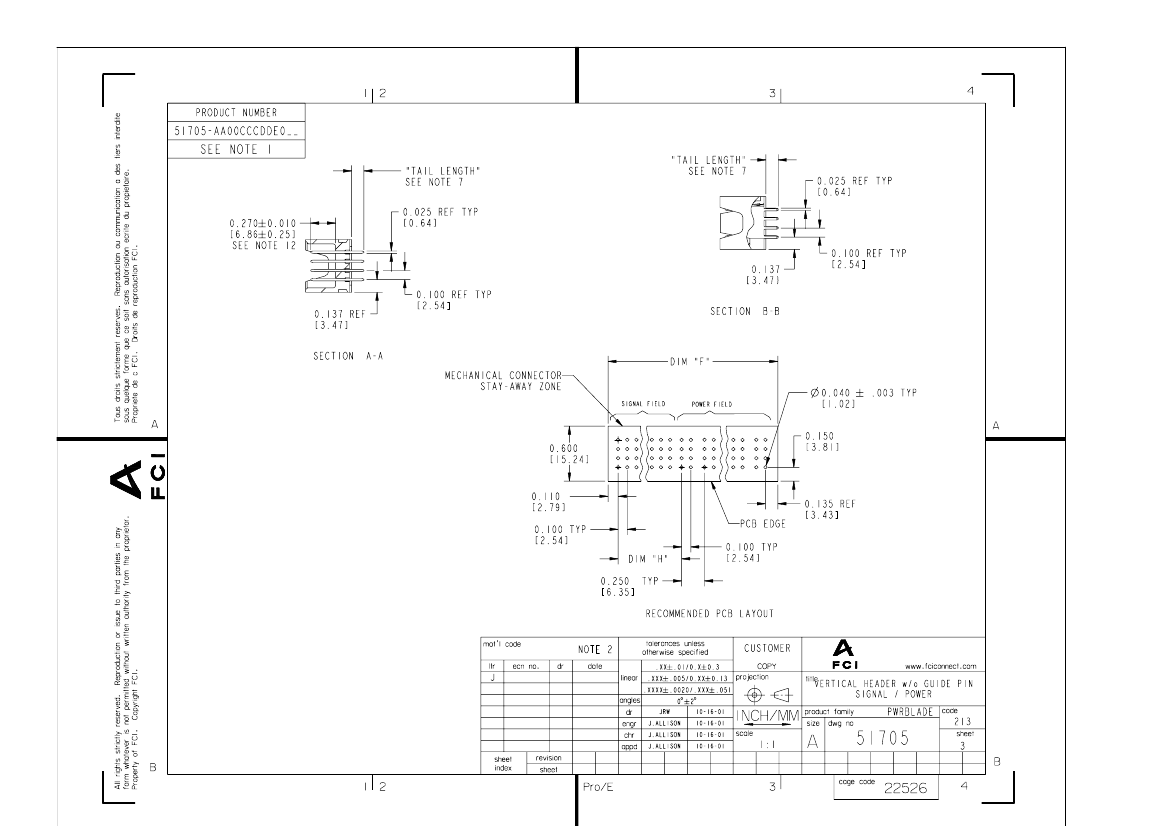

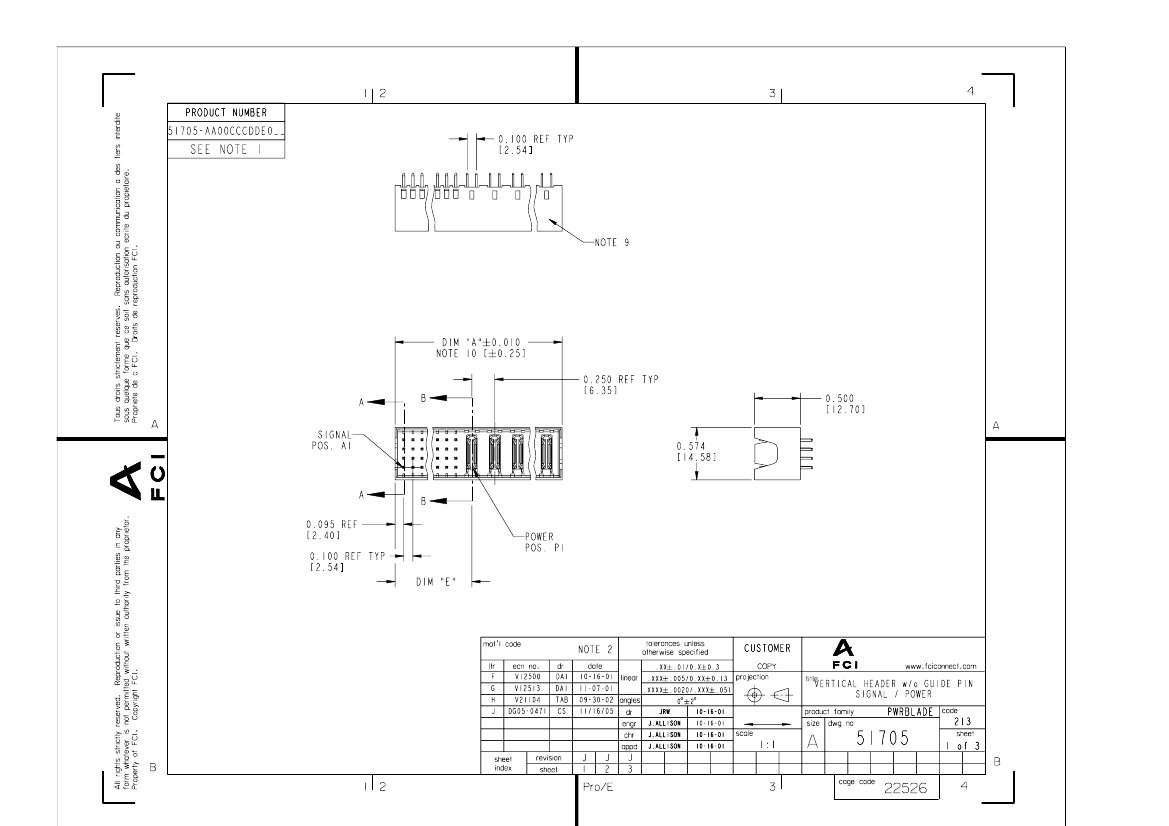

PDM: Rev:J

STATUS:

Released

Printed: Oct 07, 2006

.
