TS80C186XL-16 datasheet, PDF - EEWORLD Datasheet

TS80C186XL-16: DescriptionRISC Microprocessor, 16-Bit, 16MHz, CMOS, PQFP80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，48 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

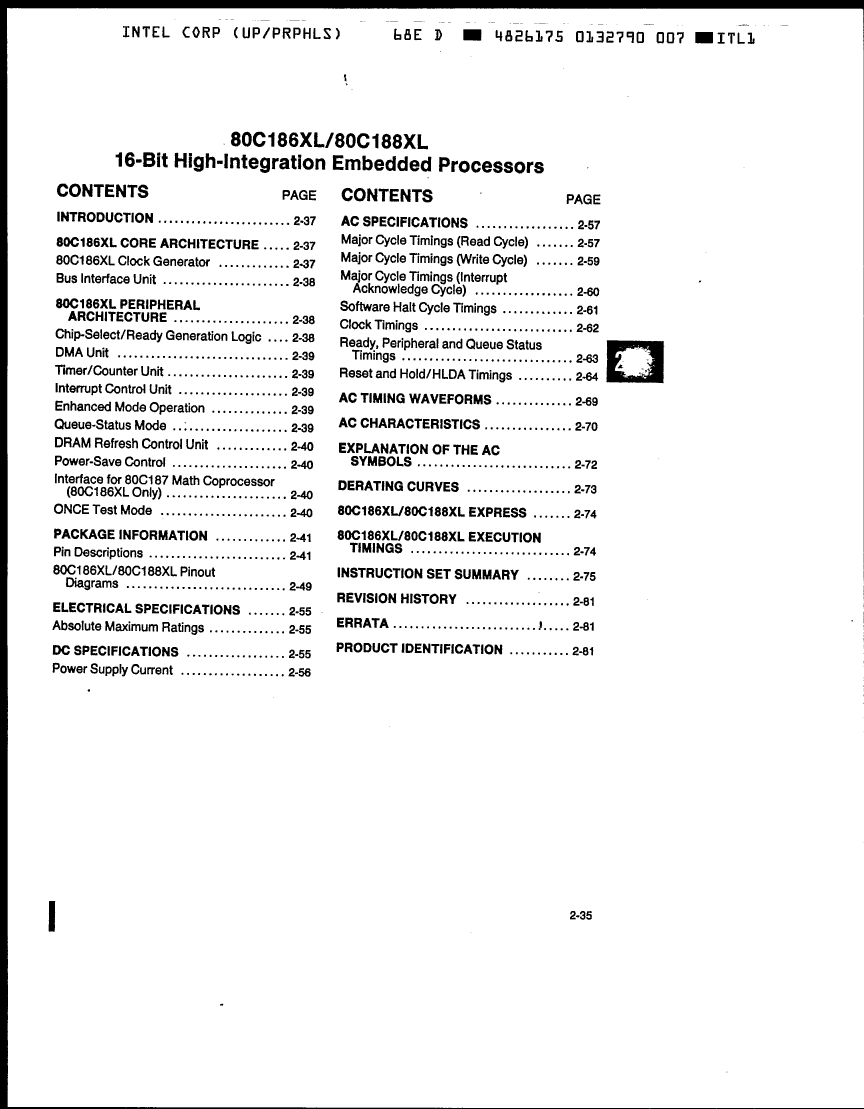

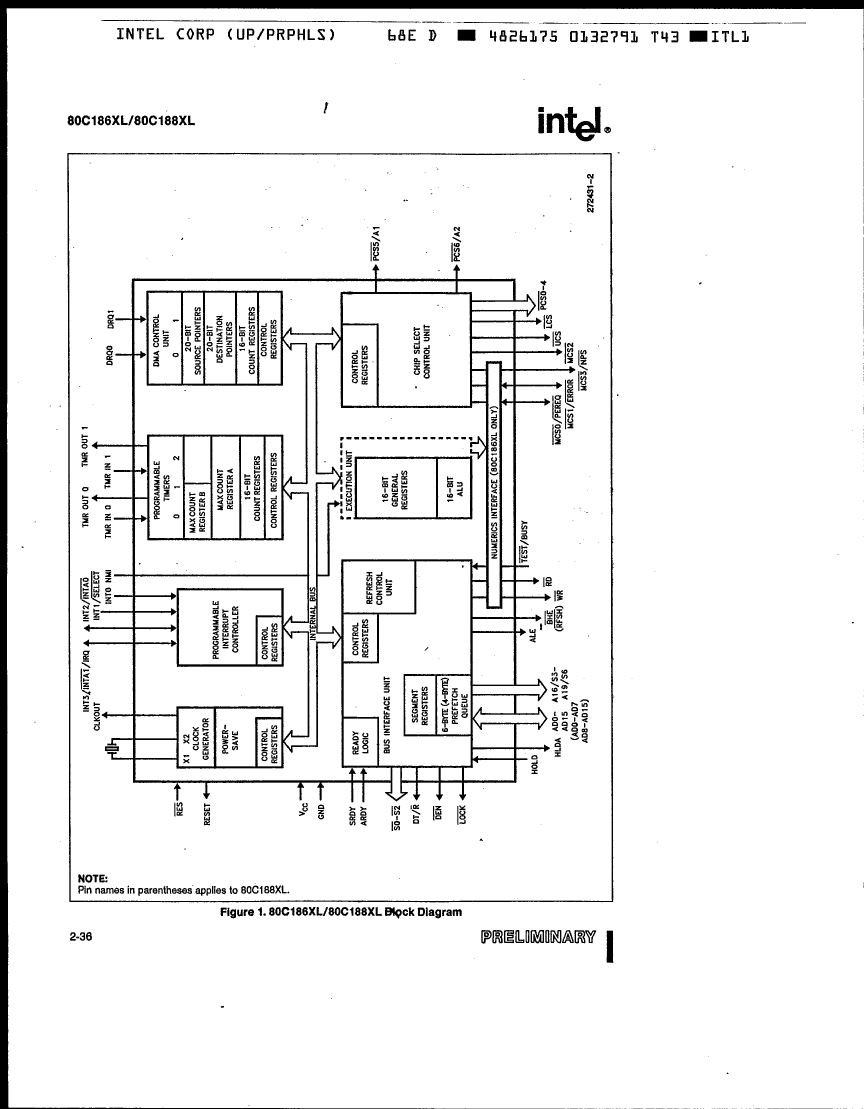

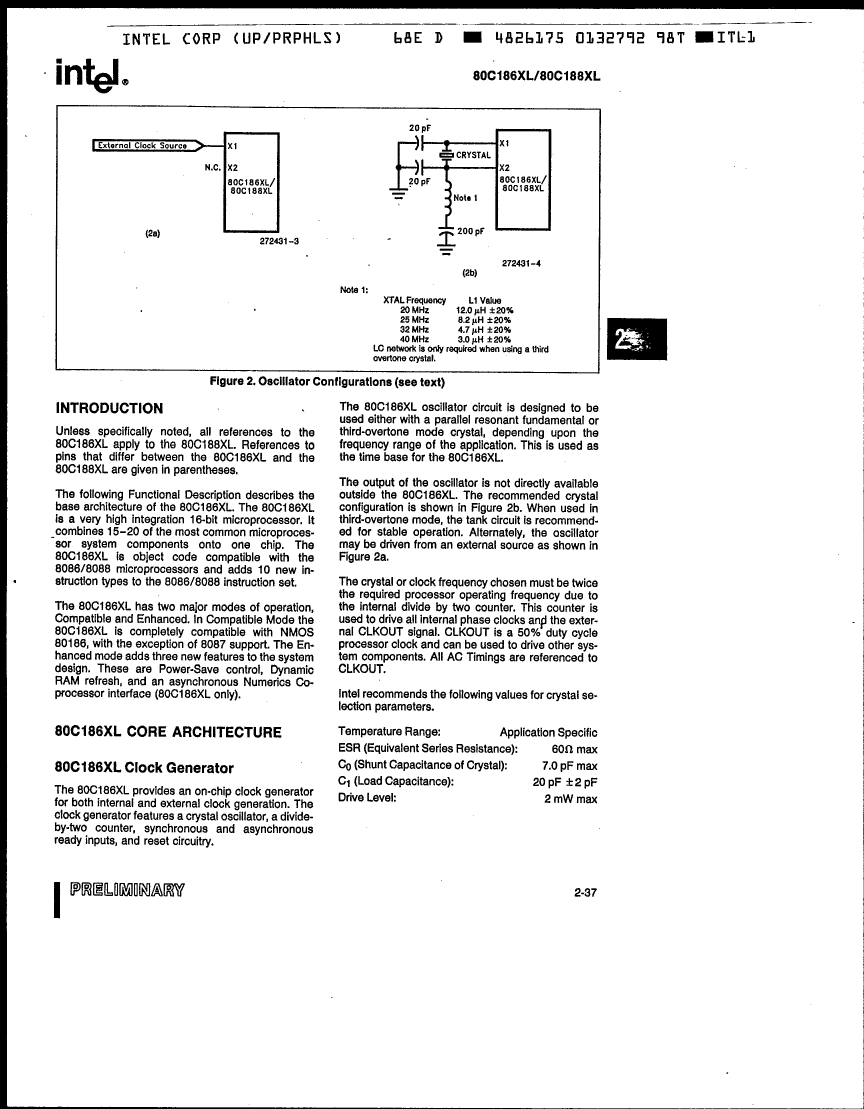

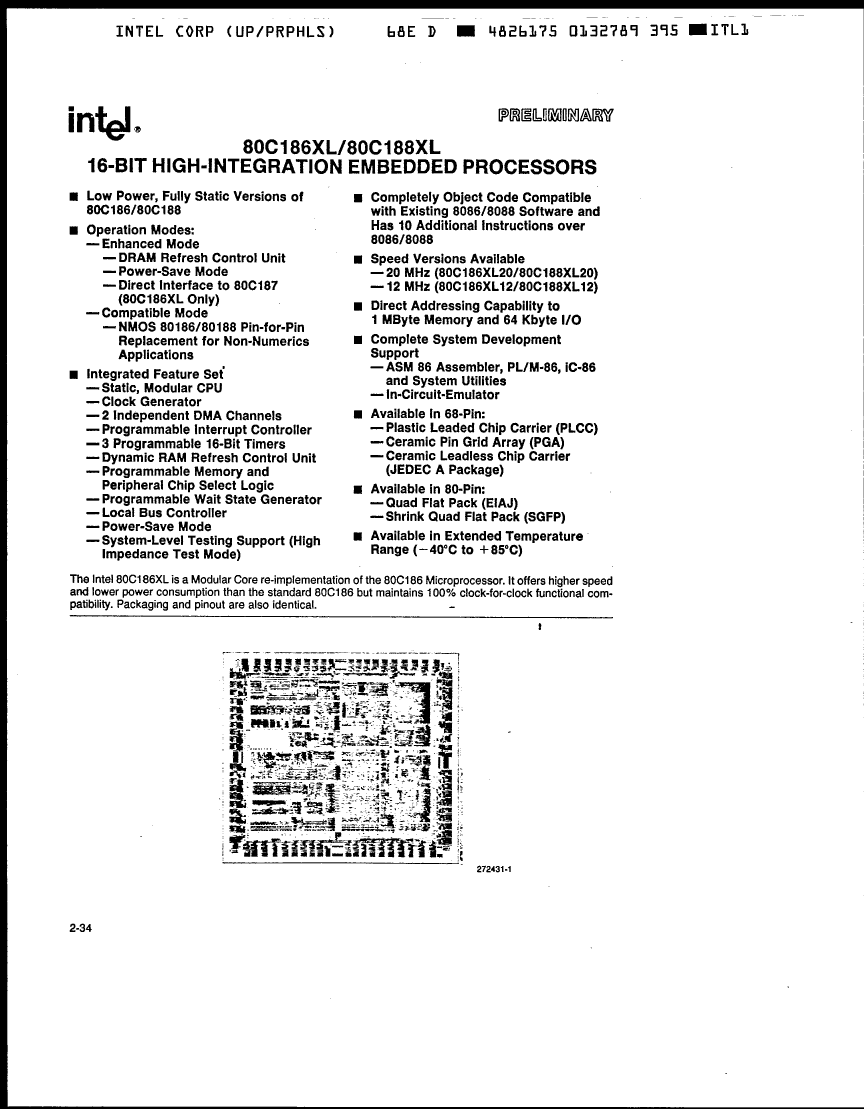

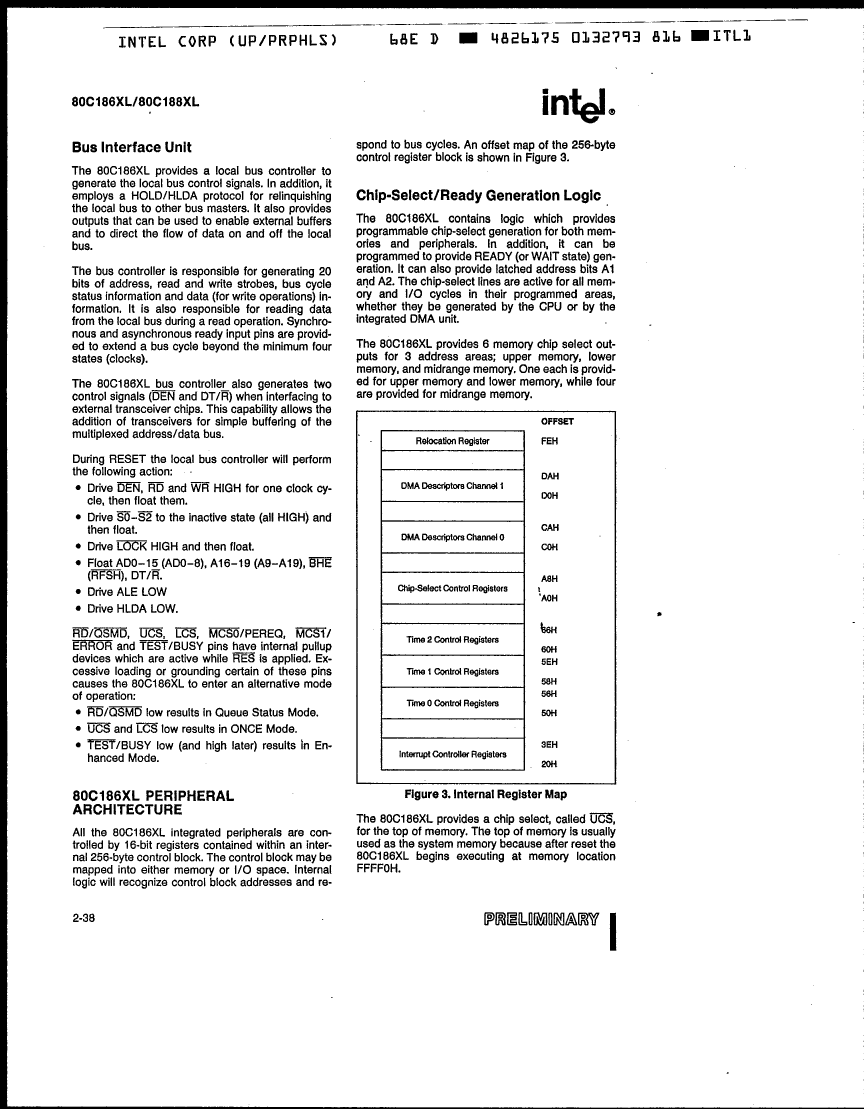

TS80C186XL-16 Overview

RISC Microprocessor, 16-Bit, 16MHz, CMOS, PQFP80

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QFF, QFL80,.55X.8,32
Reach Compliance Code	compli
bit size	16
JESD-30 code	R-PQFP-F80
JESD-609 code	e0
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFF
Encapsulate equivalent code	QFL80,.55X.8,32
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
speed	16 MHz
Maximum slew rate	80 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	0.8 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1
