SAW Bandpass Filter F2G51
Features
RF bandpass filter
High attenuation
No matching single-ended operation
Ceramic Surface Mounted Device Package ( 3.0 mm
×
3.0 mm )
RoHS Compliant
Package Dimension – SMD 3.0
×
3.0
1
6
6
1
2
I
2G51
5
5
2
3
4
4
3
Pin Configuration
Dimensions shown are nominal in millimeters
Body : Al
2
O
3
Ceramic
Lid : Kovar, Ni Plated
Terminations : Au plating 0.3 ~ 1.0 um, Over a 1.27 ~ 8.89 um
Ni Plating
2
5
1, 3, 4, 6
Input
Output
Case ground
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
dBm
Minimum
-35
-40
-
Typical
25
25
-
Maximum
85
85
10
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
F2G51
2012-1-2
NCJ02-AS 02
1/7
SAW Bandpass Filter F2G51
Specifications
Fc = 2535 MHz
Terminating source impedance : 50Ω
Terminating load impedance
: 50Ω
Minimum
Center Frequency ( Fc )
Insertion Loss (In Fc +/- 35 MHz)
Amplitude Ripple (In Fc +/- 35 MHz)
VSWR (In Fc +/- 35 MHz)
-
-
-
-
Typical
2535
2.2
0.8
2.0
Maximum
-
3.6
2.2
2.3
Unit
MHz
dB
dBp-p
Relative Attenuation
DC ~ 2100 MHz
2100 ~ 2400 MHz
2650 ~ 3000 MHz
25
27
30
31
34.5
38
-
-
-
dB
Input/Output Impedance
50
Ohms
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
F2G51
2012-1-2
NCJ02-AS 02
2/7
SAW Bandpass Filter F2G51
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
Marking Configuration
1)
I
2)
2G51
3)
1) Pad Number 1 Index
2) Manufacturer name
3) Marking Number
* Ink or Laser Marking available
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
F2G51
2012-1-2
NCJ02-AS 02
3/7
SAW Bandpass Filter F2G51

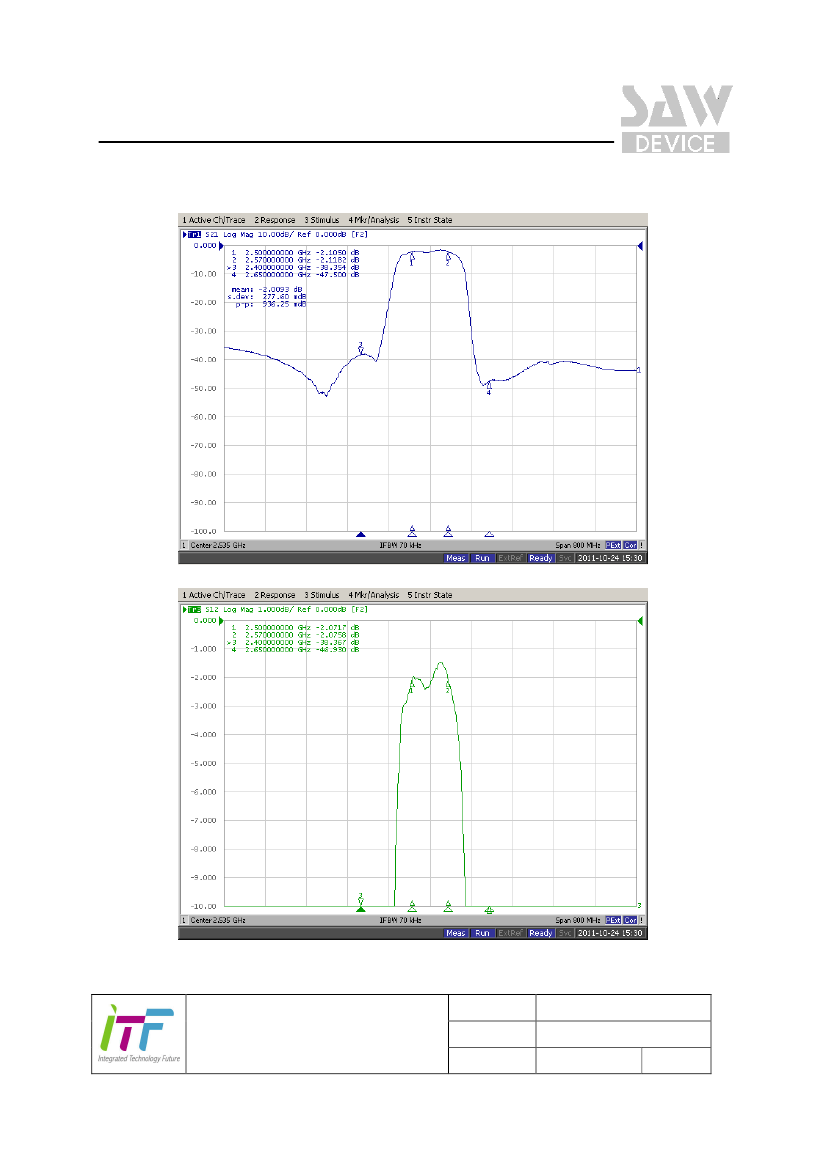

Typical Performance ( at 25℃ )
℃
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
F2G51
2012-1-2
NCJ02-AS 02
4/7
SAW Bandpass Filter F2G51

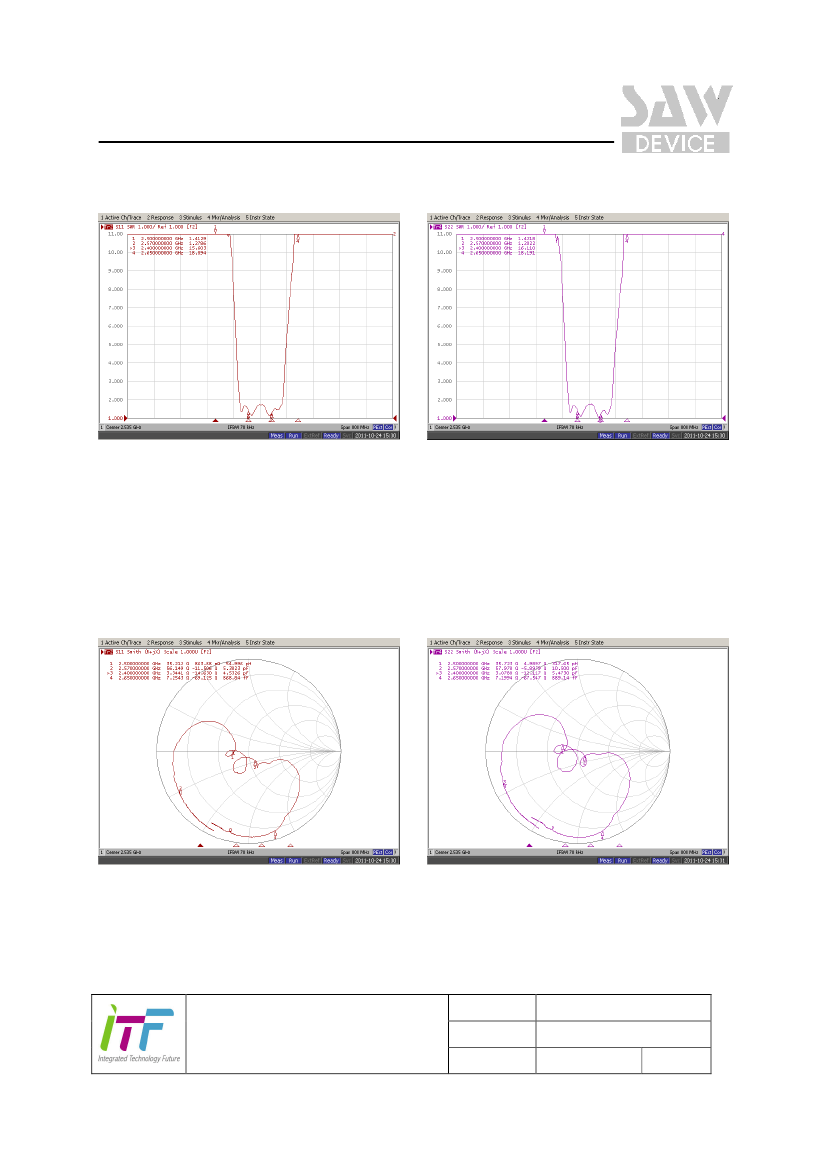

Input / Output VSWR Charts
Input / Output Smith Charts
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
F2G51
2012-1-2
NCJ02-AS 02
5/7
