SPA1900/70/8/0/LH-SMA datasheet, PDF

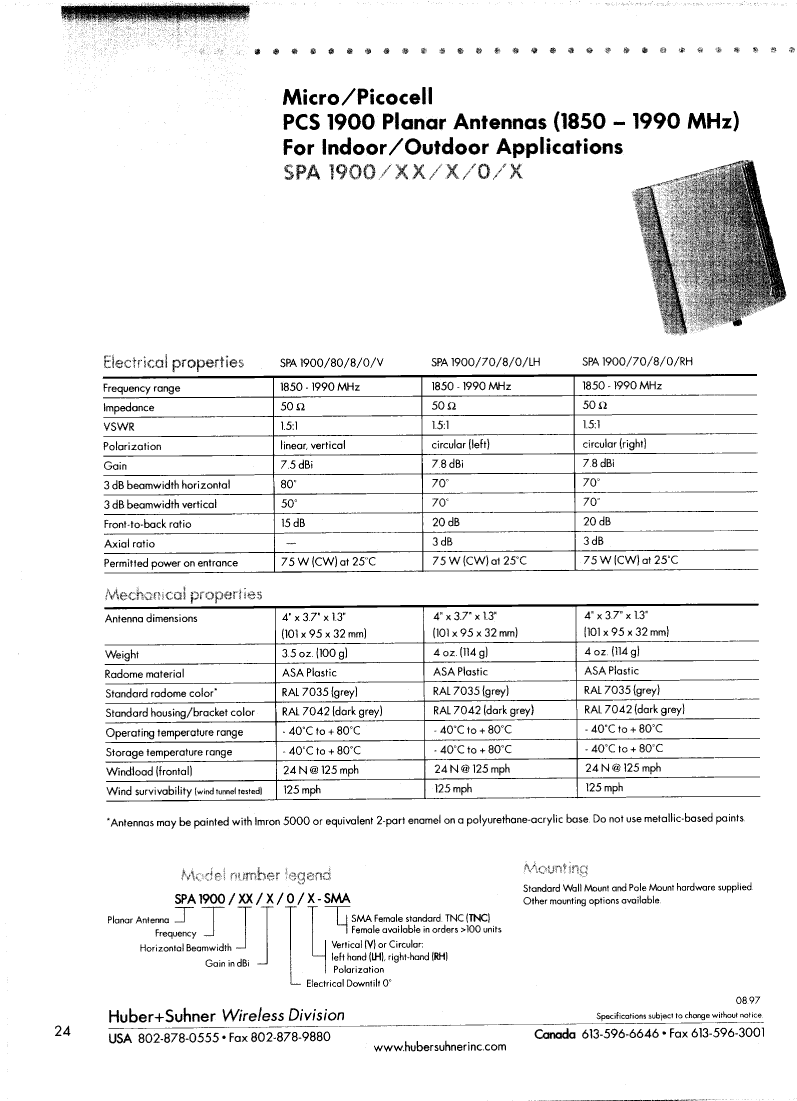

SPA1900/70/8/0/LH-SMA: DescriptionAntenna Support Circuit, 1850MHz Min, 1990MHz Max, 7.8dB Gain, 70deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size100KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

SPA1900/70/8/0/LH-SMA Overview

Antenna Support Circuit, 1850MHz Min, 1990MHz Max, 7.8dB Gain, 70deg 3dB Beamwidth

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Reach Compliance Code	compliant
application	PCS
Beam Width-E	70 deg
Beamwidth-H	70 deg
Characteristic impedance	50 Ω
front to back ratio	20 dB
Gain	7.8 dB
Omnidirectional	NO
Maximum operating frequency	1990 MHz
Minimum operating frequency	1850 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
polarization	LHCP
RF/Microwave Device Types	ANTENNA SUPPORT CIRCUIT
Maximum transmission power	75 W
Maximum voltage standing wave ratio	1.5
Commentary	125 mph

	SPA1900/70/8/0/LH-SMA	12-215/Y2C-CP1Q2B/3C	12-21C-BHC-AN1P2-2C	SPA1900/70/8/0/LH-TNC	SPA1900/70/8/0/RH-SMA	SPA1900/70/8/0/RH-TNC
Description	Antenna Support Circuit, 1850MHz Min, 1990MHz Max, 7.8dB Gain, 70deg 3dB Beamwidth	Chip LED with Right Angle Lens	Package in 8mm tape on 7〞diameter reel.	Antenna Support Circuit, 1850MHz Min, 1990MHz Max, 7.8dB Gain, 70deg 3dB Beamwidth	Antenna Support Circuit, 1850MHz Min, 1990MHz Max, 7.8dB Gain, 70deg 3dB Beamwidth	Antenna Support Circuit, 1850MHz Min, 1990MHz Max, 7.8dB Gain, 70deg 3dB Beamwidth
Maker	HUBER+SUHNER	-	-	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER
Reach Compliance Code	compliant	-	-	compliant	compliant	compliant
application	PCS	-	-	PCS	PCS	PCS
Beam Width-E	70 deg	-	-	70 deg	70 deg	70 deg
Beamwidth-H	70 deg	-	-	70 deg	70 deg	70 deg
Characteristic impedance	50 Ω	-	-	50 Ω	50 Ω	50 Ω
front to back ratio	20 dB	-	-	20 dB	20 dB	20 dB
Gain	7.8 dB	-	-	7.8 dB	7.8 dB	7.8 dB
Omnidirectional	NO	-	-	NO	NO	NO
Maximum operating frequency	1990 MHz	-	-	1990 MHz	1990 MHz	1990 MHz
Minimum operating frequency	1850 MHz	-	-	1850 MHz	1850 MHz	1850 MHz
Maximum operating temperature	80 °C	-	-	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C
polarization	LHCP	-	-	LHCP	RHCP	RHCP
RF/Microwave Device Types	ANTENNA SUPPORT CIRCUIT	-	-	ANTENNA SUPPORT CIRCUIT	ANTENNA SUPPORT CIRCUIT	ANTENNA SUPPORT CIRCUIT
Maximum transmission power	75 W	-	-	75 W	75 W	75 W
Maximum voltage standing wave ratio	1.5	-	-	1.5	1.5	1.5
Commentary	125 mph	-	-	125 mph	125 mph	125 mph
