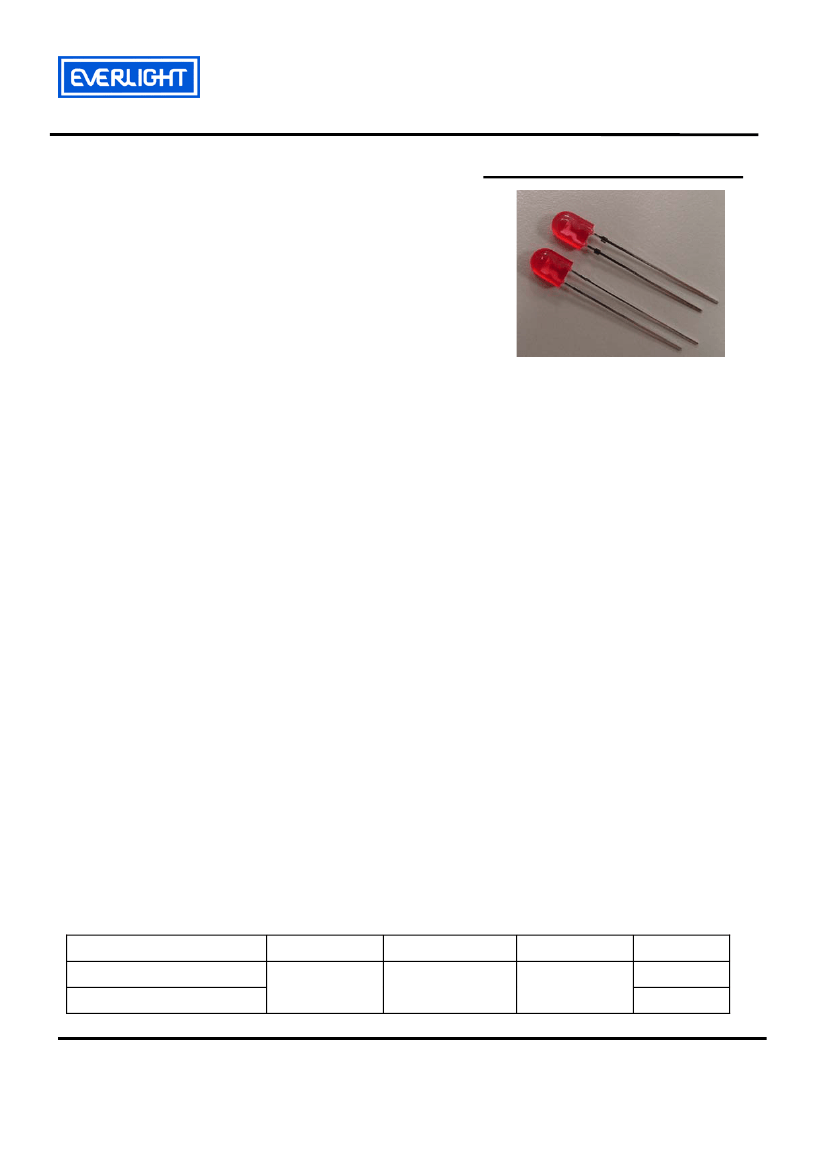

Technical Data Sheet
5484A/R3DC-AHLC/X/MS
Features
․High
luminous intensity output
․Oval
Shape
․Well
defined spatial radiation
․Wide
viewing angle (2θ
1/2
) : 100
o
/ 40
o
․UV
resistant epoxy
․The
product itself will remain within RoHS compliant version
Descriptions
․This
precision optical performance oval LED is specifically
designed for passenger information signs
․This
lamp has matched radiation patterns with yellow, blue
or green mixing color applications
Applications
․Color
graphic signs
․Message
boards
․Variable
message signs (VMS)
․Commercial
outdoor advertising
Device Selection Guide
LED Part No.
5484A/R3DC-AHLC/MS
5484A/R3DC-AHLC/P/MS
Chip Material
AlGaInP
Emitted Color
Brilliant red
Lens Color
Red Diffused
Stopper
No
Yes
Everlight Electronics Co., Ltd.
Device Number : DLE-548-066
http://www.everlight.com
Prepared date:05-13-2008
Rev 1
Page: 1 of 8
Prepared by: Grace Shen
Technical Data Sheet
5484A/R3DC-AHLC/X/MS

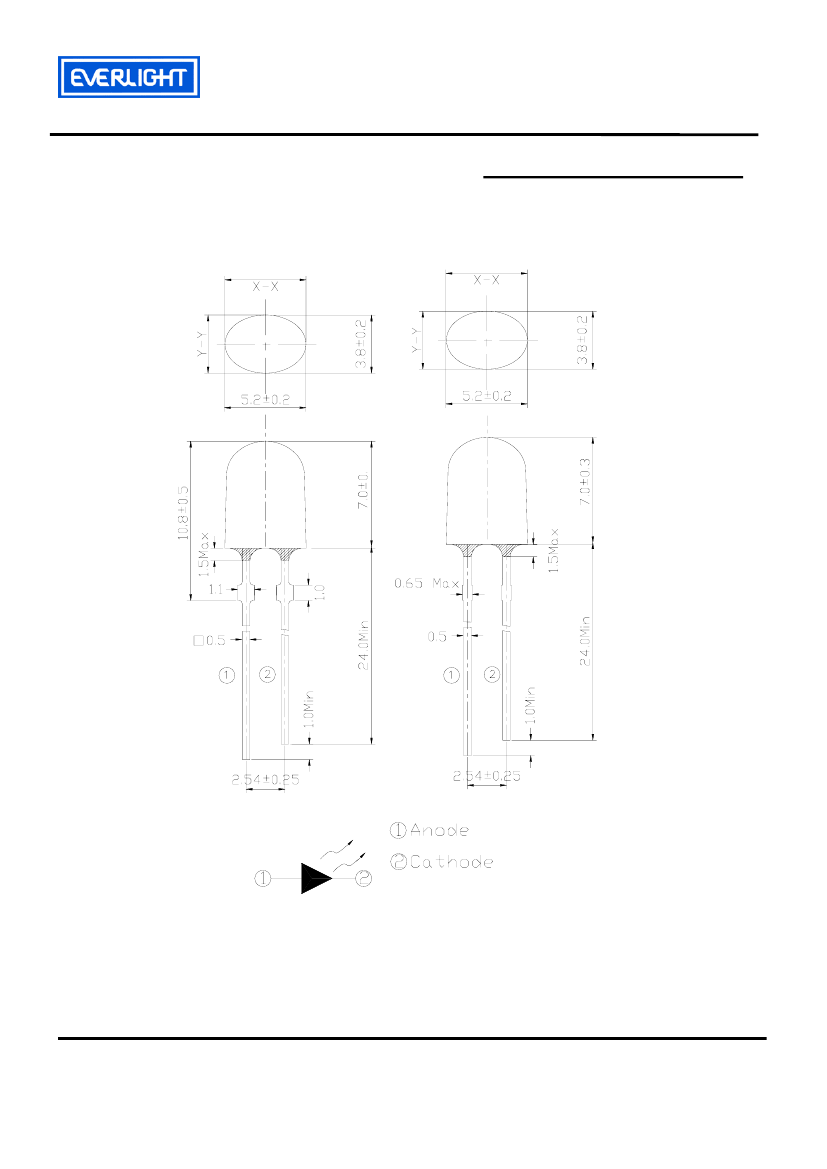

Package Dimensions
Stopper Type
No Stopper Type
Notes:
․Other
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
Everlight Electronics Co., Ltd.
Device Number : DLE-548-066
http://www.everlight.com
Prepared date:05-13-2008
3
Rev 1
Page: 2 of 8
Prepared by: Grace Shen
Technical Data Sheet
5484A/R3DC-AHLC/X/MS
Absolute Maximum Rating (T
a
=25℃)
Parameter
Forward Current
Pulse Forward Current (Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Reverse Voltage
Notes: Soldering time≦5 seconds.
Symbol
I
F
I
FP
T
opr
T
stg
T
sol
P
d
V
R
Absolute Maximum Rating
50
160
-40 ~ +85
-40 ~ +100
260
120
5
Unit
mA
mA
℃
℃
℃
mW
V
Electro-Optical Characteristics (T
a
=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Reverse Current
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Min.
715
--
--
622
--
2.0
--
Typ.
1100
X:100Y:40
635
628
20
2.3
--
Max.
1800
--
--
634
--
2.6
10
Unit
mcd
deg
nm
V
μA
Condition
I
F
=20mA
V
R
=5V
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
H
715~900
J
900~1125
K
1125~1425
L
1425~1800
Unit:mcd
*Measurement Uncertainty of Luminous Intensity:
±10%
Rank
Forward Voltage
2
2.0~2.2
3
2.2~2.4
4
2.4~2.6
Unit:V
*Measurement Uncertainty of Forward Voltage:
±0.1V
Rank
Dominant Wavelength
2
3
4
630~634
Unit:nm
622~626
626~630
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
Everlight Electronics Co., Ltd.
Device Number : DLE-548-066
http://www.everlight.com
Prepared date:05-13-2008
Rev 1
Page: 3 of 8
Prepared by: Grace Shen
Technical Data Sheet
5484A/R3DC-AHLC/X/MS

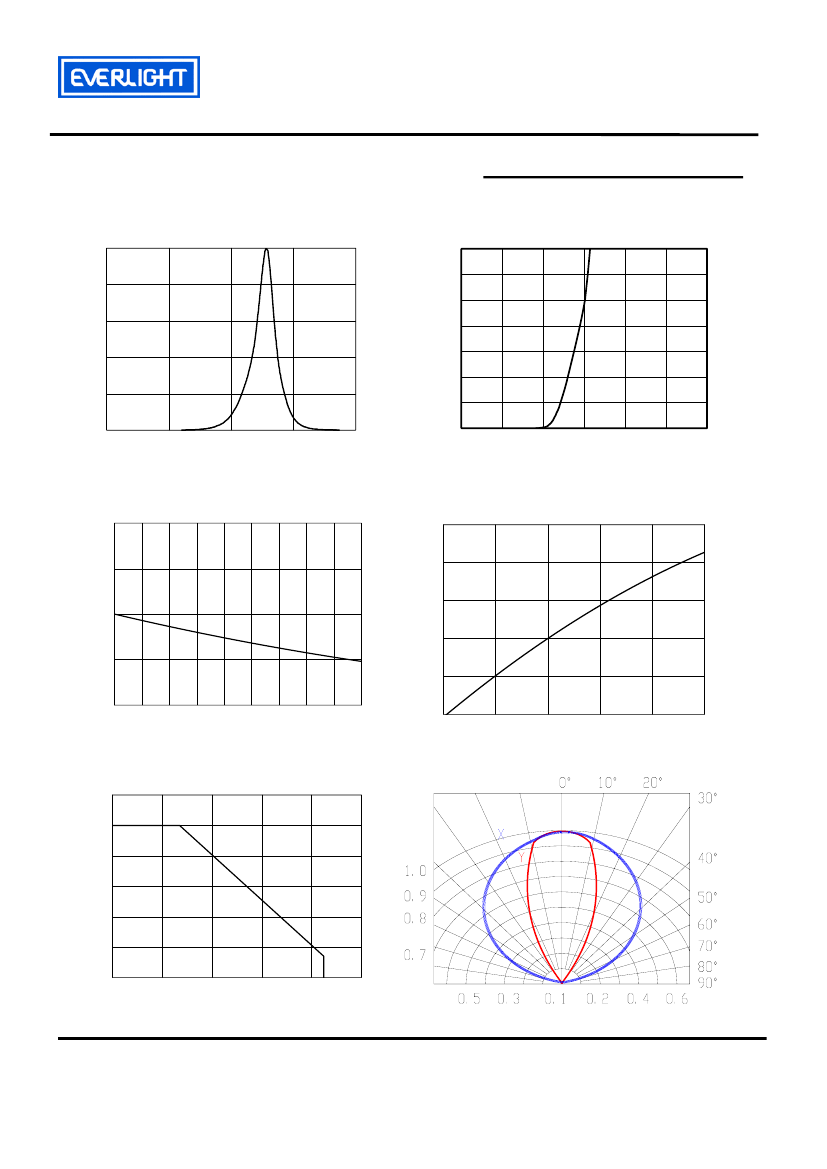

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
FORWARD CURRENT(mA)
1.0
Forward Current vs. Forward Voltage
70
60
50
40
30
20
10
0
1.0
Relative Intensity(a.u.)
0.8
0.6
0.4
0.2
0.0
500
550
600
650
700
1.5
2.0
2.5
3.0
3.5
4.0
Wavelength(nm)
FORWARD VOLTAGE(V)
Relative Intensity vs. Ambient Temp.
Relative Luminous Intensity(a.u.)
2.0
Relative Intensity vs. Forward Current
Relative Luminous Intensity(a.u.)
2.5
1.5
2.0
1.5
1.0
1.0
0.5
0.5
0.0
25
30
35
40
45
50
55
60
O
65
70
0.0
0
10
20
30
40
50
Ambient Temperature Ta( C)
Forward Current(mA)
Forward Current vs. Ambient Temp.
60
Radiation Characteristics
Forward Current(mA)
50
40
30
20
10
0
0
20
40
60
80
O
100
Ambient Temperature Ta( C)
Everlight Electronics Co., Ltd.
Device Number : DLE-548-066
http://www.everlight.com
Prepared date:05-13-2008
Rev 1
Page: 4 of 8
Prepared by: Grace Shen
Technical Data Sheet
5484A/R3DC-AHLC/X/MS
Packing Specification
■
Anti-electrostatic bag
EVERLIGHT
Label
CPN:
P/N:XXXXXXXXXX
RoHS
Pb
EL ECTROSTATIC ELECTRONAGNETIC
MAGNETIC OR RADIOACTIVE RELDS
XXX/XXXX-XXXX
QTY：XXXX
anti-static for 750
CAT:XX
HUE:XX
REF:XX
■
Inner Carton
LOT NO： XXXXXXXX
MADE IN TAIWAN
■
Label Form Specification
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks of Luminous Intensity and Forward Voltage
HUE: Rank of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
■
Outside Carton
■
Packing Quantity
1. 500 PCS/1 Bag，5 Bags/1 Inner Carton
2. 10 Inner Cartons/1 Outside Carton
Everlight Electronics Co., Ltd.
Device Number : DLE-548-066
http://www.everlight.com
Prepared date:05-13-2008
Rev 1
Page: 5 of 8
Prepared by: Grace Shen
