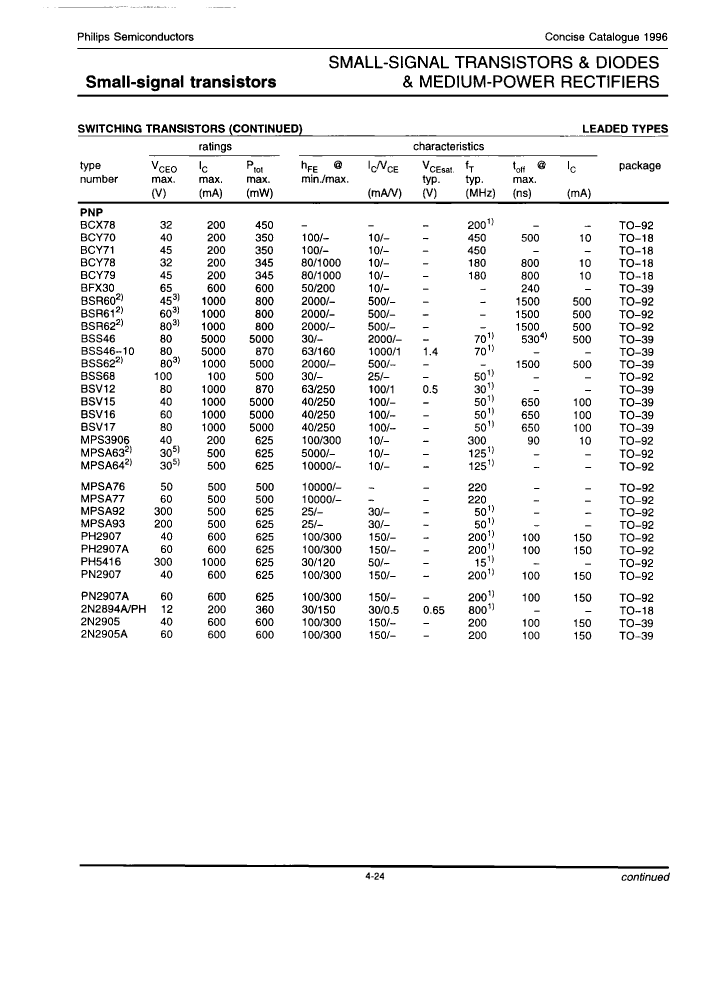

BSS46-10: DescriptionTRANSISTOR 5 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-39, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size56KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

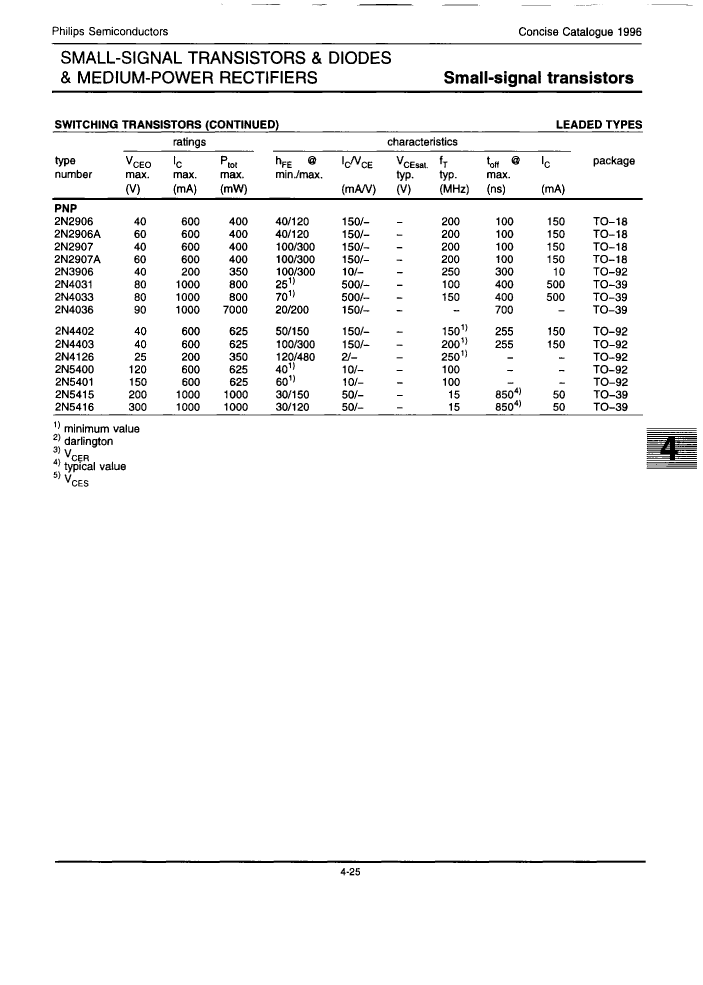

Download Datasheet Parametric Compare View All

BSS46-10 Overview

TRANSISTOR 5 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-39, BIP General Purpose Power

Parameter Name	Attribute value
Maker	NXP
Objectid	1440915591
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	11037229
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	63
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	70 MHz

	BSS46-10	2N2894A/PH	BSV12
Description	TRANSISTOR 5 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-39, BIP General Purpose Power	TRANSISTOR Si, RF SMALL SIGNAL TRANSISTOR, TO-18, BIP RF Small Signal	TRANSISTOR 1000 mA, 80 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown	unknow	unknown
Configuration	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-39	TO-18	TO-39
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
ECCN code	EAR99	-	EAR99
Maximum collector current (IC)	5 A	-	1 A
Collector-emitter maximum voltage	80 V	-	80 V
Minimum DC current gain (hFE)	63	-	63
Polarity/channel type	PNP	-	PNP
Nominal transition frequency (fT)	70 MHz	-	30 MHz
Base Number Matches	-	1	1
