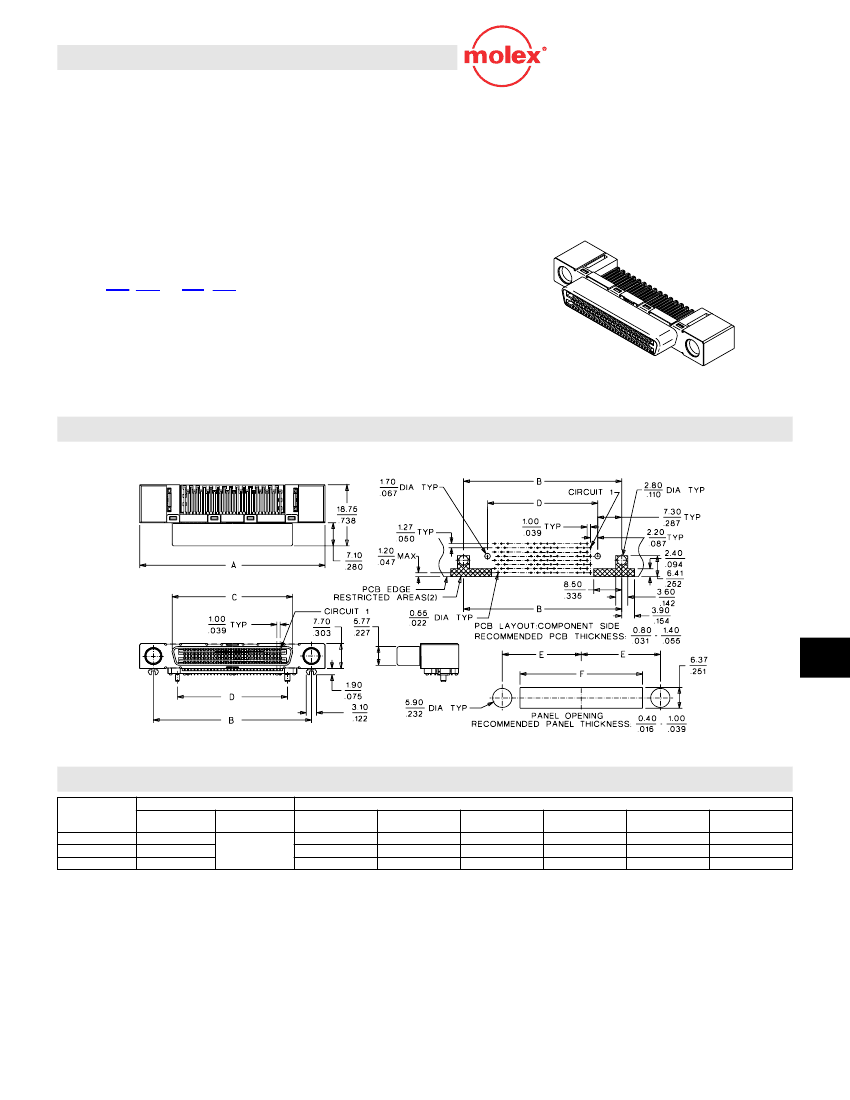

Telecom and Datacom Connector, 120 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | STAGGERED CONFIGURATION, SHIELDED |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.303 inch |
| subject depth | 0.458 inch |
| body length | 2.213 inch |
| Body/casing type | RECEPTACLE |
| Connector type | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 70 mΩ |
| Contact style | LEAF |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 5000 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .3892 N |
| Insulation resistance | 500000000 Ω |
| Insulator color | WHITE |
| insulator material | LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |
| Manufacturer's serial number | 52755 |
| Plug contact pitch | 0.039 inch |
| Plug information | MULTIPLE MATING PARTS AVAILBLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | SCREWLOCKS |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD AND PANEL |
| PCB row number | 8 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.27 mm |
| Rated current (signal) | 0.4 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Terminal pitch | 2.0066 mm |
| Termination type | SOLDER |
| Total number of contacts | 120 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .0834 N |
| 52755-1200 | 52755-2400 | |
|---|---|---|
| Description | Telecom and Datacom Connector, 120 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle | Telecom and Datacom Connector, 240 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle |
| Is it Rohs certified? | incompatible | incompatible |
| Maker | Molex | Molex |
| Reach Compliance Code | unknown | unknown |
| ECCN code | EAR99 | EAR99 |
| Other features | STAGGERED CONFIGURATION, SHIELDED | STAGGERED CONFIGURATION, SHIELDED |
| Board mount options | SPLIT BOARD LOCK | SPLIT BOARD LOCK |
| body width | 0.303 inch | 0.303 inch |
| subject depth | 0.458 inch | 0.458 inch |
| body length | 2.213 inch | 3.394 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 70 mΩ | 70 mΩ |
| Contact style | LEAF | LEAF |
| DIN compliance | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V |
| Durability | 5000 Cycles | 5000 Cycles |
| empty shell | NO | NO |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| maximum insertion force | .3892 N | .3892 N |
| Insulation resistance | 500000000 Ω | 500000000 Ω |
| Insulator color | WHITE | WHITE |
| insulator material | LIQUID CRYSTAL POLYMER | LIQUID CRYSTAL POLYMER |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 52755 | 52755 |
| Plug contact pitch | 0.039 inch | 0.039 inch |
| Plug information | MULTIPLE MATING PARTS AVAILBLE | MULTIPLE MATING PARTS AVAILBLE |
| Mixed contacts | NO | NO |
| Installation option 1 | LOCKING | LOCKING |
| Installation option 2 | SCREWLOCKS | SCREWLOCKS |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD AND PANEL | BOARD AND PANEL |
| PCB row number | 8 | 8 |
| Number of rows loaded | 4 | 4 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED |
| PCB contact row spacing | 1.27 mm | 1.27 mm |
| Rated current (signal) | 0.4 A | 0.4 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Shell surface | NICKEL | NICKEL |
| Shell material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Terminal pitch | 2.0066 mm | 2.0066 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 120 | 240 |
| UL Flammability Code | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .0834 N | .0834 N |
