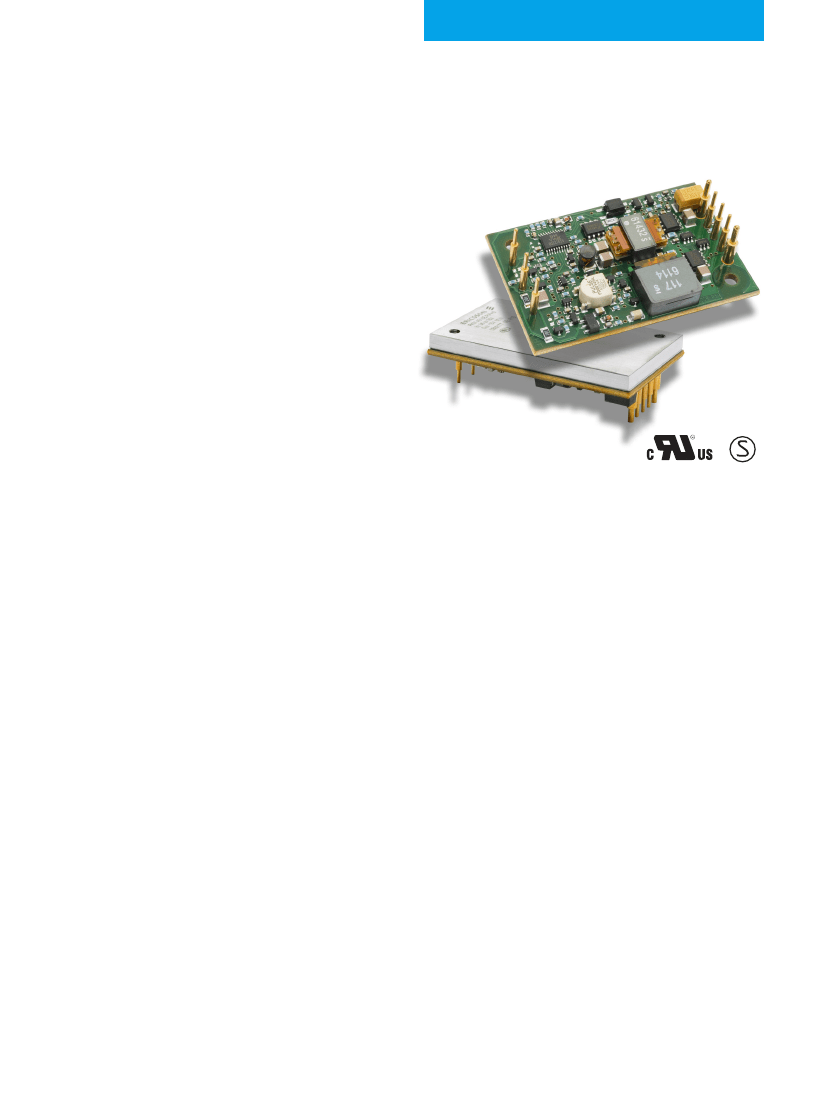

PKM 2000E Series
18-36 Vdc DC/DC converter
Output up to 20 A/50 W
Contents
Product Program . . . . . . . . . . . . . . . . . . . . . . 2
Quality Statement . . . . . . . . . . . . . . . . . . . . . 2
Limitation of Liability . . . . . . . . . . . . . . . . . . . 2

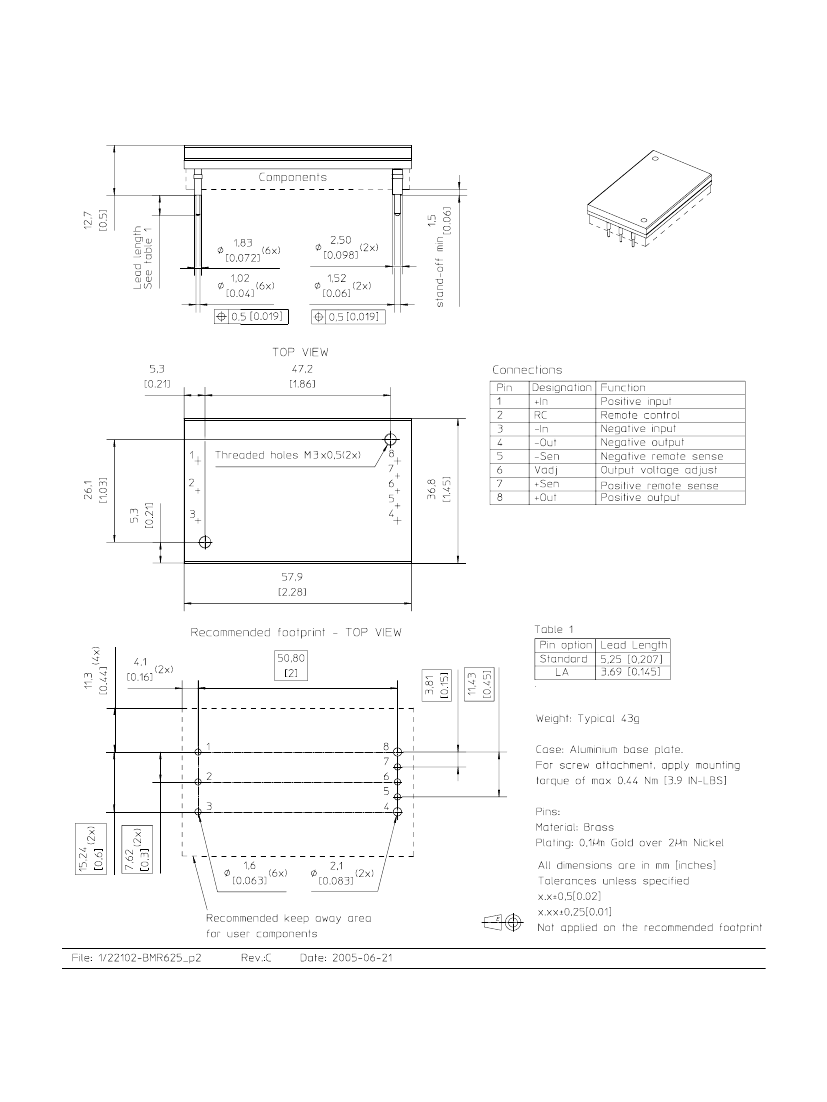

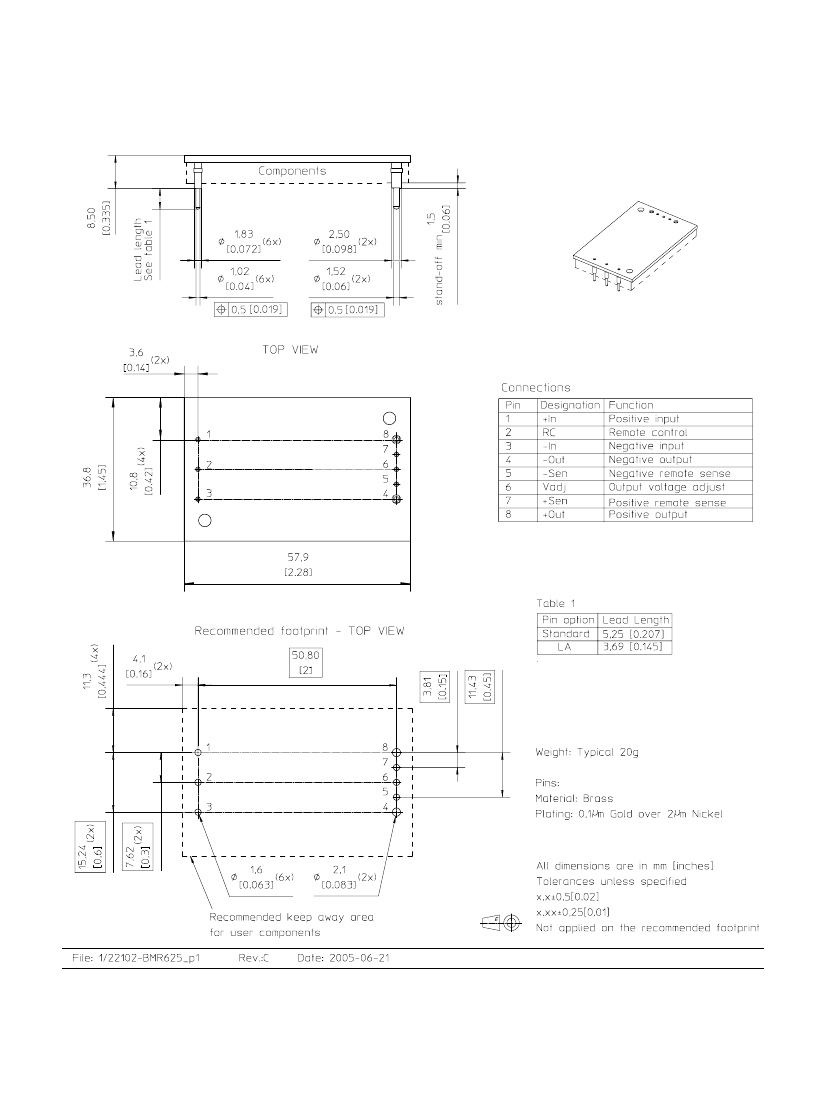

Mechanical Information . . . . . . . . . . . . . . . 3-4
Absolute Maximum Ratings . . . . . . . . . . . . . 5
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Specification . . . . . . . . . . . . . . . . . . . 6
Product Qualification Specification . . . . . . . . 7
PKM 2510E PI Data . . . . . . . . . . . . . . . . . . . 8
PKM 2511E PI Data . . . . . . . . . . . . . . . . . . 11
PKM 2513E PI Data . . . . . . . . . . . . . . . . . . 14
PKM 2515E PI Data . . . . . . . . . . . . . . . . . . 17
EMC Specification . . . . . . . . . . . . . . . . . . . . 20
Operating Information . . . . . . . . . . . . . . . . . 21
Thermal Consideration . . . . . . . . . . . . . . . . 23
Soldering Information . . . . . . . . . . . . . . . . . 24
Delivery Package Information . . . . . . . . . . . 24
Compatibility with RoHS requirements . . . . 24
Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Sales Offices and Contact Information . . . . 25
Key Features
•
Industry standard Quarter-brick
57 .9 x 36 .8 x 8 .5 mm (2 .28 x 1 .45 x 0 .33 in)
•
RoHS compliant
•
High efficiency, typ . 89 % at 3 .3 Vout half load
•
1500 Vdc input to output isolation, meets isolation
requirements equivalent to basic insulation according
to IEC/EN/UL 60950
•
More than 7 .0 million hours predicted MTBF at +40 ºC
ambient temperature
The PKM 2000E series of high efficiency DC/DC convert-
ers are designed to provide high quality on-board power
solutions in distributed power architectures used in
Internetworking equipment in wireless and wired com-
munications applications . The PKM 2000E series has
industry standard quarter brick footprint and pin-out and
is only 8 .5 mm (0 .33 in) high . This makes it extremely well
suited for narrow board pitch applications with board
spacing down to 15 mm (0 .6 in) . The PKM 2000E series
uses patented synchronous rectification technology and
achieves an efficiency up to 90% at full load . Ericsson’s
PKM 2000E series addresses both the industrial and the
emerging telecom market for applications in the multi-
service network by specifying the input voltage range in
accordance with ETSI specifications . Included as standard
features are output over-voltage protection, input under-
voltage protection, over temperature protection, soft-start,
output short circuit protection, remote sense, remote con-
trol, and output voltage adjust function . These converters
are designed to meet high reliability requirements and are
manufactured in highly automated manufacturing lines and
meet world-class quality levels .
Ericsson Power Modules is an ISO 9001/14001 certified
supplier .
E
Datasheet
Product Program
V
I
24
24
24
24
V
O
/I
O
max
Output 1
3 .3 V/15 A
5 .0 V/10 A
12 V/4 .2 A
15 V/3 .3 A
P
O
max
50W
50W
50W
50W
Ordering No .
PKM 2510E PI
PKM 2511E PI
PKM 2513E PI
PKM 2515E PI
Comment
Option
Positive Remote Control logic
Heatsink
Lead length 3 .69 mm (0 .145 in)
Suffix
P
HS
LA
Example
PKM 2510E PIP
PKM 210E PIHS
PKM 2510E PILA
Note: As an example a positive logic, heatsink, short pin product would be
PKM 2510E PIPHSLA
For more information about the complete product program, please refer to our
website: www .ericsson .com/powermodules
Quality Statement
The PKM 2000E DC/DC converters are designed and
manufactured in an industrial environment where quality
systems and methods like ISO 9000, 6σ (sigma), and SPC
are intensively in use to boost the continuous improvements
strategy . Infant mortality or early failures in the products are
screened out and they are subjected to an ATE-based final
test . Conservative design rules, design reviews and product
qualifications, plus the high competence of an engaged work
force, contribute to the high quality of our products .
Limitation of Liability
Ericsson Power Modules does not make any other
warranties, expressed or implied including any warranty of
merchantability or fitness for a particular purpose (including,
but not limited to, use in life support applications, where
malfunctions of product can cause injury to a person's
health or life) .
PKM 2000E PI Datasheet
EN/LZT 146 050 R4A © Ericsson Power Modules, March 2007
Absolute Maximum Ratings
Characteristics
T
C
T
S
V
I
V
ISO
V
tr
V
RC
V
adj
Maximum Operating Baseplate Temperature (see Thermal Consideration section)
Storage temperature
Input voltage
Isolation voltage (input to output test voltage)
Input voltage transient (T
p
100 ms)
Negative logic (referenced to -In)
Positive logic (referenced to -In)
Maximum input
-0 .5
min
-40
-55
-0 .5
typ
max
+110
+125
+40
1500
100
+18
6
2xV
oi
Unit
˚C
˚C
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Stress in excess of Absolute Maximum Ratings may cause permanent damage . Absolute
Maximum Ratings, sometimes referred to as no destruction limits, are normally tested with
one parameter at a time exceeding the limits of Output data or Electrical Characteristics .
If exposed to stress above these limits, function and performance may degrade in an
unspecified manner .
Input
V
I
V
Ioff
V
Ion
C
I
P
Ii
P
RC
T
Pcb
<T
Pcb max
unless otherwise specified
Characteristics
Input voltage range
Turn-off input voltage
Turn-on input voltage
Input capacitance
Input idling power
Input standby power
(turned off with RC)
Conditions
min
18
typ
max
36
Unit
Vdc
Vdc
Vdc
µF
W
W
Ramping from higher voltage
Ramping from lower voltage
15 .5
17
3 .3
I
o
= 0, V
I
= 27 V
V
I
= 27 V, RC activated
1 .3
0 .1
Fundamental Circuit Diagram
1
8
2
4
3
6
7
5
PKM 2000E PI Datasheet
EN/LZT 146 050 R4A © Ericsson Power Modules, March 2007
