LZY-2-X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> LZY-2-X

LZY-2-X: Description500MHz - 1000MHz RF/MICROWAVE WIDE BAND HIGH POWER AMPLIFIER, CASE BT451; CategoryWireless rf/communication Radio frequency and microwave; File Size264KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

LZY-2-X Overview

500MHz - 1000MHz RF/MICROWAVE WIDE BAND HIGH POWER AMPLIFIER, CASE BT451

LZY-2-X Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Objectid	1451910186
Reach Compliance Code	unknown
compound_id	7213209
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	40 dB
Maximum input power (CW)	10 dBm
JESD-609 code	e0
Maximum operating frequency	1000 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
RF/Microwave Device Types	WIDE BAND HIGH POWER
Terminal surface	TIN LEAD
Maximum voltage standing wave ratio	3.5

Preview

Download Datasheet

View All

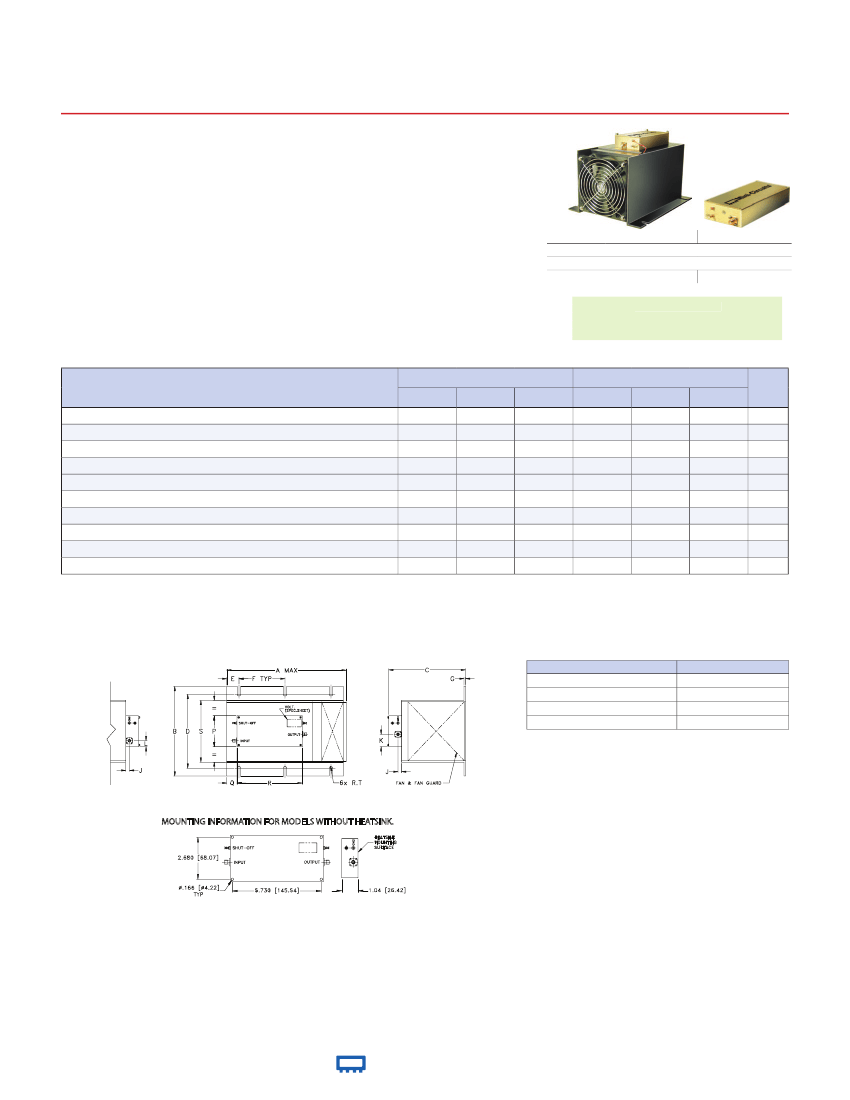

Self-Cooled

50Ω

Features

•

High Power Ampliﬁer

32W

500 to 1000 MHz

saturated power 32W typ.

high power with low distortion, -45 dBc typ.

wide bandwidth, usable 475 to 1050 MHz

high gain, 47 dB typ.

unconditionally stable

self protected against excessive drive, high case temp., reverse

polarity and shorting/unshorting transients at dc input

electronic shutoff by grounding the shut-off terminal, reduces output by 50 dB

ungrounding the shutoff terminal restores full power within 40 ms

cool operation with integral fan, 15° C typ. rise

graceful degradation, +20 to +30V DC

can withstand short and open circuit at output for 2 minutes while delivering 20 watts

LZY-2+

Model No.

Case Style

Connectors

Price (Qty.)

LZY-2+

LZY-2X+

BT451

SMA

$2195.00 ea. (1-9)

$2095.00 ea. (1-9)

• AM/FM

• Multi-carrier ampliﬁcation

• Broadband swept signal

Applications

• Linear Pulse

• Feed forward

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Electrical Speciﬁcations

LZY-2+

Parameter

Frequency Range

Gain

Gain Flatness

Output Power at 1dB compression

Noise Figure

Input VSWR

Output VSWR

DC Supply Voltage

Supply Current

LZY-2X+

Max.

1000

±1.5

Min.

500

+43

Typ.

Min

500

Typ.

Max.

1000

±1.5

Units

MHz

dBm

+45

8.0

+54

2.0

3.5

+28

8.0

+43

+45

8.0

+54

2.0

3.5

+28

8.0

Output third order intercept point

1. At 20W output including operation of fan.

Open load is not recommended, potentially can cause damage.

Heat sink and fan not included. Alternative heat sinking and

heat removal must be provided by the customer to ensure proper

performance. See Application Note AN-60-004

Outline Drawing

Maximum Ratings

Parameter

Operating Temperature

Storage Temperature

DC Voltage

Input RF Power (no damage)

Ratings

-10°C to 50°C

-55°C to 100°C

+30V

+10 dBm

Permanent damage may occur if any of these limits are exceeded.

MOUNTING INFORMATION FOR MODELS WITHOUT HEATSINK.

Outline Dimensions (

inch

)

9.85

7.3

6.3

6.0

250.19 185.42 160.02 152.40

.98

24.89

3.75

95.25

.13

3.30

.31

7.87

1.48

37.59

1.48

37.59

2.95

74.93

6.00

5.1

.135 grams*

12.70 152.40 129.54

3.43 4130

*455 grams without heatsink

Notes

Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp

www.minicircuits.com

P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com

Mini-Circuits

REV. B

M124323

LZY-2+

MCL

130624

Page 1 of 2

LZY-2-X Related Products

	LZY-2-X	LZY-2-X+	LZY-2X	LZY-2X+
Description	500MHz - 1000MHz RF/MICROWAVE WIDE BAND HIGH POWER AMPLIFIER, CASE BT451	500MHz - 1000MHz RF/MICROWAVE WIDE BAND HIGH POWER AMPLIFIER, CASE BT451	Wide Band High Power Amplifier, 500MHz Min, 1000MHz Max, CASE BT451	Wide Band High Power Amplifier, 500MHz Min, 1000MHz Max, ROHS COMPLIANT, CASE BT451
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown	unknow	unknow
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Gain	40 dB	40 dB	40 dB	40 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C
RF/Microwave Device Types	WIDE BAND HIGH POWER	WIDE BAND HIGH POWER	WIDE BAND HIGH POWER	WIDE BAND HIGH POWER
Maximum voltage standing wave ratio	3.5	3.5	3.5	3.5
Is it Rohs certified?	incompatible	-	incompatible	conform to
