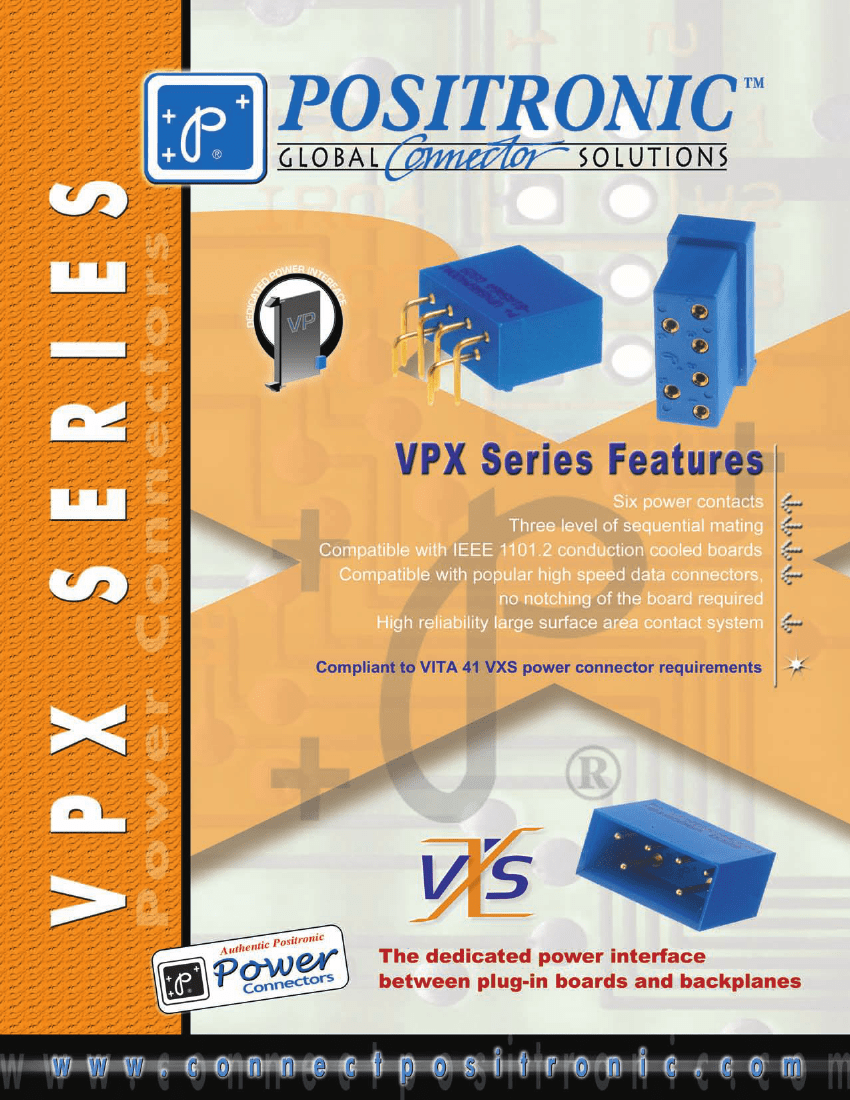

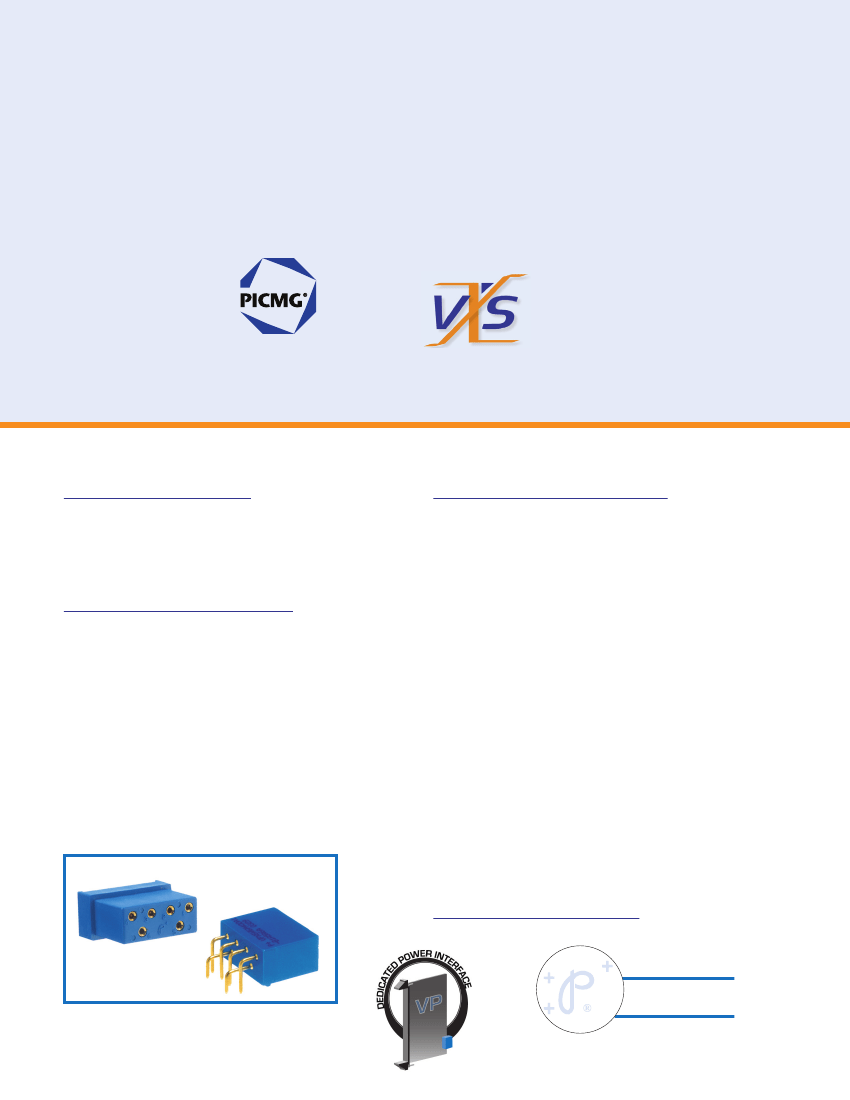

Today, some customer applications have requirements for high bandwidth transfer between VMEbus cards. Requirements
which even the most updated VME parallel bus cannot support. To meet this need the VITA 41 specification has been developed.
VITA 41 VXS (VME Switched Serial) defines a common data plane interconnect using switched serial topologies.
Positronic’s VPX
power connector was
developed
to support
VITA 41.
The
VPX series
provides a dedicated power interface
between boards and backplanes eliminating the need to use valuable high speed contacts to carry power.
The
VPX series
has a unique package size which allows compatibility with conduction cooled boards per IEEE 1101.2.
A unique size, multiple power contacts, three levels of sequential mating and high reliability make the
VPX series
suitable for
VITA 41 or any similar application.
www.picmg.com
PICMG and the PICMG logo are registered trademarks of the PCI Industrial Computers Manufacturers Group.
TECHNICAL CHARACTERISTICS
MATERIALS AND FINISHES:
Insulator:
Contacts:
Glass-filled polyester, UL 94V-0,
blue color.
Precision-machined copper
alloy with gold flash over nickel
plate. Other finishes available
upon request.
MECHANICAL CHARACTERISTICS:
Blind Mating System:
Male and female connector
bodies provide “lead-in” for
1.0 mm [0.039 inch] diametral
misalignment.
Provided by contact arrangement.
Polarization:
ELECTRICAL CHARACTERISTICS:
Contact Current Ratings,
per UL 1977
Size 20 Power Contacts:
See temperature rise curve for
details.
24 amperes continuous,
all contacts under load.
0.001 ohms maximum,
per IEC 512-2, Test 2b.
5 G ohms per IEC 512-2,
Test 3a.
200 V r.m.s
Fixed Contacts:
Printed board terminations.
Female contacts feature
“Closed Entry” design.
40 N [9 lbs.]
Fixed Contact Retention
in Connector Body:
Sequential Contact
Mating System:
Initial Contact Resistance:
Insulator Resistance:
Working Voltage:
Creepage and Clearance
Distance; minimum:
First mate, Second mate and
Third mate contacts available.
Power to be enabled through a last mate contact within VPX
Series or another connector.
See Sequential Mating Code Section for more Information.
Printed Board Mounting:
Mounting holes provided in
connector body for printed
board. Self-tapping screws are
available, see ordering
information page.
250 couplings, minimum.
2.0 mm [0.079 inch]
Mechanical Operations:
CLIMATIC CHARACTERISTICS:
Working Temperature:
R
-55˚C to +125˚C.
NIC
INDU
S
O
VPX6W6F9300A1 and VPX6W6M400A1
2
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
Di
rec
tive
2002
/9
w w w . c o n n e c t p o s i t r o n i c . c o m
5/
EC
RoHS
Compliant
IT
TR
POS
IES
For RoHS options
see page 6.
r
•
pe
•
EU

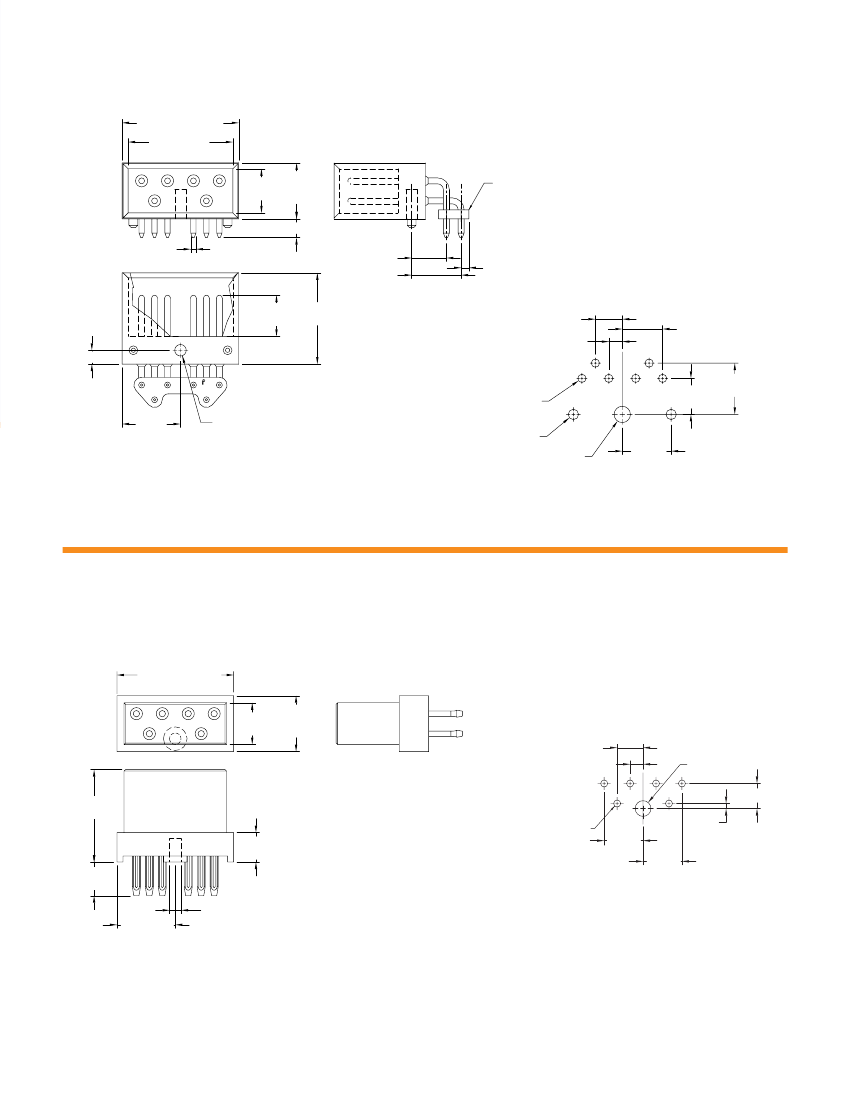

MALE CONNECTOR WITH RIGHT ANGLE (90°) SOLDER TERMINATIONS
CODE 4
Typical Part Numbers
VPX6W6M400*
19.80 [0.780] MAX.
17.80 [0.701]
1
5
2
3
6
4
NOTE:
*Indicates contact plating
options for connectors.
See Step 7 of ordering
information on page 6.
9.50
7.50
[0.374]
[0.295]
MAX.
3.18 [0.125]
ALIGNMENT PIECE CAN
BE REMOVED PRIOR TO
INSERTION INTO BOARD.
6X ø0.89 [ø0.035]
5.90 [0.232]
8.40 [0.331]
6X 7.00 15.50
[0.276] [0.610]
1.32 [0.052]
2X 4.40 [0.173]
2X 6.60 [0.260]
2X 2.20 [0.087]
2.35 [0.093]
8.40
[0.331]
+
6X ø1.35
[ø0.053]
9.78
[0.385]
ø1.95 [ø0.077]
X 5.00 [0.197] DEEP
2X ø1.70
[ø0.067]
5.90
[0.232]
VPX6W6M400A1 shown for reference
ø2.67
[ø0.105]
2X 8.00
[0.315]
CONTACT HOLE PATTERN
FEMALE CONNECTOR WITH COMPLIANT PRESS-FIT TERMINIATIONS
CODE 93
Typical Part Numbers
VPX6W6F9300*
19.80 [0.780] MAX.
NOTE:
*Indicates contact plating
options for connectors.
See Step 7 of ordering
information on page 6.
4
6
3
2
5
1
7.10
[0.280]
9.50
[0.374]
MAX.
2X 4.40 [0.173]
2X 2.20 [0.087]
ø2.67 [ø0.105]
4.25 [0.167]
0.85
[0.033]
6.60
[0.260]
15.70
[0.618]
5.00
[0.197]
5.71
[0.225]
ø1.95 [ø0.077]
X 4.00 [0.157] DEEP.
6X
SEE COMPLIANT
TERMINATIONS DETAIL
6.60
[0.260]
9.78 [0.385]
CONTACT HOLE PATTERN
NOTE:
See next page for suggested printed board hole sizes.
VPX6W6F9300A1 shown for reference
w w w . c o n n e c t p o s i t r o n i c . c o m
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
3

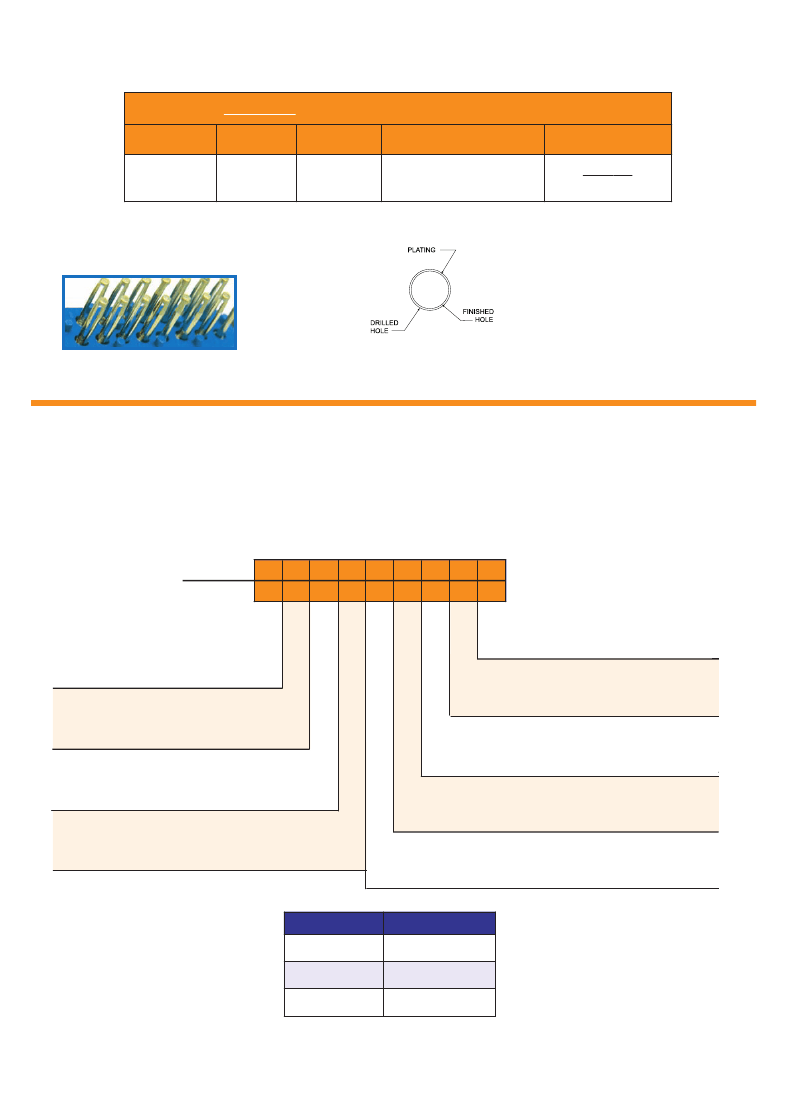

SUGGESTED PRINTED BOARD HOLE SIZES
FOR COMPLIANT PRESS-FIT CONNECTORS
BI-SPRING COMPLIANT PRESS-FIT CONTACT HOLE
BOARD
TYPE
TIN-LEAD
SOLDER PCB
CONTACT
SIZE / TYPE
20
BI-SPRING
DRILL
HOLE SIZE
---
RECOMMENDED PLATING
3µ [0.0001] minimum solder
over 25µ [0.0010] min. copper
FINISHED
HOLE SIZES
ø1.19±0.05
[ø0.047±0.002]
“Bi-Spring” Termination
COMPLIANT
PRESS-FIT
CONTACT HOLE
Note: For PCB plating compositions,
i.e. ENIG (Electroless Nickel, Immersion
Gold), consult Technical Sales.
SEQUENTIAL MATING CODE
SELECTION GUIDE FOR ORDERING DIFFERENT CONTACT LENGTHS
STEP 9 OF ORDERING INFORMATION
SELECT CONNECTOR USING ORDERING INFORMATION ON PAGE 6
THEN CHOOSE STEPS BELOW FOR SEQUENTIAL MATING SYSTEM CONTACTS
STEP
EXAMPLE
STEP 1
1
A
2
1
3
B
4
2
5
B
6
3
7
C
8
4
9
C
STEP 9
Specify code for most frequently
used contact mating length. This
length is used for all contacts not
specified in steps 2 through 9.
STEP 2
Length of contact specified in step 8
(Choose from length code chart).
STEP 8
Position number for fourth special
length contact.
STEP 7
Position number for first special
length contact.
STEP 3
Length of contact specified in step 6
(Choose from length code chart).
STEP 6
Length of contact specified in step 2.
(Choose from length code chart)
STEP 4
Position number for third special
length contact.
STEP 5
Position number for second special
length contact.
Length of contact specified in step 4
(Choose from length code chart).
CONTACT CODE CONTACT LENGTH
A
B
C
8.50 [0.335]
7.00 [0.276]
STANDARD
5.50 [0.217]
w w w . c o n n e c t p o s i t r o n i c . c o m
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
4
TEMPERATURE RISE CURVE
100
90
80
MATING DIMENSIONS
Right Angle (90°) Board Mount Male to
Straight Board Mount Female
(FULLY MATED)
TEMP DEG. (C)
70
60
50
40
30
20
10
0
0
4
8
12
16
20
24
18.15 [0.715]
REF.
SIZE 20 CONTACT CURRENT LOAD
Temperature curve developed using VPX6W6F9300A1 and
VPX6W6M400A1 connectors and 16 AWG wire.
All Size 20 Contacts under load.
1 mm [0.039 inch] separation allowed
APPLICATION FEATURES
FOR ILLUSTRATION ONLY
12.50
[0.492]
15.00 [0.590]
BACKPLANE
PMC CARD
9.50
[0.374]
DAUGHTER CARD
Height above the board allows for compatibility with
conduction cooled cards per IEEE 1101.2.
12.00
[0.472]
Limited depth into the daughtercard allows compatibility with many popular PMC card configurations.
(Alignment piece may need to be removed prior to installation).
Products described within this catalog may be
protected by one or more of the following US. patents:
#4,900,261
#6,260,268
#5,255,580
#6,835,079
#5,329,697
#7,115,002
Information in this catalog is proprietary to Positronic and its subsidiaries. Positronic
believes the data contained herein to be reliable. Since the technical information is
given free of charge, the user employs such information at his own discretion and risk.
Positronic Industries assumes no responsibility for results obtained or damages
incurred from use of such information in whole or in part.
Patented in Canada, 1992
Other Patents Pending
Positronic Industries’ FEDERAL SUPPLY CODE
(Cage Code) FOR MANUFACTURERS is 28198
5
DIMENSIONS ARE IN MILLIMETERS [INCHES].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
w w w . c o n n e c t p o s i t r o n i c . c o m
