DATA SHEET
PART NO. :
A-302G B/W
REV :
A/0
CUSTOMER’S APPROVAL : _______________
DRAWING NO. : DS-12-08-0069
DCC : ____________
Page : 1
HD-R/RD012
DATE : 2008-11-12
0.3 INCH DUAL DIGITS DISPLAY
A-302G B/W

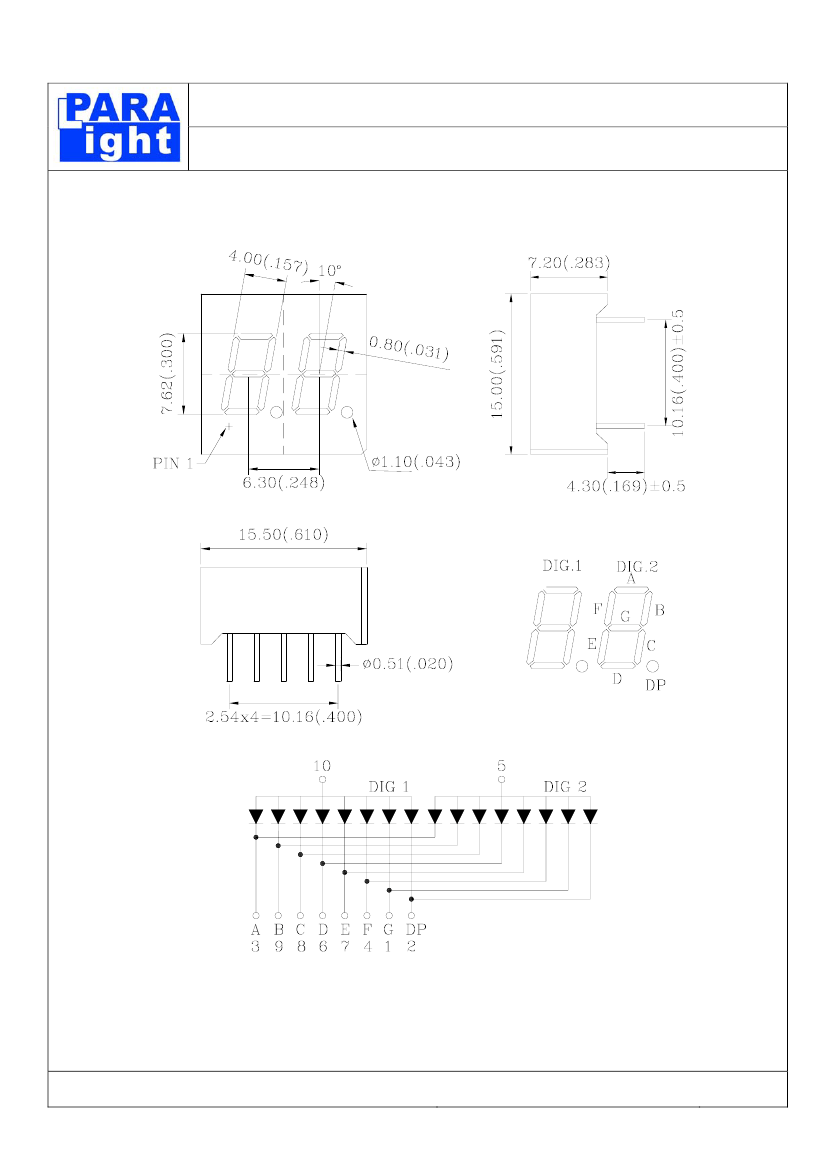

PACKAGE DIMENSIONS
REV:A / 0
NOTES : 1. All dimensions are in millimeters. (inches)
2. Tolerance is
±
0.25(0.010") unless otherwise specified.
DRAWING NO. : DS-12-08-0069
DATE : 2008-11-12
Page : 2
HD-R/RD013
0.3 INCH DUAL DIGITS DISPLAY
A-302G B/W
FEATURES
7.62mm (0.3 inch ) DIGIT HEIGHT
COMMON ANODE
I.C. COMPATIBLE
LOW POWER CONSUMPTION
Pb FREE PRODUCTS
ROHS COMPLIANCE
BLACK FACE, WHITE SEGMENTS
Raw Material : GaP/GaP
ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
P
D
V
R
I
AF
I
PF
-
Topr
Tstg
PARAMETER
Power Dissipation Per Segment
Reverse Voltage Per Segment
Continuous Forward Current Per Segment
Peak Forward Current Per Segment
(1/10 Duty Cycle,0.1ms Pulse Width)
Derating Linear From 25°C Per Segment
Operating Temperature Range
Storage Temperature Range
YELLOW GREEN
75
5
20
100
0.33
UNIT
mW
V
mA
mA
mA/°C
REV:A / 0
-35°C
to 85°C
-35°C
to 85°C
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
SYMBOL
V
F
I
R
λ
P
λ
D
∆
λ
I
V
PARAMETER
Forward Voltage , Per Segment
Reverse Current , Per Segment
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half-Width
Luminous Intensity Per Segment
TEST CONDITION MIN.
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 10mA
0.64
568
570
30
1.6
TYP.
2.2
MAX. UNIT
2.8
100
V
µA
nm
nm
nm
mcd
DRAWING NO. : DS-12-08-0069
DATE : 2008-11-12
Page : 3
HD-R/RD014
0.3 INCH DUAL DIGITS DISPLAY
A-302G B/W

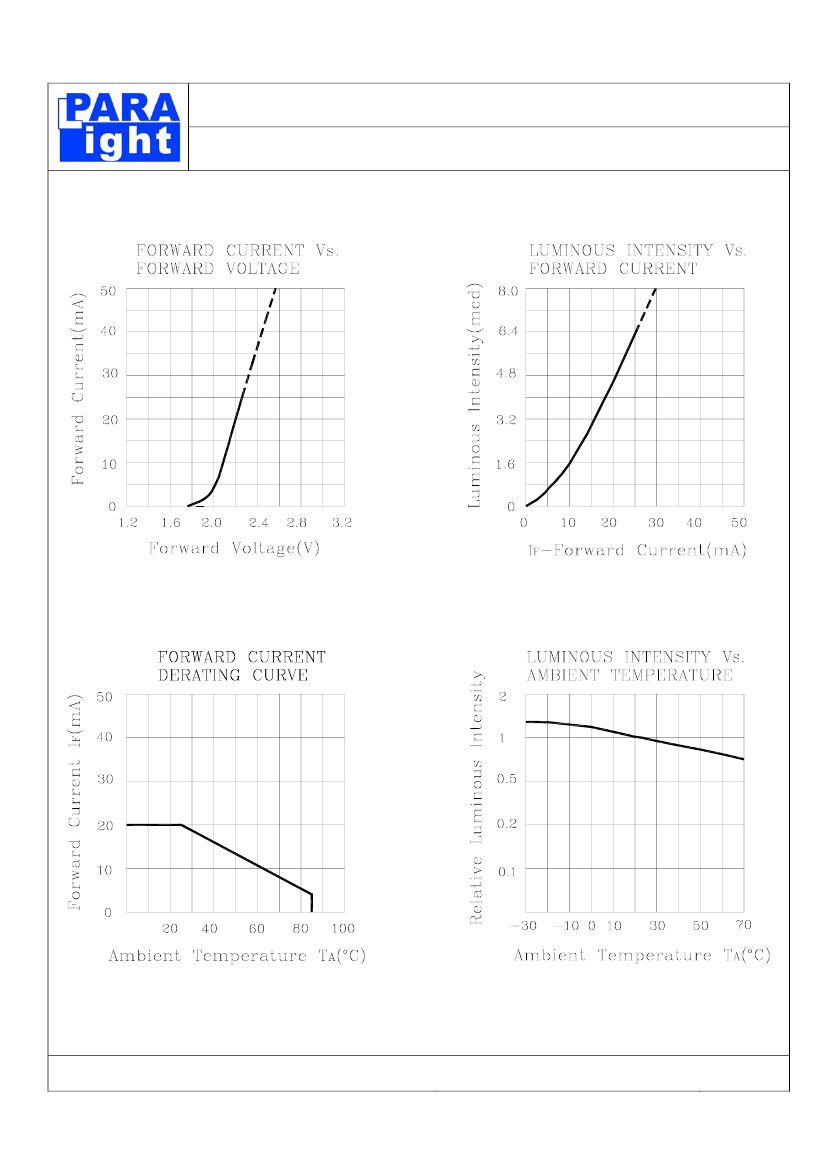

REV:A / 0
DRAWING NO. : DS-12-08-0069
DATE : 2008-11-12
Page : 4
0.3 INCH DUAL DIGITS DISPLAY
A-302G B/W
SOLDERING
METHOD
SOLDERING CONDITIONS
REMARK
Solder no closer than 2mm from
the base of the package
Using soldering flux,” RESIN
FLUX” is recommended.
REV:A / 0
DIP
SOLDERING
Bath temperature: 260 max
Immersion time: with 5 sec
During soldering, take care not to
Soldering iron: 30W or smaller
press the tip of iron against the
SOLDERING
Temperature at tip of iron: 260
℃
or lower
PIN.
IRON
Soldering time: within 5 sec.
(To prevent heat from being
transferred directly to the PIN.)

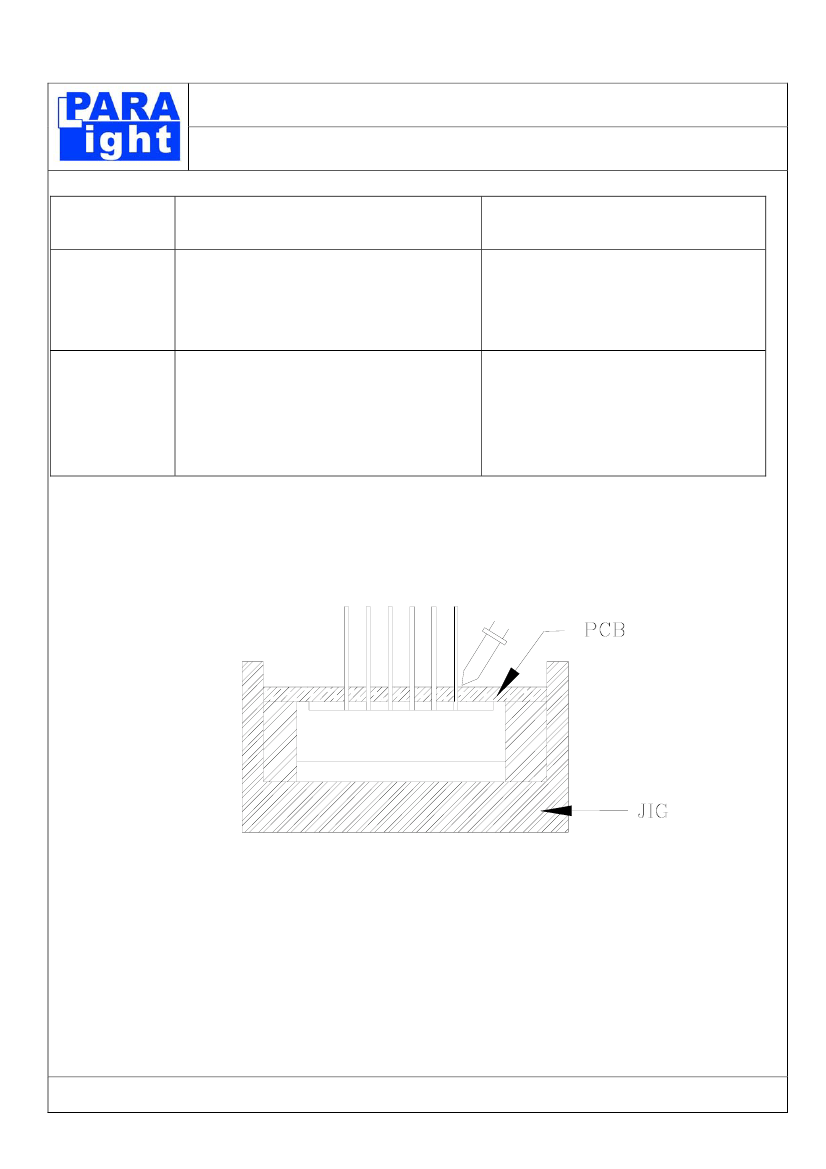

1) When soldering the PIN of Display in a jig that the package is fixed with a panel (See fIg.1), be
careful not to stress the PIN with iron tip. When soldering Display in a condition that the package
is fixed with a panel, be careful not to cling and stress the surface of Display on the panel to avoid
damaging the Display.
Fig.1
Regarding solution in the tinning oven for product-tinning, compound sub-solution made of tin &
copper and silver is proposed with the temperature of Celsius 260. The proportion of the
alloyed solution is tin 95.5: copper 3.5: silver 0.5 by percentage. The time of tinning is constantly
3 seconds.
DRAWING NO. : DS-12-08-0069
DATE : 2008-11-12
Page : 5
