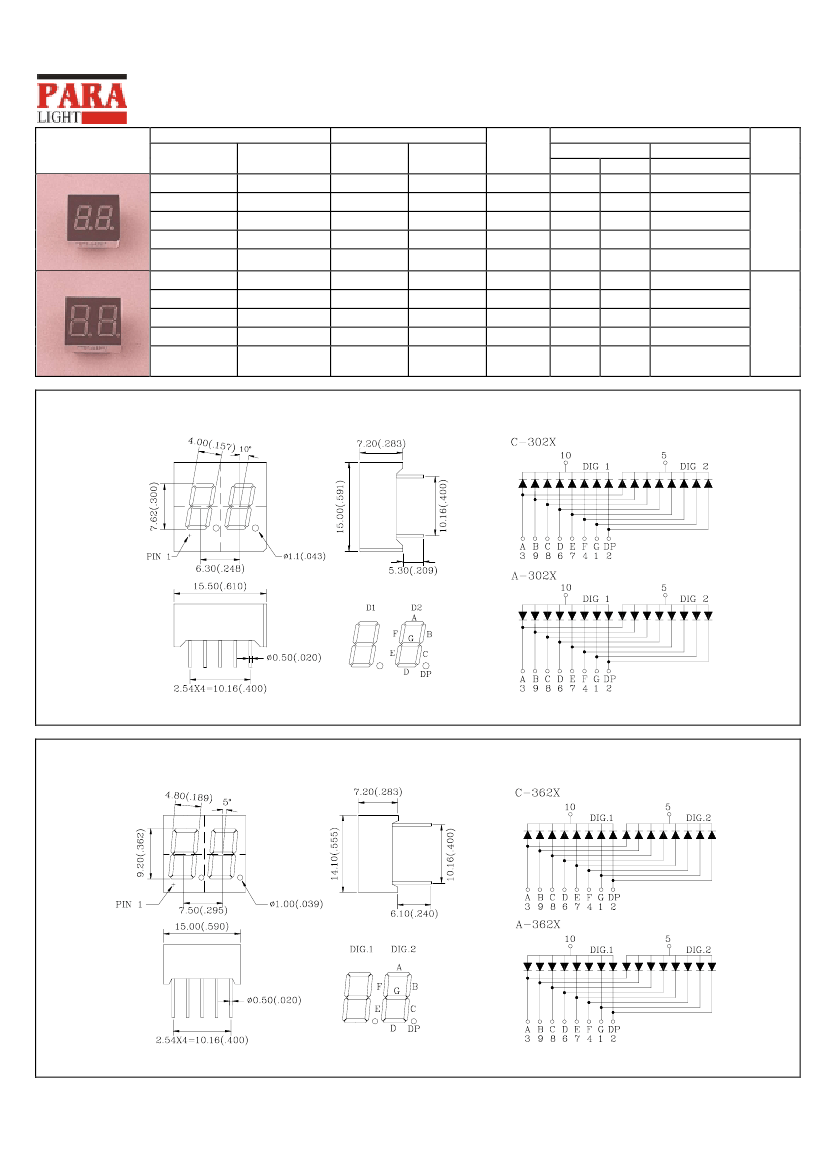

C/A-302X, C/A-362X

DUAL DIGITS DISPLAY

Shape

Part No.

Common

Cathode

Anode

Chip

Raw

Material

Emitted

Color

Wave

Length

λp(nm)

Electro-Optical Characteristics

Vf(V)20mA

Iv(ucd)10mA

Typ.

Max.

Typ.

Fig. No.

C-302H

C-302E

C-302G

C-302Y

C-302SR

C-362H

C-362E

C-362G

C-362Y

C-362SR

A-302H

A-302E

A-302G

A-302Y

A-302SR

A-362H

A-362E

A-362G

A-362Y

A-362SR

GaP

GaAsP/GaP

GaP

GaAsP/GaP

GaAlAs

GaP

GaAsP/GaP

GaP

GaAsP/GaP

GaAlAs

Red

Hi.effi Red

Green

Yellow

Super Red

Red

Hi.effi Red

Green

Yellow

Super Red

700

635

565

585

660

700

635

565

585

660

2.1

2.0

2.1

1.8

2.1

2.0

2.1

1.8

2.8

2.4

2.8

2.4

550

1800

1600

1500

5000

550

1800

1600

1500

5000

D25

D26

Fig.D25

Fig.D26

1.All dimension are in millimeters (inches).

2.Tolerance is

±0.25

mm (0.01”) unless otherwise specified.
