PQ60050HZx60
35-75V
Input
Technical
Specification
Half-brick
DC-DC Converter
100V
Transient Input
5V
Output
300W
Max Power
2250V dc
Isolation

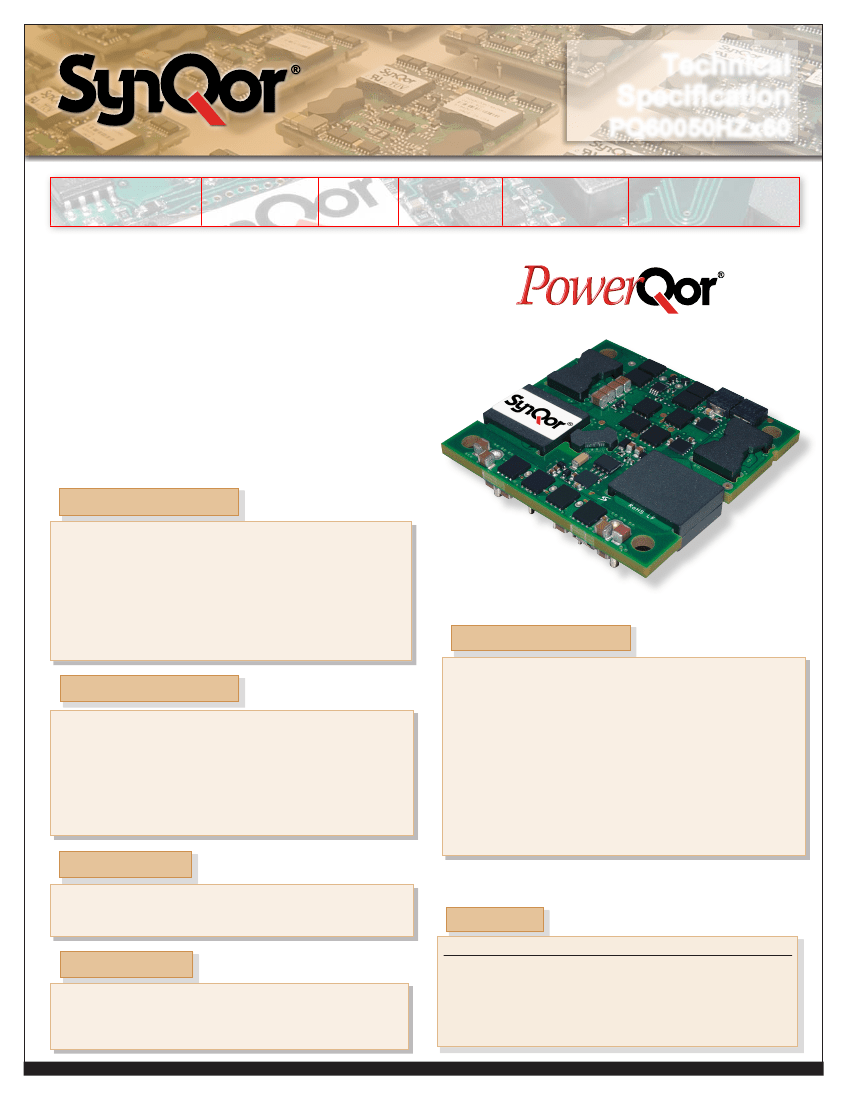

The PQ60050HZx60 PowerQor Zeta Half-brick converter
is a next-generation, board-mountable, isolated, fixed
switching frequency DC/DC converter. The Zeta series
offers industry leading power density for standard
isolated DC/DC converters with both a wide input
range and a tightly regulated output. This module
supplies an isolated step down voltage from 35-75V
to 5V and provides more available power and higher
efficiency than most competitive bus converters. This
converter is available in openframe and baseplated
versions. RoHS Compliant (see last page).
Protection Features
• Input under-voltage lockout disables converter at low Vin conditions
• Output current limit and short circuit protection protects
converter and load from permanent damage and
consequent hazardous conditions
• Active back bias limit provides smooth startup with
external load induced pre-bias
• Auto-recovery output over-voltage protection protects load from
damaging voltages
• Thermal shutdown protects converter from abnormal conditions
PQ60050HZx60 Model
Operational Features
•
•
•
•
•
•
•
High efficiency, 93% at full rated load current
Delivers 60A of output current (300W)
Operating input voltage range: 35-75V
Fixed frequency switching provides predictable EMI
No minimum load requirementmeans no preload resistors required
Wide output voltage trim range (-50%, +10% ), see trim section
Optional: Active current share for parallel applications
Mechanical Features
•
•
•
•
Industry standard Half-brick pin-out configuration
Open Frame Standard Size (in):2.40" x 2.30" x 0.428"
Open Frame Standard Size (mm):61 x 58.4 x 10.87 mm
Open Frame Weight:2.6 oz. (75 g)
Control Features
• On/Off control referenced to input side
(positive and negative logic options are available)
• Remote sense for the output voltage
Contents
Mechanical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Standards & Qualifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Technical Figures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Applications Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
www.synqor.com
Doc.# 005-0005974 Rev. C
12/30/13
Safety Features
• UL 60950-1:R2011-12
• EN60950-1/A12:2011
• CAN/CSA-C22.2 No. 60950-1/A1:2011
Page No.
Product # PQ60050HZx60
Phone 1-888-567-9596
Page 1

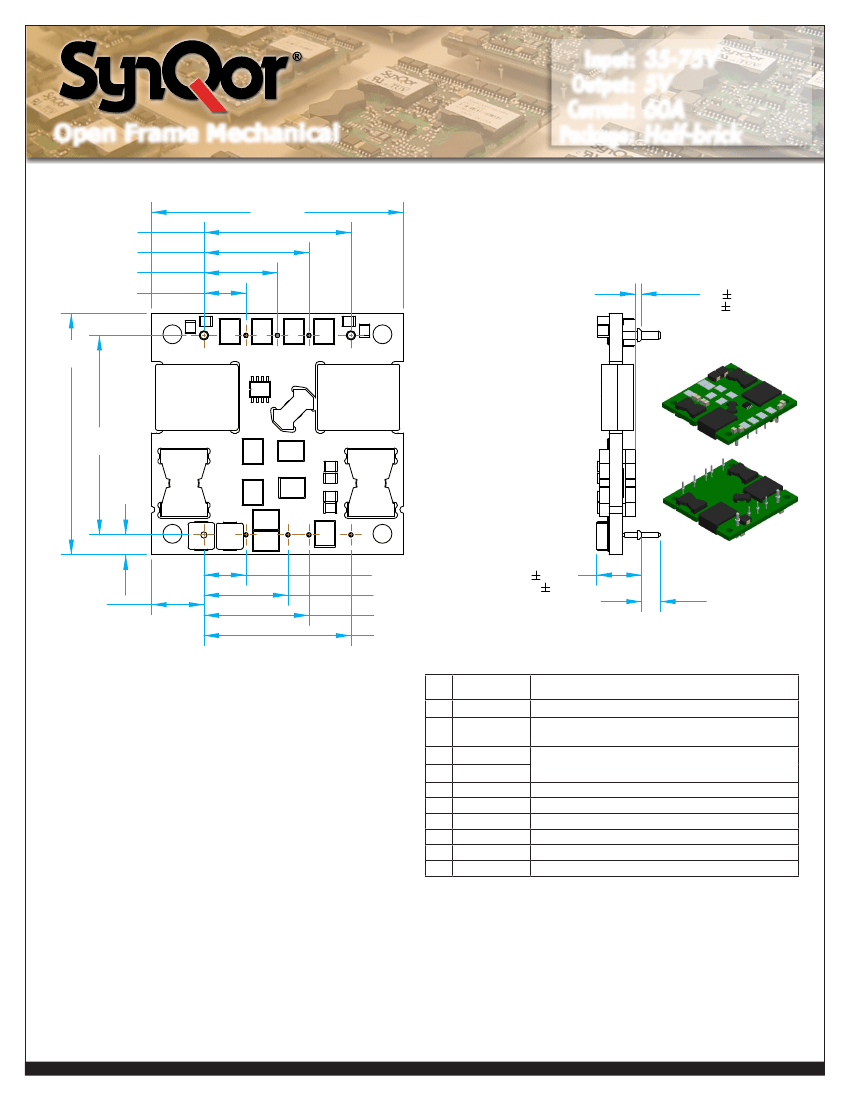

Open Frame Mechanical
Input:
Output:
Current:
Package:
35-75V
5V
60A
Half-brick
2.40 [61]
1.400 [35,56]
1.000 [25,4]
.700 [17,78]
.400 [10,16]
.059 .028
[1,5 0,71]
BOTTOMSIDE
CLEARANCE
9
8
7
6
5
2.30
[58,4]
TOP VIEW
1.900
[48,26]
.19
[4,8]
1
2
B
3
4
SIDE VIEW
.400 [10,16]
.50 [12,7]
.800 [20,32]
1.000 [25,4]
1.400 [35,56]
.428 .018
[10,87 0,45]
OVERALL HEIGHT
.180
[4,57]
SEE NOTE 3
NOTES
1)
2)
3)
4)
5)
6)
7)
8)
9)
Pins 1-4, 6-8, and B are 0.040” (1.02mm) diameter, with 0.080”
(2.03mm) diameter standoff shoulders.
Pins 5 and 9 are 0.080” (2.03 mm) diameter with 0.125” (3.18mm)
diameter standoff shoulders.
Other pin extension lengths available.
All Pins: Material - Copper Alloy
Finish: Matte Tin over Nickel plate
Undimensioned components are shown for visual reference only.
All dimensions in inches (mm)
'Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm)
x.xxx +/-0.010 in. (x.xx +/-0.25mm)
Open Frame Weight:2.6 oz. (75 g)
Workmanship: Meets or exceeds IPC-A-610 Class II
UL/TUV standards require a clearance greater than 0.04” 1.02mm)
between input and output for Basic insulation. This issue should be
considered if any copper traces are on the top side of the user’s
board. Note that the ferrite cores are considered part of the input/
primary circuit.
Pin
1
2
B
3
4
5
6
7
8
9
Name
Vin(+)
ON/OFF
SHARE(+)
SHARE(-)
Vin(–)
Vout(–)
SENSE(–)
TRIM
SENSE(+)
Vout(+)
PIN DESIGNATIONS
Function
Positive input voltage
TTL input to turn converter on and off,
referenced to Vin(–), with internal pull up.
Active current share differential pair
(See note 4)
Negative input voltage
Negative output voltage
Negative remote sense (See note 1)
Output voltage trim (See note 2)
Positive remote sense (See note 3)
Positive output voltage
Notes:
1)
SENSE(–) should be connected to Vout(–) either remotely or at the converter.
2)
3)
4)
Leave TRIM pin open for nominal output voltage.
SENSE(+) should be connected to Vout(+) either remotely or at the converter.
Full-Featured option only. Pin 3 and Pin B not populated on standard model.
Product # PQ60050HZx60
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005974 Rev. C
12/30/13
Page 2

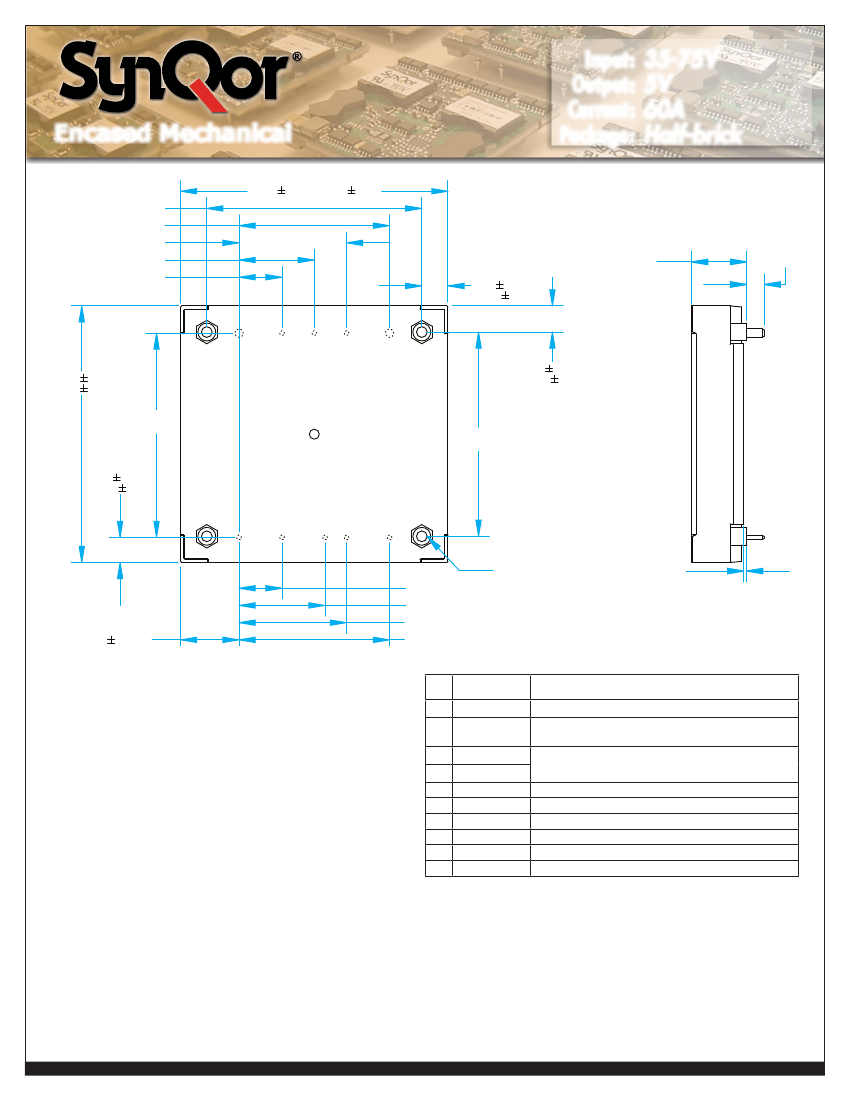

Encased Mechanical
2.486
2.00
1.400
1.000
.700
.400
[50.8 ]
[35.56 ]
[25.4 ]
[17.78 ]
[10.16 ]
.243
[6.17
.020
0.5]
.020
[63.14
0.5]
Input:
Output:
Current:
Package:
35-75V
5V
60A
Half-brick
SIDE VIEW
.512
[
+.002
-.005
+0.05
13
-0.12
OVERALL
HEIGHT
]
.163
[4.14 ]
9
2.386
[60.6
.020
0.5]
1.90
[48.3 ]
8
7
6
5
.243
[6.17
.020
0.5]
TOP VIEW
1.90
[48.3 ]
.233
[5.92
.020
0.5]
1
2
B
3
4
.400
.800
1.00
[10.16 ]
[20.32 ]
[25.4 ]
[35.56 ]
THRU HOLE
M3 (SEE NOTE 8)
STANDOFFS (4)
.027
+.007
-.010
+0.17
0.69
-0.25
BOTTOMSIDE CLEARANCE
[
]
NOTES
1)
2)
3)
4)
5)
6)
7)
8)
9)
.543 .020
[13.79
0.5]
1.400
PIN DESIGNATIONS
Pin
1
2
B
3
4
5
6
7
8
9
Name
Vin(+)
ON/OFF
SHARE(+)
SHARE(-)
Vin(–)
Vout(–)
SENSE(–)
TRIM
SENSE(+)
Vout(+)
Function
Positive input voltage
TTL input to turn converter on and off,
referenced to Vin(–), with internal pull up.
Active current share differential pair
(See note 4)
Negative input voltage
Negative output voltage
Negative remote sense (See note 1)
Output voltage trim (See note 2)
Positive remote sense (See note 3)
Positive output voltage
Applied torque per screw should not exceed 6in-lb. (0.7 Nm).
Baseplate flatness tolerance is 0.004" (.10 mm) TIR for surface.
Pins 1-4, 6-8, and B are 0.040” (1.02mm) diameter, with 0.080”
(2.03mm) diameter standoff shoulders.
Pins 5 and 9 are 0.080” (2.03 mm) diameter with 0.125”
(3.18 mm) diameter standoff shoulders.
All Pins: Material - Copper Alloy; Finish - Matte Tin over Nickel plate
Undimensioned components are shown for visual reference only.
Weight: 5 oz. (142g) typical
Threaded and Non-Threaded options available
All dimensions in inches (mm).
Tolerances:
x.xx +/-0.02 in. (x.x +/-0.5mm)
x.xxx +/-0.010 in. (x.xx +/-0.25mm)
unless otherwise noted.
Notes:
1)
SENSE(–) should be connected to Vout(–) either remotely or at the converter.
2)
3)
4)
Leave TRIM pin open for nominal output voltage.
SENSE(+) should be connected to Vout(+) either remotely or at the converter.
Full-Featured option only. Pin 3 and Pin B not populated on standard model.
10)
Recommended pin length is 0.03" (0.76 mm) greater than the PCB
thickness.
11) Workmanship: Meets or exceeds IPC-A-610C Class II
Product # PQ60050HZx60
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005974 Rev. C
12/30/13
Page 3
Technical Specifications
PQ60050HZx60 Electrical Characteristics
Input:
Output:
Current:
Package:
35-75V
5V
60A
Half-brick
Ta = 25 °C, airflow rate = 300 LFM, Vin = 48V dc unless otherwise noted; full operating temperature range is -40 °C to +100 °C baseplate temperature
with appropriate power derating. Specifications subject to change without notice.
Parameter
ABSOLUTE MAXIMUM RATINGS
Input Voltage
Non-Operating
Operating
Operating Transient Protection
Isolation Voltage
Input to Output
Operating Temperature
Storage Temperature
Voltage at ON/OFF input pin
INPUT CHARACTERISTICS
Operating Input Voltage Range
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Lockout Voltage Hysteresis
Maximum Input Current
No-Load Input Current
Disabled Input Current (Option N)
Disabled Input Current (Option P)
Response to Input Transient
Input Reflected Ripple Current
Input Terminal Ripple Current
Recommended Input Fuse
Recommended External Input Capacitance
Input Filter Component Values (L\C)
OUTPUT CHARACTERISTICS
Output Voltage Set Point
Output Voltage Regulation
Over Line
Over Load
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
Peak-to-Peak
RMS
Operating Output Current Range
Output DC Current-Limit Inception
Output DC Current-Limit Shutdown Voltage
Back-Drive Current Limit while Enabled
Back-Drive Current Limit while Disabled
Maximum Output Capacitance Electrolytic
EFFICIENCY
100% Load
50% Load
Min.
-1
Typ.
Max.
100
80
100
2250
100
125
18
Units Notes & Conditions
V
V
V
V
°C
°C
V
V
V
V
V
A
mA
mA
mA
V
mA
mA
A
µF
µH\µF
V
%
%
mV
V
mV
mV
A
A
V
A
mA
mF
%
%
See note 1
See note 1
Over sample, line, load, temperature & life
20MHz bandwidth; see Note 2
Full load
Full load
Subject to thermal derating
Output Voltage 10% Low
See note 3
Negative current drawn from output
Negative current drawn from output
Nominal Vout at full load (resistive load)
Figures 1 - 2
Figures 1 - 2
Continuous
Continuous
1 s transient, square wave
-40
-45
-2
35
32.0
30.0
1.5
48
33.0
31.0
2.0
175
5
30
1.2
15
250
220
0.75\11
4.920
5.000
±0.25
±0.25
-65
4.850
80
17
0
66.0
72.0
2.0
20
3
75
34.0
32.0
2.5
11
220
8
40
100% Load, 35V Vin, trimmed up 10%
20
40
0.5V/μs input transient, full load, 100μF load cap
RMS thru 4.7μH inductor
RMS
Fast acting external fuse recommended
Typical ESR 0.1-0.2Ω; Figure 13
Internal values
5.070
+65
5.150
160
35
60
78.0
0
5
20
93
93
Product # PQ60050HZx60
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005974 Rev. C
12/30/13
Page 4
Technical Specifications
Input:
Output:
Current:
Package:
35-75V
5V
60A
Half-brick
PQ60050HZx60 Electrical Characteristics (continued)
Ta = 25 °C, airflow rate = 300 LFM, Vin = 48V dc unless otherwise noted; full operating temperature range is -40 °C to +100 °C baseplate temperature
with appropriate power derating. Specifications subject to change without notice.
Parameter
Min.
Typ.
Max.
Units Notes & Conditions
DYNAMIC CHARACTERISTICS
Output Voltage during Load Current Transient
Step Change in Output Current (0.1A/µs)
125
mV
50% to 75% to 50% Iout max, 15 μF load cap
Step Change in Output Current (2A/µs)
250
mV
50% to 75% to 50% Iout max, 15 μF load cap
ms
Settling time
1
To within 1% Vout nom
Turn-On Transient
Turn-On Time
15
25
35
ms
Vout=90% nom, Figures 9 & 10; see note 5
Output Voltage Overshoot
2
%
ISOLATION CHARACTERISTICS
Isolation Voltage (dielectric strength)
2250
V
See Absolute Maximum Ratings
Isolation Resistance
30
MΩ
Isolation Capacitance (input to output)
1000
pF
See Note 4
TEMPERATURE LIMITS FOR POWER DERATING CURVES
Semiconductor Junction Temperature
125
°C
Package rated to 150°C
Board Temperature
125
°C
UL rated max operating temp 130°C
Transformer Temperature
125
°C
FEATURE CHARACTERISTICS
Switching Frequency Regulation Stage
230
240
250
kHz
Switching Frequency Isolation Stage
115
120
125
kHz
ON/OFF Control (Option P)
Off-State Voltage
-2.0
0.8
V
On-State Voltage
2.4
18.0
V
ON/OFF Control (Option N)
Off-State Voltage
2.4
18.0
V
On-State Voltage
-2.0
0.8
V
ON/OFF Control (Either Option)
Application notes; Figures A & B
Pull-Up Voltage
15
18
V
Pull-Up Resistance
49.9
kΩ
Output Voltage Trim Range
-50
10
%
Measured across Pins 8 & 6; Figure C
Output Over-Voltage Protection
118
123
128
%
Over Full Temperature Range; % of nominial Vout
Over-Temperature Shutdown
125
°C
Average PCB Temperature
Over-Temperature Shutdown Restart Hysteresis
10
°C
RELIABILITY CHARACTERISTICS
Calculated MTBF (Telcordia)
2.1
10
6
Hrs. TR-NWT-000332; 80% load, 300LFM, 40°C Ta
Calculated MTBF (MIL-217)
1.9
10
6
Hrs. MIL-HDBK-217F; 80% load, 300LFM, 40°C Ta
Field Demonstrated MTBF
10
6
Hrs. See our website for details
Note 1: Line and load regulation is limited by duty cycle quantization and does not indicate a shift in the internal voltage reference.
Note 2: For applications requiring reduced output voltage ripple and noise, consult SynQor applications support (e-mail: support@synqor.com)
Note 3: If the output voltage falls below the Output DC Current Limit Shutdown Voltage for more than 50ms, then the unit will enter into hiccup mode,
with a 500ms off-time.
Note 4: Higher values of isolation capacitance can be added external to the module.
Note 5: Additional 25ms between enable and start of Turn-On time for N logic full-featured units to set up communication.
Product # PQ60050HZx60
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-0005974 Rev. C
12/30/13
Page 5
京公网安备 11010802033920号
EEWORLD
