T-1 3/4 (5mm) BI-COLOR RIGHT ANGLE
LED INDICATOR
W59CB/EGW
HIGH EFFICIENCY RED / GREEN
Features
l
3
l
PRE-TRIMMED LEADS FOR PC BOARD MOUNTING.
l
THIRD COLOR (MIXED COLOR) AVAILABLE.
l
I.C. COMPATIBLE.
l
WIDE
l
UL
l
BLACK CASE ENHANCES CONTRAST RATIO.
l
HIGH RELIABILITY - LIFE MEASURED IN YEARS.
l
HOUSING MATERIAL: TYPE 66 NYLON.
Description
LEADS WITH COMMON CATHODE LEAD.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
VIEWING ANGLE.
RATING : 94V-0.

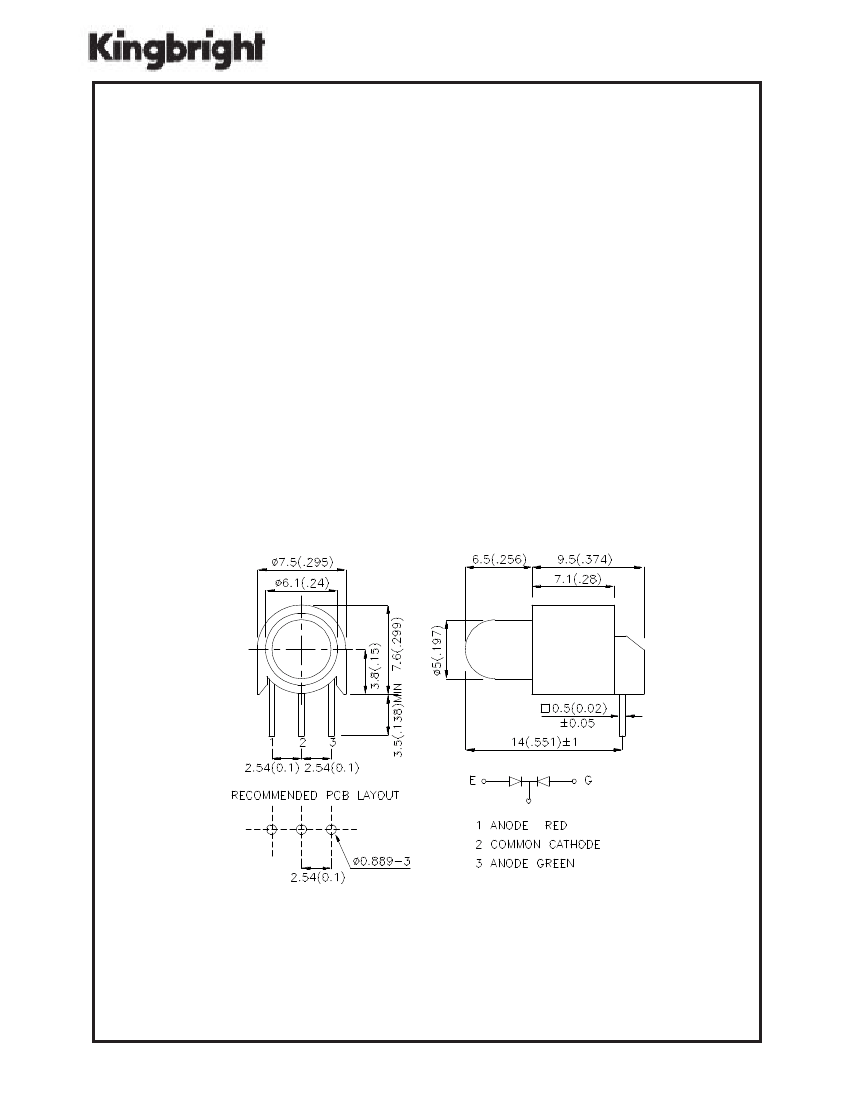

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAD1763
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/20/2003
DRAWN: Z.Y.YANG
PAGE: 1 OF 3
Selection Guide
P ar t N o .
D ic e
HIGH E FFIC IE NC Y RE D (GaA sP /GaP )
GRE E N (GaP )
L en s Ty p e
Iv (m c d )
@ 20 m A
V i ew i n g
An g le
2θ1/2
60°
Mi n .
18
18
Ty p .
60
50
W59C B /E GW
WHITE D IFFUS E D
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
p e a k
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
P eak Wavelength
D omi nate Wavelength
Hi gh E ffi ci ency Red
Green
D ev i c e
Ty p .
627
565
45
30
Ma x .
U n its
nm
nm
nm
pF
V
uA
Tes t C o n d i t i o n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
S pectral Li ne Half-wi dth Hi gh E ffi ci ency Red
Green
C apaci tance
Hi gh E ffi ci ency Red
Green
Hi gh E ffi ci ency Red
Green
625
568
15
15
Forward Voltage
Reverse C urrent
A ll
Hi gh E ffi ci ency Red
Green
2.0
2.2
2.5
2.5
10
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
P ower di ssi pati on
H i g h E f f i c i en c y R ed
105
160
5
-40
°
C To +85
°
C
30
Gr een
105
140
5
25
U n its
mW
mA
V
mA
D C Forward C urrent
Reverse Voltage
P eak Forward C urrent [1]
Operati ng/S torage Temperature
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Lead S older Temperature [2]
260
°
C For 5 S econds
SPEC NO: DSAD1763
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/20/2003
DRAWN: Z.Y.YANG
PAGE: 2 OF 3
