Z84C3010PEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C3010PEC

Z84C3010PEC: DescriptionProgrammable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size663KB，16 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z84C3010PEC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z84C3010PEC	-	-	View	Buy Now

Z84C3010PEC Overview

Programmable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28

Z84C3010PEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	DIP
package instruction	PLASTIC, DIP-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	10 MHz
External data bus width	8
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	36.96 mm
Number of digits	8
Number of terminals	28
Number of timers	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.96 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE

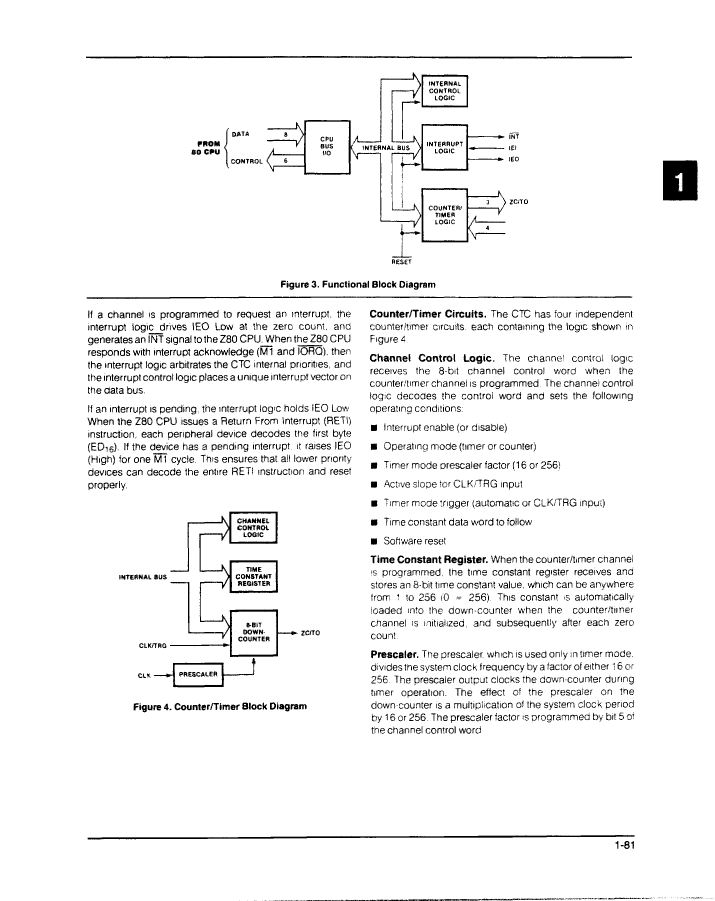

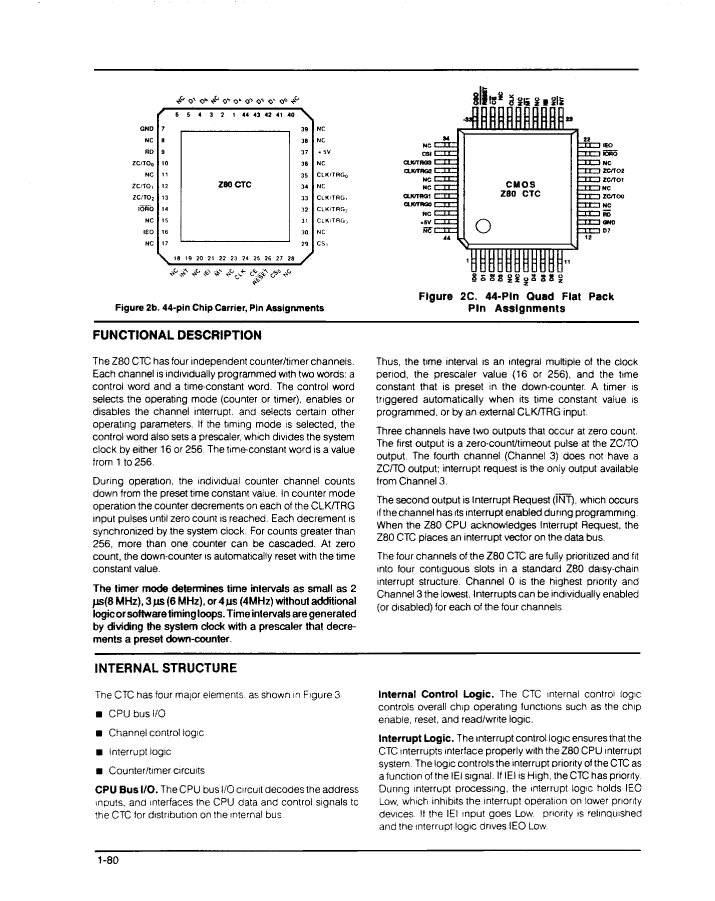

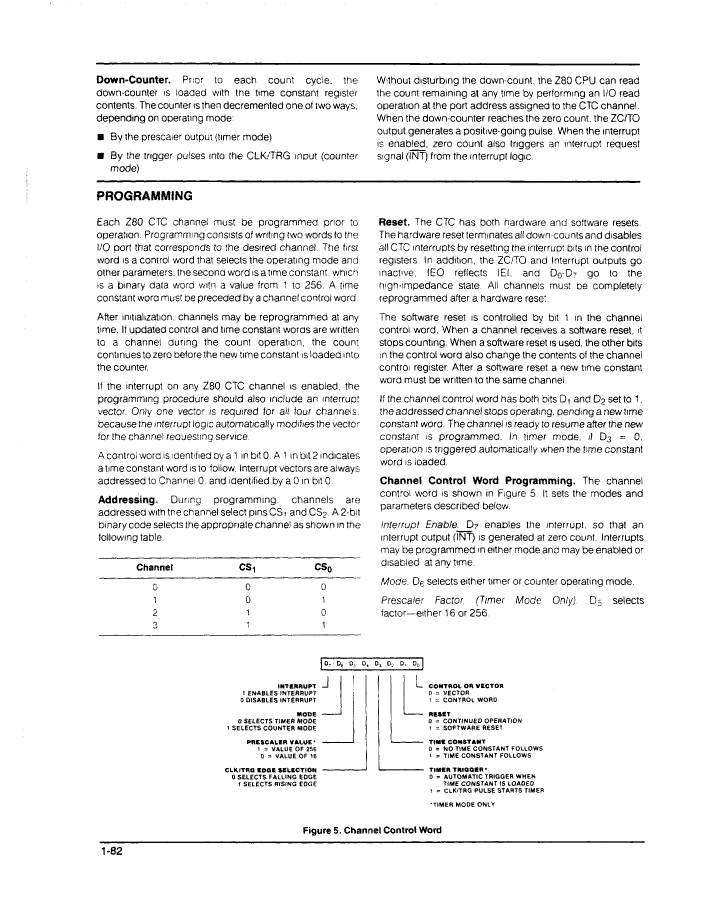

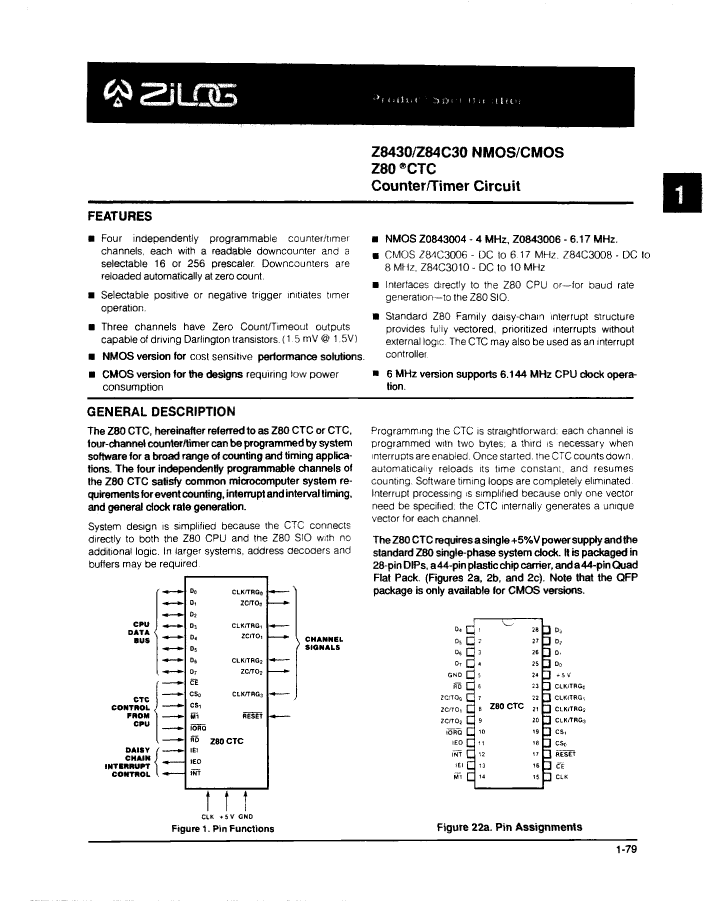

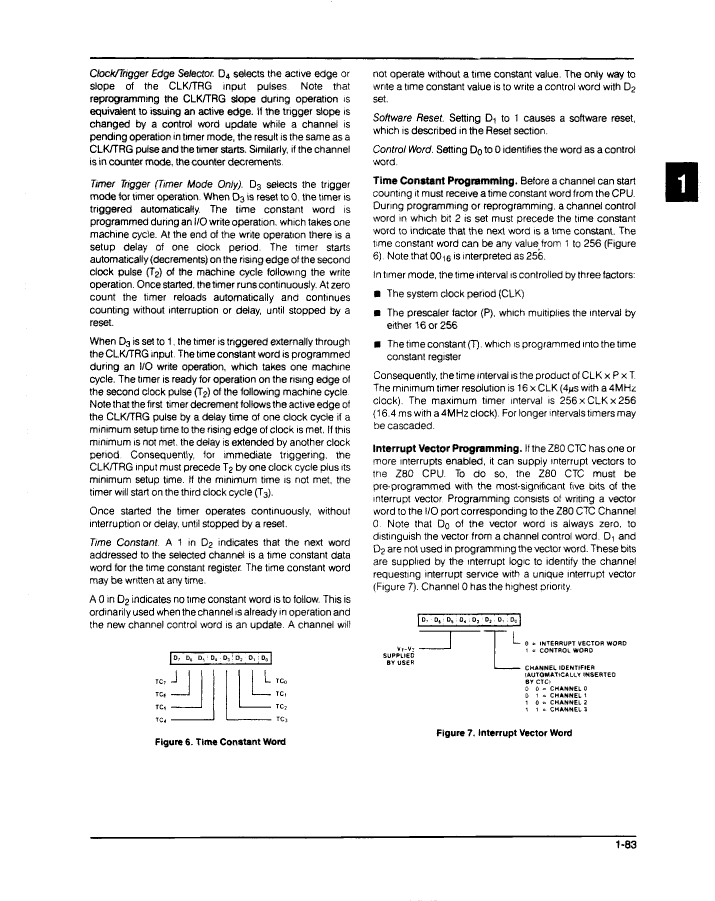

Preview

Download Datasheet

View All

Z84C3010PEC Related Products

	Z84C3010PEC	Z84C3008PEG	Z84C3008VEG	Z84C3010PEG	Z84C3010VEG	Z84C3008PEC	Z84C3006PEC	Z84C3006PEG	Z84C3006VEG
Description	Programmable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, PQCC44, PLASTIC, LCC-44	Programmable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, PQCC44, PLASTIC, LCC-44	Programmable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, PDIP28, PLASTIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Lead free	Lead free	Lead free	Lead free	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to	incompatible	incompatible	conform to	conform to
Parts packaging code	DIP	DIP	LCC	DIP	LCC	DIP	DIP	DIP	LCC
package instruction	PLASTIC, DIP-28	DIP,	QCCJ,	DIP,	QCCJ, LDCC44,.7SQ	PLASTIC, DIP-28	PLASTIC, DIP-28	PLASTIC, DIP-28	PLASTIC, LCC-44
Contacts	28	28	44	28	44	28	28	28	44
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	10 MHz	8 MHz	8 MHz	10 MHz	10 MHz	8 MHz	6.17 MHz	6.17 MHz	6.17 MHz
External data bus width	8	8	8	8	8	8	8	8	8
JESD-30 code	R-PDIP-T28	R-PDIP-T28	S-PQCC-J44	R-PDIP-T28	S-PQCC-J44	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	S-PQCC-J44
JESD-609 code	e0	e3	e3	e3	e3	e0	e0	e3	e3
length	36.96 mm	36.96 mm	16.5862 mm	36.96 mm	16.5862 mm	36.96 mm	36.96 mm	36.96 mm	16.5862 mm
Number of digits	8	8	8	8	8	8	8	8	8
Number of terminals	28	28	44	28	44	28	28	28	44
Number of timers	1	1	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	DIP	QCCJ	DIP	DIP	DIP	QCCJ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT APPLICABLE	260	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.96 mm	4.96 mm	4.57 mm	4.96 mm	4.57 mm	4.96 mm	4.96 mm	4.96 mm	4.57 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	MATTE TIN	MATTE TIN	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT APPLICABLE	40	NOT SPECIFIED	40	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE	40
width	15.24 mm	15.24 mm	16.5862 mm	15.24 mm	16.5862 mm	15.24 mm	15.24 mm	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
Maker	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS	-
Base Number Matches	-	1	1	1	1	1	-	-	-
