Z803008VSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z803008VSC

Z803008VSC: DescriptionMulti Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，47 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z803008VSC Overview

Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44

Z803008VSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknown
Address bus width
boundary scan	NO
maximum clock frequency	8 MHz
letter of agreement	SYNC, HDLC; SYNC, SDLC
Data encoding/decoding methods	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)
Maximum data transfer rate	0.25 MBps
External data bus width	8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	NO
Number of serial I/Os	2
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum slew rate	250 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL

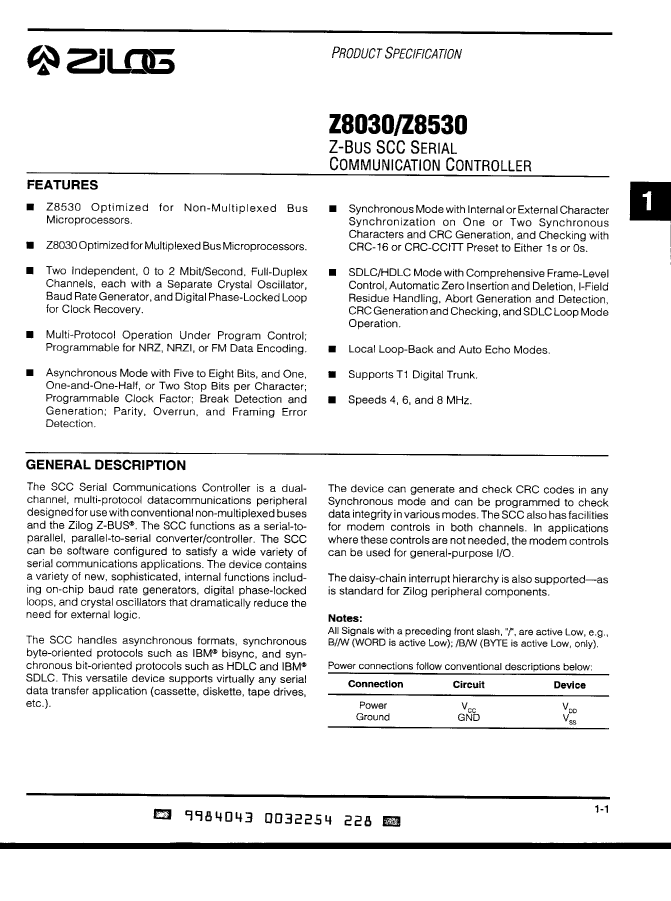

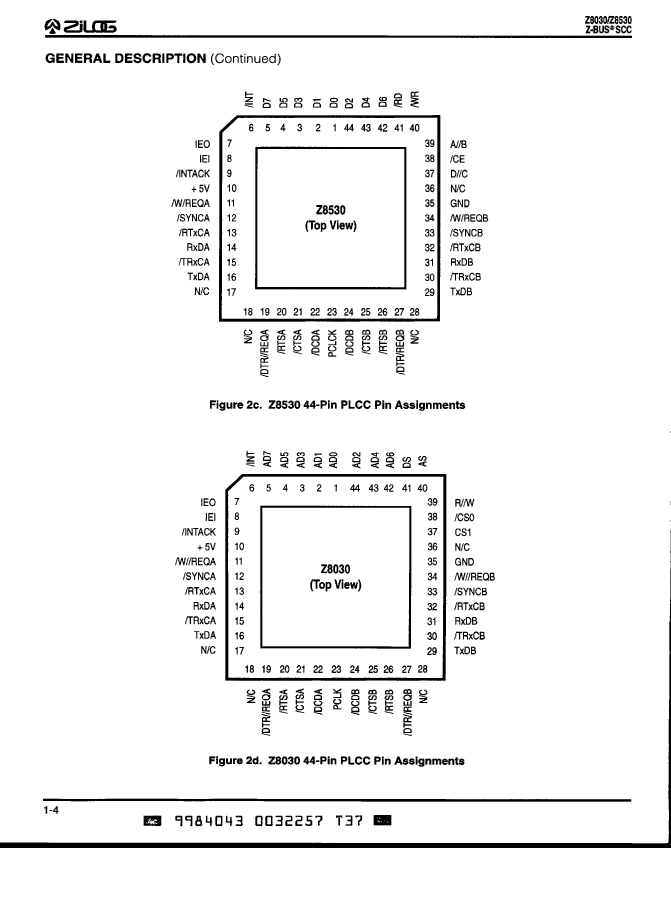

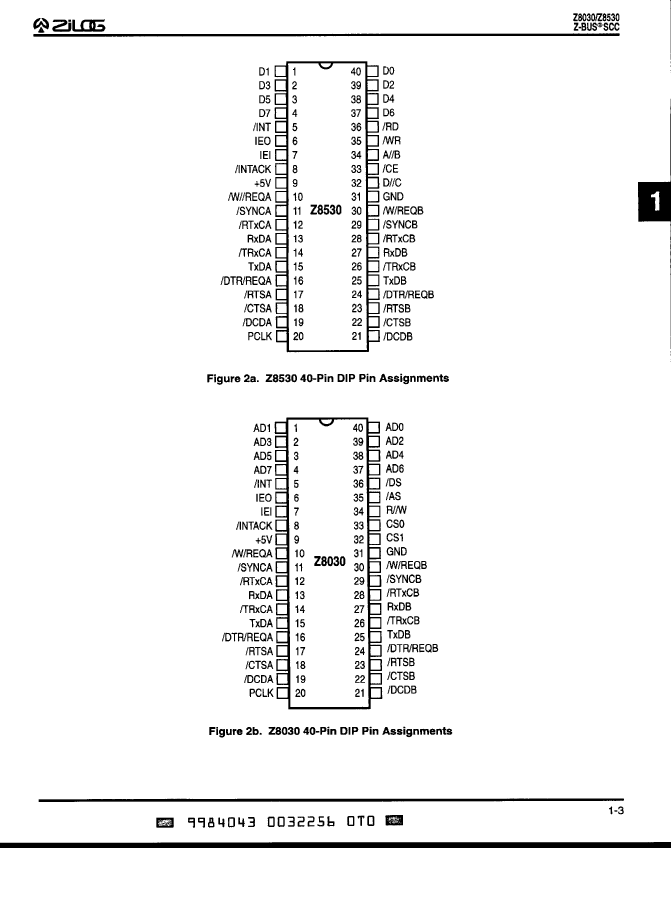

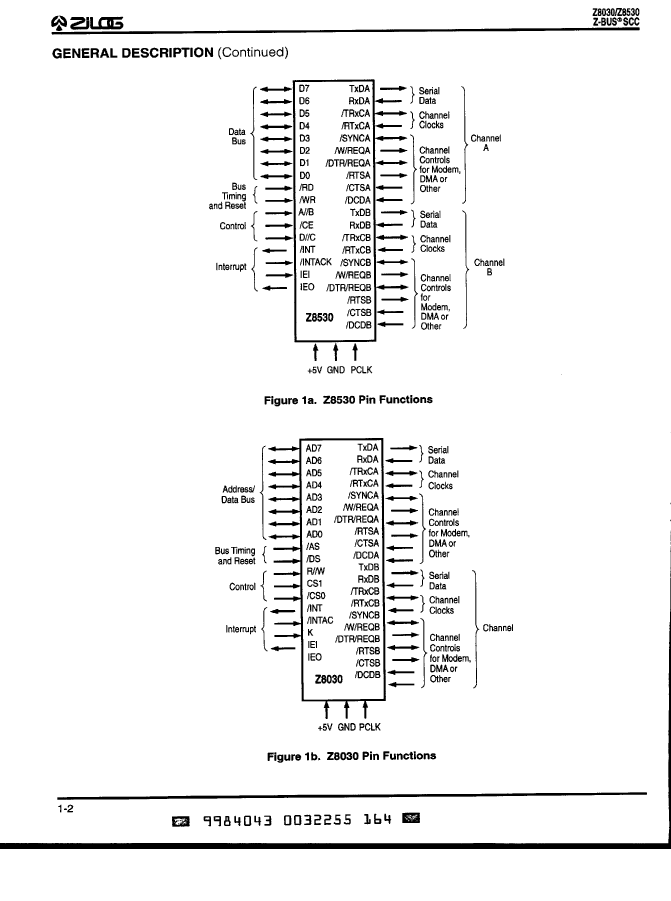

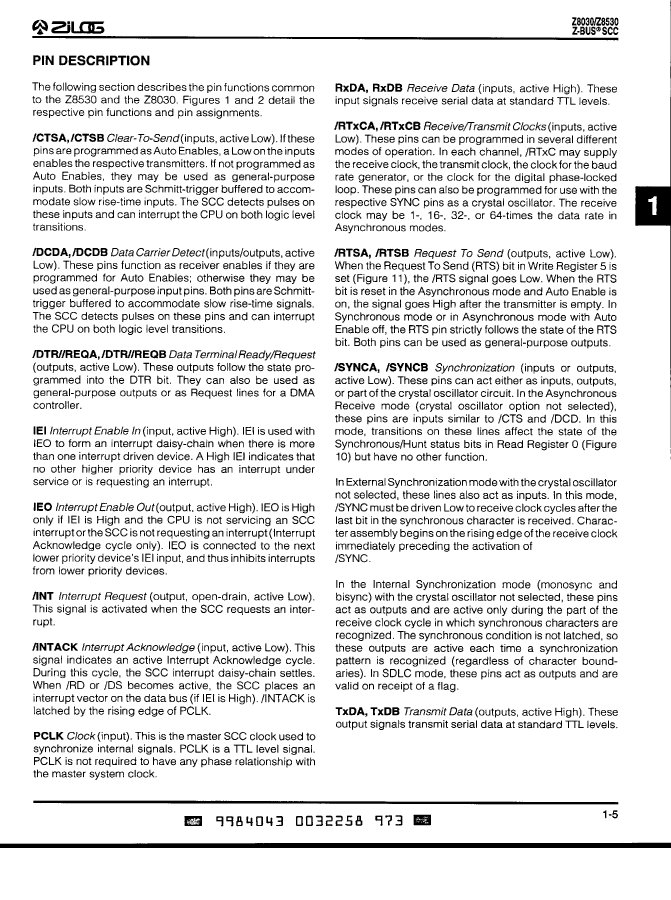

Preview

Download Datasheet

View All

Z803008VSC Related Products

	Z803008VSC	Z853006PSC	Z803004VSC	Z853004PSC	Z853008VSC	Z803008PSC	Z853006VSC	Z803004PSC	Z803006PSC	Z803006VSC
Description	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PDIP40, DIP-40	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PDIP40, DIP-40	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PDIP40, DIP-40	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PDIP40, DIP-40	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PDIP40, DIP-40	Multi Protocol Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	DIP	LCC	DIP	LCC	DIP	LCC	DIP	DIP	LCC
package instruction	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ
Contacts	44	40	44	40	44	40	44	40	40	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknow	unknown	unknown	unknown
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	8 MHz	6 MHz	4 MHz	4 MHz	8 MHz	8 MHz	6 MHz	4 MHz	6 MHz	6 MHz
letter of agreement	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC	SYNC, HDLC; SYNC, SDLC
Data encoding/decoding methods	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)
Maximum data transfer rate	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps
External data bus width	8	8	8	8	8	8	8	8	8	8
JESD-30 code	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	16.5862 mm	52.325 mm	16.5862 mm	52.325 mm	16.5862 mm	52.325 mm	16.5862 mm	52.325 mm	52.325 mm	16.5862 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Number of serial I/Os	2	2	2	2	2	2	2	2	2	2
Number of terminals	44	40	44	40	44	40	44	40	40	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ	DIP	QCCJ	DIP	QCCJ	DIP	DIP	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6	DIP40,.6	LDCC44,.7SQ
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240	240	240	240
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.24 mm	4.57 mm	4.24 mm	4.57 mm	4.24 mm	4.57 mm	4.24 mm	4.24 mm	4.57 mm
Maximum slew rate	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA	250 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	16.5862 mm	15.24 mm	16.5862 mm	15.24 mm	16.5862 mm	15.24 mm	16.5862 mm	15.24 mm	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL
Maker	Zilog, Inc.	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
