Z86C1112VSC

Description
Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size832KB，35 Pages
ManufacturerZilog, Inc.
Websitehttps://www.zilog.com/
Download Datasheet Parametric Compare View All

Z86C1112VSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44

Z86C1112VSC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerZilog, Inc.
Parts packaging codeLCC
package instructionQCCJ, LDCC44,.7SQ
Contacts44
Reach Compliance Codeunknown
Has ADCNO
Other featuresRAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES; OPTIONAL ROMLESS MODE
Address bus width16
bit size8
boundary scanNO
CPU seriesZ8
maximum clock frequency12 MHz
DAC channelNO
DMA channelNO
External data bus width8
FormatFIXED POINT
Integrated cacheNO
JESD-30 codeS-PQCC-J44
JESD-609 codee0
length16.5862 mm
low power modeYES
Number of DMA channels
Number of external interrupt devices4
Number of I/O lines32
Number of serial I/Os1
Number of terminals44
Number of timers2
On-chip data RAM width8
On-chip program ROM width8
Maximum operating temperature70 °C
Minimum operating temperature
PWM channelNO
Package body materialPLASTIC/EPOXY
encapsulated codeQCCJ
Encapsulate equivalent codeLDCC44,.7SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)240
power supply5 V
Certification statusNot Qualified
RAM (bytes)236
RAM (number of words)256
rom(word)4000
ROM programmabilityMROM
Maximum seat height4.57 mm
speed12 MHz
Maximum slew rate30 mA
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formJ BEND
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width16.5862 mm
uPs/uCs/peripheral integrated circuit typeMICROCONTROLLER

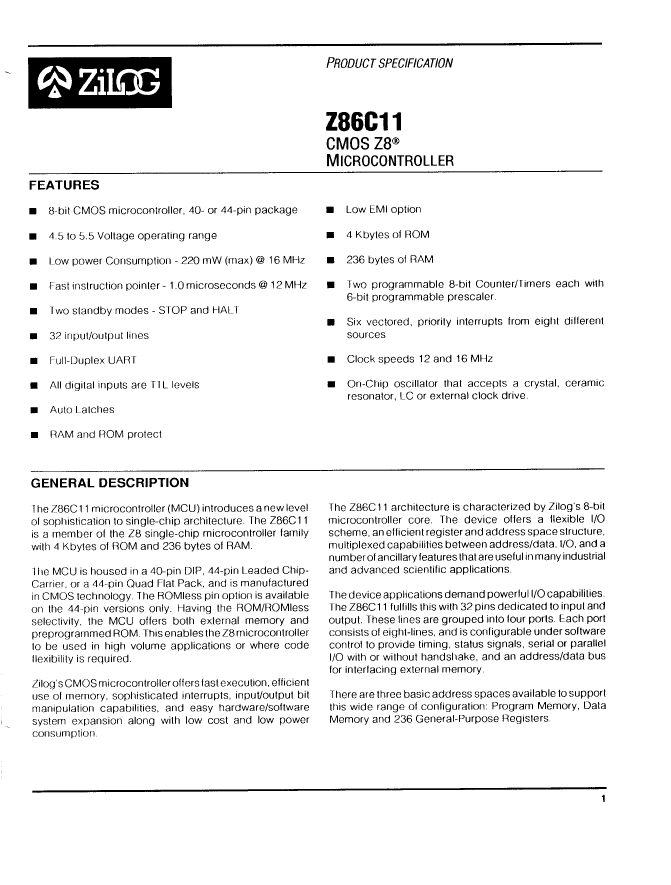

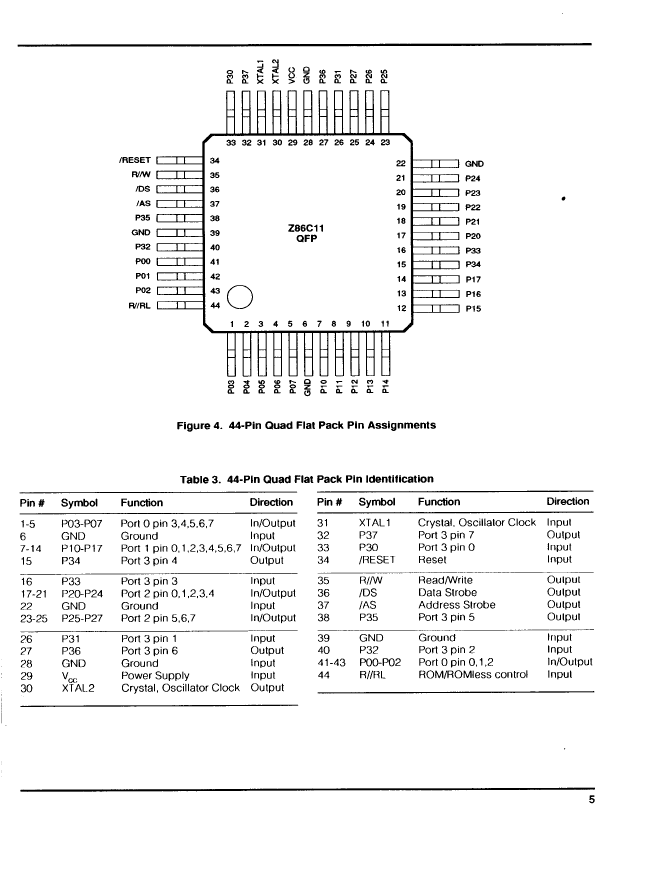

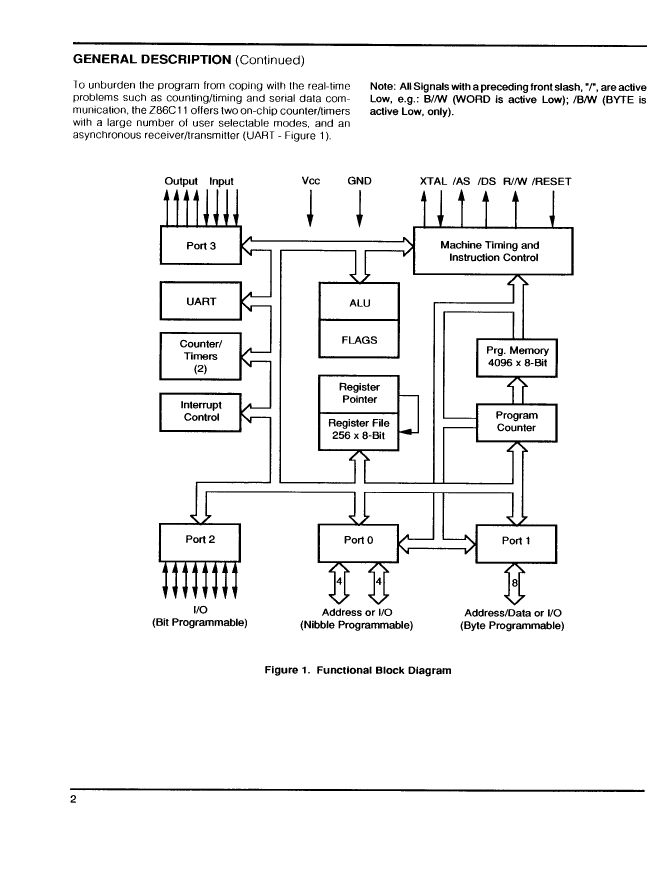

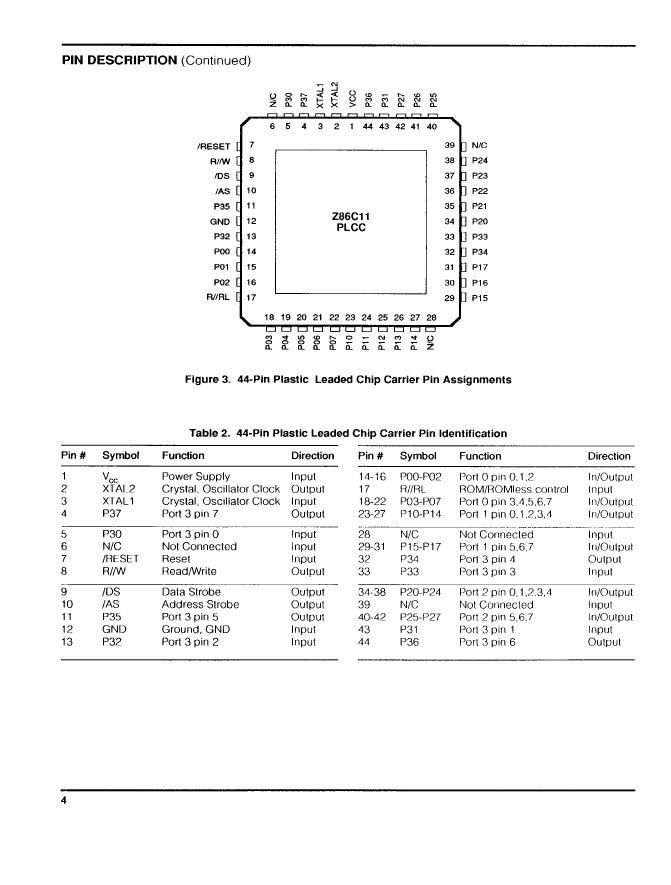

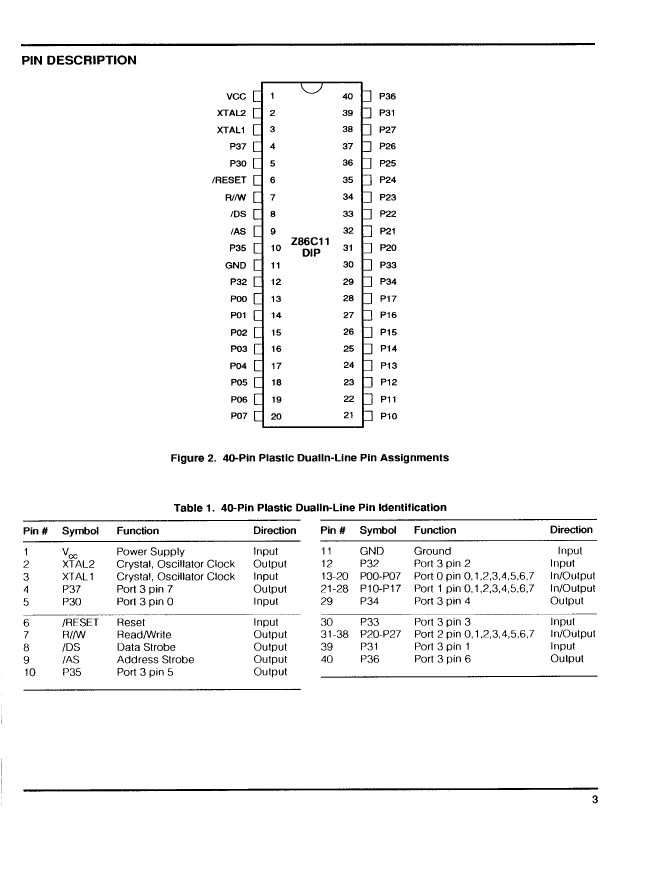

Z86C1112VSC Preview

This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
