PCD5032TD datasheet, PDF - EEWORLD Datasheet

PCD5032TD: DescriptionIC PCM CODEC, PDSO28, 7.50 MM, PLASTIC, MS-013AE, SOT-136-1, SOP-28, Codec; CategoryWireless rf/communication Telecom circuit; File Size364KB，11 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

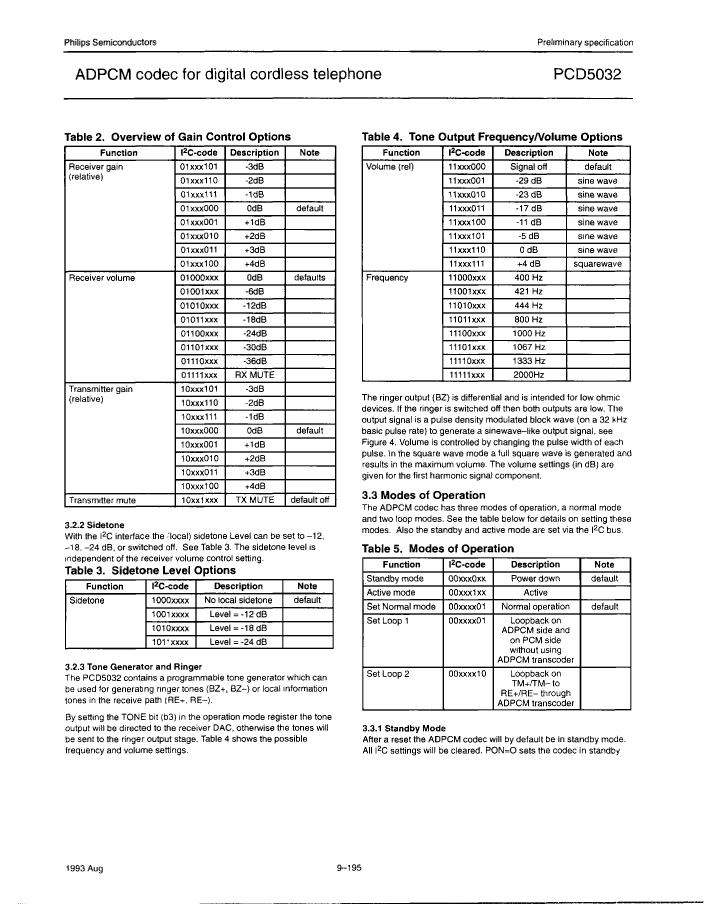

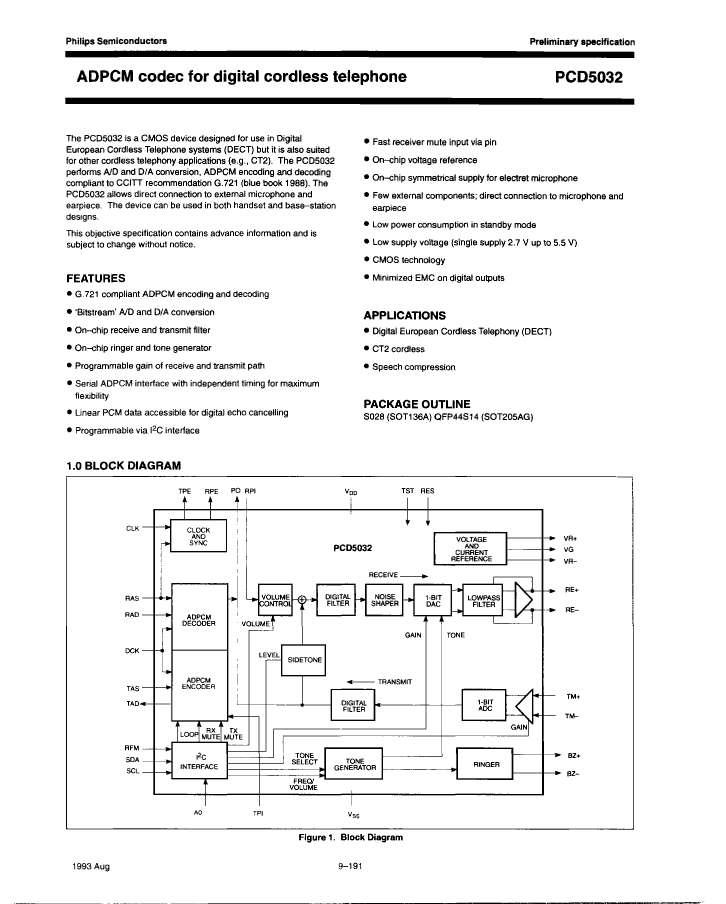

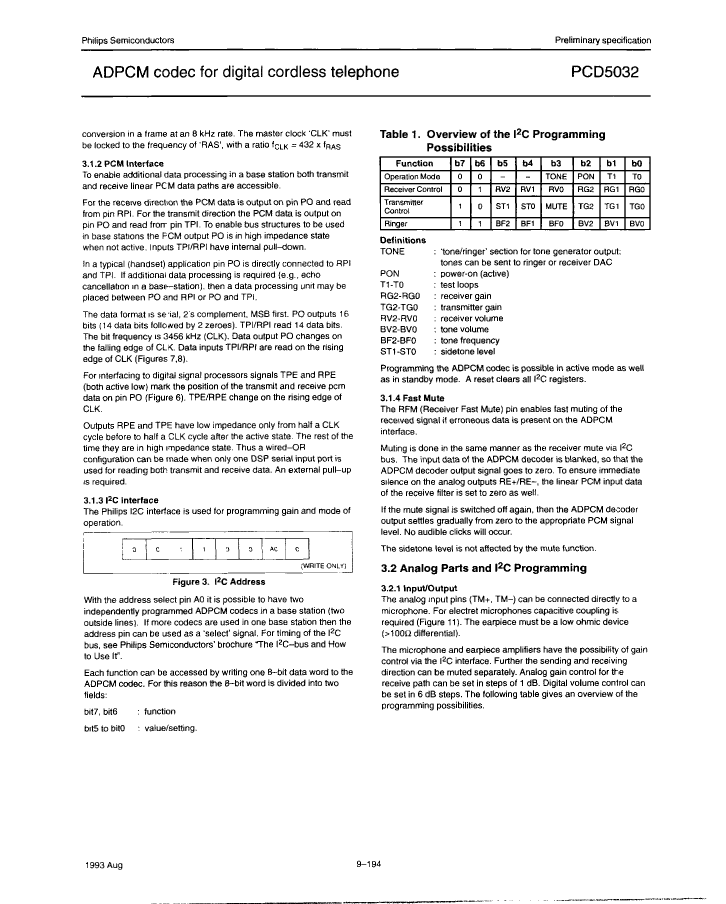

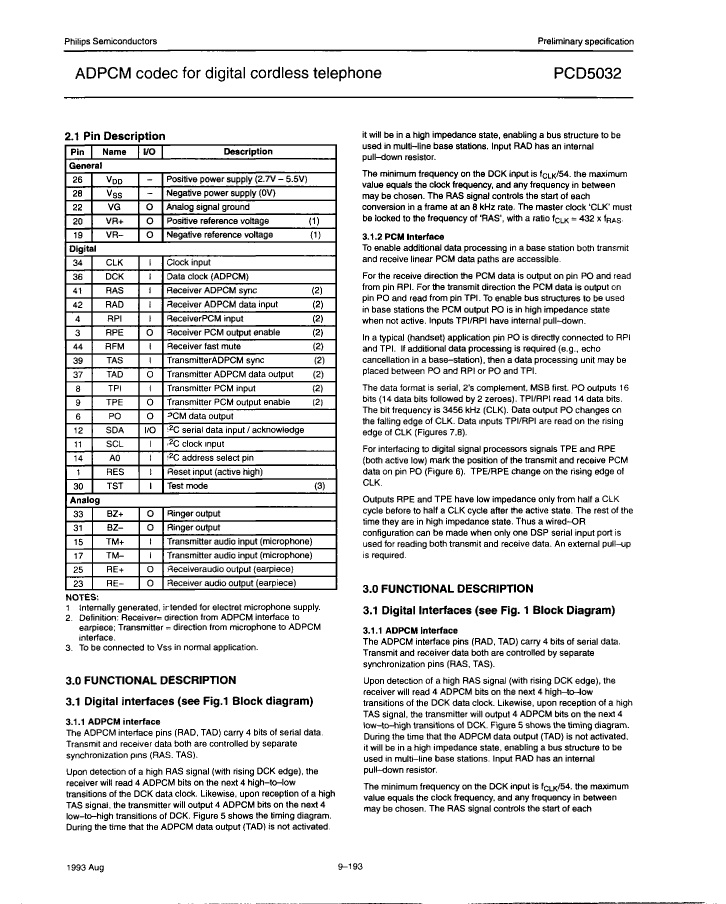

PCD5032TD Overview

IC PCM CODEC, PDSO28, 7.50 MM, PLASTIC, MS-013AE, SOT-136-1, SOP-28, Codec

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,

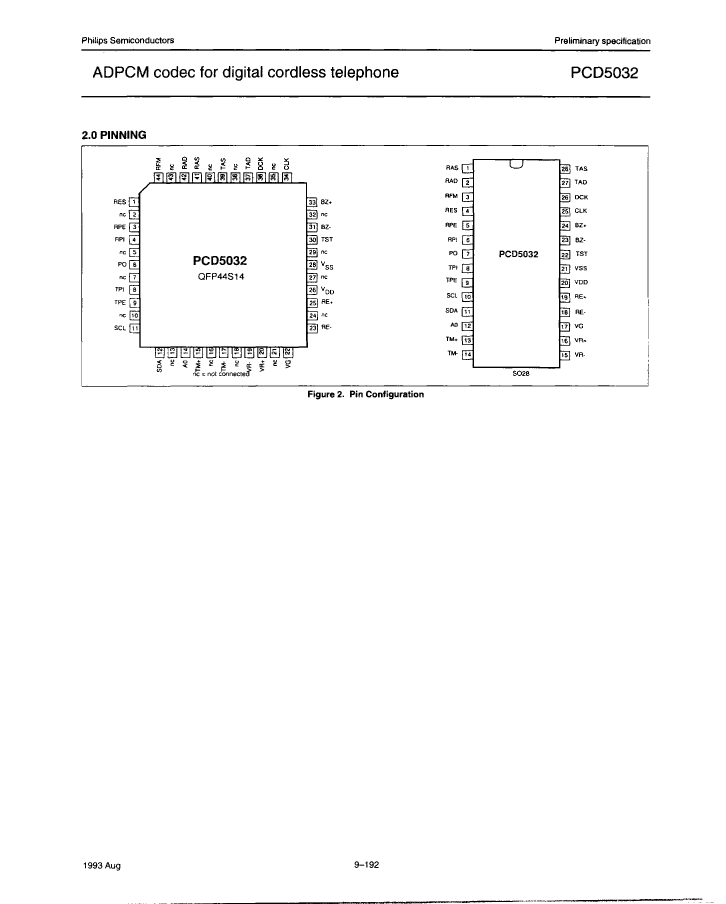

Contacts	28
Reach Compliance Code	unknown
filter	YES
JESD-30 code	R-PDSO-G28
length	17.9 mm
Number of functions	1
Number of terminals	28
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum slew rate	14 mA
Nominal supply voltage	3 V
surface mount	YES
Telecom integrated circuit types	PCM CODEC
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

	PCD5032TD	PCD5032GP	PCD5032GP-T	PCD5032TD-T
Description	IC PCM CODEC, PDSO28, 7.50 MM, PLASTIC, MS-013AE, SOT-136-1, SOP-28, Codec	IC ADPCM CODEC, PQFP44, PLASTIC, SOT-205AG, QFP-44, Codec	IC ADPCM CODEC, PQFP44, PLASTIC, SOT-205AG, QFP-44, Codec	IC PCM CODEC, PDSO28, 7.50 MM, PLASTIC, MS-013AE, SOT-136-1, SOP-28, Codec
Parts packaging code	SOIC	QFP	QFP	SOIC
package instruction	SOP,	QFP,	QFP,	SOP,
Contacts	28	44	44	28
Reach Compliance Code	unknown	unknown	unknown	unknown
filter	YES	YES	YES	YES
JESD-30 code	R-PDSO-G28	S-PQFP-G44	S-PQFP-G44	R-PDSO-G28
length	17.9 mm	14 mm	14 mm	17.9 mm
Number of functions	1	1	1	1
Number of terminals	28	44	44	28
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	QFP	QFP	SOP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE	FLATPACK	FLATPACK	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.6 mm	2.6 mm	2.65 mm
Nominal supply voltage	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES
Telecom integrated circuit types	PCM CODEC	ADPCM CODEC	ADPCM CODEC	PCM CODEC
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1 mm	1 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD	DUAL
width	7.5 mm	14 mm	14 mm	7.5 mm
Base Number Matches	-	1	1	1
