UEA1112C-8FS6-4F

Description
Telecom and Datacom Connector, 9 Contact(s), Female, Right Angle, Solder Terminal, LEAD FREE
CategoryThe connector    The connector
File Size168KB,1 Pages
ManufacturerFOXCONN
Websitehttp://www.fit-foxconn.com/
Download Datasheet Parametric View All

UEA1112C-8FS6-4F Overview

Telecom and Datacom Connector, 9 Contact(s), Female, Right Angle, Solder Terminal, LEAD FREE

UEA1112C-8FS6-4F Parametric

Parameter NameAttribute value
MakerFOXCONN
Objectid1028889805
package instructionLEAD FREE
Reach Compliance Codeunknown
compound_id58098580
Other featuresOTHER STACKING CONNECTOR: 9 CONTACTS
Connector typeUSB CONNECTOR
Contact to complete cooperationPALLADIUM NICKEL (30) AND GOLD FLASH
Contact completed and terminatedPALLADIUM NICKEL (30) AND GOLD FLASH
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYETHYLENE
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialSTAINLESS STEEL
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0

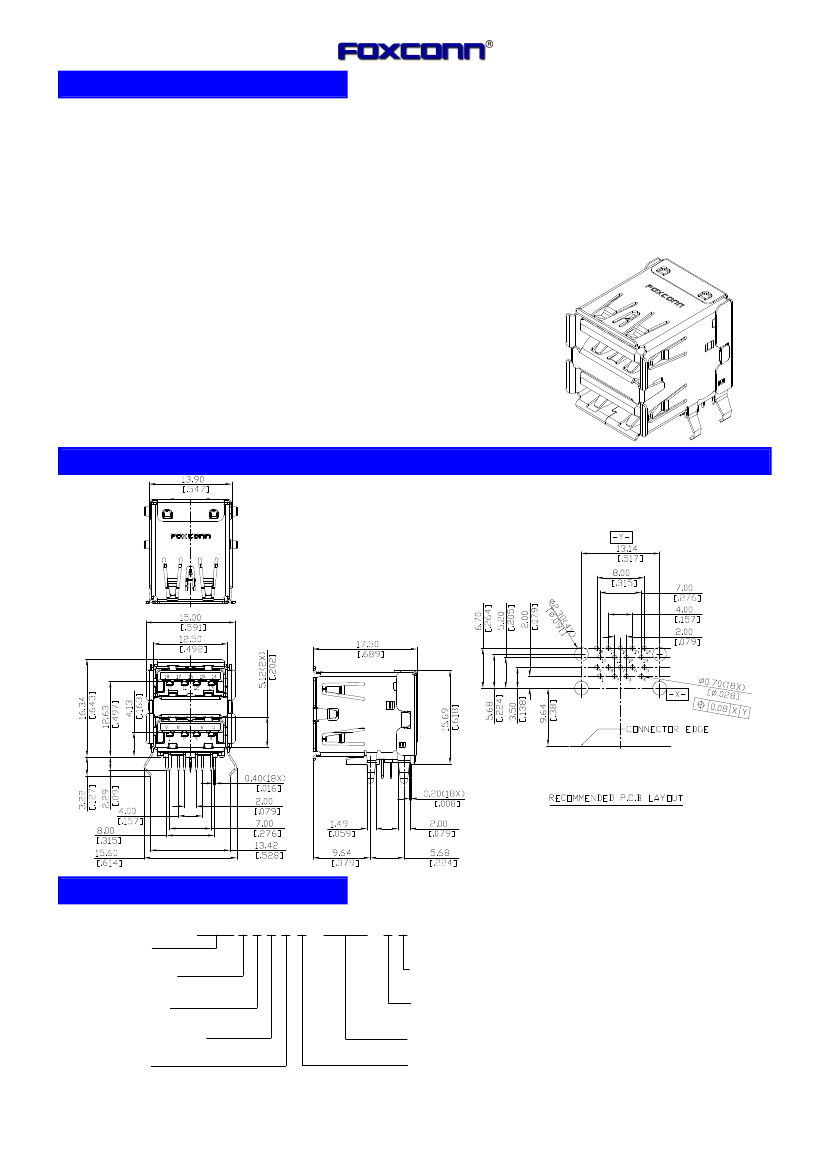

UEA1112C-8FS6-4F Preview

Download Datasheet
SPECIFICATIONS
USB 3.0 A TYPE Connector
USB3.0 Series
A Type, T/ H, 9 Pos.
Mechanical
Mating Force:
initial 3.5kgf max.
Unmating Force
:
initial 1.0kgf min.
Durability:
5000
cycles.
Electrical
Voltage Rating:
30 V rms maximum.
Low Level Contact Resistance:
30 m
Ω
maximum initial for the
Power (VBUS) and Ground (GND) contacts and 50 m
Ω
maximum
for all other contacts.
Dielectric Withstanding Voltage:
100V
AC (Rms.).
Insulation Resistance:
100M
min. at 100V DC.
Physical
Housing:
Thermoplastic, UL 94V-0 rated in Blue color
Contact and Shell:
Copper alloy& stainless steel
Plating:
See “ORDERING INFORMATION”
Operating Temperature:
-20
to +85
DRAWING
ORDERING I NF O R MATI ON
PRODUCT NO.: UEA 1 1 1 2 C - 8FS6 - 4 F
Series Prefix
USB 3.0 A TYPE
Termination Type
1: Right Angle Dip
Lead Free Code
F: Lead Free
Connector Type
1: Female
Package Code
4: Soft Tray Package
No. of Contact Position
1: 9 Pos.
Extension Code
Contact Area Plating
C: 30u" Pd/Ni+Gold Flash
Profile Hight
2: 4.13 mm
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
