ZBGK53W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZBGK53W

ZBGK53W: DescriptionSingle Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZBGK53W Overview

Single Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN

ZBGK53W Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	95.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	515 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.65 mm
perspective	120 deg

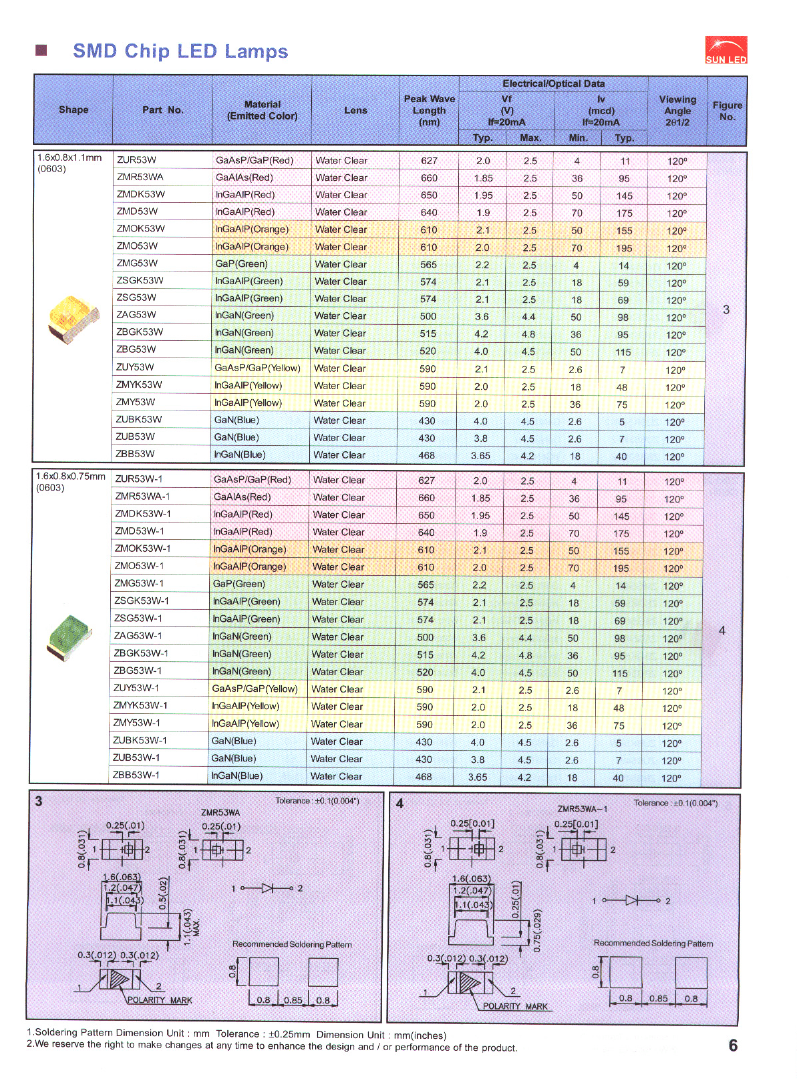

Preview

Download Datasheet

View All

ZBGK53W Related Products

	ZBGK53W	ZMR53WA	ZMR53WA-1	ZBB53W-1	ZUBK53W-1	ZSGK53W-1	ZBGK53W-1	ZBG53W-1
Description	Single Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN	Single Color LED, Red, Water Clear, 1.2mm, 1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN	Single Color LED, Red, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	Single Color LED, Blue, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	Single Color LED, Blue, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	Single Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	Single Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	Single Color LED, Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN
package instruction	1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	GREEN	RED	RED	BLUE	BLUE	GREEN	GREEN	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	95.0 mcd	95.0 mcd	95.0 mcd	40.0 mcd	5.0 mcd	59.0 mcd	95.0 mcd	115.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	515 nm	660 nm	660 nm	468 nm	430 nm	574 nm	515 nm	520 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Base Number Matches	-	1	1	1	1	1	1	-
