ZSG54W: DescriptionSingle Color LED, Green, Water Clear, 1.3mm, 2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size68KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZSG54W Overview

Single Color LED, Green, Water Clear, 1.3mm, 2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN

ZSG54W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
Objectid	1942553397
package instruction	2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	7790266
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	69.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	574 nm
shape	RECTANGULAR
size	1.3 mm
surface mount	YES
Terminal pitch	2.35 mm
perspective	120 deg

Preview

Download Datasheet

View All

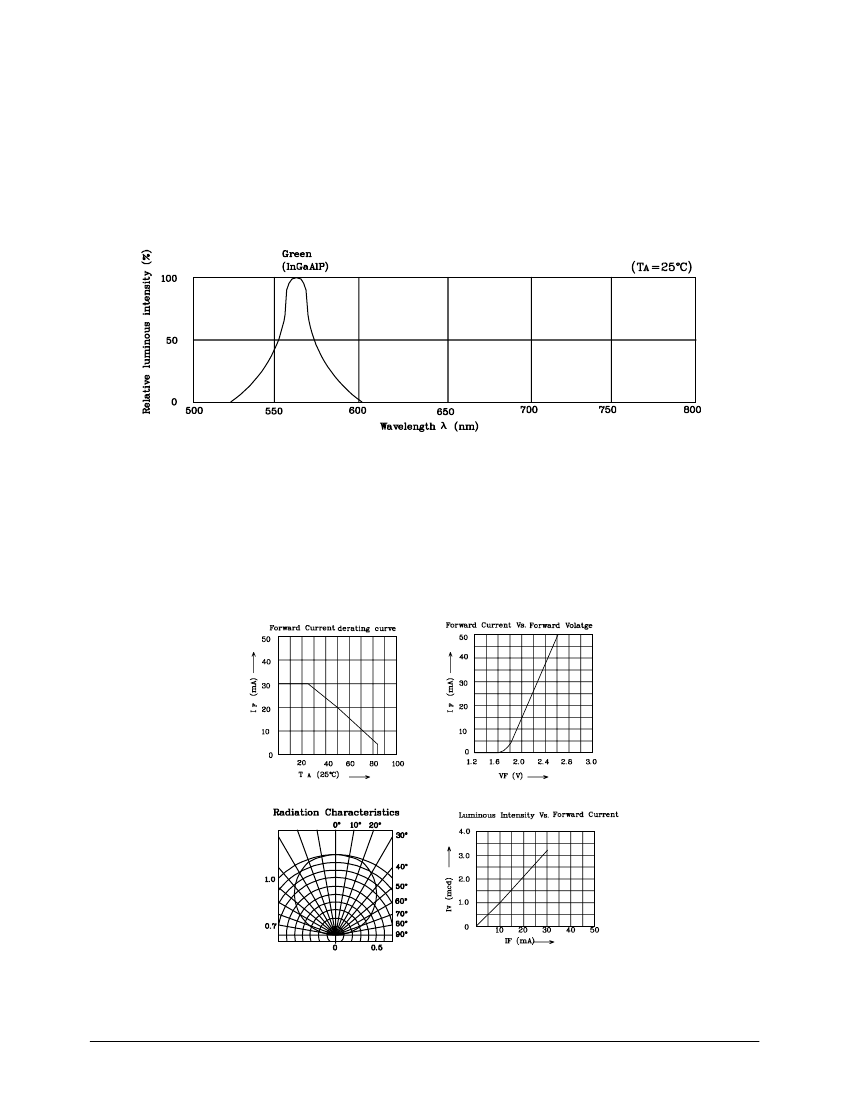

2.0x1.2mm SMD CHIP LED LAMP

ZSG54W

SUN LED

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.1(0.004")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

C)

( T

A

=25

°

C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operation Temperature

Storage Temperature

V

R

I

F

i

FS

P

T

A

Tstg

SG

( In Ga Al P )

5

25

200

105

-40 ~ +85

Un i t

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

A

=25

°

C)

Forward voltage (typ.)

(I F=20mA)

Forward voltage (max.)

(I F=20mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=20mA)

Spectral Line half-width

(I F=20mA)

Capacitance

(VF=0, f=1MHz)

SG

( In Ga Al P )

Un i t

V

mA

mW

°+

V

F

V

F

I

R

2.25

2.5

10

V

uA

λ

peak

565

nm

∆λ

C

25

20

nm

pF

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 20m A )

mc d

min .

ty p .

20

50

Wa v e l e n g t h

nm

Vi e w i n g

An g l e

ZSG54W

green

I nGaAlP

water clear

565

120°

1-1
