ZB8PD-622+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZB8PD-622+

ZB8PD-622+: DescriptionCombiner, 3200MHz Min, 6200MHz Max, 1.8dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size326KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZB8PD-622+ Overview

Combiner, 3200MHz Min, 6200MHz Max, 1.8dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

ZB8PD-622+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.02 dBm
Maximum insertion loss	1.8 dB
Maximum operating frequency	6200 MHz
Minimum operating frequency	3200 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.9

Preview

Download Datasheet

View All

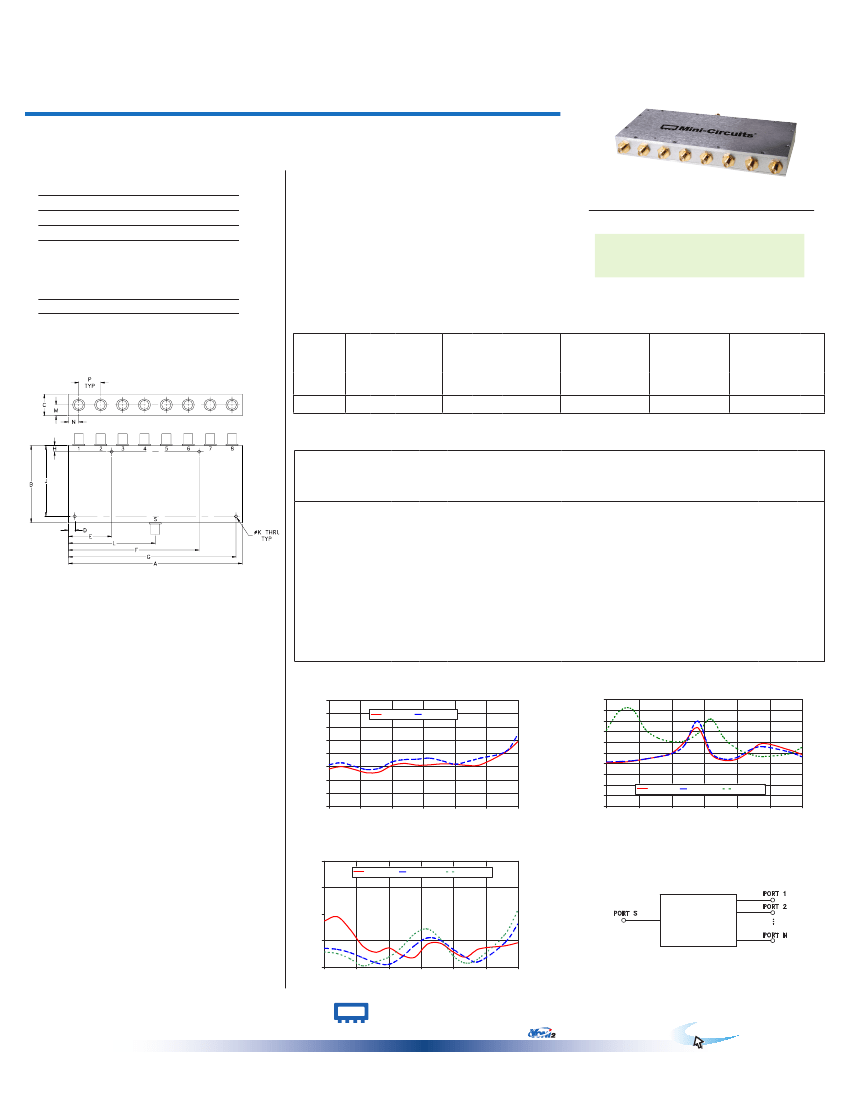

Power Splitter/Combiner

8 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

Coaxial

ZB8PD-622+

50Ω

-55°C to 100°C

3200 to 6200 MHz

Features

• wideband

• good isolation, 26 dB typ.

• good output VSWR, 1.22:1 typ.

CASE STYLE: Z41

Connectors Model

SMA

ZB8PD-622-S+

Price

Qty.

$158.95 ea. (1-9)

Maximum Ratings

10W max.

0.875W max.

Permanent damage may occur if any of these limits are exceeded.

Applications

• ISM applications

• SATCOM

• WIMAX

• radar

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Coaxial Connections

SUMPORT

PORT 1,2,3,4,5,6,7,8

1,2,3,4,5,6,7,8

Electrical Specifications

Outline Drawing

FREQ.

RANGE

(MHz)

-f

3200-6200

ISOLATION

(dB)

Typ.

Min

INSERTION LOSS (dB)

ABOVE 9 dB

Typ.

0.8

Max.

1.8

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.7

VSWR

(:1)

Typ. Max.

1.5

1.9

OUT

Typ. Max.

1.22

1.6

Typical Performance Data

Freq.

(MHz)

S-1

3200.00

3400.00

3600.00

3800.00

4000.00

4200.00

4400.00

4600.00

4800.00

5000.00

5200.00

5400.00

5600.00

6000.00

6200.00

S-2

Total Loss

(dB)

S-3

S-4

S-6

S-8

Amplitude

Unbalance

(dB)

1-2

0.10

0.08

0.05

0.10

0.21

0.30

0.25

0.26

0.21

0.18

0.17

0.14

0.19

20.26

20.38

20.98

22.03

23.08

24.66

29.99

36.73

24.46

21.40

21.92

25.48

29.33

26.30

24.11

Isolation

(dB)

2-3

35.36

44.44

45.32

35.90

31.79

30.15

30.46

33.99

40.77

31.97

26.88

24.31

23.16

24.51

27.54

3-4

20.68

20.82

21.20

22.00

23.07

24.50

28.52

39.79

25.34

21.99

22.71

26.22

27.80

25.30

23.03

5-6

20.64

20.65

21.20

22.13

22.98

24.37

28.64

39.13

25.31

22.06

22.69

26.00

27.82

25.23

22.98

Phase

Unbalance

(deg.)

1.32

1.39

1.44

1.55

1.64

1.68

1.72

1.87

1.95

2.30

2.68

2.81

2.66

3.13

3.66

VSWR

Outline Dimensions (

inch

)

7.06

3.13

.88

179.32 79.50 22.35

2.875

73.03

.250 1.750 5.310 6.810

6.35 44.45 134.87 172.97

.250

6.35

grams

800

9.56

9.57 9.57

9.53 9.57 9.63

9.60

9.61 9.61

9.58 9.59 9.66

9.56

9.57 9.58

9.55 9.55 9.61

9.51

9.54 9.57

9.55 9.56 9.55

9.52

9.57 9.68

9.66 9.69 9.57

9.61

9.70 9.88

9.85 9.88 9.67

9.65

9.75 9.90

9.84 9.88 9.70

9.62

9.73 9.86

9.76 9.87 9.71

9.62

9.74 9.85

9.70 9.89 9.73

9.64

9.76 9.85

9.68 9.84 9.68

9.63

9.74 9.81

9.65 9.77 9.63

9.62

9.73 9.76

9.59 9.77 9.68

9.63

9.75 9.76

9.61 9.78 9.73

9.82

9.96 9.94

9.93 9.89 9.82

9.98 10.11 10.08 10.10 10.10 10.09

1.35

1.38

1.28

1.16

1.11

1.14

1.09

1.07

1.17

1.18

1.11

1.07

1.14

1.16

1.18

1.14

1.13

1.11

1.07

1.03

1.02

1.07

1.16

1.22

1.20

1.13

1.07

1.04

1.18

1.32

1.11

1.10

1.06

1.01

1.04

1.07

1.15

1.25

1.29

1.21

1.08

1.03

1.06

1.25

1.43

1. Total Loss = Insertion Loss + 9dB splitter loss.

TOTAL LOSS (dB)

10.0

9.8

9.6

9.4

9.2

9.0

3200

3700

4200

4700

5200

FREQUENCY (MHz)

ZB8PD-622+

VSWR

1-VSWR

8-VSWR

ISOLATION (dB)

.144

3.53

.44

.415

.89

3.66 89.66 11.18 10.54 22.61

10.6

10.4

10.2

at RF level of -10 dBm

ZB8PD-622+

TOTAL LOSS

S-1 (dB)

S-8 (dB)

5700

6200

3200

at RF level of -10 dBm

ZB8PD-622+

ISOLATION

1-2 (dB)

3700

3-4 (dB)

2-3 (dB)

5700

6200

4200

4700

5200

FREQUENCY (MHz)

1.8

1.6

VSWR

1.4

1.2

at RF level of -10 dBm

S-VSWR

electrical schematic

1.0

3200

3700

4200

4700

5200

FREQUENCY (MHz)

5700

6200

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. A

M127604

ED-11254/1

ZB8PD-622+

HY/TD/CP/AM

120906

ZB8PD-622+ Related Products

	ZB8PD-622+	ZB8PD-622-S+
Description	Combiner, 3200MHz Min, 6200MHz Max, 1.8dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Combiner, 3200MHz Min, 6200MHz Max, 1.8dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Is it Rohs certified?	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	46.02 dBm	46.02 dBm
Maximum insertion loss	1.8 dB	1.8 dB
Maximum operating frequency	6200 MHz	6200 MHz
Minimum operating frequency	3200 MHz	3200 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER
Maximum voltage standing wave ratio	1.9	1.9
