ZX05-63LH-S+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZX05-63LH-S+

ZX05-63LH-S+: DescriptionDouble Balanced Mixer, 750MHz Min, 6000MHz Max, 9.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905; CategoryWireless rf/communication Radio frequency and microwave; File Size327KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZX05-63LH-S+ Overview

Double Balanced Mixer, 750MHz Min, 6000MHz Max, 9.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905

ZX05-63LH-S+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SMA, HIGH ISOLATION
structure	COAXIAL
Maximum frequency conversion loss	9.6 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	6000 MHz
Minimum operating frequency	750 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	8.35

Preview

Download Datasheet

View All

Frequency Mixer

wide band

Level 10 (LO Power +10 dBm) 750 to 6000 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

-40°C to 85°C

-55°C to 100°C

50mW

Coaxial

ZX05-63LH+

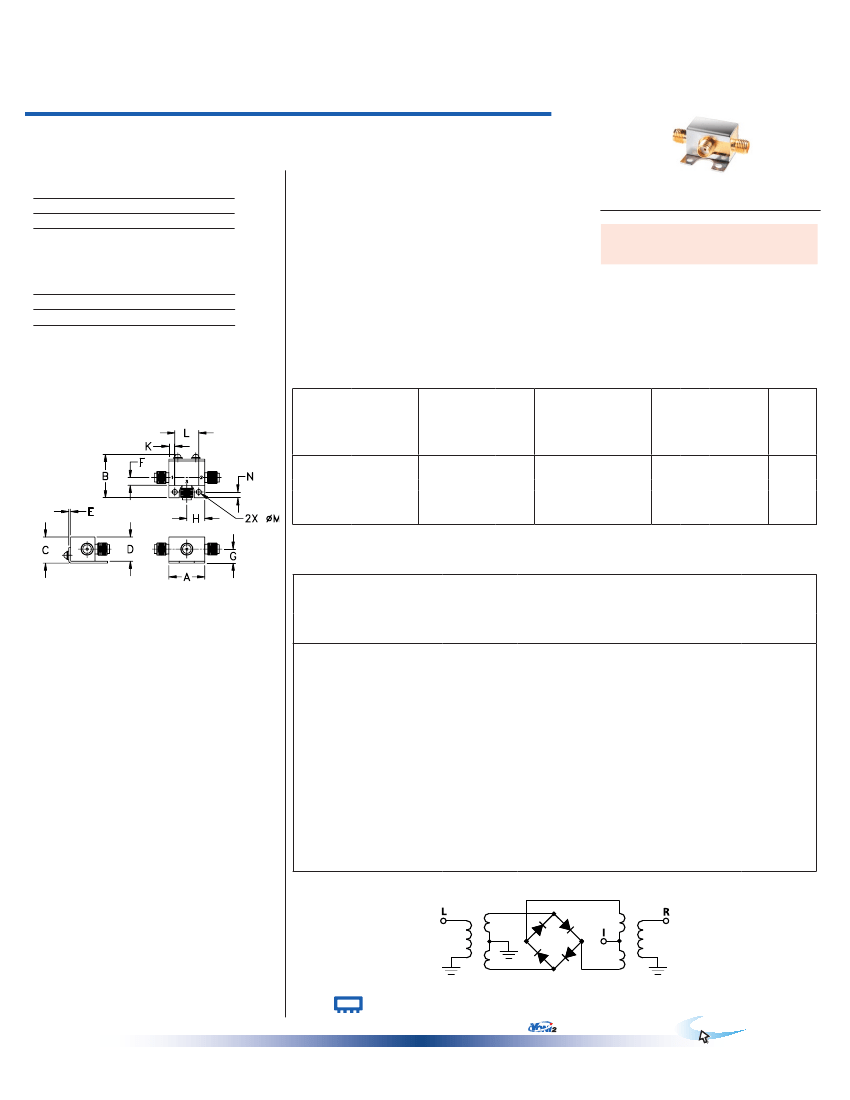

Features

Permanent damage may occur if any of these limits are exceeded.

• wide bandwidth, 750 to 6000 MHz

• low conversion loss, 6.2 dB typ.

• excellent L-R isolation, 34 dB typ.

• rugged construction

• small size

• useable as up and down converter

• protected by US patents, 6,790,049 and 7,027,795

CASE STYLE: FL905

Connectors

SMA

Model

ZX05-63LH-S+

Price

$47.95

Qty.

(1-24)

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Coaxial Connections

Applications

• cellular

• defense and weather radar

• defense communications

• PCN

• WCDMA

• WIFI

• blue tooth

• VSAT

FREQUENCY

(MHz)

LO/RF

-f

750-6000

750-1700

1700-2000

2000-3100

3100-3800

3800-6000

Electrical Specifications

CONVERSION LOSS*

(dB)

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

IP3

at center

band

(dBm)

Typ.

Outline Drawing

DC-1000

Typ.

6.3

6.6

5.8

6.0

8.0

0.1

0.2

Max.

7.5

7.4

7.7

9.6

Typ.

Min.

Typ.

Min.

1 dB COMPR.: +3 dBm typ.

* Conversion loss at 30 MHz IF.

is a measure of repeatability from unit to unit.

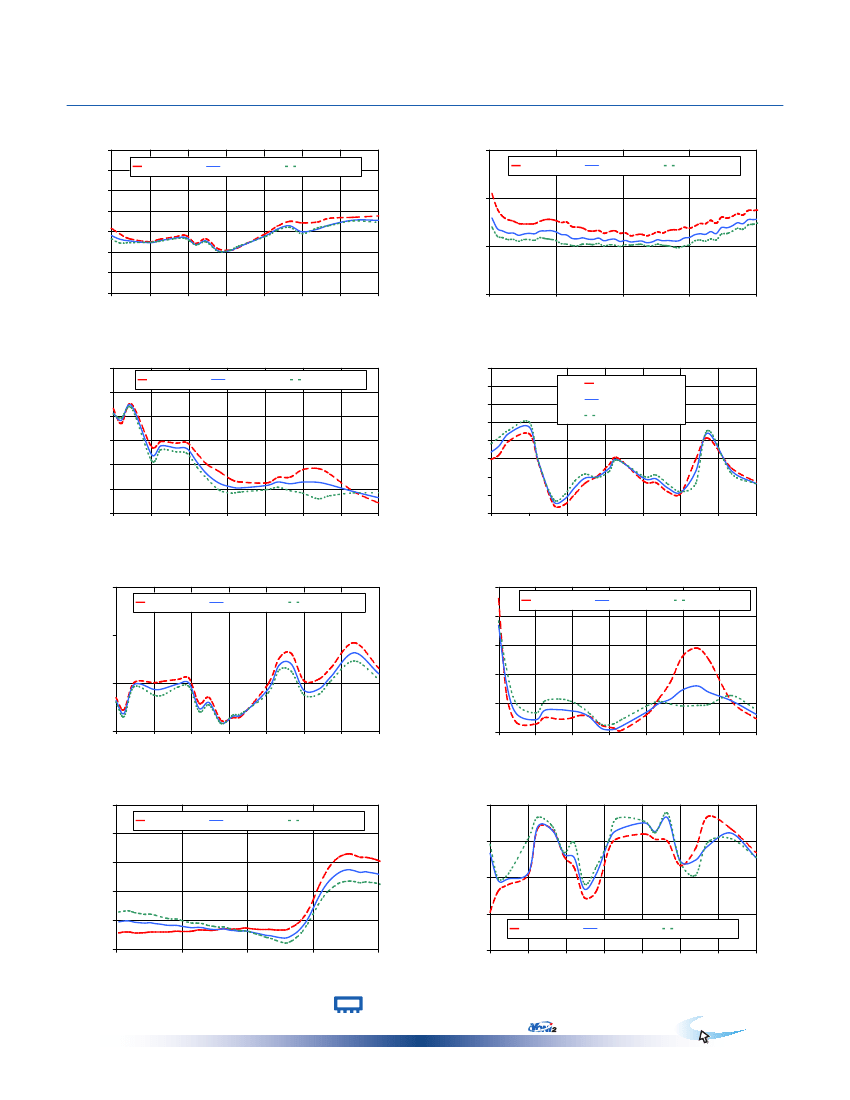

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

780.00

940.00

1140.00

1540.00

1720.00

2020.00

2240.00

2440.00

2640.00

2880.00

3120.00

3280.00

3820.00

4040.00

4280.00

4530.00

4830.00

5070.00

5530.00

6030.00

+10dBm

6.60

6.25

6.07

5.90

6.08

6.34

6.41

5.71

6.07

5.09

5.13

5.48

6.60

7.22

7.55

6.96

7.22

7.63

8.10

8.09

Isolation

L-R

(dB)

+10dBm

40.63

39.15

42.18

32.02

33.84

33.41

33.26

30.45

27.96

26.10

25.33

25.13

25.66

26.37

26.01

26.36

26.30

25.78

24.40

23.12

Isolation

L-I

(dB)

+10dBm

26.74

28.45

31.98

33.61

24.01

13.04

13.81

17.02

19.56

19.91

22.29

24.67

19.37

19.41

16.82

15.62

21.35

31.97

21.73

18.03

VSWR

RF Port

(:1)

+10dBm

2.25

1.72

2.92

2.72

2.75

2.95

2.98

1.93

2.17

1.32

1.61

1.66

2.74

3.74

3.78

2.69

2.74

3.25

4.25

3.37

VSWR

LO Port

(:1)

+10dBm

8.35

4.37

2.27

1.84

2.49

2.53

2.46

2.35

2.02

1.24

1.17

1.39

2.42

2.95

3.26

3.90

4.17

3.73

3.14

2.21

Outline Dimensions (

.74

18.80

.37

9.40

.90

22.86

.54

13.72

.122

3.10

.50

12.70

.496

12.60

.04

1.02

.106

2.69

inch

)

.29

7.37

750.00

910.00

1110.00

1510.00

1690.00

1990.00

2210.00

2410.00

2610.00

2850.00

3090.00

3250.00

3790.00

4010.00

4250.00

4500.00

4800.00

5040.00

5500.00

6000.00

.16

4.06

.122 grams

3.10

20.0

Electrical Schematic

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. OR

M111660

ZX05-63LH+

ED-12902/4

DJ/AM

080225

Page 1 of 2

ZX05-63LH-S+ Related Products

	ZX05-63LH-S+	ZX05-63LH+
Description	Double Balanced Mixer, 750MHz Min, 6000MHz Max, 9.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905	Double Balanced Mixer, 750MHz Min, 6000MHz Max, 9.6dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905
Is it Rohs certified?	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	not_compliant	unknown
Other features	SMA, HIGH ISOLATION	HIGH ISOLATION
structure	COAXIAL	COAXIAL
Maximum frequency conversion loss	9.6 dB	9.6 dB
Maximum input power (CW)	17 dBm	17 dBm
Maximum operating frequency	6000 MHz	6000 MHz
Minimum operating frequency	750 MHz	750 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	8.35	8.35
