ZX05-U712H-S+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZX05-U712H-S+

ZX05-U712H-S+: DescriptionDouble Balanced Mixer, 10MHz Min, 7100MHz Max, 9.2dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905; CategoryWireless rf/communication Radio frequency and microwave; File Size244KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZX05-U712H-S+ Overview

Double Balanced Mixer, 10MHz Min, 7100MHz Max, 9.2dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905

ZX05-U712H-S+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SMA
structure	COMPONENT
Maximum frequency conversion loss	9.2 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	7100 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	3.08

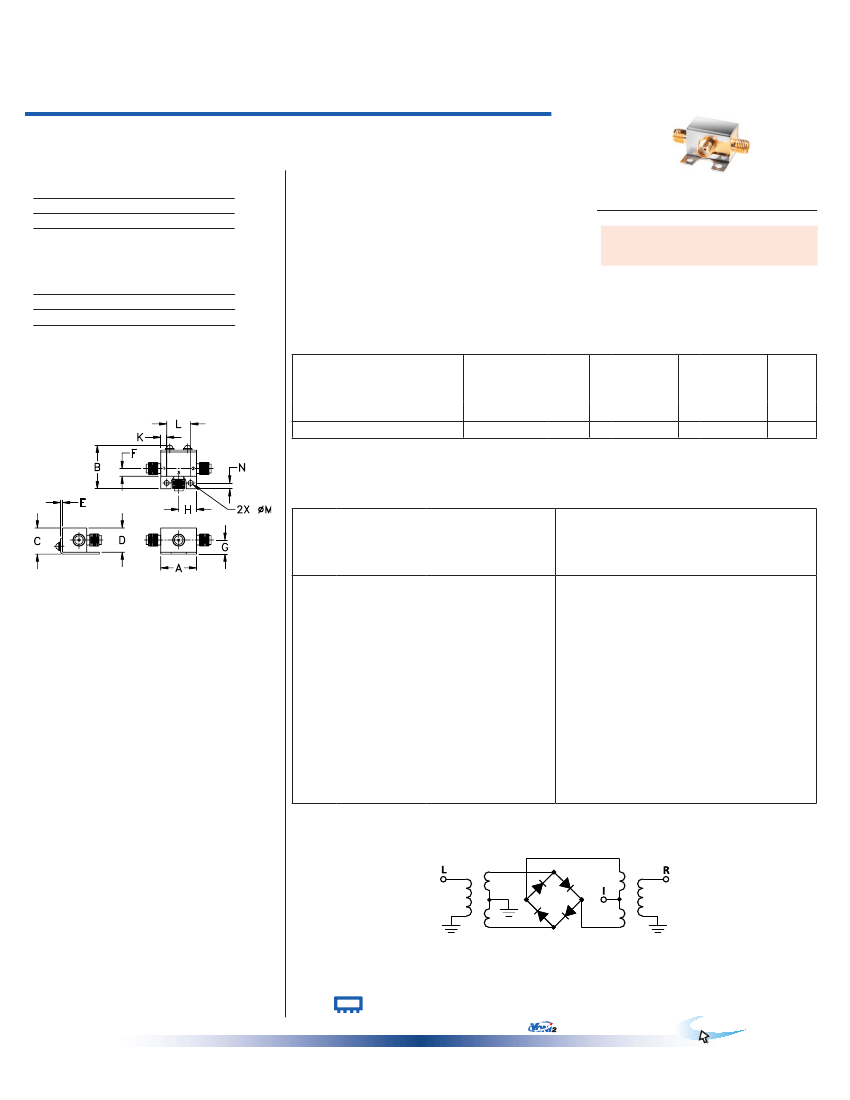

Preview

Download Datasheet

View All

Frequency Mixer

Level 17 (LO Power +17 dBm) 10 to 7100 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

IF Power

-40°C to 85°C

-55°C to 100°C

100mW

Up Converter

ZX05-U712H+

Features

Permanent damage may occur if any of these limits are exceeded.

• up converter mixer

• low conversion loss, 7.5 dB typ.

• high IP3, 27 dBm typ.

• rugged construction

• small size

• protected by US patents, 6,790,049 and 7,027,795

CASE STYLE: FL905

Connectors Model

SMA

ZX05-U712H-S+

Price

$48.95

Qty.

(1-24)

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Coaxial Connections

IF (IN)

RF (OUT)

Applications

• cellular infrastructure

• WIMAX

• line-of-sight links

• wide band receivers

• bluetooth

FREQUENCY

(MHz)

Electrical Specifications

CONVERSION

LOSS*

(dB)

RF (OUT)

2600-7100

Typ.

7.5

Outline Drawing

IF (IN)

2600-7100

LO-IF (IN)

ISOLATION

(dB)

Max.

9.2

Typ. Min.

LO-RF (OUT)

ISOLATION

(dB)

Typ. Min.

IP3

at center

band

(dBm)

Typ.

10-1780

0.3

1 dB COMPR. +14 dBm typ.

* Conversion Loss at 30 MHz LO

is a standard deviation

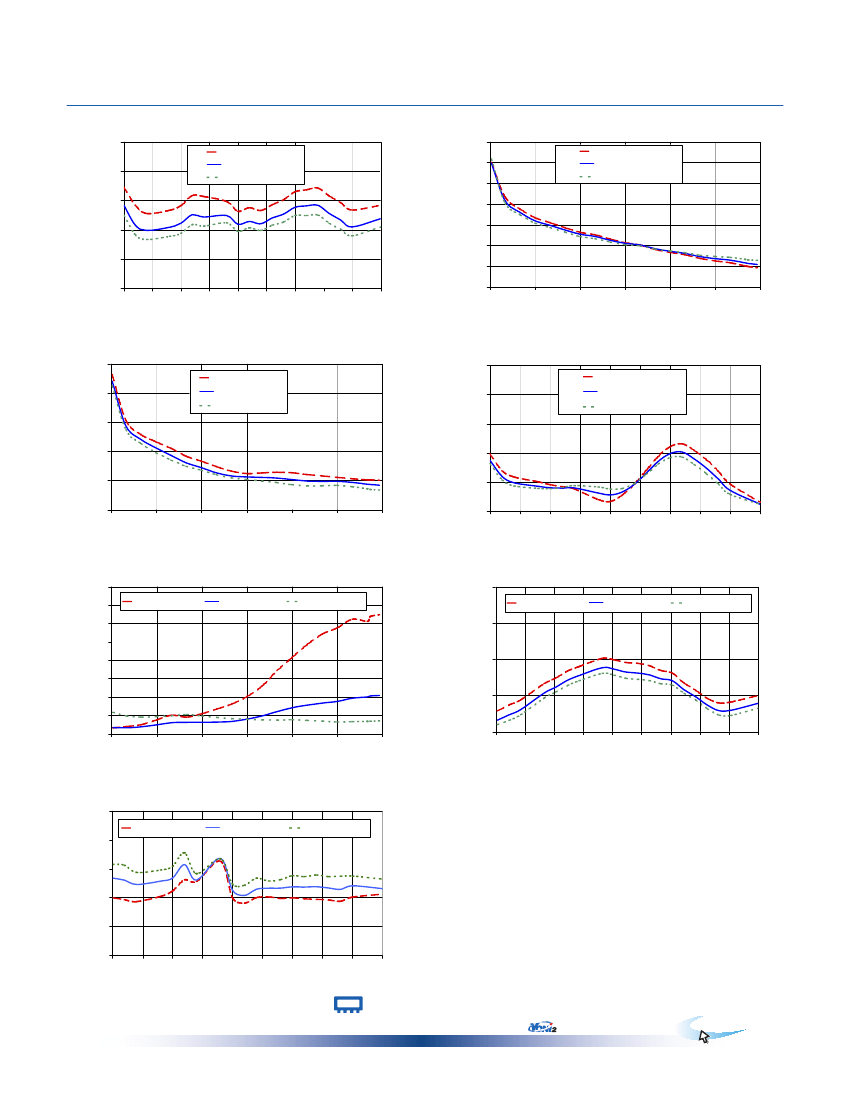

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

RF (OUT)

2630.10

2830.10

3030.10

3430.10

3630.10

3830.10

4030.10

4430.10

4630.10

4830.10

5030.10

5230.10

5430.10

5630.10

5830.10

6030.10

6230.10

6430.10

6630.10

7130.10

+17dBm

7.83

7.15

6.97

7.08

7.22

7.51

7.43

7.48

7.18

7.28

7.20

7.40

7.53

7.76

7.81

7.83

7.55

7.33

7.09

7.37

VSWR

RF Port

(:1)

+17dBm

1.32

1.47

1.61

2.07

2.23

2.42

2.55

2.77

2.72

2.65

2.62

2.57

2.46

2.40

2.16

1.96

1.73

1.58

1.59

1.80

Frequency

(MHz)

Isolation

L-I

(dB)

+17dBm

Isolation

L-R

(dB)

+17dBm

54.09

38.75

34.10

31.17

28.59

26.06

24.40

22.62

21.55

21.20

21.05

20.83

20.30

19.80

19.67

19.71

19.33

18.71

18.63

18.34

VSWR

LO Port

(:1)

+17dBm

1.33

1.32

1.38

1.48

1.60

1.62

1.63

1.67

1.80

1.97

2.20

2.41

2.56

2.67

2.76

2.93

3.00

3.06

3.08

IF (IN)

2600.10

2800.10

3000.10

3400.10

3600.10

3800.10

4000.10

4400.10

4600.10

4800.10

5000.10

5200.10

5400.10

5600.10

5800.10

6000.10

6200.10

6400.10

6600.10

7100.10

30.00

Outline Dimensions (

inch

)

.74

18.80

.37

9.40

.90

22.86

.54

13.72

.122

3.10

.50

12.70

.496

12.60

.04

1.02

.106

2.69

.16

4.06

.29

7.37

10.10

100.10

200.10

300.10

400.10

500.10

600.10

700.10

800.10

900.10

1000.10

1100.10

1200.10

1300.10

1400.10

1500.10

1600.10

1700.10

1720.10

1780.10

69.72

51.66

45.94

41.85

39.69

37.41

35.37

34.28

32.48

31.01

30.18

28.34

27.15

26.11

24.55

23.55

22.84

21.54

21.24

20.77

.122 grams

3.10

20.0

Electrical Schematic

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. OR

M113826

ZX05-U712H+

ED-12902/18

DJ/CP/AM

091007

Page 1 of 2

ZX05-U712H-S+ Related Products

	ZX05-U712H-S+	ZX05-U712H+
Description	Double Balanced Mixer, 10MHz Min, 7100MHz Max, 9.2dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905	Double Balanced Mixer, 10MHz Min, 7100MHz Max, 9.2dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905
Is it Rohs certified?	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	not_compliant	unknown
structure	COMPONENT	COMPONENT
Maximum frequency conversion loss	9.2 dB	9.2 dB
Maximum input power (CW)	20 dBm	20 dBm
Maximum operating frequency	7100 MHz	7100 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	3.08	3.08

Recommended Resources

answering machine circuit

Milk thermostat controller circuit

AFC amplifier

High voltage internally compensated operational amplifier circuit

555 infrared photoelectric switch(1)

Computer motherboard circuit diagram 810 2_31

[Voice and vision module based on ESP32S3] Material unpacking—ESP32S3 BOX: The materials ordered on the 15th of this month arrived on the 29th, which took two weeks. The procurement time is still too long. This time I plan to use ESP32S3 to develop a module similar to openmv...; IC爬虫 DigiKey Technology Zone

PCBA intelligent detection fixture, one-click generation of test reports: Recently, a friend asked me for help, saying that it was difficult to recruit people in the factory, and the orders were overwhelming. He couldn't handle the testing, and asked me for any suggestions....; BFXY Industrial Control Electronics

Mitsubishi FX2N application instruction set: Program flow application instructions 1. FNC ( CJ ) jump instruction 2. FNC01 FNC02 FNC06 ( CALL SRET FEND ) call subroutine 3. FNC03 FNC04 FNC05 ( IRET EI DI ) interrupt processing 4. FNC07 ( WDT ) w...; totopper Industrial Control Electronics

[Low price group purchase 2440 development board] mini2440 + TPO 3.5 inch LCD: Friends who use Mini2440, please join this group: 85824260. Beginners in embedded systems often ask which development board is good. For this reason, we conducted a survey in the forum (https://bbs.ee...; soso Embedded System

How to choose the right inductor in a switching power supply: Inductors are common passive energy storage components in circuits. They play the role of filtering, boosting, and reducing voltage in the design of switching power supplies. In the early stages of so...; 科达嘉电感 Power technology

First look at Nucleo-STM32F446-driving COG LCD screen: I am on vacation at home, and I happen to have a Nucleo-STM32F446 development board. I have been reading materials for two or three days, and I am ready to move away from the routines and write my own...; snoweaglemcu stm32/stm8
