ZHL-1-2W-S

Description
Wide Band High Power Amplifier, 5MHz Min, 500MHz Max, CASE T35
CategoryWireless rf/communication    Radio frequency and microwave
File Size160KB,2 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

ZHL-1-2W-S Overview

Wide Band High Power Amplifier, 5MHz Min, 500MHz Max, CASE T35

ZHL-1-2W-S Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Other featuresSMA
Characteristic impedance50 Ω
structureCOAXIAL
Gain29 dB
Maximum input power (CW)10 dBm
JESD-609 codee0
Maximum operating frequency500 MHz
Minimum operating frequency5 MHz
Maximum operating temperature65 °C
Minimum operating temperature-20 °C
RF/Microwave Device TypesWIDE BAND HIGH POWER
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio2
Amplifier
50Ω
High Power
5 to 500 MHz
Features
• wideband, 5 to 500 MHz
• high power output, +33 dBm min.
• high gain, +29 dB min.
• high IP3, +44 dBm typ.
Coaxial
ZHL-1-2W
Applications
• VHF/UHF
• instrumentation
• laboratory
Connectors
BNC
SMA
N-TYPE
Amplifier Electrical Specifications
MODEL
NO.
FREQUENCY
(MHz)
GAIN
(dB)
Flatness
Max.
±1.0
BNC version shown
CASE STYLE: T35
Model
Price
ZHL-1-2W
$525.00
ZHL-1-2W-S
$535.00
ZHL-1-2W-N
$535.00
DC
POWER
Volt
(V)
Nom.
24
Qty.
(1-9)
(1-9)
(1-9)
MAXIMUM
POWER
(dBm)
Output
(1 dB compr.
Input
min.)
(no damage)
+33
+10
DYNAMIC
RANGE
NF
(dB)
Typ.
12
IP3
(dBm)
Typ.
+44
VSWR
(:1)
f
L
ZHL-1-2W
5
f
U
500
Min.
29
In
2.0
Out
2.0
Current
(A)
Max.
0.9
Open load is not recommended, potentially can cause damage.
With no load derate max input power by 20 dB
Maximum Ratings
Operating Temperature
Storage Temperature
DC Voltage
-20°C to 65°C
-55°C to 100°C
+25V Max.

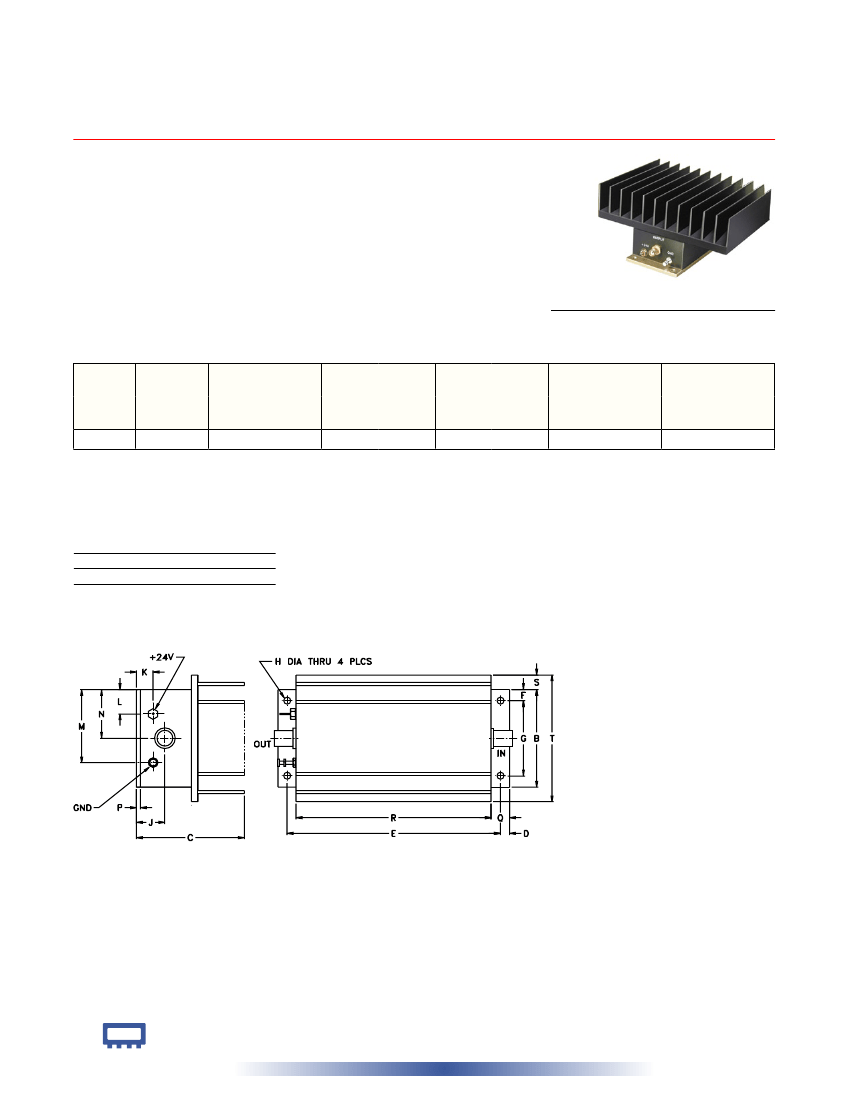

Outline Drawing
Outline Dimensions (
inch
)
mm
A
4.75
120.65
K
.34
8.64
B
2.00
50.80
L
.50
12.70
C
2.37
60.20
M
1.50
38.10
D
E
.19 4.375
4.83 111.13
N
1.00
25.40
P
.12
3.05
F
.23
5.84
G
1.540
39.12
H
.144
3.66
J
.58
14.73
wt
grams
700.0
Q
R
.38
4.00
9.65 101.60
S
T
1.50
5.0
38.10 127.00
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Mini-Circuits
ISO 9001 & ISO 14001
Certified
REV. OR
M98142
ZHL-1-2W
051228
Page 1 of 2
