ZFM-1HB-S+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFM-1HB-S+

ZFM-1HB-S+: DescriptionDouble Balanced Mixer, 2MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size176KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFM-1HB-S+ Overview

Double Balanced Mixer, 2MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18

ZFM-1HB-S+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	8.5 dB
Maximum input power (CW)	23 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	1.9

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

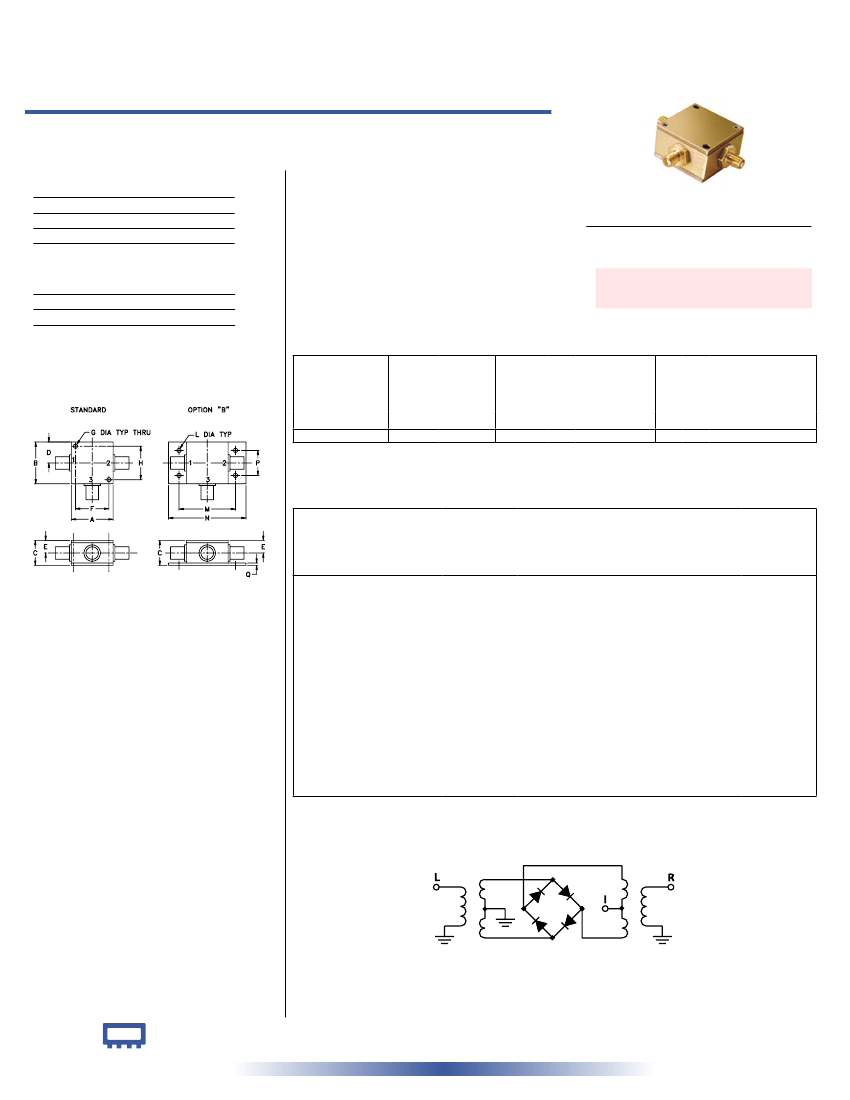

Level 17 (LO Power +17 dBm) 2 to 500 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

200mW

40mA

ZFM-1H+

ZFM-1H

Features

• low conversion loss, 6.14 dB typ.

• good L-R isolation, 40 dB typ, L-I, 35 dB typ.

• rugged shielded case

SMA version shown

CASE STYLE: K18

Connectors Model

Price

BNC

ZFM-1H(+)

$64.95 ea.

SMA

ZFM-1H-S(+)

$69.95 ea.

BRACKET (OPTION “B”)

$2.50

Qty.

(1-9)

(1+)

Applications

• VHF/UHF

• defense & federal communications

• FM radio

• instrumentation

Coaxial Connections

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

2-500

DC-500

1 dB COMP.: +14 dBm typ.

—

6.14

CONVERSION LOSS

(dB)

Mid-Band

0.11

Total

Range

Max. Max.

7.5

8.5

Typ.

LO-RF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

Typ.

LO-IF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

L = low range [f

to 10 f

]

m= mid band [2f

to f

/2]

M = mid range [10 f

to f

/2]

U = upper range [f

/2 to f

]

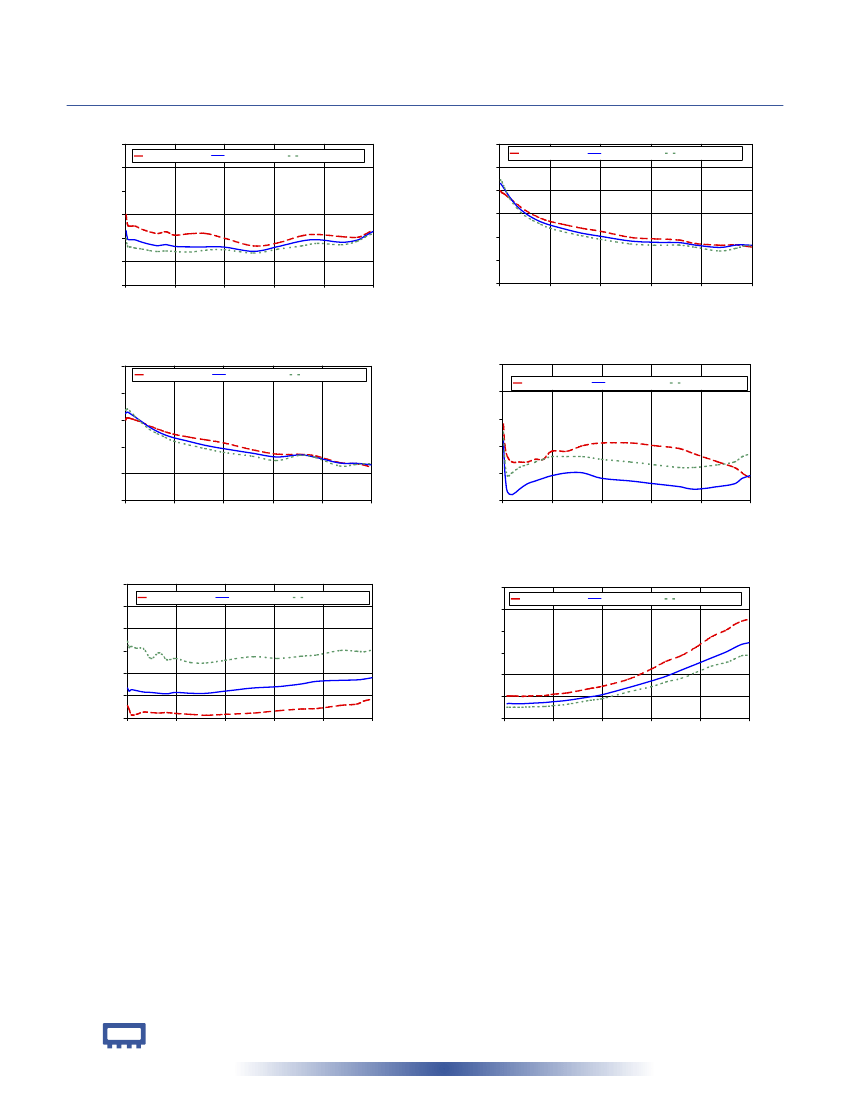

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

32.00

35.00

40.00

50.00

64.13

80.00

96.26

52.33

70.00

100.52

132.65

170.00

229.04

277.24

325.43

357.56

405.76

437.89

453.95

470.00

+17dBm

6.30

5.95

5.92

5.91

5.81

5.72

5.66

5.71

5.63

5.61

5.60

5.42

5.62

5.86

5.92

5.81

5.90

6.08

6.27

Isolation

L-R

(dB)

+17dBm

62.98

62.06

60.47

57.14

53.27

50.24

48.03

46.33

44.99

43.18

41.46

40.12

38.10

37.54

37.41

36.35

35.35

36.34

36.44

36.27

Isolation

L-I

(dB)

+17dBm

52.28

52.79

52.35

51.13

49.30

47.27

45.61

44.27

43.26

41.91

40.45

39.22

37.51

36.13

36.94

35.99

33.91

33.81

33.54

33.21

VSWR RF

Port

(:1)

+17dBm

1.22

1.10

1.03

1.02

1.04

1.06

1.07

1.08

1.09

1.10

1.08

1.07

1.06

1.05

1.04

1.05

1.06

1.08

1.09

VSWR LO

Port

(:1)

+17dBm

1.67

1.60

1.63

1.61

1.58

1.57

1.55

1.54

1.57

1.55

1.60

1.67

1.70

1.76

1.82

1.84

1.85

1.87

1.90

2.00

5.00

10.00

20.00

34.13

Outline Dimensions (

inch

)

1.25

31.75

1.25

31.75

.75

19.05

.125

3.18

.63

16.00

1.688

42.88

.38

9.65

2.18

55.37

1.00

25.40

.75

19.05

.125

3.18

1.000

25.40

50.00

66.26

82.33

100.00

130.52

162.65

200.00

259.04

307.24

355.43

387.56

435.76

467.89

483.95

500.00

.07 grams

1.78

70.0

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. A

M98898

ZFM-1H

DJ/TD/CP/AM

060721

Page 1 of 2

ZFM-1HB-S+ Related Products

	ZFM-1HB-S+	ZFM-1H+	ZFM-1HB+	ZFM-1H-S+
Description	Double Balanced Mixer, 2MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18	Double Balanced Mixer, 2MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18	Double Balanced Mixer, 2MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18	Double Balanced Mixer, 2MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	not_compliant	not_compliant	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	SMA	BNC	BNC	SMA
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum frequency conversion loss	8.5 dB	8.5 dB	8.5 dB	8.5 dB
Maximum input power (CW)	23 dBm	23 dBm	23 dBm	23 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	2 MHz	2 MHz	2 MHz	2 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	1.9	1.9	1.9	1.9
