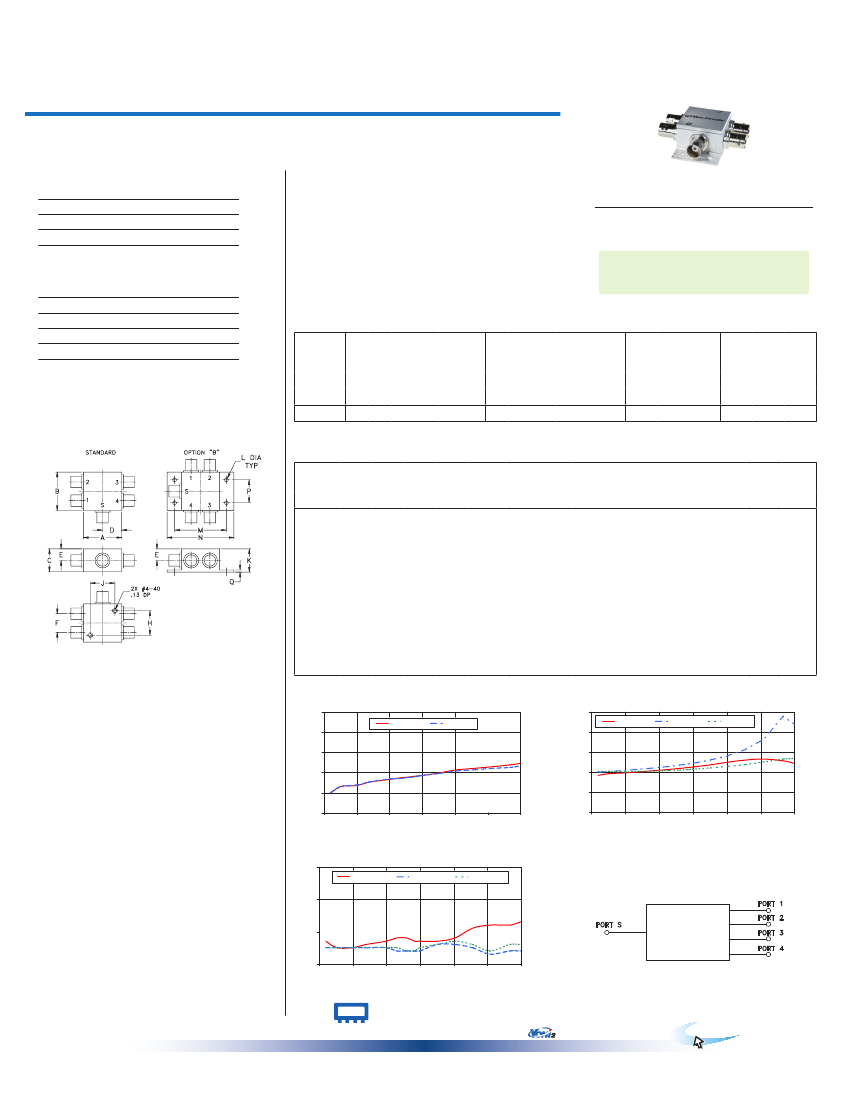

Preview

ZFSC-4-3-S+: DescriptionCombiner, 10MHz Min, 300MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, CASE G15; CategoryWireless rf/communication Radio frequency and microwave; File Size304KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFSC-4-3-S+ Overview

Combiner, 10MHz Min, 300MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, CASE G15

ZFSC-4-3-S+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA, ISOLATION-MIN (DB):28
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.13

Preview

Download Datasheet

View All

Power Splitter/Combiner

4 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

Coaxial

ZFSC-4-3+

50Ω

10 to 300 MHz

Features

• wideband, 10 to 300 MHz

• high isolation, 38 dB typ.

• rugged shielded case

BNC version shown

Maximum Ratings

-55°C to 100°C

1W max.

0.250W max.

Permanent damage may occur if any of these limits are exceeded.

Applications

CASE STYLE: G15

Connectors Model

Price

BNC

ZFSC-4-3-BNC+

$78.95

SMA

ZFSC-4-3-S+

$78.95

BRACKET (OPTION "B")

$5.00

Qty.

(1-9)

(1+)

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

PORT 4

S

1

2

3

4

• VHF

• radio communication

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Electrical Specifications

FREQ.

RANGE

(MHz)

L

f

L

-f

U

10-300

Typ. Min.

32

28

ISOLATION

(dB)

M

Typ. Min.

38

30

U

Typ. Min.

38

30

INSERTION LOSS (dB)

ABOVE 6.0 dB

L

Typ. Max.

0.5

0.8

M

Typ. Max.

0.6

0.9

U

Typ. Max.

0.9

1.2

PHASE

UNBALANCE

(Degrees)

L

Max.

4

M

Max.

6

U

Max.

8

AMPLITUDE

UNBALANCE

(dB)

L

Max.

0.1

M

Max.

0.1

U

Max.

0.2

Outline Drawing

L = low range [f

L

to 10 f

L

]

M = mid range [10 f

L

to f

U

/2]

U= upper range [f

U

/2 to f

U

]

Typical Performance Data

Freq.

(MHz)

S-1

10.00

26.00

50.00

70.00

100.00

115.00

130.00

142.00

150.00

176.00

202.00

228.00

254.00

284.00

300.00

6.39

6.52

6.54

6.61

6.66

6.69

6.71

6.73

6.74

6.79

6.85

6.88

6.91

6.95

6.98

Total Loss

1

(dB)

S-2

6.41

6.54

6.55

6.62

6.67

6.69

6.71

6.73

6.79

6.83

6.85

6.88

6.92

6.93

S-3

6.40

6.52

6.55

6.61

6.67

6.68

6.70

6.72

6.74

6.78

6.83

6.85

6.88

6.90

6.93

S-4

6.39

6.53

6.55

6.61

6.67

6.69

6.72

6.74

6.75

6.80

6.86

6.89

6.92

6.96

7.00

Amp.

Unbal.

(dB)

0.02

0.01

0.02

0.03

0.04

0.06

0.07

Isolation

(dB)

1-2

34.67

35.36

35.67

36.06

36.69

37.05

37.44

37.78

38.02

38.89

39.95

40.79

41.21

40.46

39.45

1-4

35.91

36.25

36.63

37.13

37.84

38.23

38.74

39.18

39.51

40.81

42.54

45.03

49.09

58.31

55.01

3-4

36.23

36.26

36.12

36.24

36.46

36.65

36.80

36.97

37.12

37.62

38.25

38.99

40.00

41.18

41.49

Phase VSWR VSWR VSWR VSWR VSWR

Unbal.

S

1

2

3

4

(deg.)

0.09

0.18

0.27

0.43

0.67

0.75

0.90

0.94

0.98

1.14

1.25

1.42

1.62

1.83

1.79

1.07

1.05

1.06

1.07

1.08

1.07

1.08

1.11

1.12

1.13

1.05

1.04

1.06

1.05

1.03

1.04

ZFSC-4-3+

ISOLATION

1-2(dB)

1-4(dB)

3-4(dB)

1.05

1.04

1.06

1.07

1.05

1.04

1.05

1.06

1.05

1.04

1.05

1.06

1.07

1.06

1.04

1.06

1.05

1.04

1.05

1.06

1.07

1.06

1.04

1.05

Outline Dimensions (

inch

)

mm

A

B

C

D

1.25

.75

.63

31.75 31.75 19.05 16.00

J

K

.80

.76

20.32 19.30

E

F

.38

.61

9.65 15.49

G

H

--

.80

-- 20.32

Q

wt

.07 grams

1.78

85.0

1. Total Loss = Insertion Loss + 6dB splitter loss.

ZFSC-4-3+

TOTAL LOSS

S-1(dB)

S-3(dB)

TOTAL LOSS (dB)

ISOLATION (dB)

L

M

N

P

.125 1.688

2.18

.75

3.18 42.88 55.37 19.05

8.0

7.6

7.2

6.8

6.4

6.0

0

50

100

60

52

44

36

28

20

150

200

250

300

0

50

100

150

200

250

300

FREQUENCY (MHz)

ZFSC-4-3+

VSWR

1.3

#S-VSWR

1.2

#1-VSWR

#3-VSWR

FREQUENCY (MHz)

electrical schematic

VSWR

1.1

1.0

0

50

100

150

200

250

300

FREQUENCY (MHz)

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

®

For detailed performance specs

& shopping online see web site

®

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

2.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

3.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. B

M127604

ZFSC-4-3+

HY/TD/CP/AM

120306
