ZFSC-2-2B-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFSC-2-2B-S

ZFSC-2-2B-S: DescriptionCombiner, 10MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size77KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFSC-2-2B-S Overview

Combiner, 10MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, CASE K18

ZFSC-2-2B-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.2 dB
JESD-609 code	e0
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

Coaxial

Power Splitter/Combiner

2 Way-0° 50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

1W max.

0.125W max.

ZFSC-2-2

10 to 1000 MHz

Features

•

wideband, 10 to 1000 MHz

low insertion loss, 0.4 dB typ.

excellent isolation, 28 dB typ.

excellent amplitude unbalance, 0.1 dB typ.

excellent phase unbalance, 0.5 deg. typ.

very good return loss, VSWR, 1.2:1 typ.

rugged shielded case

BNC version shown

CASE STYLE: K18

Connectors

Model

BNC

ZFSC-2-2

SMA

ZFSC-2-2-S

N-TYPE

ZFSC-2-2-N

BRACKET (OPTION “B”)

Price

$51.95

$56.95

$2.50

Qty.

(1-9)

(1+)

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

• cellular

• VHF/UHF

• instrumentation

FREQ.

RANGE

(MHz)

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 3.0 dB

Splitter Electrical Specifications

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.15

Max.

0.15

Max.

0.30

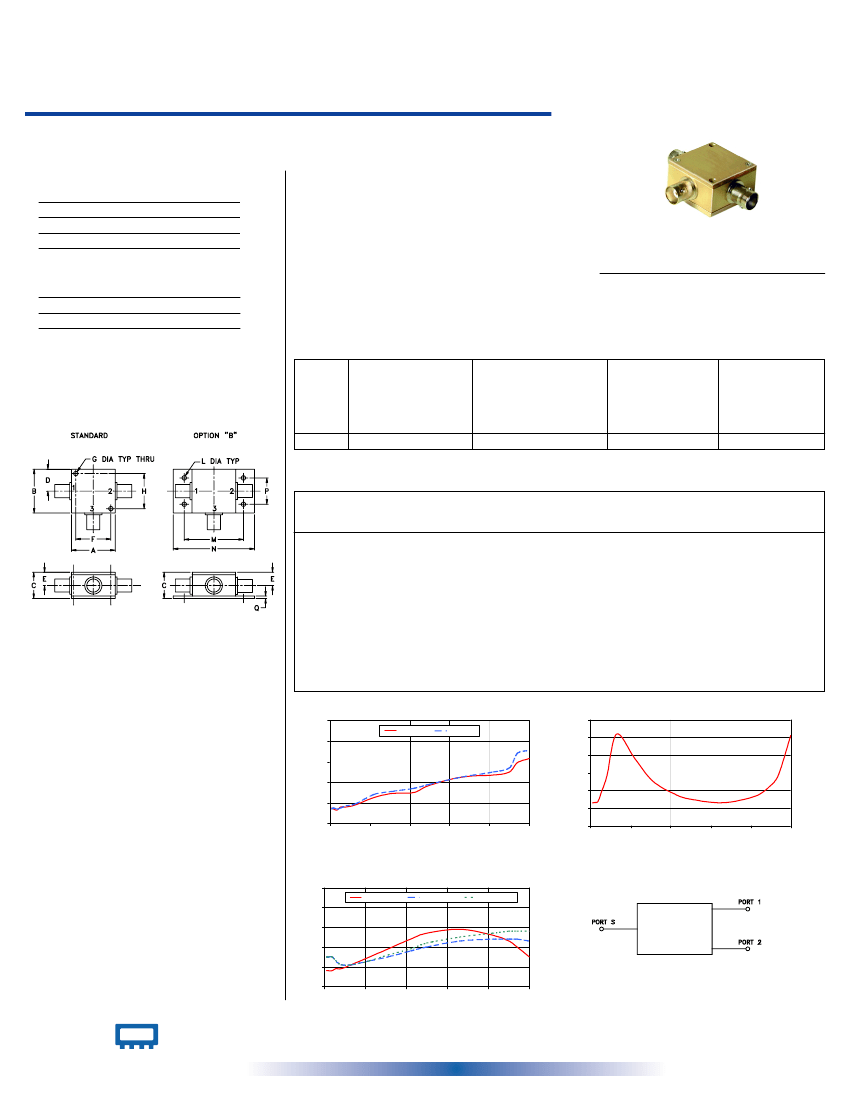

Outline Drawing

-f

10-1000

Typ. Min. Typ. Min. Typ. Min. Typ. Max.

0.2

0.5

Typ. Max. Typ. Max.

0.5

1.0

0.9

1.2

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U = upper range [f

/2 to f

]

Typical Performance Data

Frequency

(MHz)

10.00

19.00

37.00

55.00

82.00

130.00

220.00

310.00

420.00

500.00

660.00

820.00

900.00

940.00

1000.00

Insertion Loss

(dB)

S-1

S-2

3.15

3.14

3.13

3.16

3.18

3.25

3.29

3.30

3.37

3.45

3.47

3.50

3.59

3.63

3.14

3.15

3.14

3.15

3.17

3.19

3.28

3.31

3.34

3.38

3.45

3.50

3.54

3.68

3.71

Amplitude

Unbalance

(dB)

0.01

0.00

0.01

0.03

0.02

0.04

0.01

0.00

0.03

0.04

0.08

Isolation

(dB)

26.42

26.49

26.85

29.63

34.12

45.87

39.11

32.63

28.93

27.48

26.48

28.28

31.36

34.52

45.49

Phase

Unbalance

(deg.)

0.03

0.01

0.03

0.06

0.00

0.03

0.15

0.22

0.37

0.31

0.87

0.52

0.51

VSWR

1.08

1.09

1.11

1.15

1.19

1.24

1.27

1.29

1.26

1.23

1.20

1.15

VSWR

1.15

1.13

1.11

1.13

1.15

1.18

1.20

1.23

1.24

1.23

VSWR

1.15

1.13

1.11

1.13

1.16

1.19

1.22

1.25

1.27

1.28

Outline Dimensions (

inch

)

1.25

31.75

1.25

31.75

.75

19.05

.125

3.18

.63

16.00

1.688

42.88

.38

9.65

2.18

55.37

1.00

25.40

.75

19.05

.125

3.18

1.000

25.40

INSERTION LOSS (dB)

ZFSC-2-2

INSERTION LOSS

4.0

S-1(dB)

3.8

3.6

3.4

3.2

3.0

200

400

600

800

1000

FREQUENCY (MHz)

ZFSC-2-2

VSWR

1.5

#S-VSWR

1.4

VSWR

1.3

1.2

1.1

1.0

200

400

600

800

1000

FREQUENCY (MHz)

#1-VSWR

#2-VSWR

S-2(dB)

ISOLATION (dB)

200

ZFSC-2-2

ISOLATION

.07 grams

1.78

70.0

For option B with N-type connectors, dimension “C” increases to 0.94 inches.

400

600

800

1000

FREQUENCY (MHz)

electrical schematic

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M94482

ZFSC-2-2

HY/TD/CP

040901

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified
