ZSC-3-2BR: DescriptionCombiner, 0.01MHz Min, 30MHz Max, 0.75dB Insertion Loss-Max, CASE P25; CategoryWireless rf/communication Radio frequency and microwave; File Size138KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZSC-3-2BR Overview

Combiner, 0.01MHz Min, 30MHz Max, 0.75dB Insertion Loss-Max, CASE P25

ZSC-3-2BR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	BNC, ISOLATION-MIN (DB):25
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.75 dB
JESD-609 code	e0
Maximum operating frequency	30 MHz
Minimum operating frequency	0.01 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.19

Preview

Download Datasheet

View All

Coaxial

Power Splitter/Combiner

3 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

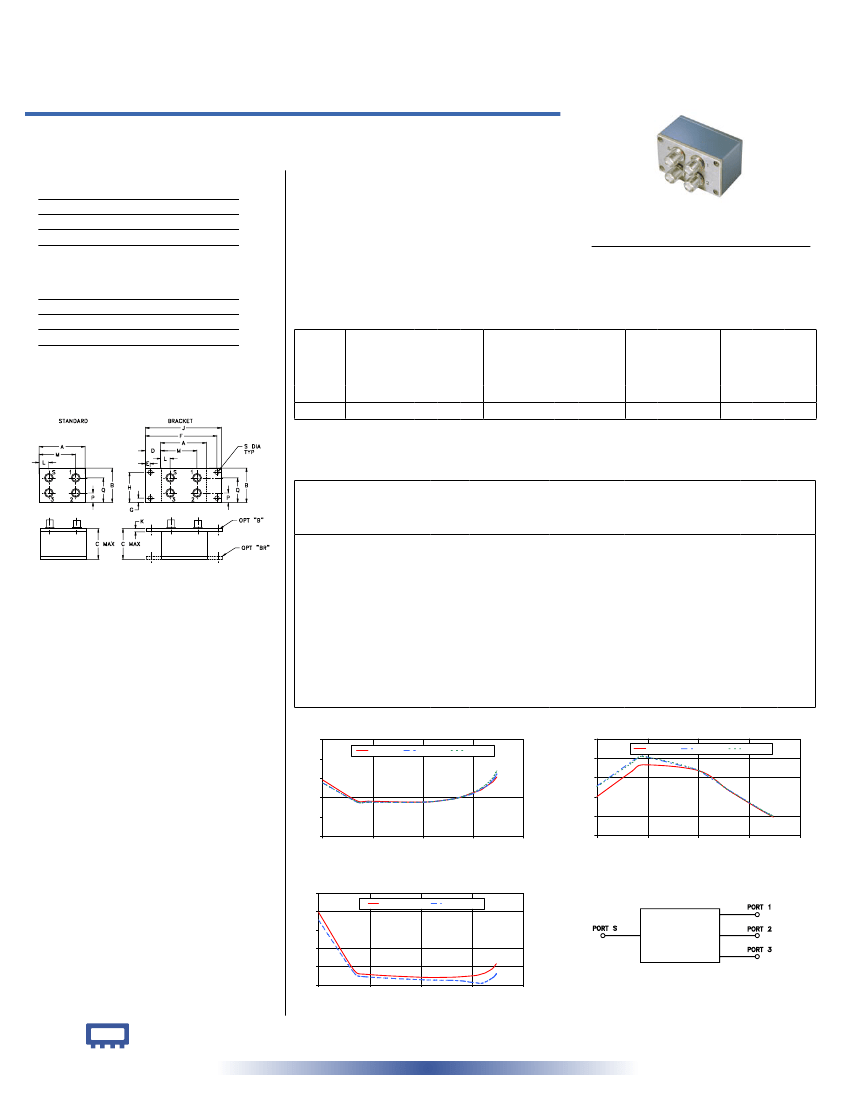

ZSC-3-2

50Ω

-55°C to 100°C

1W max.

0.375W max.

0.01 to 30 MHz

Features

• low insertion loss, .015 dB typ.

• high isolation, 40 dB typ.

• excellent amplitude unbalance, 0.1 dB typ.

• excellent phase unbalance, 0.5 deg. typ.

• rugged shielded case

Maximum Ratings

CASE STYLE: P25

Connectors Model

BNC

ZSC-3-2

BRACKET (OPTION "B")

BRACKET (OPTION "BR")

Price

$61.95

$5.00

$1.50

Qty.

(1-9)

(1+)

Coaxial Connections

SUMPORT

PORT 1

PORT 2

PORT 3

S

1

2

3

Applications

• HF

• amateur radio

• communication system

FREQ.

RANGE

(MHz)

L

f

L

-f

U

0.01-30

Splitter Electrical Speciﬁcations

ISOLATION

(dB)

M

U

INSERTION LOSS (dB)

ABOVE 4.8 dB

L

M

U

PHASE

UNBALANCE

(Degrees)

L

Max.

1

M

Max.

2

U

Max.

4

AMPLITUDE

UNBALANCE

(dB)

L

Max.

0.2

M

Max.

0.3

U

Max.

0.4

Outline Drawing

Typ. Min Typ. Min Typ. Min

35

30

40

25

30

25

Typ. Max. Typ. Max. Typ. Max.

0.25 0.45 0.15 0.45 0.45 0.75

L = low range [f

L

to 10 f

L

]

M = mid range [10 f

L

to f

U

/2]

U= upper range [f

U

/2 to f

U

]

At low range frequency band (f

L

to 10 f

L

), linearly derate maximum input power by 13 dB.

Typical Performance Data

Freq.

(MHz)

Insertion Loss

(dB)

S-1

0.01

0.05

0.08

1.00

3.70

6.40

9.10

12.00

15.00

18.00

22.00

25.00

27.00

29.00

30.00

5.08

4.86

4.85

4.88

4.91

4.94

4.96

4.98

5.01

5.04

5.06

5.08

5.10

5.11

Amp.

Unbal.

(dB)

1-2

0.03

0.01

0.00

0.01

0.02

0.03

0.04

0.05

0.06

39.98

53.25

56.50

53.52

43.77

39.85

37.40

35.48

33.96

32.75

31.46

30.64

30.16

29.70

29.48

Isolation

(dB)

1-3

45.28

58.54

61.15

53.82

44.01

40.14

37.69

35.76

34.24

33.02

31.70

30.87

30.36

29.88

29.65

Phase VSWR VSWR VSWR VSWR

Unbal.

S

1

2

3

(deg.)

2-3

45.16

57.54

60.78

53.61

43.84

40.01

37.59

35.70

34.22

33.05

31.79

31.02

30.57

30.13

29.91

0.66

0.04

0.00

0.02

0.03

0.04

0.06

0.09

0.11

0.14

0.18

0.22

0.24

0.26

0.27

2.19

1.23

1.17

1.12

1.13

1.14

1.15

1.17

1.19

1.23

1.26

1.29

1.33

1.34

ZSC-3-2

ISOLATION

S-2

5.05

4.85

4.88

4.91

4.93

4.96

4.99

5.01

5.05

5.08

5.10

5.13

5.14

S-3

5.05

4.85

4.88

4.91

4.94

4.97

5.00

5.03

5.07

5.10

5.13

5.16

5.17

2.06

1.19

1.13

1.08

1.07

1.06

1.04

1.03

1.02

1.04

1.08

1.11

1.13

1.16

1.18

2.06

1.19

1.13

1.08

1.07

1.06

1.04

1.03

1.05

1.08

1.12

1.14

1.17

1.18

2.11

1.19

1.14

1.09

1.07

1.06

1.05

1.04

1.05

1.09

1.12

1.14

1.17

1.18

Outline Dimensions (

inch

)

mm

A

2.25

57.15

J

3.25

82.55

B

1.38

35.05

K

.10

2.54

C

1.24

31.50

L

.78

19.81

D

.50

12.70

M

1.47

37.34

E

.150

3.81

N

--

F

3.100

78.74

P

.38

9.65

G

.138

3.51

Q

1.00

25.40

H

1.238

31.45

S

.150

3.81

wt

grams

86.0

ZSC-3-2

INSERTION LOSS

5.5

INSERTION LOSS (dB)

70

S-1(dB)

S-2(dB)

S-3(dB)

1-2 (dB)

ISOLATION (dB)

60

50

40

30

20

0.01

1-3 (dB)

2-3 (dB)

5.3

5.1

4.9

4.7

4.5

0.01

0.1

1

FREQUENCY (MHz)

10

100

0.1

1

FREQUENCY (MHz)

10

100

ZSC-3-2

VSWR

2.5

2.2

VSWR

1.9

1.6

1.3

1.0

0.01

#S-VSWR

#1-VSWR

electrical schematic

0.1

1

FREQUENCY (MHz)

10

100

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M94793

ZSC-3-2

HY/TD/CP

060906

Mini-Circuits

ISO 9001 & ISO 14001

Certified
