ZX05-U742MH-S+ datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZX05-U742MH-S+

Preview

ZX05-U742MH-S+: DescriptionDouble Balanced Mixer, 0.1MHz Min, 7400MHz Max, 9.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905; CategoryWireless rf/communication Radio frequency and microwave; File Size252KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZX05-U742MH-S+ Overview

Double Balanced Mixer, 0.1MHz Min, 7400MHz Max, 9.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905

ZX05-U742MH-S+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SMA
structure	COMPONENT
Maximum frequency conversion loss	9.9 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	7400 MHz
Minimum operating frequency	0.1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	4.73

Preview

Download Datasheet

View All

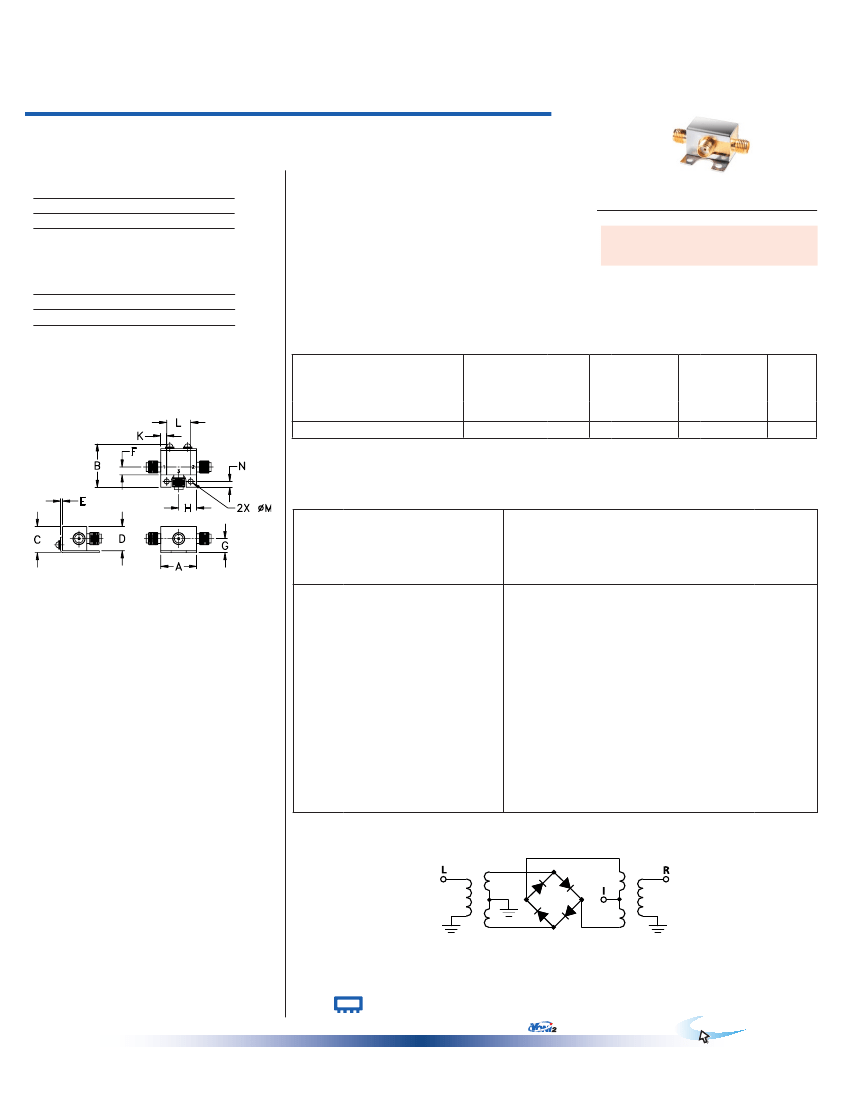

Frequency Mixer

Level 13 (LO Power +13 dBm) 0.1 to 7400 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

IF Power

-40°C to 85°C

-55°C to 100°C

50mW

Up Converter

ZX05-U742MH+

Features

Permanent damage may occur if any of these limits are exceeded.

• up converter mixer

• low conversion loss, 8.3 dB typ.

• high IP3, 20 dBm typ.

• rugged construction

• small size

• protected by US patents, 6,790,049 and 7,027,795

CASE STYLE: FL905

Connectors Model

SMA

ZX05-U742MH-S+

Price

$47.95

Qty.

(1-24)

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Coaxial Connections

LO

IF (IN)

RF (OUT)

2

1

3

Applications

• instrumentation

• wide band receivers

• ISM

Electrical Specifications

Outline Drawing

IF (IN)

0.1-3300

FREQUENCY

(MHz)

CONVERSION

LOSS*

(dB)

RF (OUT)

2300-7400

Typ.

8.3

LO-IF (IN)

ISOLATION

(dB)

Max.

9.9

Typ. Min.

23

10

LO-RF (OUT)

ISOLATION

(dB)

Typ. Min.

25

11

IP3

at center

band

(dBm)

Typ.

20

LO

2300-7400

σ

**

0.2

1 dB COMPR. +9 dBm typ.

* Conversion Loss at 4075 MHz RF

**

σ

is a standard deviation

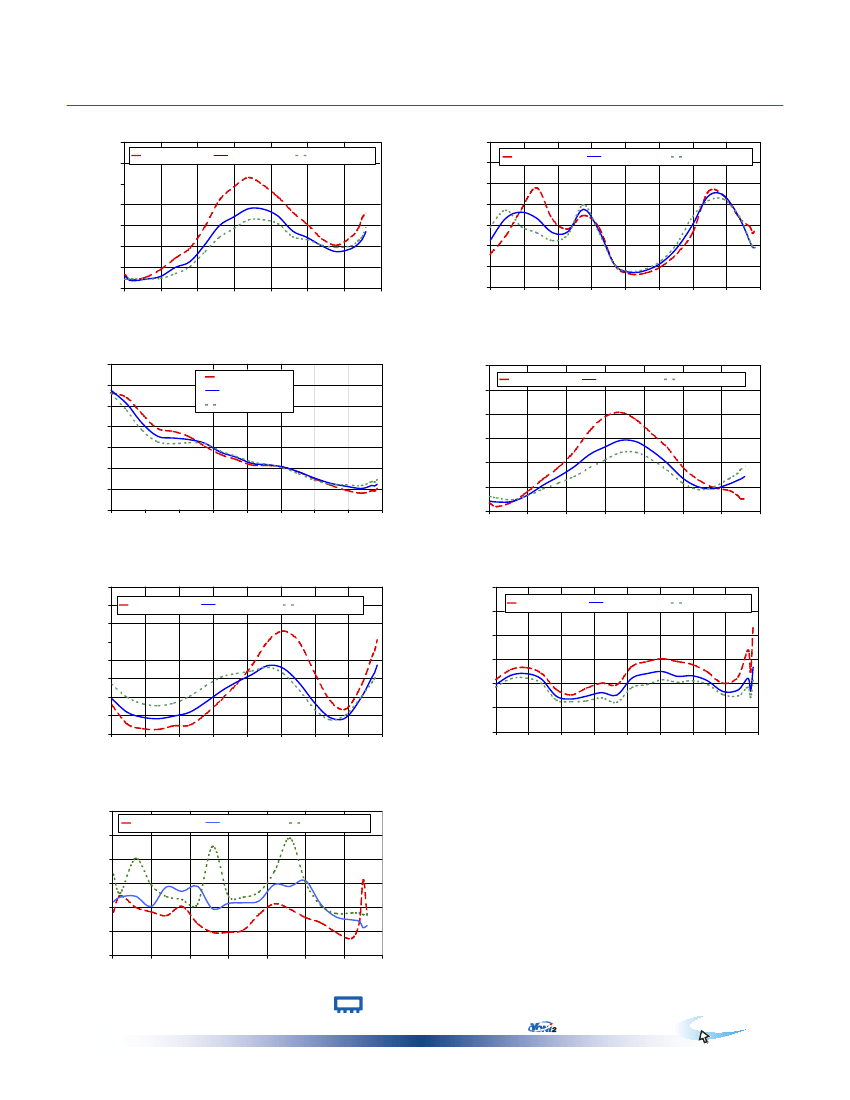

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

+13dBm

5.57

5.36

5.43

5.56

5.99

6.27

7.07

7.99

8.41

8.80

8.78

8.45

7.73

7.42

7.02

6.74

6.89

7.13

7.33

7.70

2300.10

2600.10

2900.10

3200.10

3500.10

3800.10

4100.10

4400.10

4700.10

5000.10

5300.10

5600.10

5900.10

6200.10

6500.10

6800.10

7100.10

7300.10

7350.10

7400.10

Freq.

(MHz)

Isolation

L-I

(dB)

LO

+13dBm

21.13

26.47

28.02

26.53

23.07

23.29

28.75

23.50

15.33

13.50

13.95

15.79

19.40

24.99

31.86

32.02

26.63

20.91

19.57

19.47

Isolation

L-R

(dB)

LO

+13dBm

38.74

35.51

30.76

27.62

27.19

26.81

25.94

23.80

22.60

21.09

20.80

20.24

19.04

17.57

16.35

15.61

15.09

15.81

15.70

16.10

VSWR

LO Port

(:1)

LO

+13dBm

2.92

2.17

1.89

1.82

1.96

2.17

2.69

3.31

3.80

4.23

4.70

4.55

3.76

2.67

1.87

1.88

3.00

4.08

4.32

4.73

VSWR

RF (OUT)

Port

(:1)

LO

+13dBm

2.95

3.33

3.40

3.19

2.47

2.35

2.47

2.61

2.51

3.21

3.40

3.49

3.29

3.31

3.10

2.67

2.72

3.21

2.68

3.67

IF (IN)

10.10

100.10

300.10

500.10

700.10

LO

4085.10

4175.10

4375.10

4575.10

4775.10

4975.10

5175.10

5375.10

5575.10

5775.10

5975.10

6175.10

6375.10

6575.10

6775.10

6975.10

7175.10

7275.10

7325.10

7375.10

RF (OUT)

4075.00

Outline Dimensions (

inch

)

mm

A

.74

18.80

H

.37

9.40

B

.90

22.86

J

--

C

.54

13.72

K

.122

3.10

D

.50

12.70

L

.496

12.60

E

.04

1.02

M

.106

2.69

F

.16

4.06

G

.29

7.37

900.10

1100.10

1300.10

1500.10

1700.10

1900.10

2100.10

2300.10

2500.10

2700.10

2900.10

3100.10

3200.10

3250.10

3300.10

N

wt

.122 grams

3.10

20.0

Electrical Schematic

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

®

For detailed performance specs

& shopping online see web site

®

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

2.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

3.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. OR

M113826

ZX05-U742MH+

ED-12902/19

DJ/CP/AM

091007

Page 1 of 2

ZX05-U742MH-S+ Related Products

	ZX05-U742MH-S+	ZX05-U742MH+
Description	Double Balanced Mixer, 0.1MHz Min, 7400MHz Max, 9.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905	Double Balanced Mixer, 0.1MHz Min, 7400MHz Max, 9.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905
Is it Rohs certified?	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	not_compliant	unknown
structure	COMPONENT	COMPONENT
Maximum frequency conversion loss	9.9 dB	9.9 dB
Maximum input power (CW)	17 dBm	17 dBm
Maximum operating frequency	7400 MHz	7400 MHz
Minimum operating frequency	0.1 MHz	0.1 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Maximum voltage standing wave ratio	4.73	4.73

Recommended Resources
