AP3216SYT Overview

Single Color LED, Super Bright Yellow, Yellow Transparent, 2mm,

AP3216SYT Parametric

Parameter Name	Attribute value
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
color	SUPER BRIGHT YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	YELLOW TRANSPARENT
Nominal luminous intensity	60 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	595 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	120 deg

Preview

Download Datasheet

View All

Kingbright

Features

3.2x1.6mm SMD CHIP LED LAMPS

AP3216

Package Dimensions

3.2mmx1.6mm SMT LED. 1.1mm THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACKLIGHT AND INDICATOR.

VARIOUS COLORS AND LENS TYPES AVAILABLE.

Description

The Bright Red source color devices are made with Gallium

Phosphide Red Light Emitting Diode.

The Super Bright Green source color devices are made with

Gallium Phosphide Green Light Emitting Diode.

The High Efficiency Red source color devices are made with

Gallium Arsenide Phosphide on Gallium Phosphide Orange

Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diodes.

The Super Bright Yellow source color devices are made with

DH InGaAlP on GaAs substrate Light Emitting Diode.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0

.1(0.004") unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subjected to change without notice.

Selection Guide

Part No.

AP3216HD

AP3216HC

AP3216HT

AP3216ID

AP3216EC

AP3216IT

AP3216YD

AP3216YC

AP3216YT

AP3216SRD

AP3216SRC

AP3216SRT

AP3216SGD

AP3216SGC

AP3216SGT

AP32162SYD

AP3216SYC

AP3216SYT

Dice

BRIGHT RED (GaP)

HIGH EFFICIENCY RED (GaAsP/GaP)

YELLOW (GaAsP/GaP)

SUPER BRIGHT RED (GaAlAs)

SUPER BRIGHT GREEN (GaP)

SUPER BRIGHT YELLOW (InGaAlP)

Lens Type

RED DIFFUSED

WATER CLEAR

RED TRAS.

RED DIFFUSED

WATER CLEAR

RED TRANS.

YELLOW DIFFUSED

WATER CLEAR

YELLOW TRANS.

RED DIFFUSED

WATER CLEAR

RED TRANS.

GREEN DIFFUSESD

WATER CLEAR

GREEN TRNS.

YELLOW DIFFUSESD

WATER CLEAR

YELLOW TRNS.

Iv (mcd)

@ 20 mA

Min.

0.8

3.2

Typ.

1.25

12.5

Viewing

Angle

2θ1/2

120°

Note:

1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

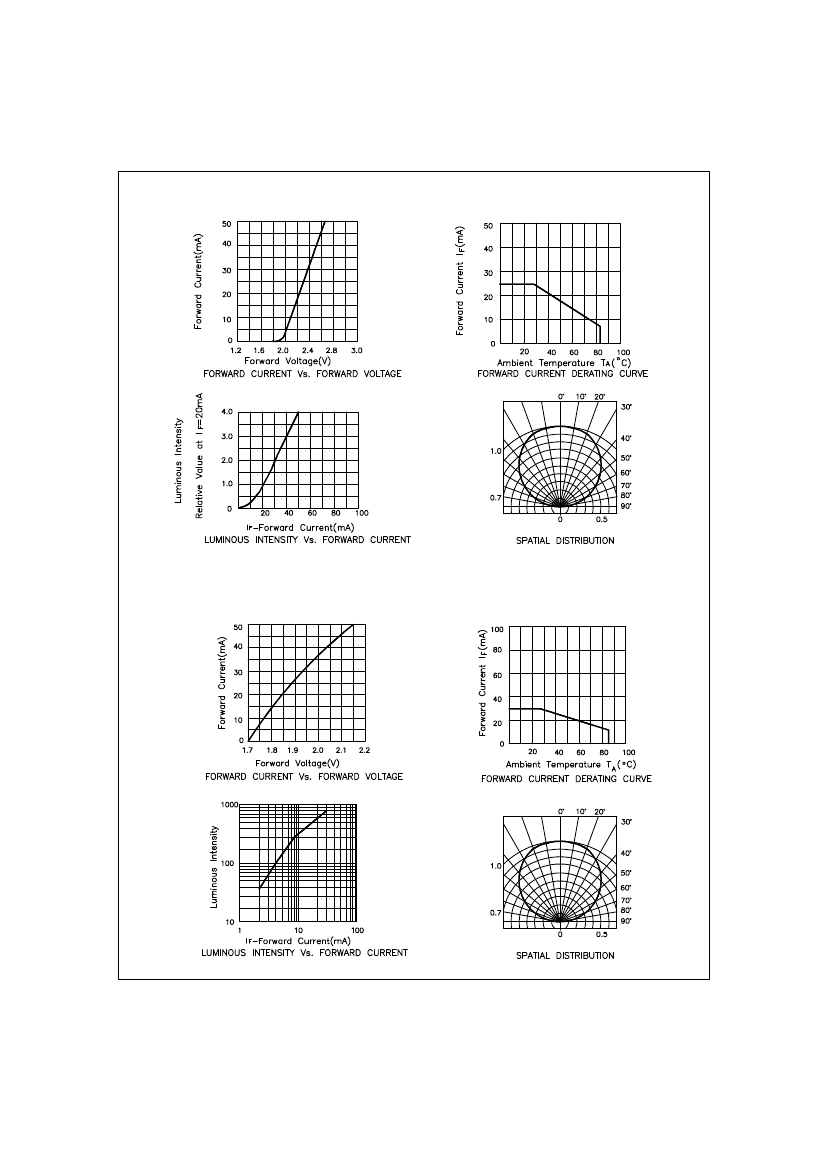

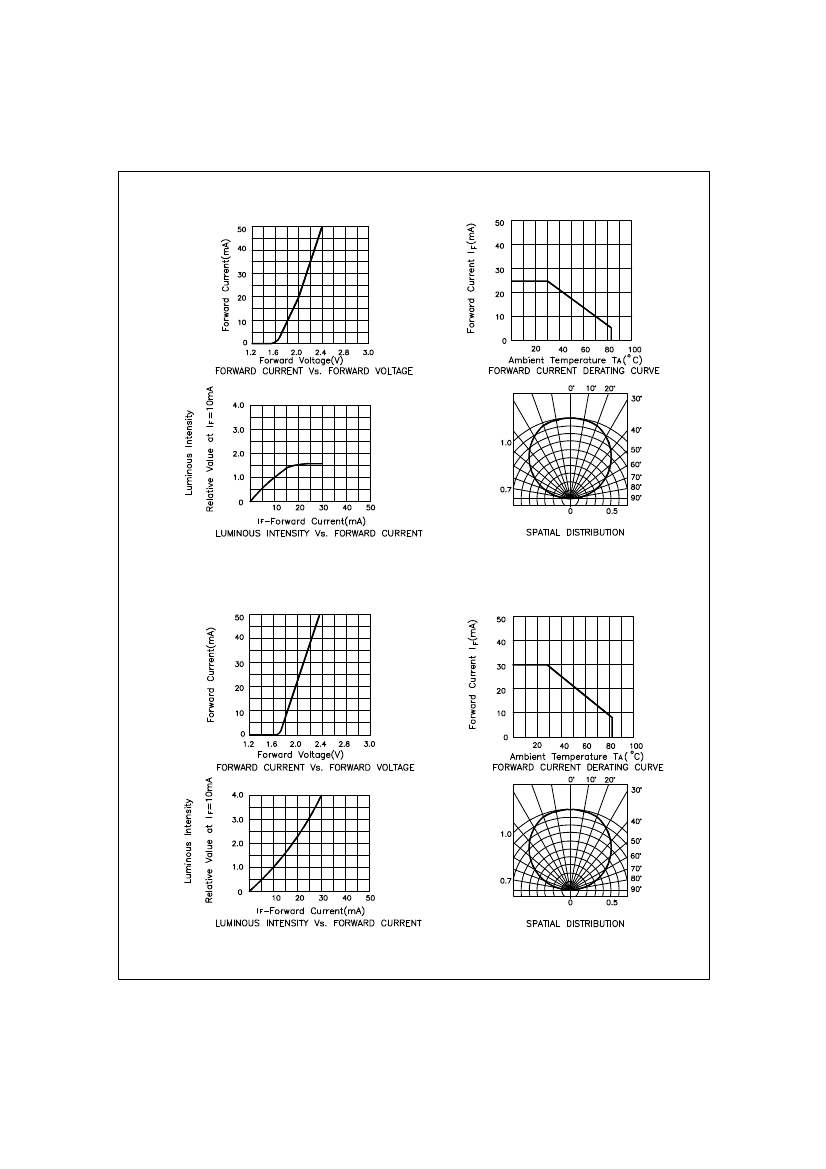

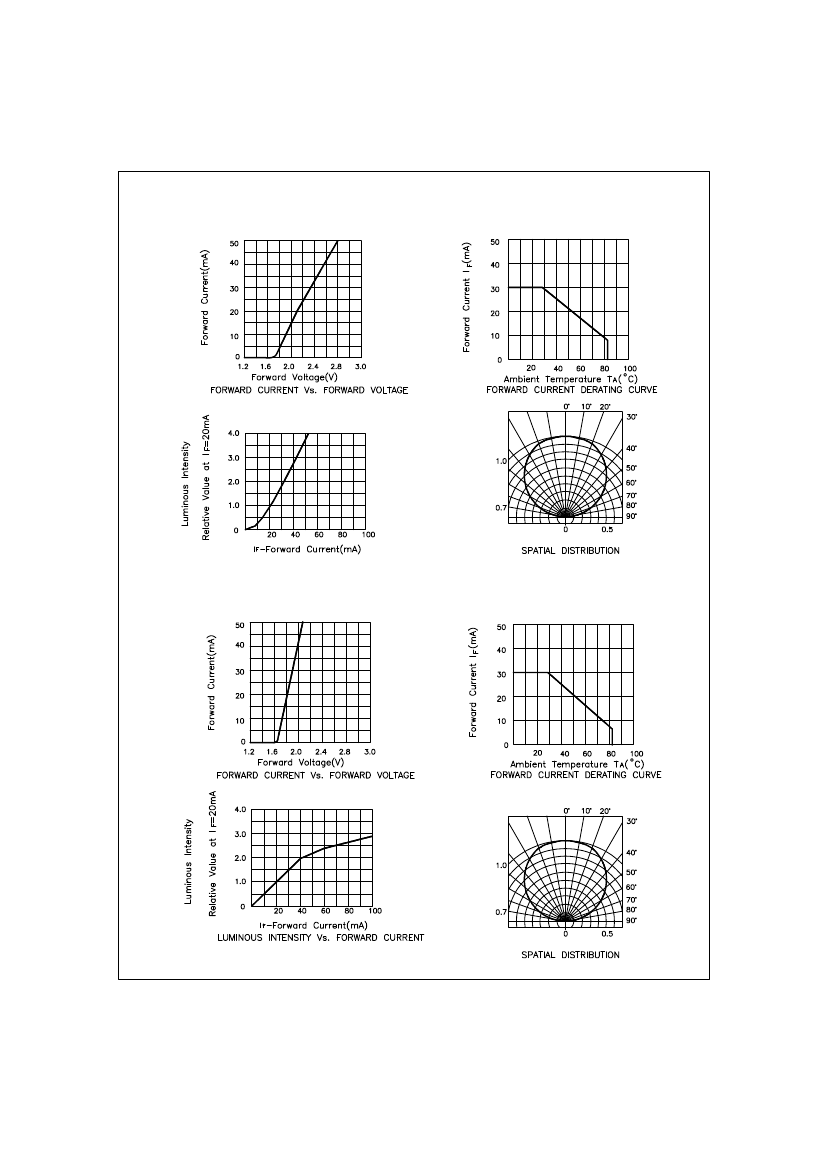

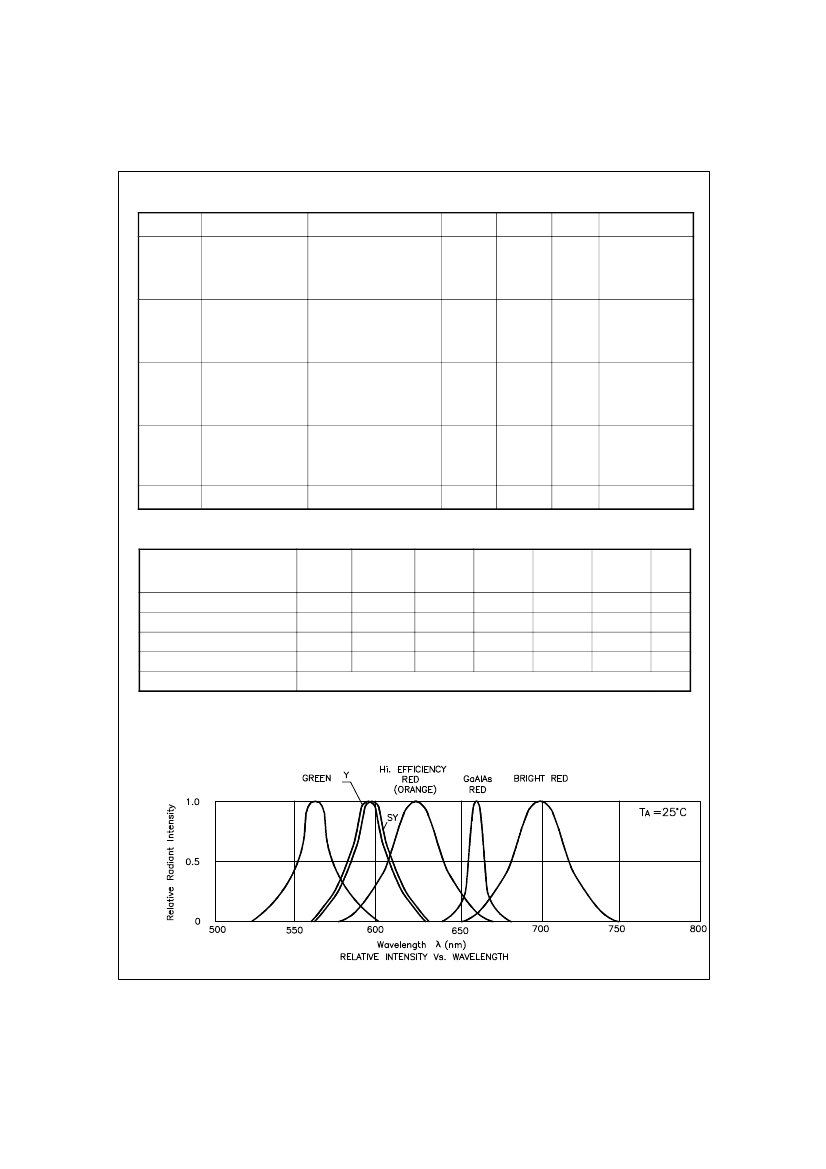

1-AP3216-1
