PUMA84S64000I-025

Description
SRAM Module, 2MX32, 25ns, CMOS, PQMA84, 30.35 X 30.35 MM, 6 MM HEIGHT, PLASTIC, LCC-84
Categorystorage    storage
File Size158KB,3 Pages
ManufacturerAPTA Group Inc
Download Datasheet Parametric View All

PUMA84S64000I-025 Overview

SRAM Module, 2MX32, 25ns, CMOS, PQMA84, 30.35 X 30.35 MM, 6 MM HEIGHT, PLASTIC, LCC-84

PUMA84S64000I-025 Parametric

Parameter NameAttribute value
MakerAPTA Group Inc
Parts packaging codeQMA
package instruction,
Contacts84
Reach Compliance Codeunknown
ECCN code3A991.B.2.A
Maximum access time25 ns
Other featuresUSER CONFIGURABLE AS 8M X 8
Spare memory width16
JESD-30 codeS-PQMA-S84
memory density67108864 bit
Memory IC TypeSRAM MODULE
memory width32
Number of functions1
Number of terminals84
word count2097152 words
character code2000000
Operating modeASYNCHRONOUS
organize2MX32
Package body materialPLASTIC/EPOXY
Package shapeSQUARE
Package formMICROELECTRONIC ASSEMBLY
Parallel/SerialPARALLEL
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Terminal formS BEND
Terminal locationQUAD

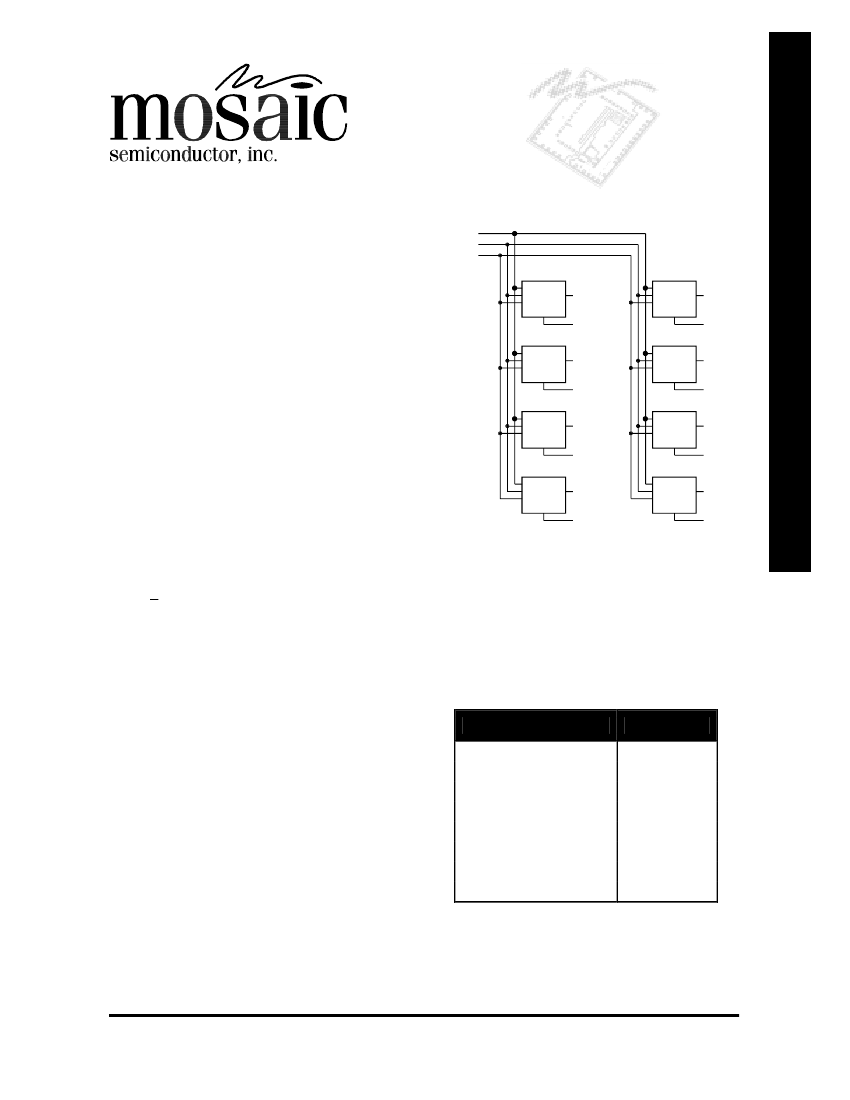

2M x 32 SRAM Module
PUMA 84S64000 - 015/020/025
Issue 5.0 December 1999
Description
The PUMA 84 range of devices provide a high
density, surface mount memory solution with
density up to twice that of standard monolithic
devices.
The PUMA 84 may accomodate various memory
technologies including SRAM, FLASH and
EEPROM. The devices are designed to offer a
defined upgrade path and may be user configured
as 8, 16 or 32 bits wide.
The PUMA 84S64000 is a 2M x 32, 5V SRAM
Module in a 84 ‘J’ Leaded package which complies
with the JEDEC 84 PLCC standard.
Access times of 15, 20 and 25ns are available.
The 5V device is available to commercial and
industrial temperature grade.
Block Diagram
A0 ~A19
/WE
/OE
1M x 8
SRAM
D0 ~ 7
/CS1
1M x 8
SRAM
D0 ~ 7
/CS5
1M x 8
SRAM
D8 ~ 15
/CS2
1M x 8
SRAM
D8 ~ 15
/CS6
1M x 8
SRAM
D16 ~ 23
/CS3
1M x 8
SRAM
D16 ~ 23
/CS7
1M x 8
SRAM
D24 ~ 31
/CS4
1M x 8
SRAM
D24 ~ 31
/CS8
Features
• Access times of 15, 20 and 25ns.
• 5.0V + 10% V
CC
.
• Commercial and Industrial temperature grades
• JEDEC Standard 84 ‘J’ Lead surface mount
package.
• May be organised as 2M x 32, 4M x 16 and
8M x 8
• Multiple Ground pins for maximum noise
immunity.
Pin Definition
See page 2.
Pin Functions
Description
Address Input
Data Input/Output
Chip Select
Write Enable
Output Enable
No Connect
Power
Ground
Signal
A0~A19
D0~D31
/CS1~8
/WE
/OE
NC
V
CC
V
SS
Package Details
PUMA 84 - Plastic 84 ‘J’ Leaded Package.
Max. Dimensions - 30.35 x 30.35 x 6.00 (nom)
All Dimensions in mm.
