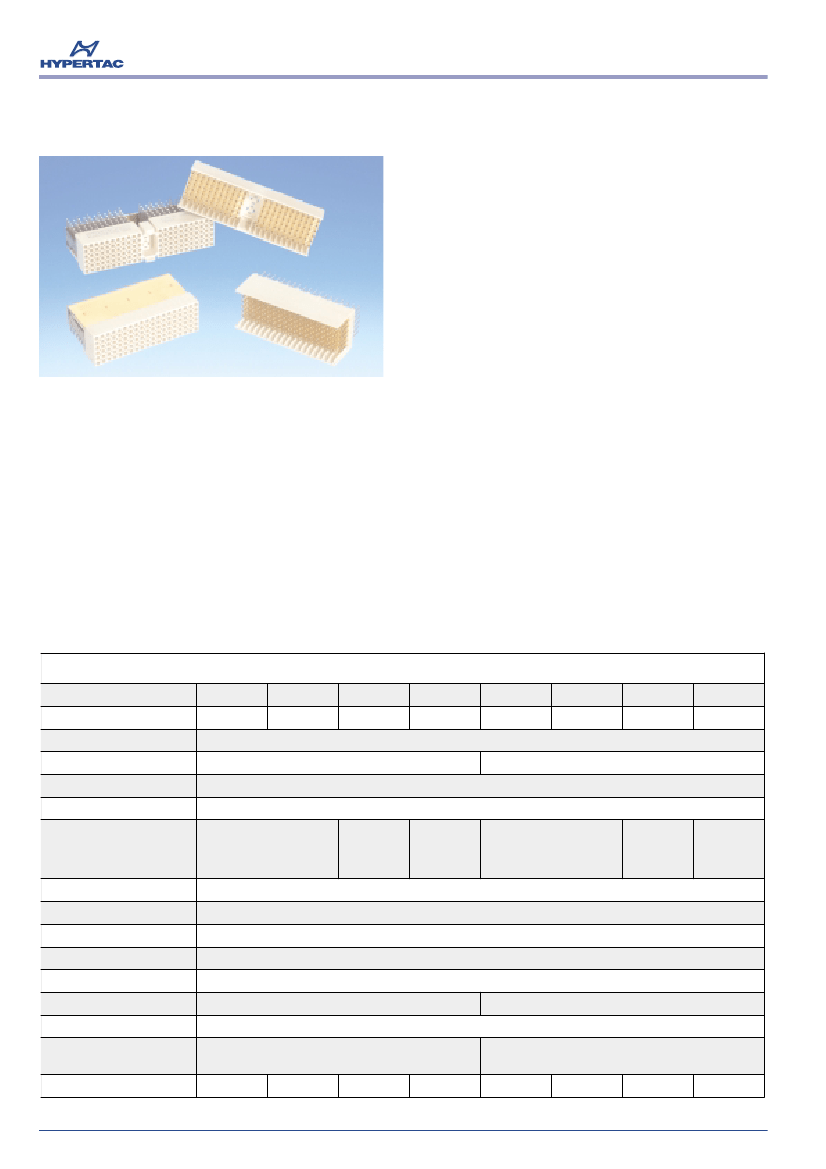

2MM Series
2mm Connectors
Interchangeable with cPCI COTS Systems
•
Hypertac
®
contacts provide high reliability
•
Standard 2mm footprint
•
Immune to shock & vibration
•
High-temp LCP insulator meets NASA outgassing
requirements
•
Compatible with IEC 1076-4 101
•
Press-in/compliant termination is also available for
receptacle assembly, consult factory
Subject to Export Control Procedure
Qualification Testing
The 2mm cPCI family of connectors has been flight qualification tested per Mil-DTL-55302, EEE-INST – 002 (NASA
Goddard Space Flight Center Document), GEVS-SE, Rev. A, General Environmental Verification Standard for STS &
ELV Payloads, Subsystems and Components. Testing included, but was not limited to:
LLCR:
DWV:
CRD:
Low Level Contact Resistance
Dielectric Withstanding Voltage
Contact Resistance
IR:
MFG:
Insultation Resistance
Mixed Flowing Gas
Should you require more information, please contact Technical Support.
General Specifications
3U / 6U form factor
Part number reference
Design criteria
Contact gender
Contact termination
Contact spacing
Number of contacts
110 signal
22 ground
Contact current rating
Temperature range
Insulator material
Flammability rating
Insulation resistance
Contact material
Mating contact plating
Suggested PCB hole
diameter
Weight
15.7 g
BeCu pin contacts
95 signal
19 ground
125 signal
25 ground
1 AMP
minus -55C to plus + 125C
30% Glass Filled LCP (meets NASA outgassing specification)
94 V-O
>5000 megohm
BeCu Hypertac socket wires / brass body
Male Pin
P1 / P4
P2 / P5
P3
J1 / J4
J2 / J5
J3
K2B95FFD
K2B125FFD
K2A110FMD K2B110FMD K2B95FMD K2B125FMD K2A110FFD K2B110FFD
IEC 1076-4 101
Hypertac 0.4 mm socket
Solder tail tin lead (60-40) per Mil-P-81728
2 mm
110 signal
22 ground
(top shield)
95 signal
19 ground
(top shield)
125 signal
25 ground
(top shield)
50 micro inch gold / 50 micro inch nickel
0.7 mm after plating
15.0 g
12.9 g
12.2 g
10.9 g
0.6 mm after plating
10.8 g
8.9 g
12.3 g
SEPTEMBER
2006
23
2MM Series
PERFORMANCE SPECIFICATIONS
3U / 6U form factor
Part number reference
CRD (resistance @ rat-
ed current)
LLCR ( low level
contact resistance)
DWV (dielectric
withstanding voltage)
Contact life
(mate / demate)
Mating force
Demating force
Vibration (Sinusoidal)*
Vibration (Random)**
Mechanical shock*
P1 / P4
P2 / P5
P3
K2B95FMD
K2B125FMD
J1 / J4
K2A110FFD
J2 / J5
K2B110FFD
J3
K2B95FFD
K2B125FFD
K2A110FMD K2B110FMD
4.85 milliohms average
7.20 milliohms average
1000 VRMS
> 4000 Cycles (mated connector pair)
16.38 LBF average (per mated connector pair)
13.2 LBF average (per mated connector pair)
Frequency 10 to 2000 HZ at 15 G (MIL-DTL-55302)
Flight chassis unit level vibration (NASA Goddard GEVS SE Rev A)
100 G peak value (MIL-DTL-55302)
*
Testing was performed to determine if fretting occurs due to mechancial motion and to evaluate the integrity of
the Hypertac contact system relative to severe shock. To validate the test, low nanosecond event detection was
perfromed at 10 nanoseconds.
There were no events recorded.
** Testing was performed using a 6U Flight Chassis to determine if fretting occurs due to mechanical motion and
to evaluate the integrity of the test samples relative to severe mechanical eniviroment.To validate the test, low
nanosecond event detection was performed at 50 nanoseconds.
There were no events recorded.
2mm Connector
2mm Connector Mated Pair
24
SEPTEMBER
2006
2MM Series

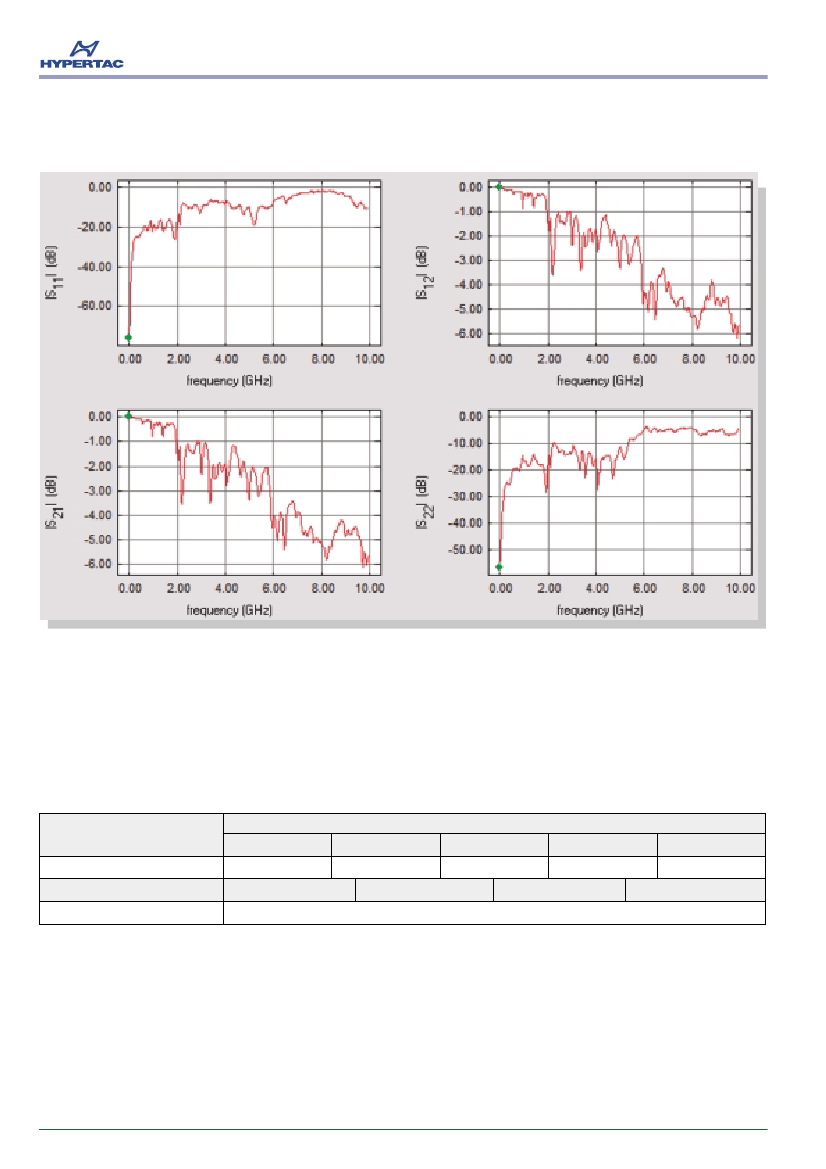

J0/P0 High Speed Electrical Performance
1. Differential S-parameter
1, 2
2. Propagation Delay and Skew
Propagation delay through the intrinsic connector assembly is estimated by making a measurement on the reflected
signal received on the same broadband fixture that is used to obtain the full vector scattering parameters. In these
measurements, there is no inclusion of any other pin lengths other than what is within the intrinsic connector.
Parameters
Propagation Delay (ps)
Skew (ps)
Maximum Data Rate 2
Connector Row
a
68
22
b
90
22
3.125 Gb/s
c
112
22
d
134
22
e
156
Notes:
1) Pattern illustrated in the figure on next page was used in the S-parameter and cross talk measurements.
2) Please refer to the full characterization test report for details
SEPTEMBER
2006
25
2MM Series

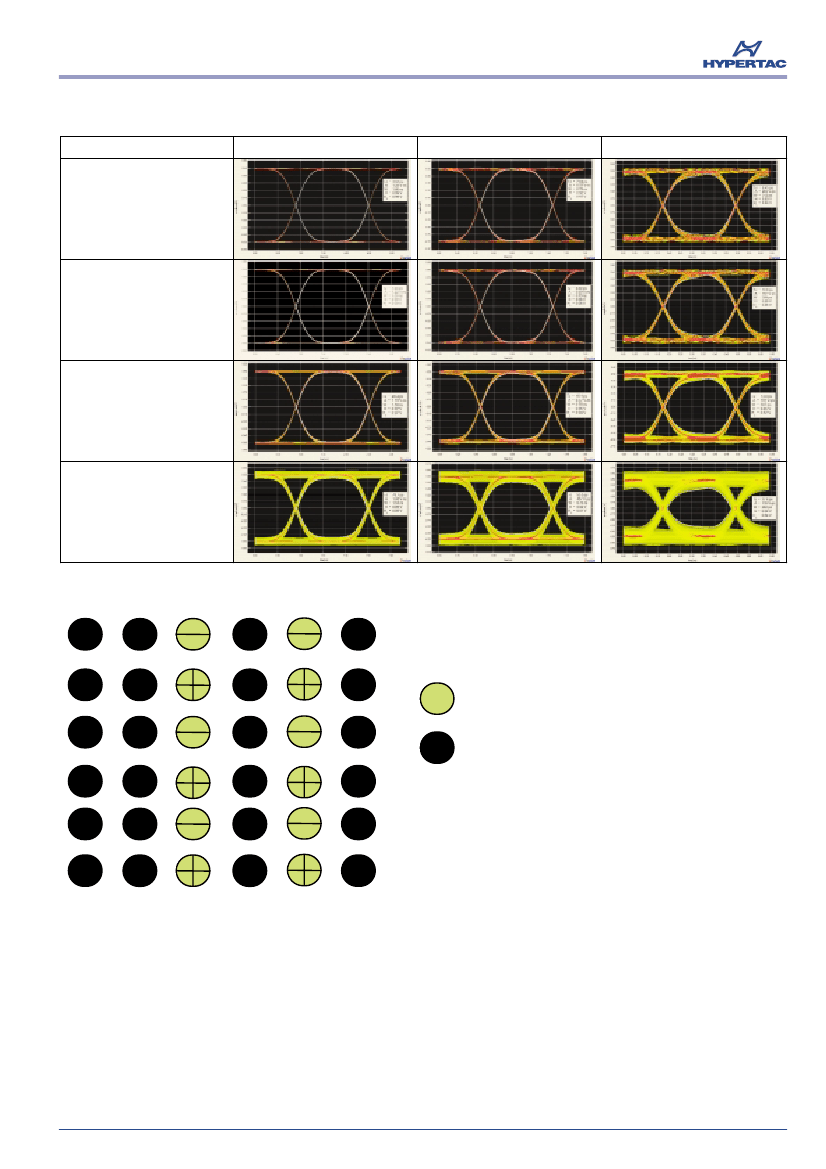

3. Connector Eye-Pattern-Diagram
622 Mb/s
1.25 Gb/s
1, 2
3.125 Gb/s
Intrinsic
With inclusion of
PCB VIAs
With inclusion of
near end cross talk
(aggressor/ victim
= 30%)
With inclusion of
near end cross talk
(aggressor/ victim
= 100%)
f
e
1&2
d
c
b
a
Differential Pairs
3&4
Ground
Notes:
1) Pattern illustrated in the figure above was used in the S-parameter and cross talk measurements.
2) Please refer to the full characterization test report for details
26
SEPTEMBER
2006
2MM Series

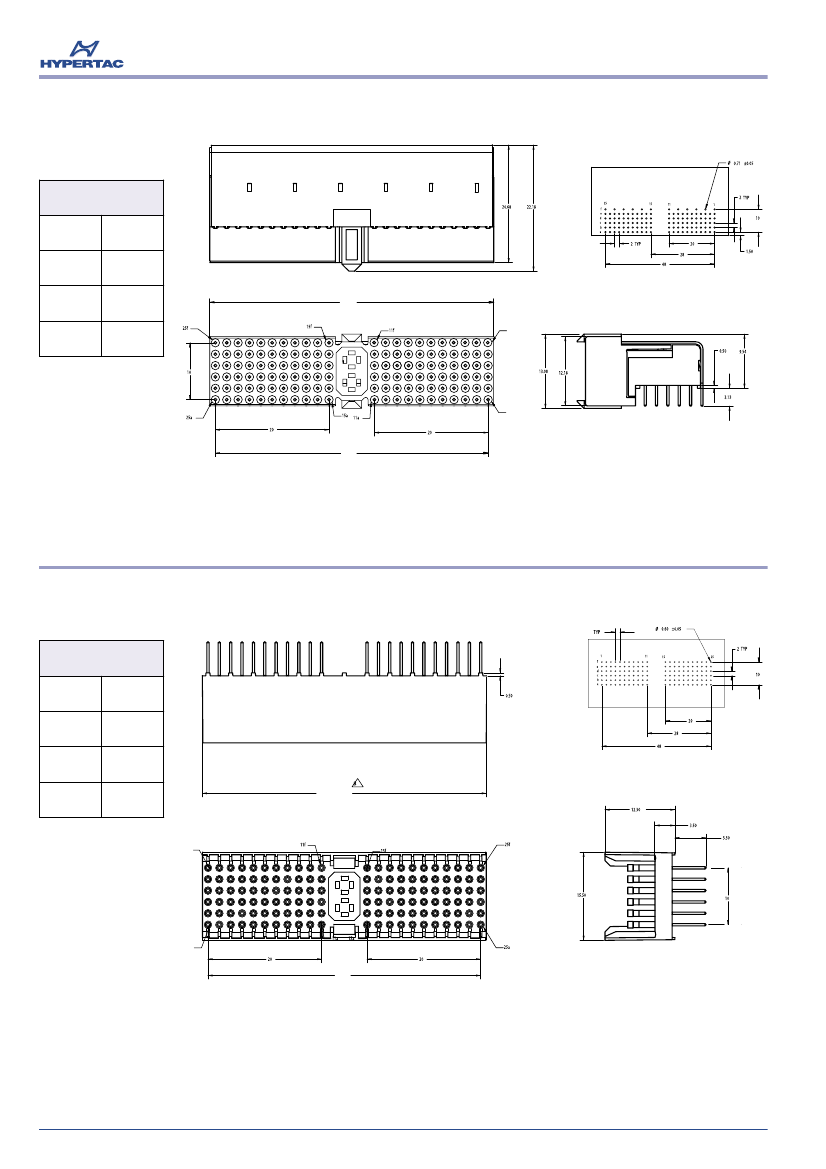

K2A Male - K2A110FMDTBH
PCB Layout
Connector
Dimensions
A
B
C
D
49.98
48
1f
1a
A
C
D
B
K2A Female - K2A110FFDTABH
2
PCB Layout
Connector
Dimensions
A
B
C
D
49.98
48
1f
1a
C
A
D
B
Dimensions are in mm
SEPTEMBER
2006
27
