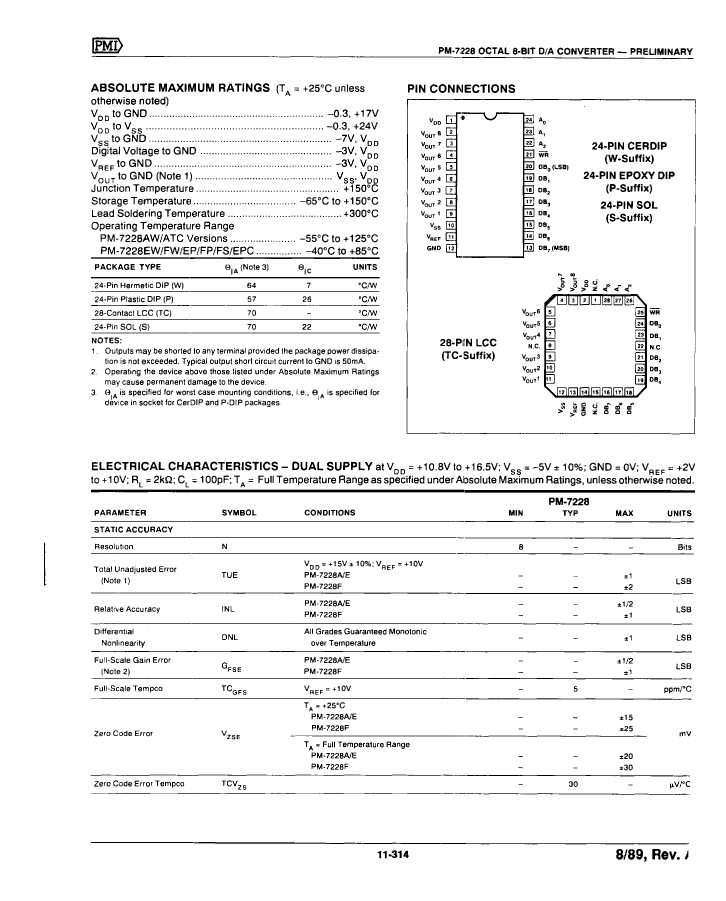

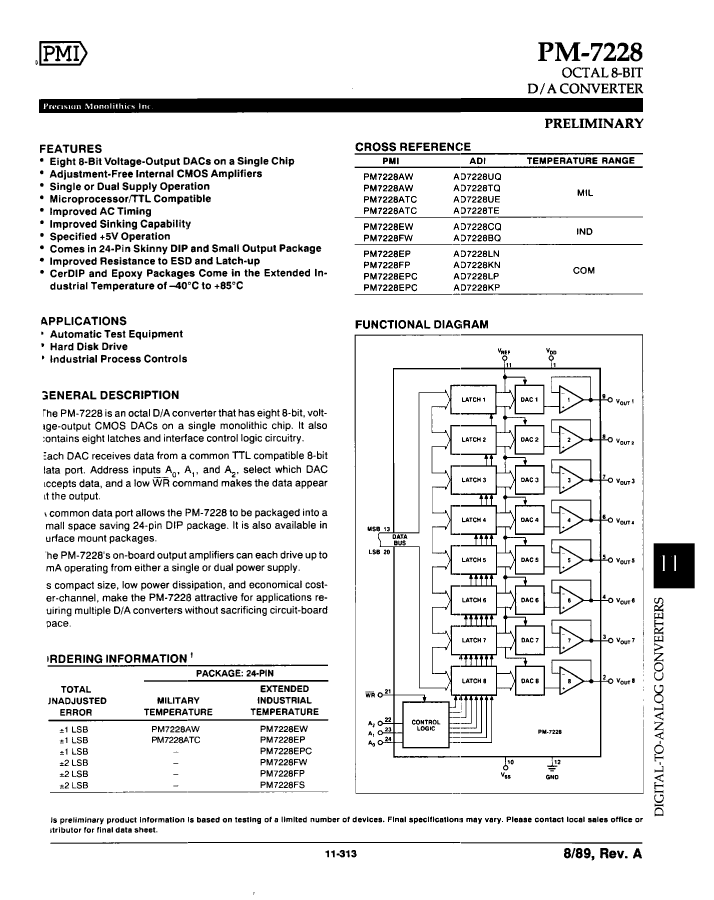

IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PQCC28, PLASTIC, LCC-28, Digital to Analog Converter

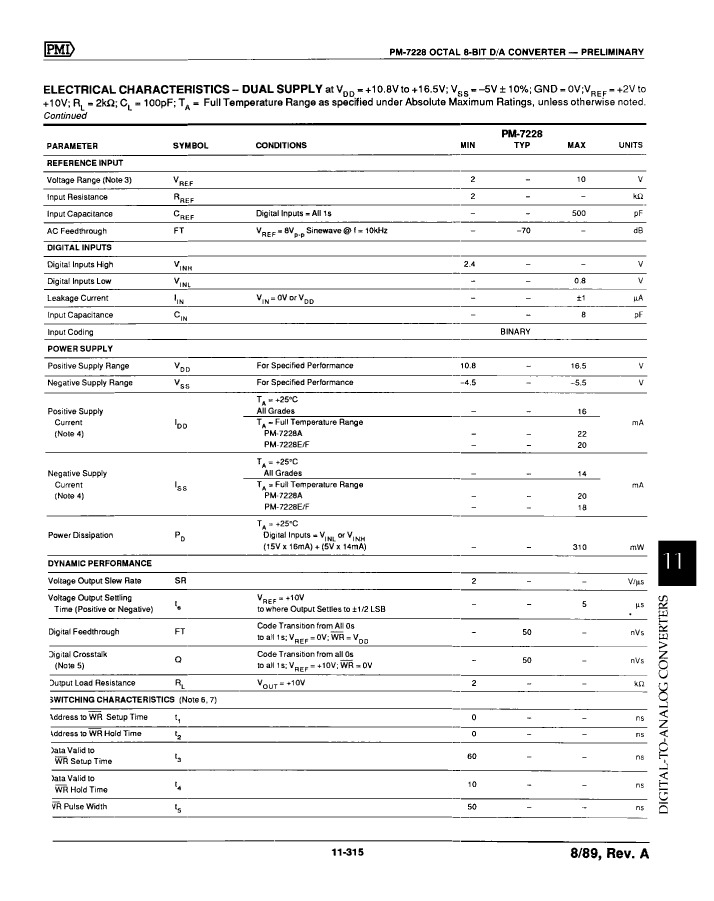

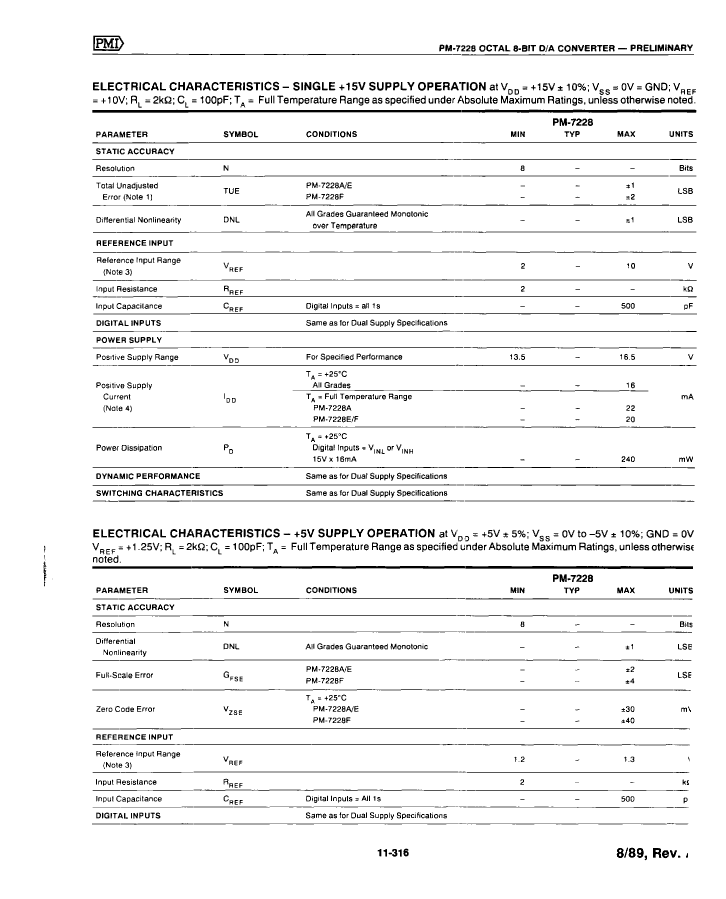

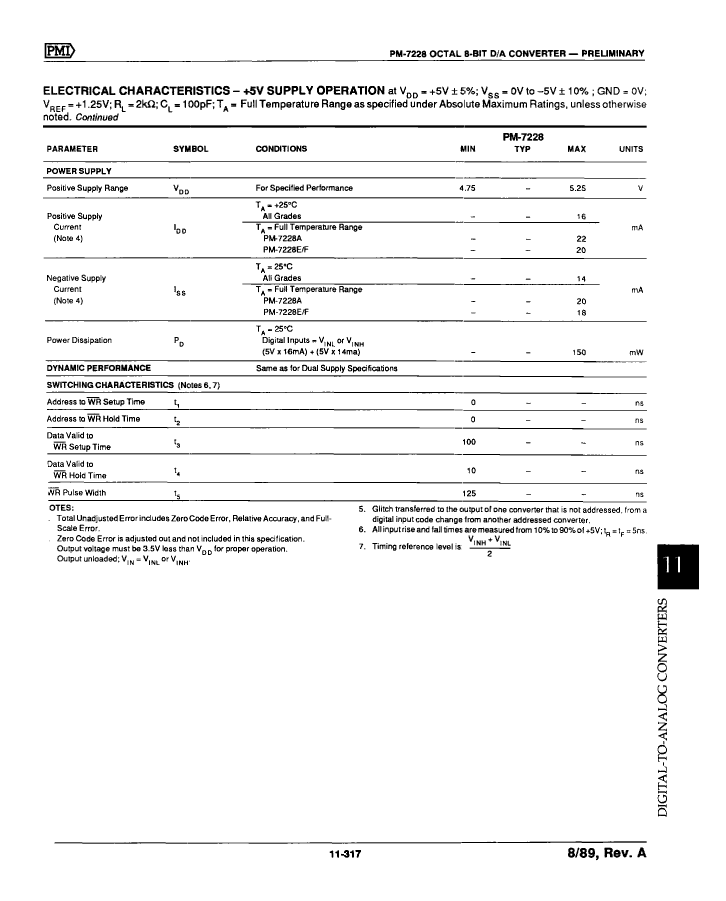

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | ADI |
| package instruction | PLASTIC, LCC-28 |
| Reach Compliance Code | compliant |
| Maximum analog output voltage | 15 V |
| Minimum analog output voltage | -5 V |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY, OFFSET BINARY |
| Input format | PARALLEL, 8 BITS |
| JESD-30 code | S-PQCC-J28 |
| JESD-609 code | e0 |
| length | 11.506 mm |
| Maximum linear error (EL) | 0.195% |
| Nominal negative supply voltage | -5 V |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 28 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 4.57 mm |
| Maximum stabilization time | 5 µs |
| Maximum slew rate | 16 mA |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | TIN LEAD |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 11.506 mm |
| PM7228EPC | PM7228FW | PM7228EW | PM7228ATC | |
|---|---|---|---|---|
| Description | IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, PQCC28, PLASTIC, LCC-28, Digital to Analog Converter | IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, CDIP24, CERDIP-24, Digital to Analog Converter | IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, CDIP24, CERDIP-24, Digital to Analog Converter | IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, CQCC28, LCC-28, Digital to Analog Converter |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | ADI | ADI | ADI | ADI |
| package instruction | PLASTIC, LCC-28 | CERDIP-24 | CERDIP-24 | LCC-28 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Maximum analog output voltage | 15 V | 15 V | 15 V | 15 V |
| Minimum analog output voltage | -5 V | -5 V | -5 V | -5 V |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY | BINARY, OFFSET BINARY |
| Input format | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS |
| JESD-30 code | S-PQCC-J28 | R-GDIP-T24 | R-GDIP-T24 | S-CQCC-N28 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Maximum linear error (EL) | 0.195% | 0.391% | 0.195% | 0.195% |
| Nominal negative supply voltage | -5 V | -5 V | -5 V | -5 V |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 24 | 24 | 28 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -55 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCJ | DIP | DIP | QCCN |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | CHIP CARRIER | IN-LINE | IN-LINE | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.57 mm | 5.08 mm | 5.08 mm | 2.54 mm |
| Maximum stabilization time | 5 µs | 5 µs | 5 µs | 5 µs |
| Maximum slew rate | 16 mA | 16 mA | 16 mA | 16 mA |
| surface mount | YES | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | MILITARY |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | J BEND | THROUGH-HOLE | THROUGH-HOLE | NO LEAD |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | DUAL | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 11.506 mm | 7.62 mm | 7.62 mm | 11.43 mm |
