PM7228EPC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> PM7228EPC

PM7228EPC: DescriptionD/A Converter, 8 Func, PDIP24,; CategoryAnalog mixed-signal IC converter; File Size567KB，9 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

PM7228EPC Overview

D/A Converter, 8 Func, PDIP24,

PM7228EPC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Precision Monolithics Inc
Objectid	1438528239
Reach Compliance Code	unknown
compound_id	293948876
Converter type	D/A CONVERTER
Enter bit code	BINARY
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.2%
Number of digits	8
Number of functions	8
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15,GND/-5 V
Certification status	Not Qualified
Maximum stabilization time	5 µs
Maximum slew rate	20 mA
surface mount	NO
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

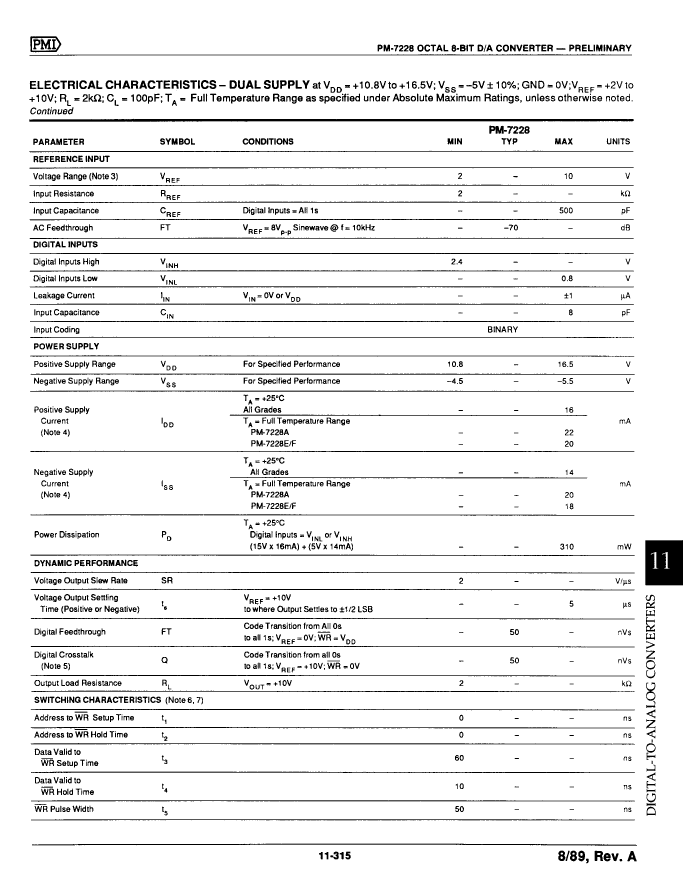

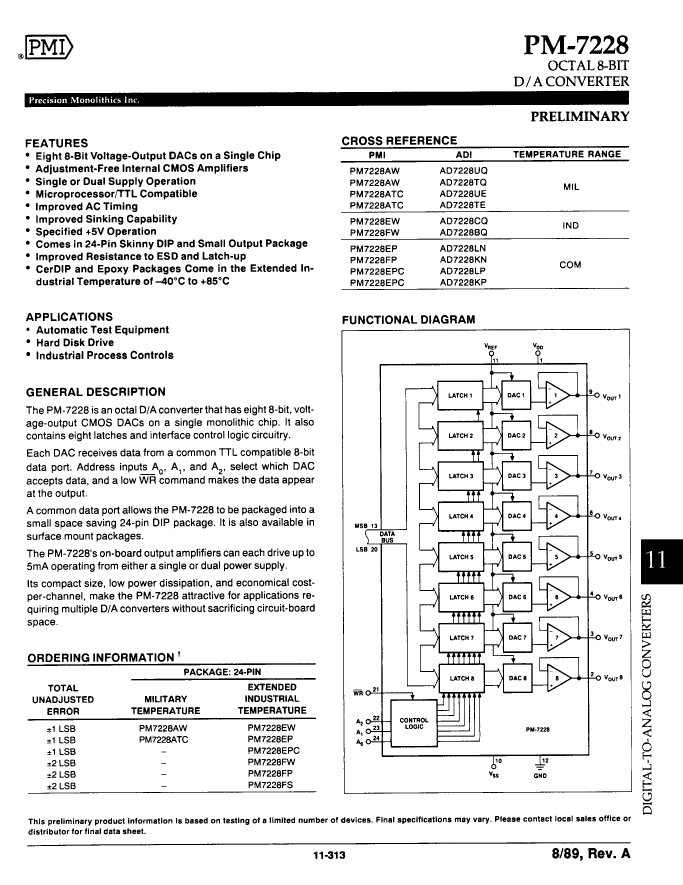

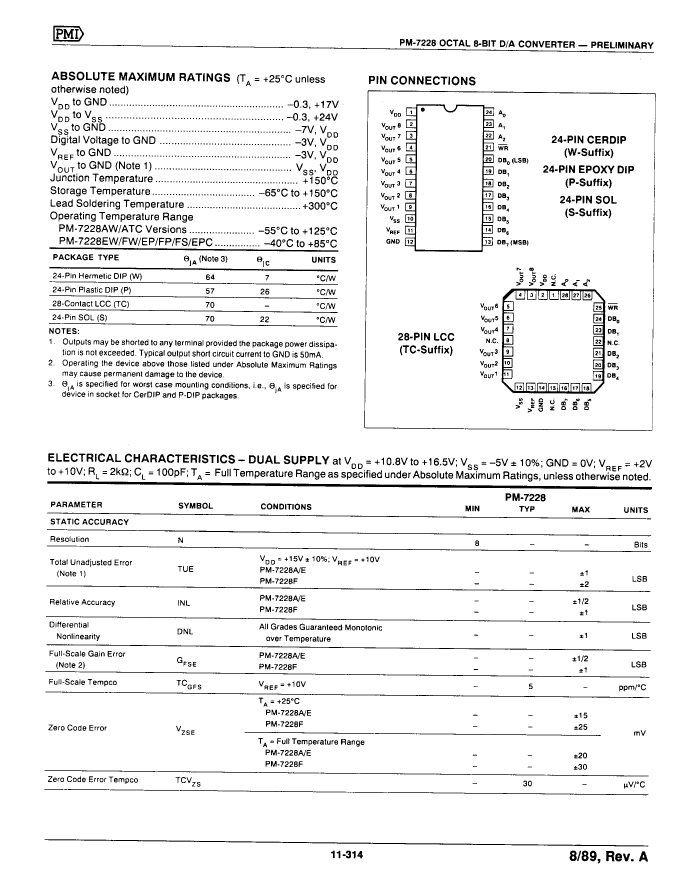

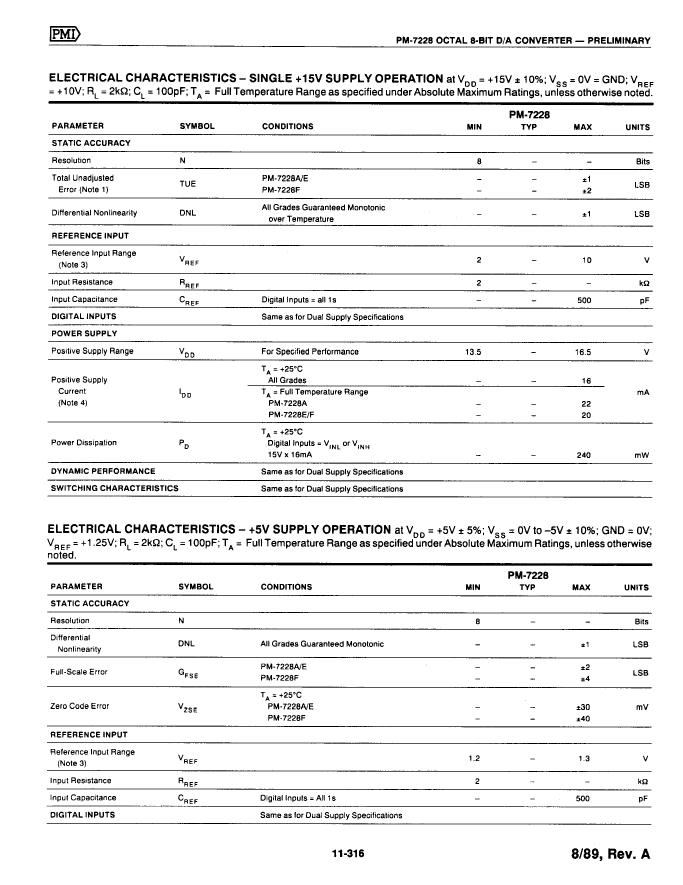

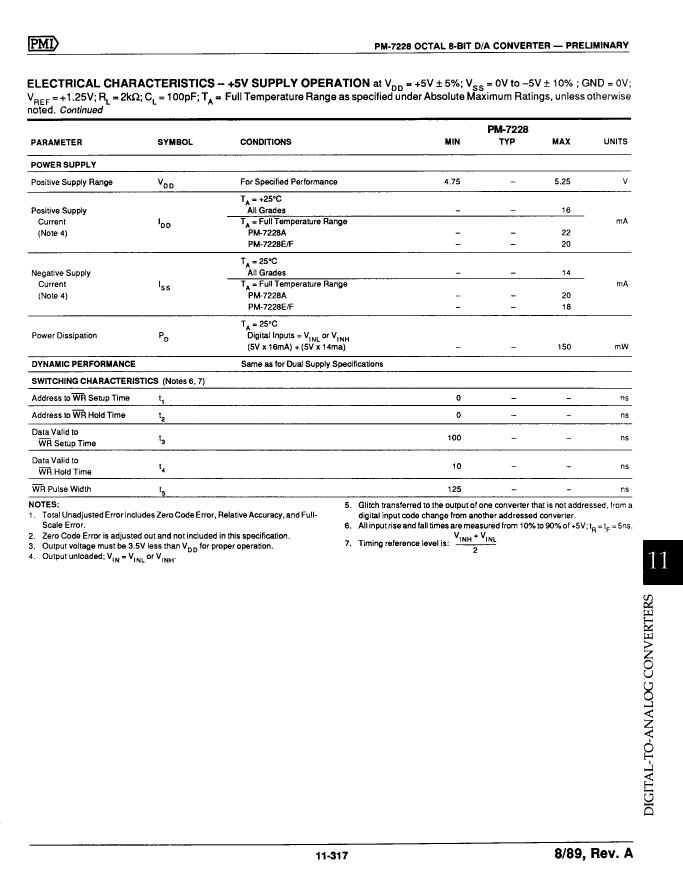

Preview

Download Datasheet

View All

PM7228EPC Related Products

	PM7228EPC	PM7228FP	PM7228FS	PM7228FW	PM7228AW	PM7228ATC	PM7228EP	PM7228EW
Description	D/A Converter, 8 Func, PDIP24,	D/A Converter, 8 Func, PDIP24,	D/A Converter, 8 Func, PDSO24,	D/A Converter, 8 Func, CDIP24,	D/A Converter, 8 Func, CDIP24,	D/A Converter, 8 Func, PQCC28,	D/A Converter, 8 Func, PDIP24,	D/A Converter, 8 Func, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
JESD-30 code	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-GDIP-T24	R-GDIP-T24	S-PQCC-N28	R-PDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.2%	0.39%	0.39%	0.39%	0.2%	0.2%	0.2%	0.2%
Number of digits	8	8	8	8	8	8	8	8
Number of functions	8	8	8	8	8	8	8	8
Number of terminals	24	24	24	24	24	28	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	125 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	QCCJ	DIP	SOP	DIP	DIP	QCCN	DIP	DIP
Encapsulate equivalent code	LDCC28,.5SQ	DIP24,.3	SOP24,.4	DIP24,.3	DIP24,.3	LCC28,.45SQ	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5/15,GND/-5 V	5/15,GND/-5 V	5/15,GND/-5 V	5/15,GND/-5 V	5/15,GND/-5 V	5/15,GND/-5 V	5/15,GND/-5 V	5/15,GND/-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	22 mA	22 mA	20 mA	20 mA
surface mount	NO	NO	YES	NO	NO	YES	NO	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	-	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
